Soccer Safari (Vending) Go! Go! Go! Soccer Safari Is Fun, Fast And Compulsive.

  • 트위터로 보내기
  • 페이스북으로 보내기
  • 구글플러스로 보내기
Tags
Dimensions 559mm x 889mm x 1,689mm
22" x 35" x 66"
Box Size 1,219mm x 711mm x 1,625mm
48" x 28" x 64"
Shipping Weight 158 kg / 348 lbs
Power 85W
INQUIRY
PARTS INQUIRY

SUPPORT

  • Leaflets

  • Manuals

  • Trouble shooting Document

  • WATCH & SOLVE

FEATURES

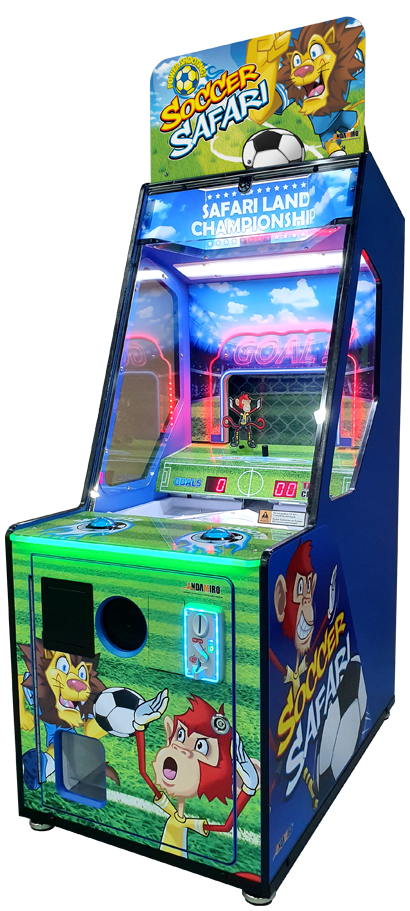

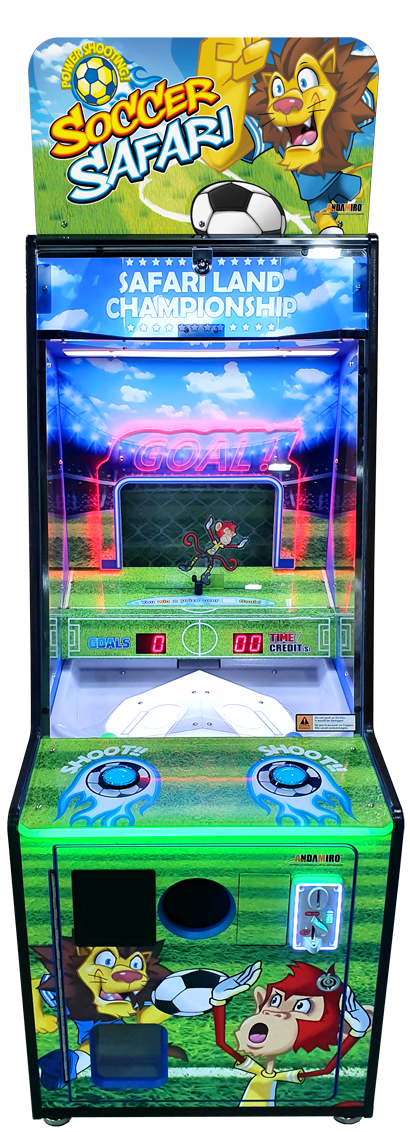

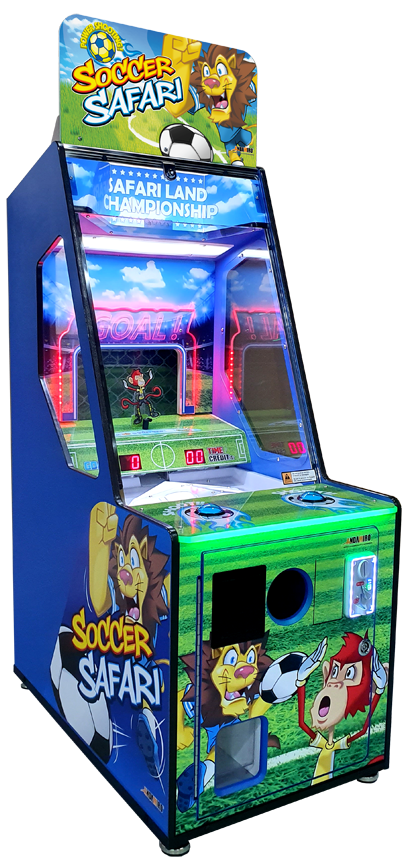

Go! Go! Go! Soccer Safari Is Fun, Fast And Compulsive. Reach The Winning Score To Win A Prize.



This compact power-shooting game deck out in colorful “safari graphics is ideal for bulk vending locations,

route operations and FECs. Soccer Safari is bill acceptor ready and includes dual coin comparitors.

It vends 2” round capsules or novelty balls and holds up to 200 prize units. Prizes are “self-transporting,”

descending on delivery ramp from the storage bin to the prize door. Soccer Safari is fast, fun and compulsive.

The player fires mini soccer balls using two buttons (tapping with both hands).

The objective is to shoot the balls past the moving goalkeeper to score as many points as possible.

Game time and winning points are adjustable, allowing operators to tailor gameplay.

Interactive lights and background audio enhance gameplay.

GALLERY

PARTS


동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 52Parts

No. Part name Part picture Code Info Part picture Part Add
1

AC INPUT ASS'Y

DAC-13H,WITH FUSE10A_2EA

AC INPUT ASS'Y

AELE0FUS002

Part picture

2

BALL COLOR_SAFARI6종

노랑 하늘 연두 분홍 보라 파랑

BALL COLOR_SAFARI6종

MZZZ0BLL014

Part picture

3

BALL TRAFFIC JAM SHAFT

BALL TRAFFIC JAM SHAFT

MSSF0PRO005

Part picture

4

BEARING

F686ZZ

BEARING

MZZZ0BEA094

Part picture

5

BEARING

MF126ZZ

BEARING

MZZZ0BEA137

Part picture

6

BEARING BUSHING

BEARING BUSHING

MSSF0PRO006

Part picture

7

BEARING FIX WASHER

BEARING FIX WASHER

MSSF0PRO007

Part picture

8

BEARING WASHER

BEARING WASHER

MSSF0PRO008

Part picture

9

BUTTON SWITCH

P&H_0.0.0.203-10

BUTTON SWITCH

MZZZ0BUT090

Part picture

10

CAPSULE HOPPER

.

CAPSULE HOPPER

MZZZ0HOP075

Part picture

11

COIN BOX ASS WITH 6001

SMALL 200*198*107

COIN BOX ASS WITH 6001

AZZZ0ASS002

Part picture

[COIN BOX ASS WITH 6001] COIN BOX SMALL

200*198*107 BLACK

[COIN BOX ASS WITH 6001] COIN BOX SMALL

MDRE0PLA007

Part picture

[COIN BOX ASS WITH 6001] KEY ASS'Y 6001

6001 키뭉치만

[COIN BOX ASS WITH 6001] KEY ASS'Y 6001

MZZZ0KEY075

Part picture

12

COIN SELECTOR

TW-389

COIN SELECTOR

MZZZ0COS052

Part picture

13

COUNTER

OA127CL W/2P CONNECTOR_20CM WIRE

COUNTER

MZZZ0COU002

Part picture

14

CPU PCB ASS'Y

ADSTAR

CPU PCB ASS'Y

ASSF0PCB005

Part picture

15

FLEX_3528_GREEN_450_NWP_L_27

T3528 TOP300구 27알

FLEX_3528_GREEN_450_NWP_L_27

MELE0LED062

Part picture

16

FLEX_3528_GREEN_450_NWP_L_27

T3528 TOP300구 27알

FLEX_3528_GREEN_450_NWP_L_27

MELE0LED062

Part picture

17

FLEX_5050_RGB_650_NWP_L_39

T5050 TOP300구 39알

FLEX_5050_RGB_650_NWP_L_39

MELE0LED079

Part picture

18

FND PCB ASS'Y

2941-2(STRAIGHT)

FND PCB ASS'Y

AFND0PCB003

Part picture

19

GOALKEEPER ACRYL FIX HOLDER

GOALKEEPER ACRYL FIX HOLDER

MSSF0PRO009

Part picture

20

KEY ASS'Y 7001

7001 키뭉치만

KEY ASS'Y 7001

MZZZ0KEY076

Part picture

21

LED BAR 12V ASS'Y

460MM

LED BAR 12V ASS'Y

AZZZ0PCB124

Part picture

22

LED STICK BAR BRK

12MM 90도

LED STICK BAR BRK

MELE0000022

Part picture

23

MAIN PCB ASS'Y

ADSTAR

MAIN PCB ASS'Y

ASSF0PCB001

Part picture

24

MOLD-BALL GROUND

.

MOLD-BALL GROUND

MSSF0PLA001

Part picture

25

MOTOR

KGE-3448-050-12V_1/204 F-TYPE

MOTOR

MZZZ0MOT072

Part picture

26

MOTOR

KGC-040-3429C

MOTOR

MZZZ0MOT089

Part picture

27

NOISE FILTER

RNS-2010

NOISE FILTER

MELE0NOI009

Part picture

28

PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture

29

PIN

PIN

MSSF0PRO011

Part picture

30

PLAYFIELD NUMBER STICKER

일반향/스펀지밥향 공용

PLAYFIELD NUMBER STICKER

MSSF0STI001

Part picture

31

PLUG CUSHION RUBBER

공진 [KD-96R-9] 6MM

PLUG CUSHION RUBBER

MCIR0RUB001

Part picture

32

POWER SMPS

RS-75-5

POWER SMPS

MELE0SMP040

Part picture

33

POWER SMPS

LRS 150F-12

POWER SMPS

MELE0SMP090

Part picture

34

POWER SMPS

LRS 150F_24

POWER SMPS

MELE0SMP085

Part picture

35

ROCKER SWITCH

R595KDF

ROCKER SWITCH

MELE0SWI021

Part picture

36

SENSOR_R PCB ASS'Y

.

SENSOR_R PCB ASS'Y

MEIF0PAR014

Part picture

37

SENSOR_T PCB ASS'Y

R1 330 옴

SENSOR_T PCB ASS'Y

ASSF0PCB002

Part picture

38

SOL FET 2CH PCB ASS'Y

공용_12V_2CH

SOL FET 2CH PCB ASS'Y

AZZZ0PCB203

Part picture

39

SOLENOID ASS'Y

ASSF0PRO001,MSSF0PRO012,MSSF0SPR001,MELE

SOLENOID ASS'Y

ASSF0SOL001

Part picture

[SOLENOID ASS'Y] SOLENOID CORE

[SOLENOID ASS'Y] SOLENOID CORE

MSSF0PRO012

Part picture

[SOLENOID ASS'Y] SOLENOID SHAFT ASS'Y

MSSF0PRO013,014

[SOLENOID ASS'Y] SOLENOID SHAFT ASS'Y

ASSF0PRO001

Part picture

[SOLENOID ASS'Y] SOLENOID SPRING

.

[SOLENOID ASS'Y] SOLENOID SPRING

MSSF0SPR001

Part picture

40

SPEAKER

MID4.5"+TW1/2" 8Ω

SPEAKER

MZZZ0SPE021

Part picture

41

STATIC OFF SPRAY

.

STATIC OFF SPRAY

AZZZ0000110

Part picture

[STATIC OFF SPRAY] 공병스프레이

정전기방지제 60ML

[STATIC OFF SPRAY] 공병스프레이

XAAA0000005

Part picture

42

TERMINAL BLOCK

KTB1-020 6P UL_CE

TERMINAL BLOCK

MELE0TEB001

Part picture

43

TIMMING BELT

232MXL,W4.8 RUBBER

TIMMING BELT

MZZZ0BEL048

Part picture

44

TIMMING PULLEY

MXL-29

TIMMING PULLEY

MZZZ0PLA040

Part picture

45

VOLUME PCB ASS'Y

1 VOLUME

VOLUME PCB ASS'Y

AHM20PCB016

Part picture

46

WEIGHT

WEIGHT

MSSF0PRO016

Part picture
