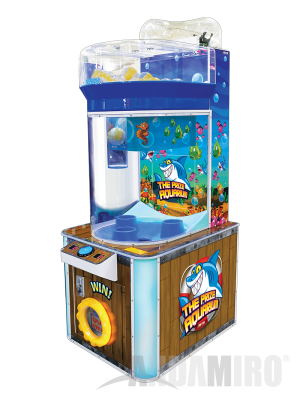

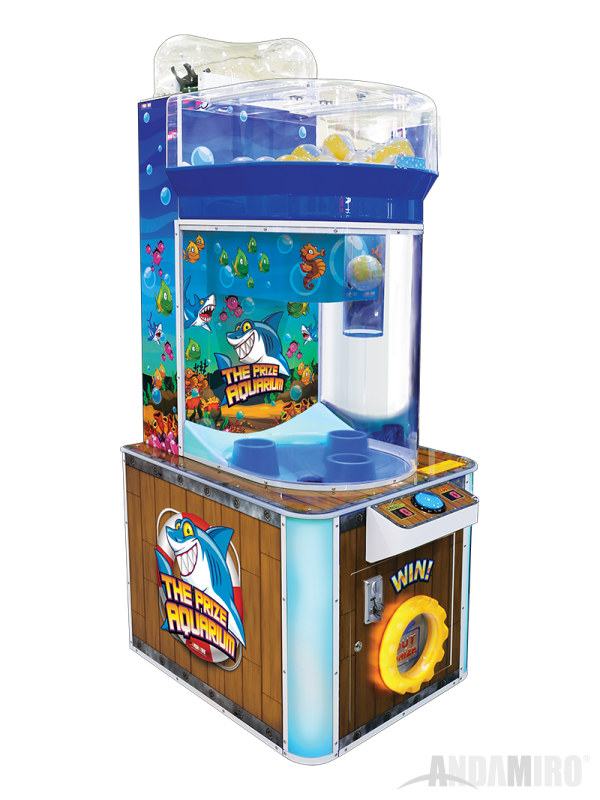

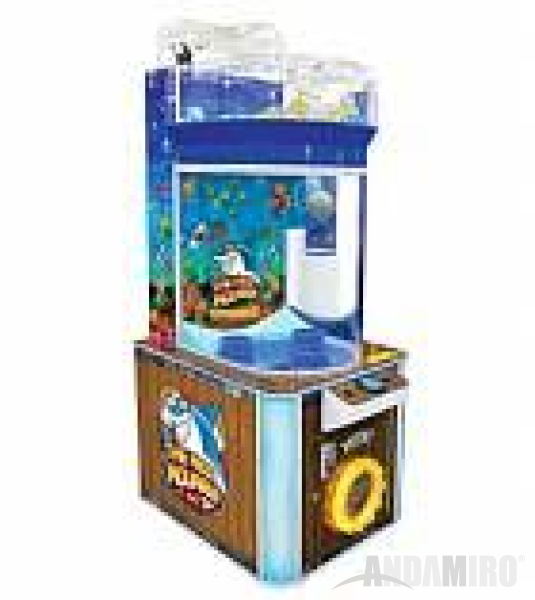

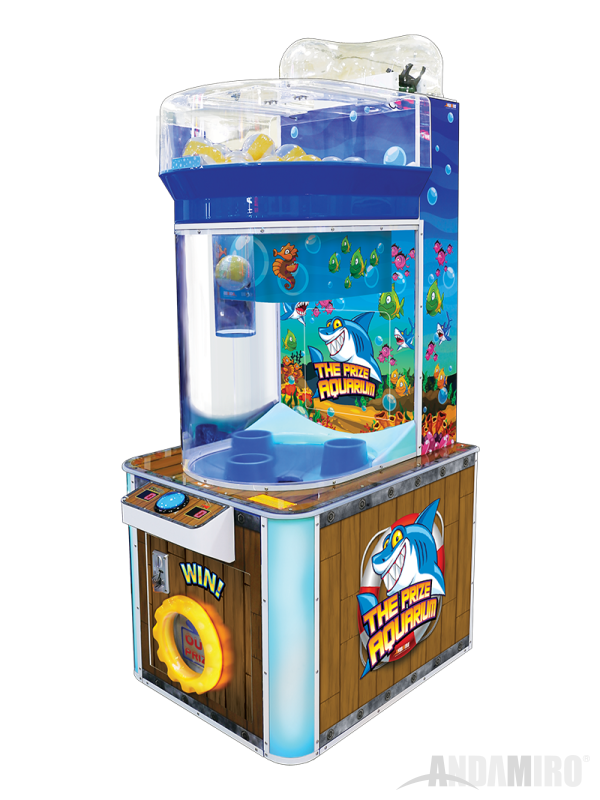

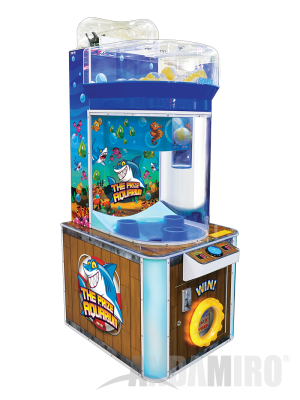

PRIZE REDEMPTION THE PRIZE AQUARIUM Entertaining and fun gravity game!

Short url COPY http://www.andamiro.com/games/theprizeaquarium

Tags ThePrizeAquarium Prize

Dimensions 760mm x 1,000mm x 1,802mm
30" x 39" x 71"

Packing Dimensions 860mm x 1,100mm x 2,200mm
34" x 43" x 87"

Product Weight 145 kg / 320 lbs

Packing Weight 170 kg / 375 lbs

Power 120W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

- Simple one-button operation : credit game, press button, capsule drops.

- Player times the release of prize capsule.

- 3 target holes are part of revolving prize wheel.

- Drop capsule in one of three holes to win.

- Missed capsules automatically reload.

- Overhead bin holds up to 45 capsules.

- 4" capsules accommodate wide variety of prizes.

- Vibrant cabinet graphics and lively soundtrack.

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 43Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

PARTS INQUIRY

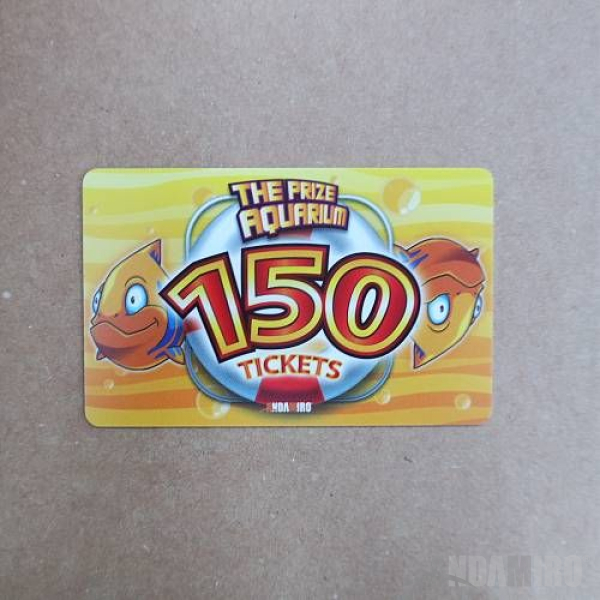

1	CARD_200PCS AQUARIUM VER USA	CARD_200PCS A2220TPA001	Part picture

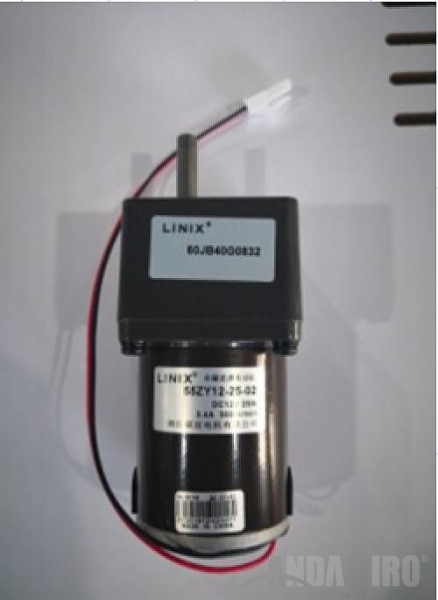

2	MAIN WHEEL MOTOR_LINIX 55ZY12-25-02 DC12V 25W 3.4A 3000RPM	MAIN WHEEL MOTOR_LINIX 55ZY12-25-02 MTPA0PAR001	Part picture

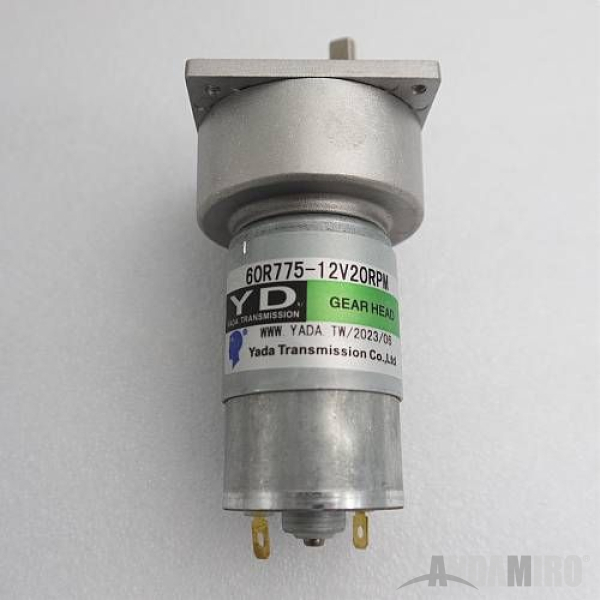

3	CAPSULE MOTOR_ELEVATOR_HOPPER RS 775SH 12V 1800RPM	CAPSULE MOTOR_ELEVATOR_HOPPER MTPA0PAR002	Part picture

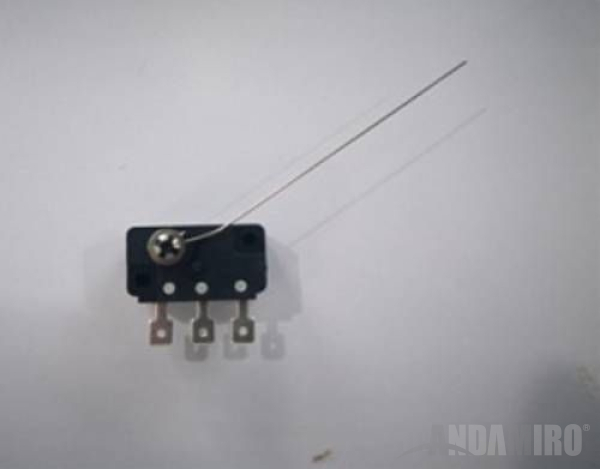

4	MICRO SWITCH_TOP	MICRO SWITCH_TOP MTPA0PAR003	Part picture

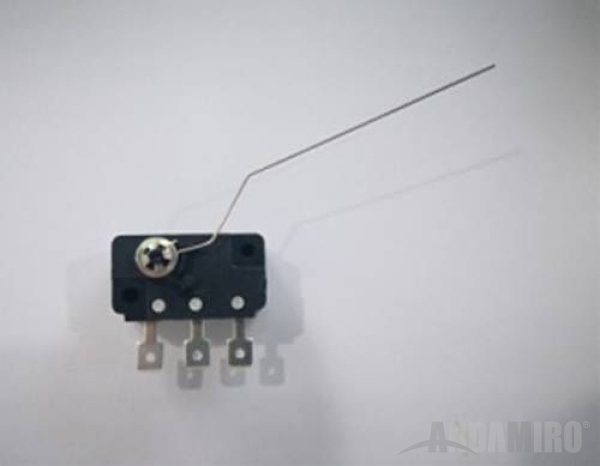

5	MICRO SWITCH_SOL	MICRO SWITCH_SOL MTPA0PAR004	Part picture

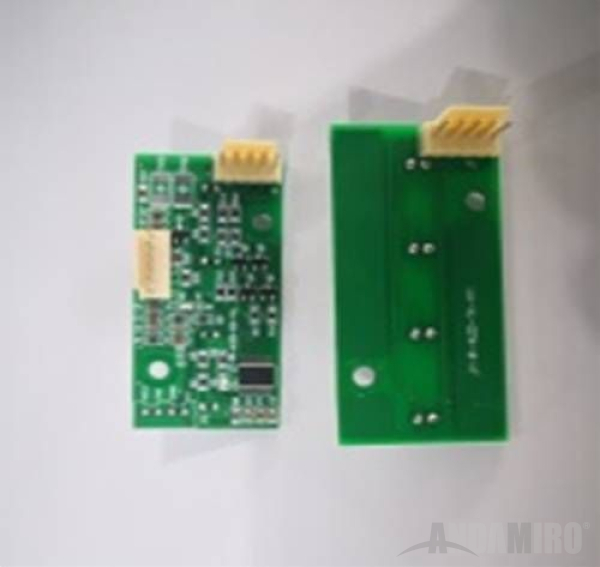

6	PRZIE OUT SENSOR PCB SET	PRZIE OUT SENSOR PCB SET MTPA0PAR005	Part picture

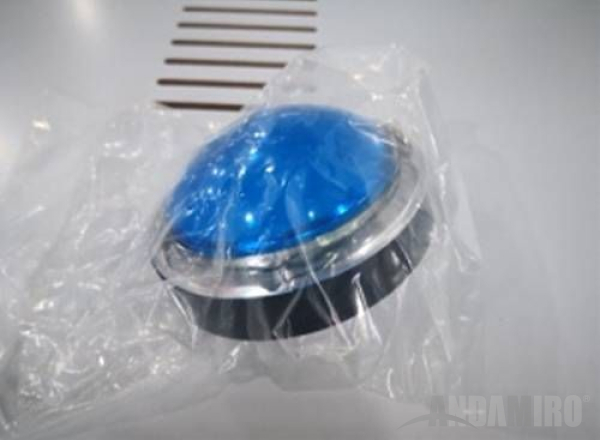

7	BUTTON ASS'Y	BUTTON ASS'Y MTPA0PAR006	Part picture

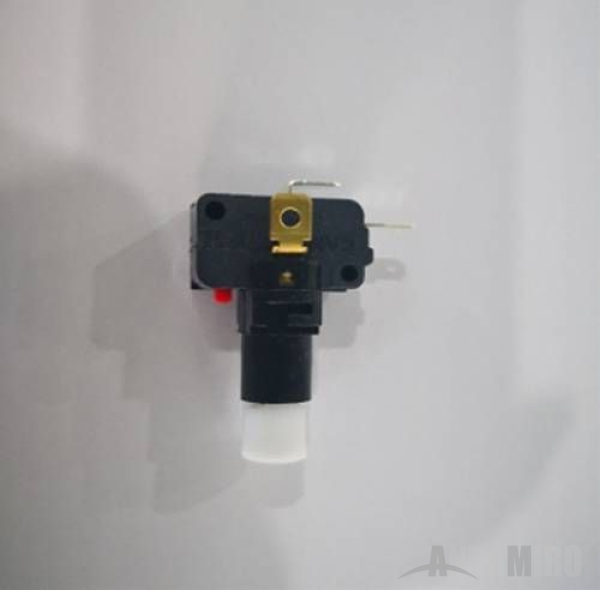

8	BUTTON HOLDER ASS'Y	BUTTON HOLDER ASS'Y MTPA0PAR007	Part picture

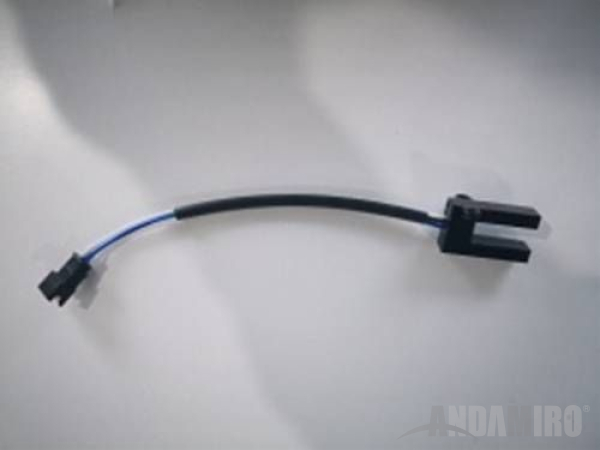

9	WHEEL SENSOR	WHEEL SENSOR MTPA0PAR008	Part picture

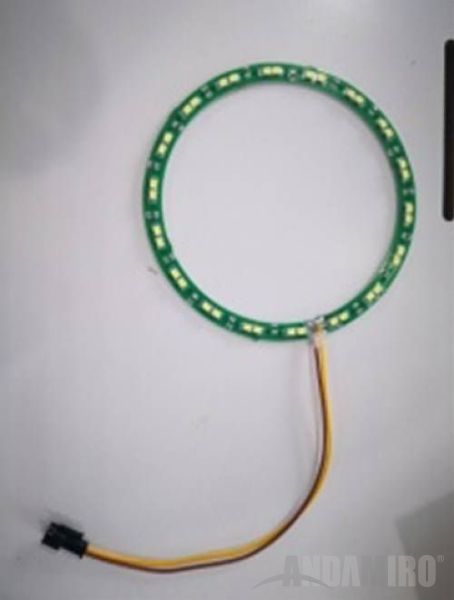

10	ROUND LED PCB	ROUND LED PCB MTPA0PAR009	Part picture

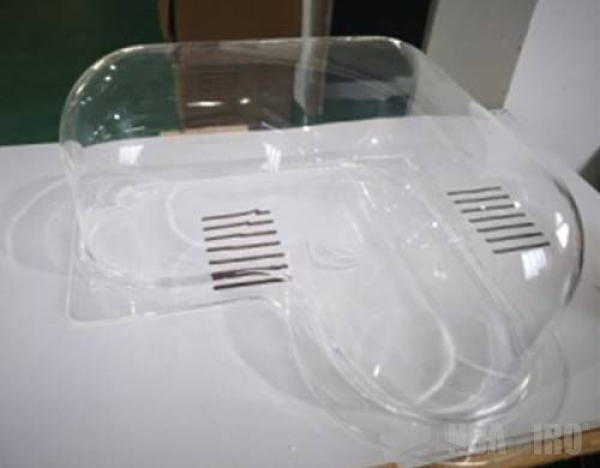

11	CAPSULE ELEVATOR VACUUM FORMING	CAPSULE ELEVATOR VACUUM FORMING MTPA0PAR010	Part picture

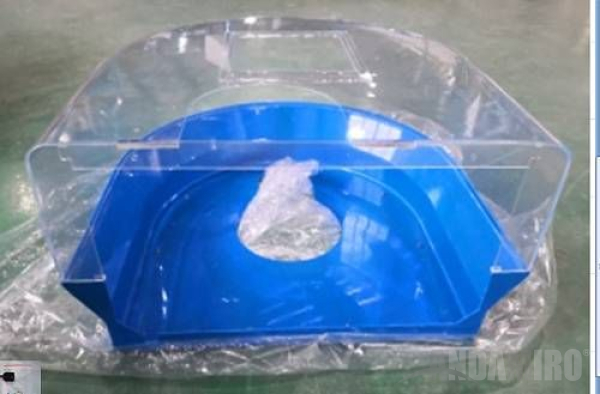

12	CAPSULE BOX VACUUM FORMING(BULE) 발주시 기타컬러 제시	CAPSULE BOX VACUUM FORMING(BULE) MTPA0PAR011	Part picture

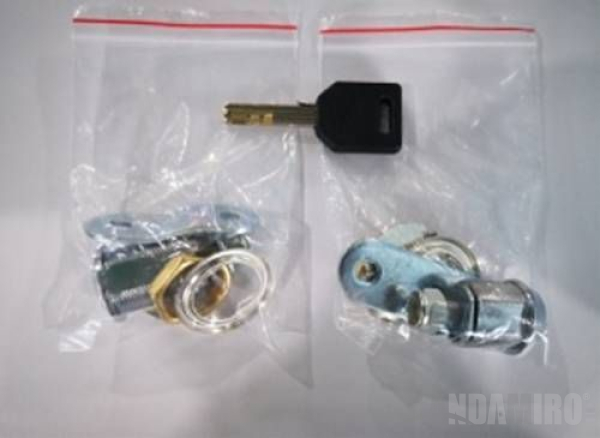

13	DOOR KEY ASS'Y	DOOR KEY ASS'Y MTPA0PAR012	Part picture

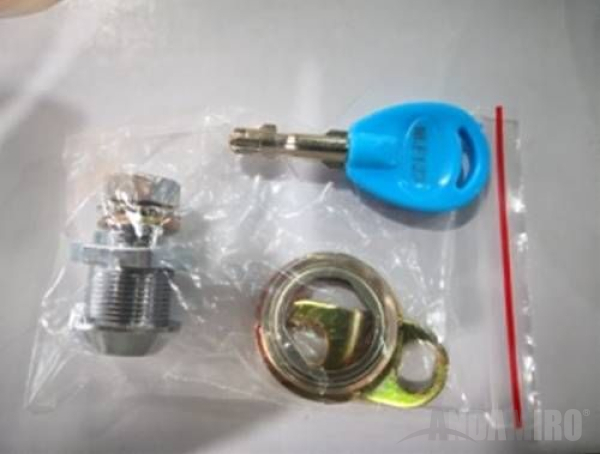

14	COIN BOX KEY ASS'Y	COIN BOX KEY ASS'Y MTPA0PAR013	Part picture

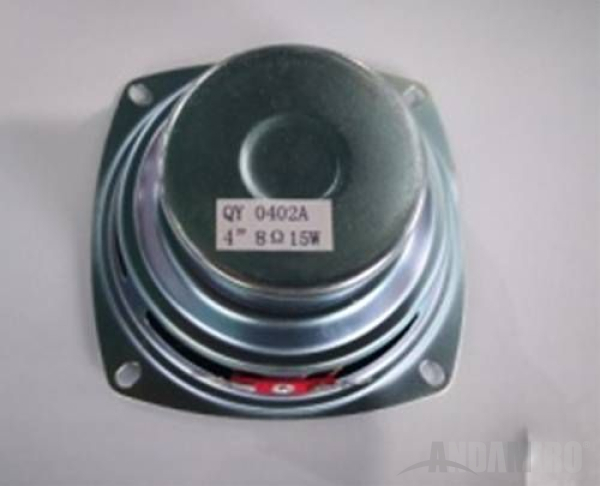

15	SPEAKER QY 0402A 4'' 8Ω15W	SPEAKER MTPA0PAR014	Part picture

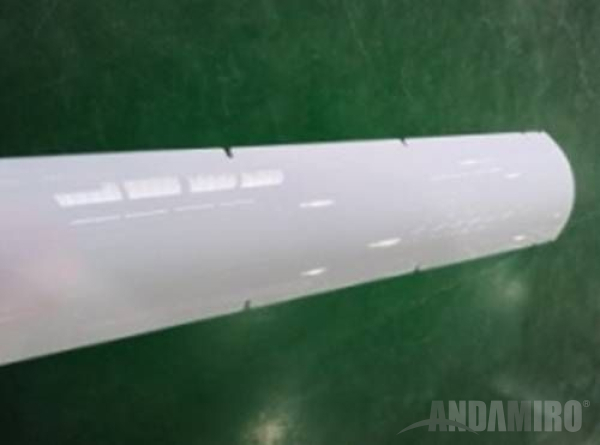

16	SIDE LED LAMP COVER	SIDE LED LAMP COVER MTPA0PAR016	Part picture

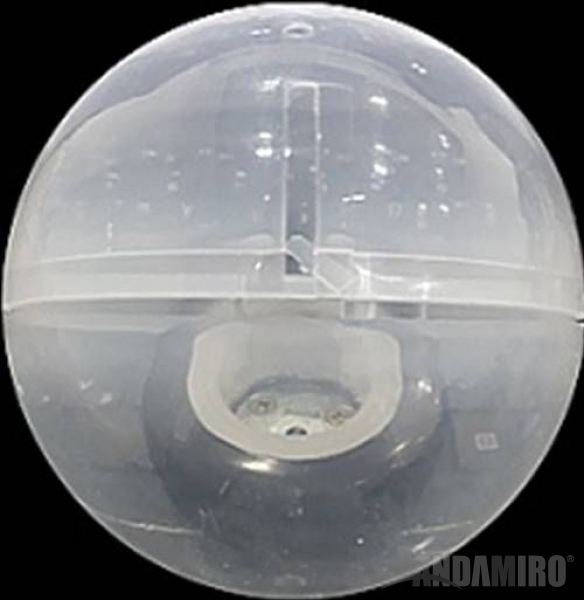

17	CAPSULE 100MM .	CAPSULE 100MM M2220CUP001	Part picture

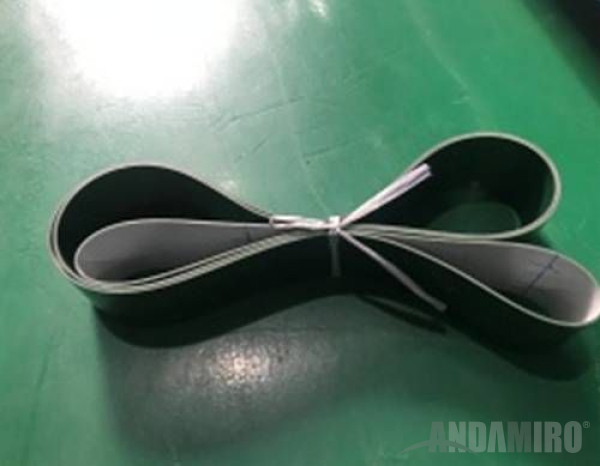

18	CAPSULE ELEVATOR BELT .	CAPSULE ELEVATOR BELT MTPA0PAR020	Part picture

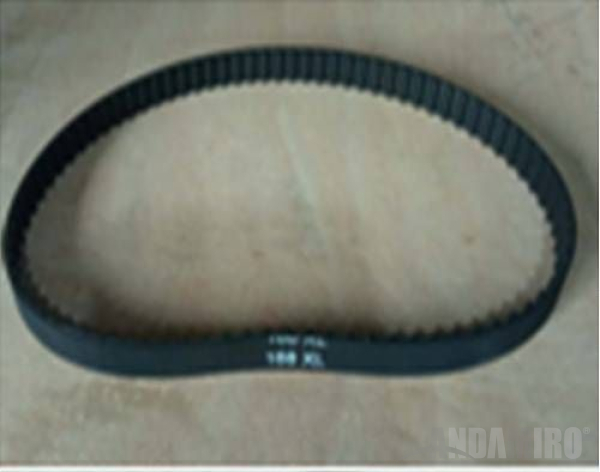

19	MAIN WHEEL BELT .	MAIN WHEEL BELT MTPA0PAR019	Part picture
20	FND(CREDIT & TIME) .	FND(CREDIT & TIME) MTPA0PAR021	Part picture

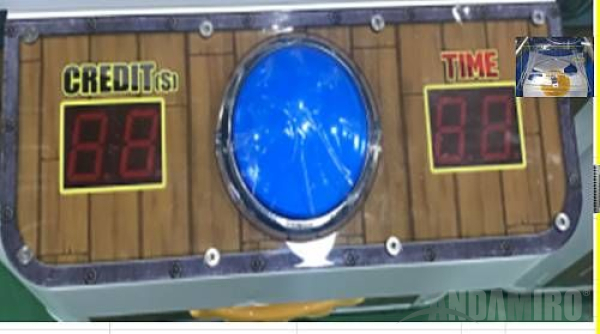

21	BUTTON PANEL ACRYL .	BUTTON PANEL ACRYL MTPA0PAR022	Part picture

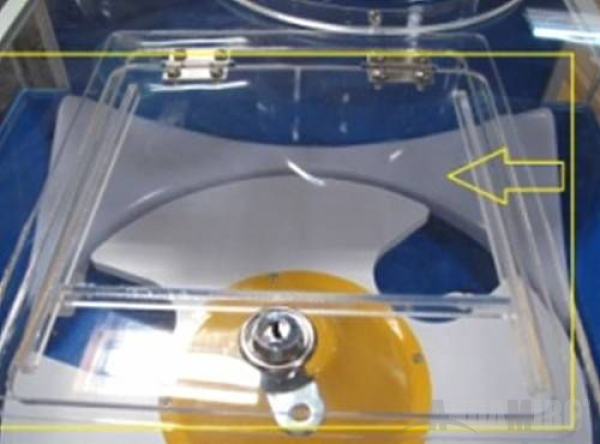

22	CAPSULE BOX DOOR .	CAPSULE BOX DOOR MTPA0PAR023	Part picture
23	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

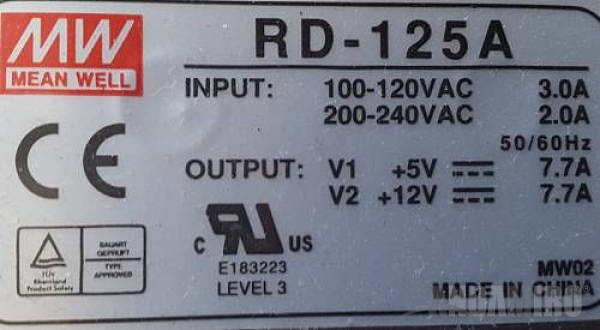

24	POWER SMPS RD-125-A	POWER SMPS MELE0SMP076	Part picture
25	COIN SELECTOR TW-389	COIN SELECTOR MZZZ0COS052	Part picture

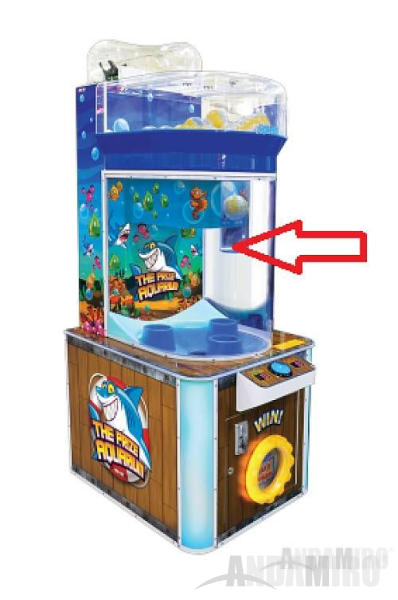

26	FRONT CLEAR ACRYL COVER .	FRONT CLEAR ACRYL COVER MTPA0PAR032	Part picture

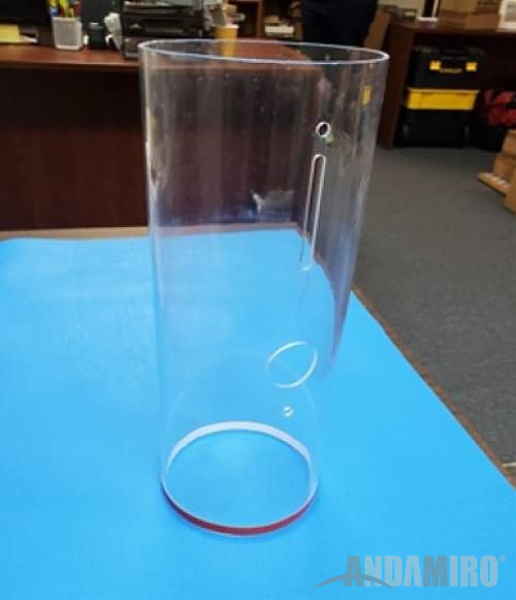

27	BALL TUBE PRIZE AQ .	BALL TUBE PRIZE AQ MTPA0PAR033	Part picture

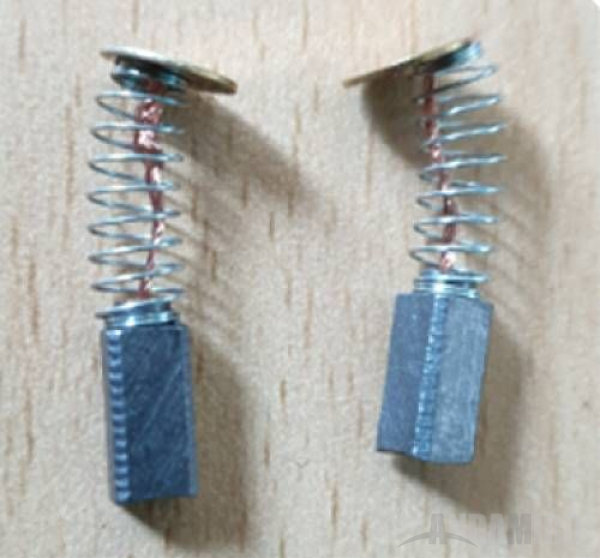

28	BRUSH_MAIN WHEEL MOTOR .	BRUSH_MAIN WHEEL MOTOR MTPA0PAR035	Part picture

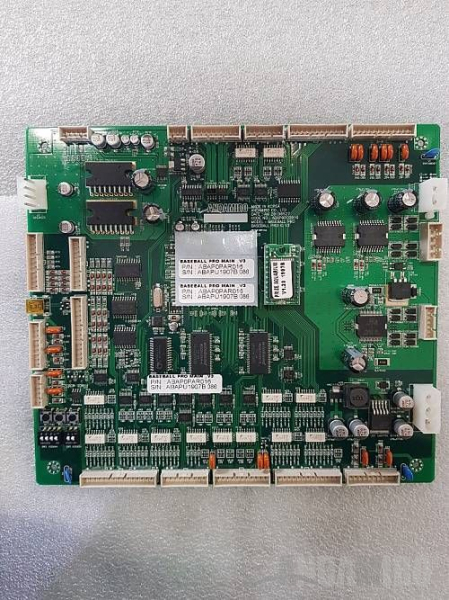

29	BASEBALL PRO MAIN_V3 PCB ASS'Y WITH CPU	BASEBALL PRO MAIN_V3 PCB ASS'Y ABAP0PCB019	Part picture
29.1	[BASEBALL PRO MAIN_V3 PCB ASS'Y] MEMORY PCB ASS'Y BASEBALL	[BASEBALL PRO MAIN_V3 PCB ASS'Y] MEMORY PCB ASS'Y ABAP0PCB011	Part picture

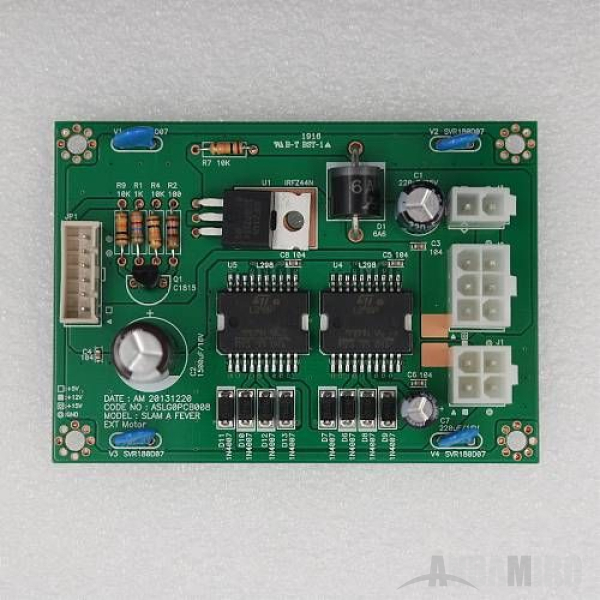

30	EXT MOTOR PCB ASS'Y SLAM A FEVER	EXT MOTOR PCB ASS'Y ASLG0PCB008	Part picture
31	SOLENOID ASS'Y WITH HARNESS	SOLENOID ASS'Y AELE0SOL001	Part picture
31.1	[SOLENOID ASS'Y] SOLENOID M38022L	[SOLENOID ASS'Y] SOLENOID MELE0SOL008	Part picture
32	SOLENOID SHAFT FRONT CAP ACETAL	SOLENOID SHAFT FRONT CAP MTPA0PRO001	Part picture

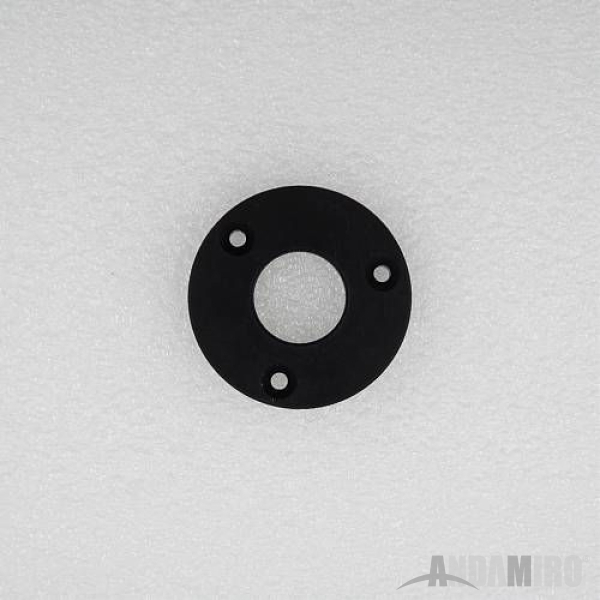

33	SOLENOID SHAFT GUIDE PPATE ACETAL	SOLENOID SHAFT GUIDE PPATE MTPA0PRO002	Part picture

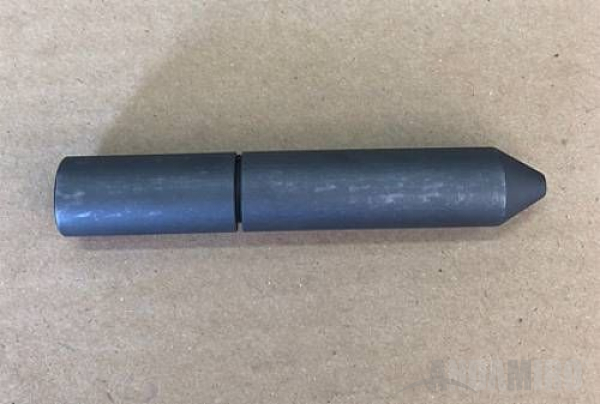

34	SOLENOID SHAFT MOS2 COATING	SOLENOID SHAFT MTPA0PRO003	Part picture

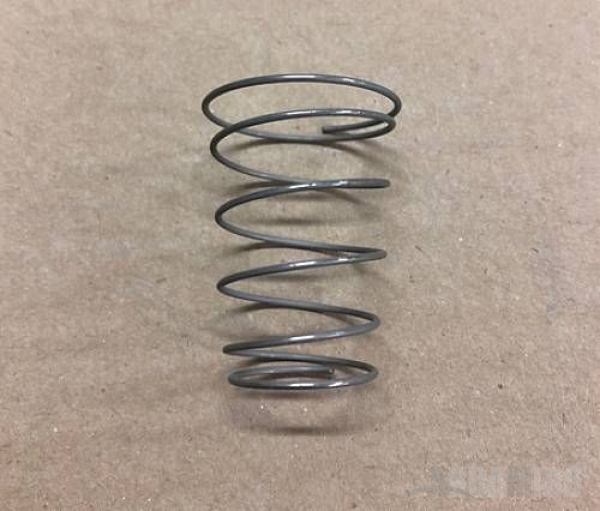

35	SOLENOID SPRING SUS304-Ø1.0	SOLENOID SPRING MTPA0SPR001	Part picture
36	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
37	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
38	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture
39	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
40	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
41	VGA CARD MSI GT730 2GB LP무소음	VGA CARD MZZZ0PCB098	Part picture
