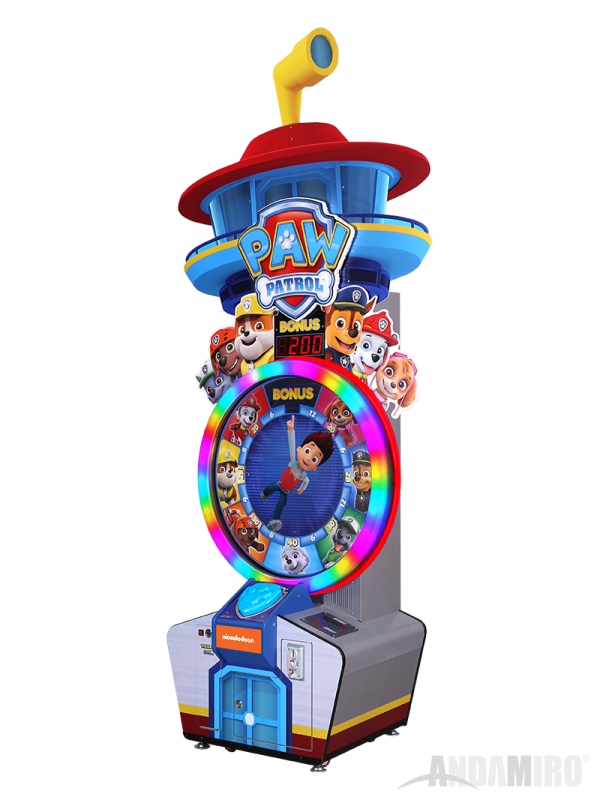

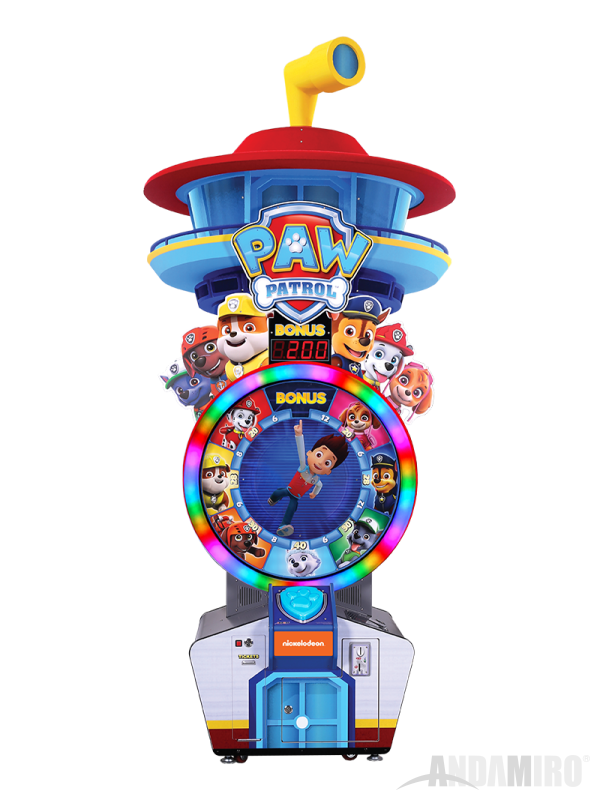

PAW PATROL PAW PATROL Ready for action!

Short url COPY http://www.andamiro.com/games/pawpatrol

Tags PawPatrol Ticket

Dimensions 1,359mm x 741mm x 3,076mm
54" x 29" x 121"

Packing Dimensions 1,150mm x 840mm x 2,200mm
45" x 33" x 87"

Product Weight 145 kg / 320 lbs

Packing Weight 180 kg / 397 lbs

Power 210W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

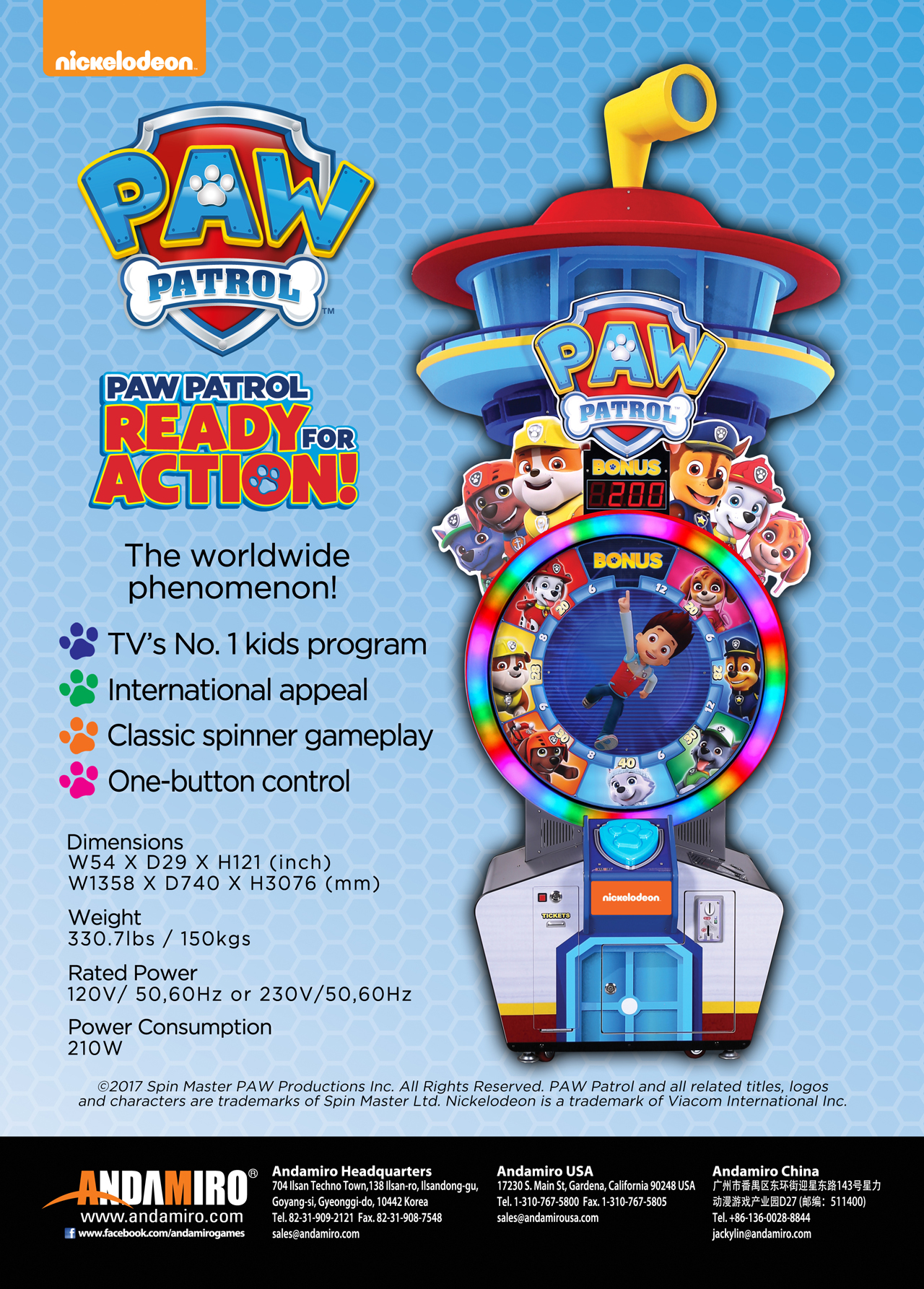

Leaflets (1)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

PAW PATROL Ready for action!

- The worldwide phenomenon!

- Classic game play

- Popular kids theme

- Family friendly

- Lookout tower cabinet design

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 71Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

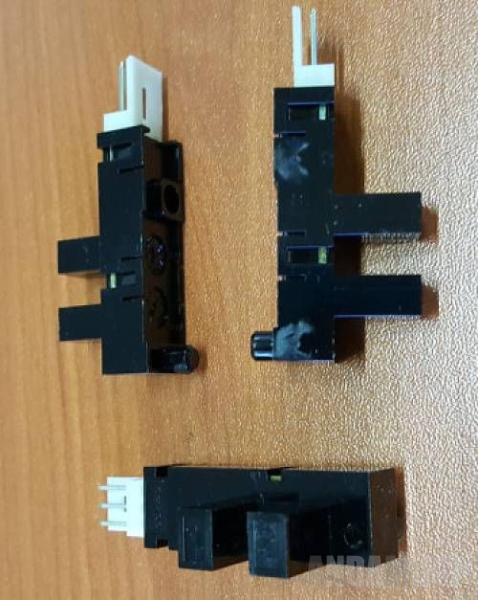

1	PHOTO SENSOR LG-217L3	PHOTO SENSOR MELE0PHO007	Part picture
2	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
3	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture

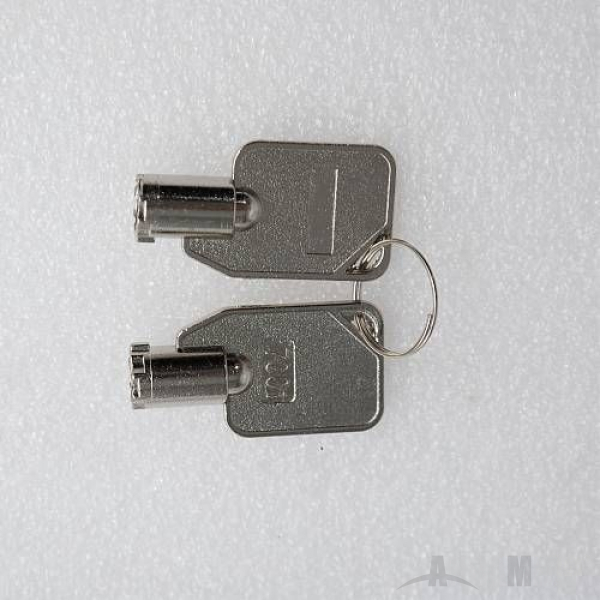

4	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
5	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture

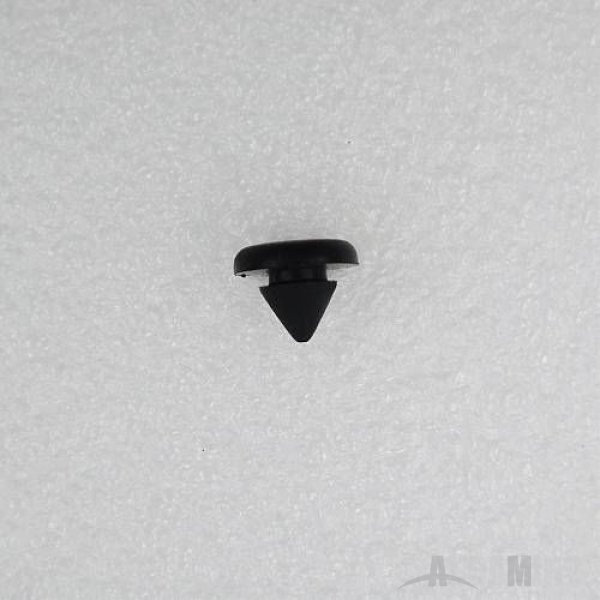

6	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture

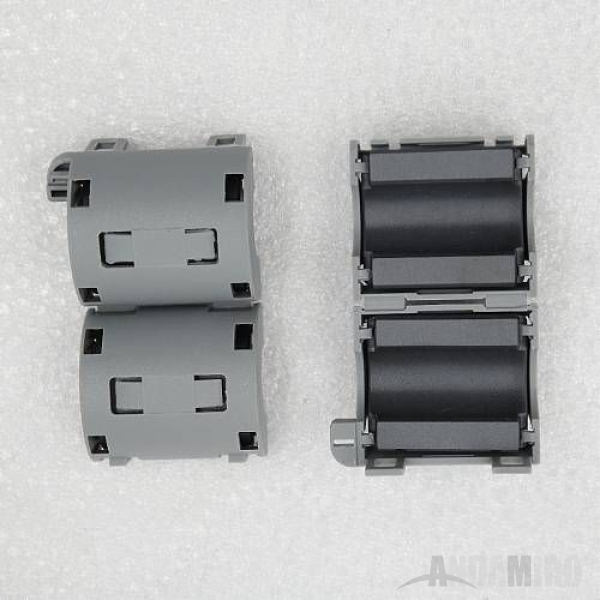

7	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture

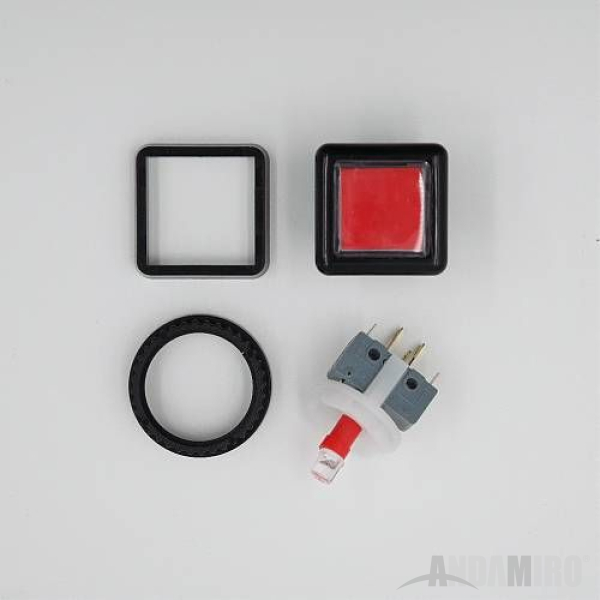

8	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture

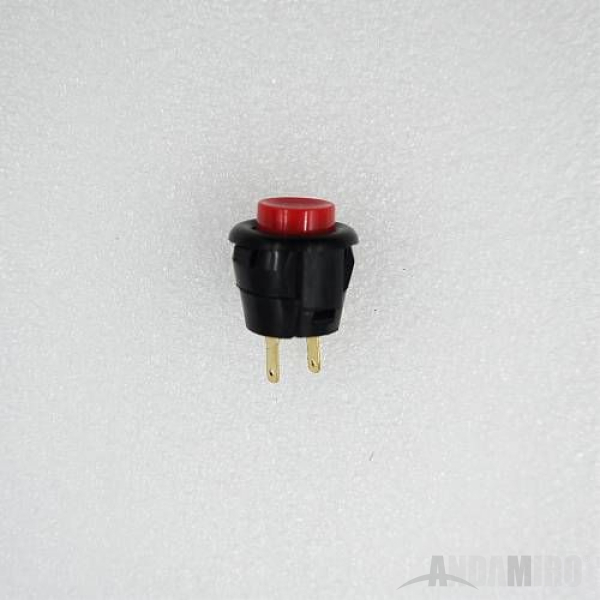

9	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture

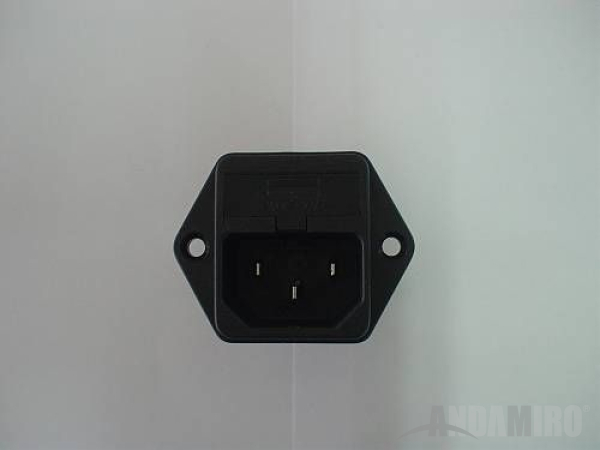

10	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture

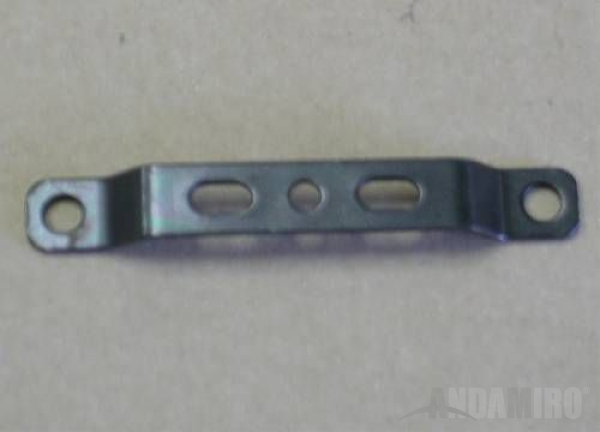

11	SMPS BKT MEANWELL	SMPS BKT MZZZ0MEP048	Part picture

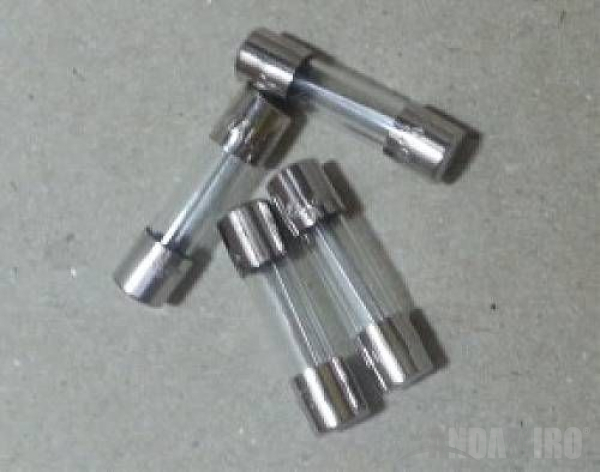

12	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture

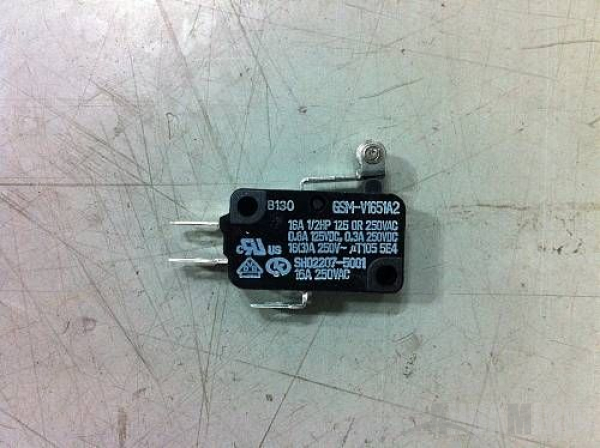

13	MICRO SWITCH GSMV16_51A2	MICRO SWITCH MELE0MIC021	Part picture

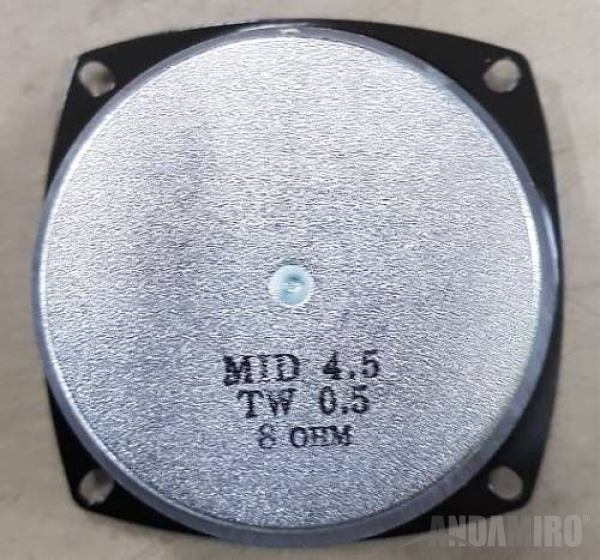

14	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

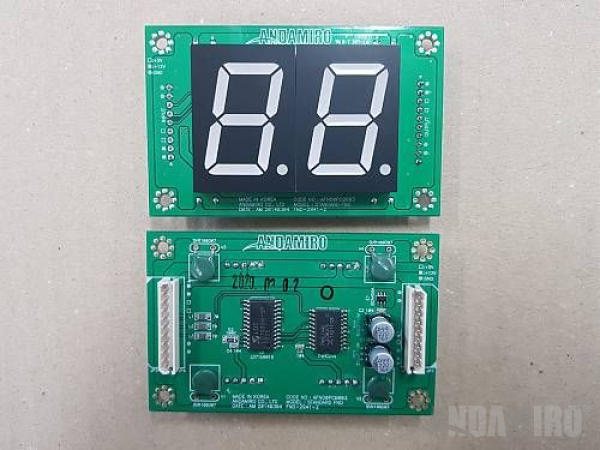

15	FND PCB ASS'Y 2941-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB003	Part picture

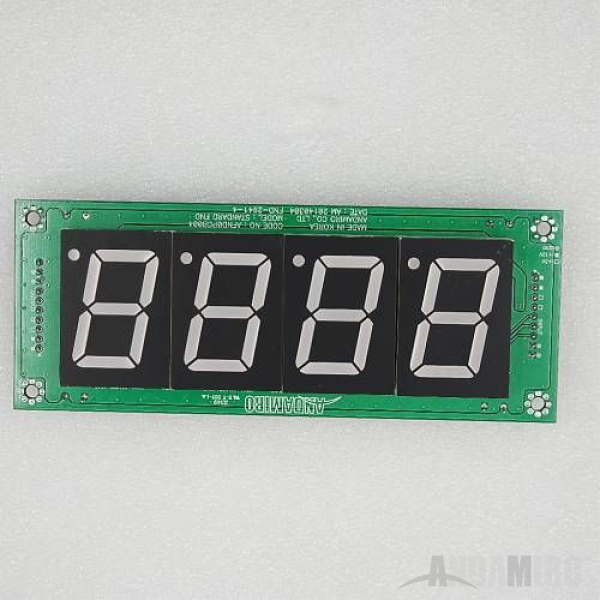

16	FND PCB ASS'Y 2941-4 (STRAIGHT)	FND PCB ASS'Y AFND0PCB004	Part picture

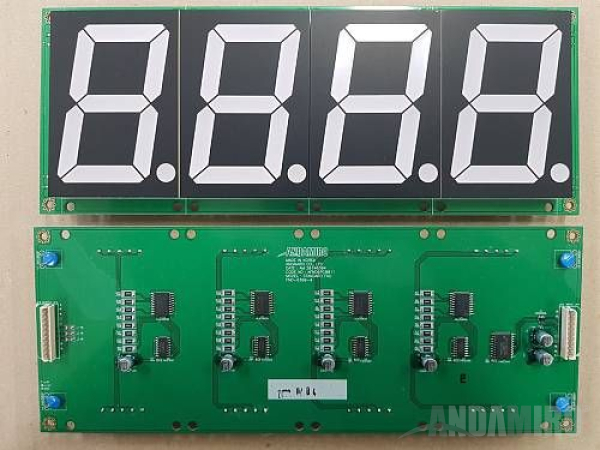

17	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture

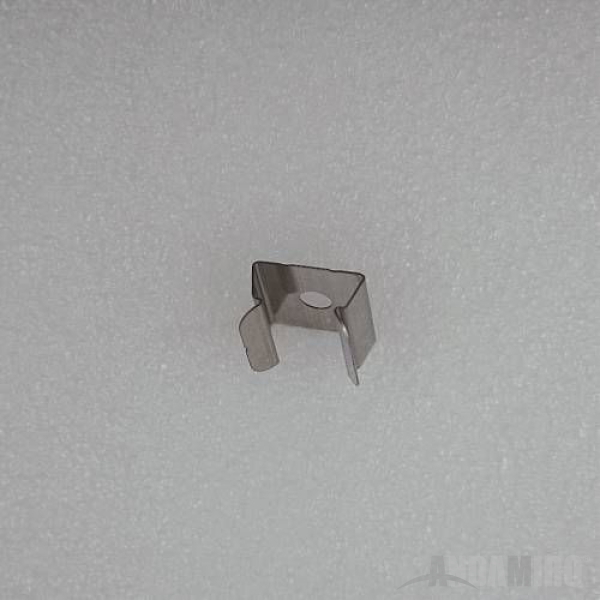

18	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture

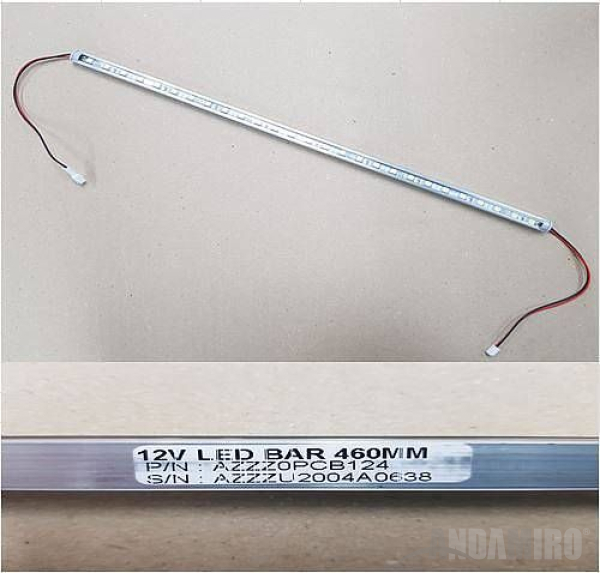

19	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture

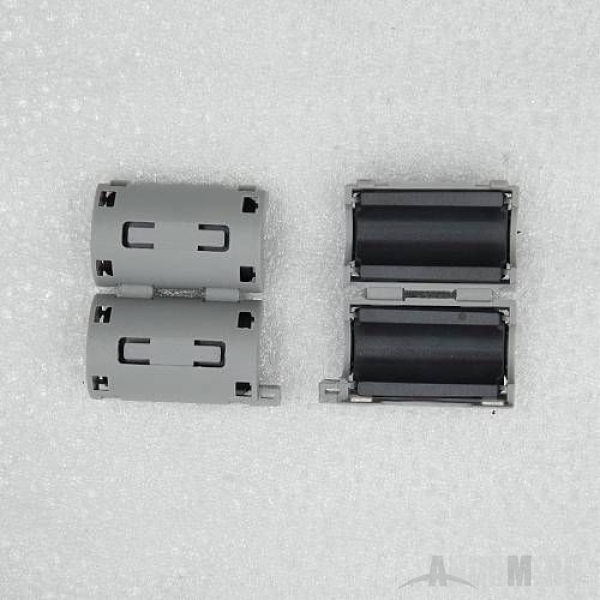

20	FERRITE CORE RU(TU)1132	FERRITE CORE MELE0FER003	Part picture

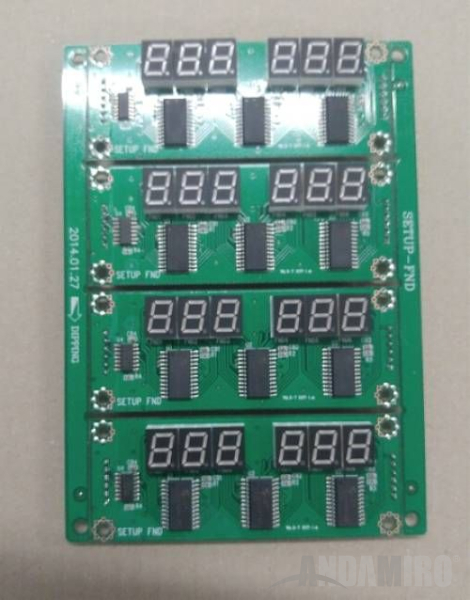

21	SETUP FND ASS'Y HUNGRY CHICKEN CEC	SETUP FND ASS'Y AHCH0PCB001	Part picture

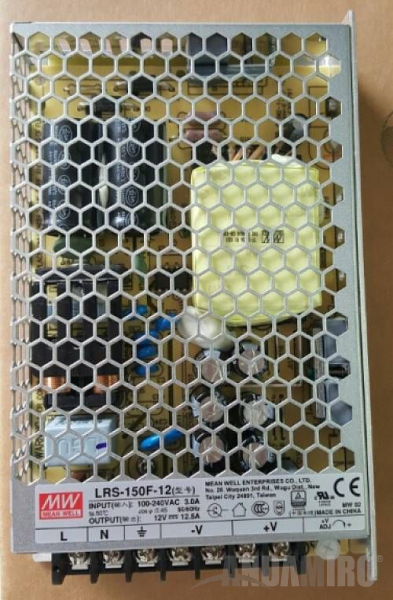

22	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

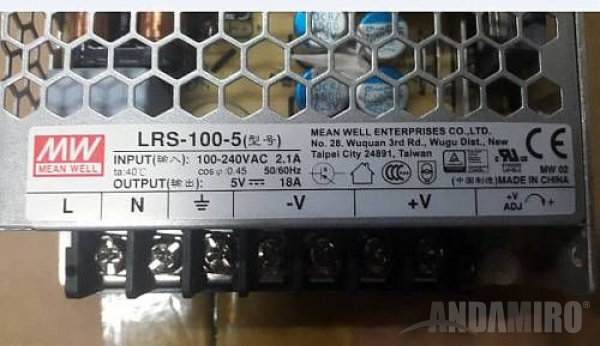

23	POWER SMPS LRS 100-5	POWER SMPS MELE0SMP095	Part picture

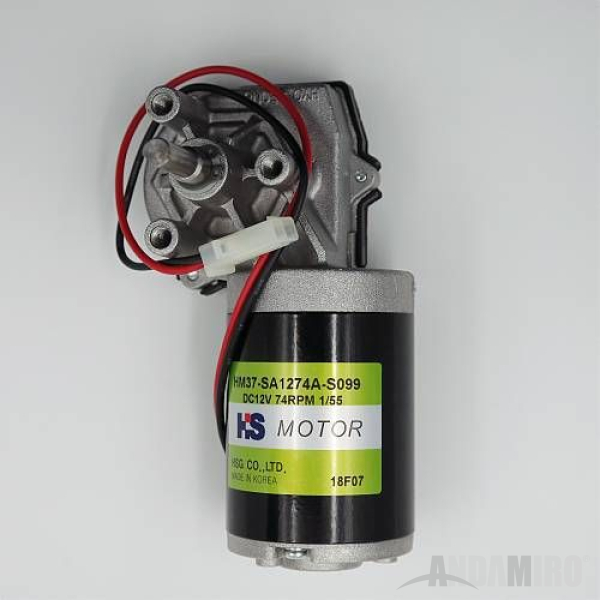

24	MOTOR HM37-SA1274A-S099(DC12V,74RPM,1:55)	MOTOR MZZZ0MOT113	Part picture

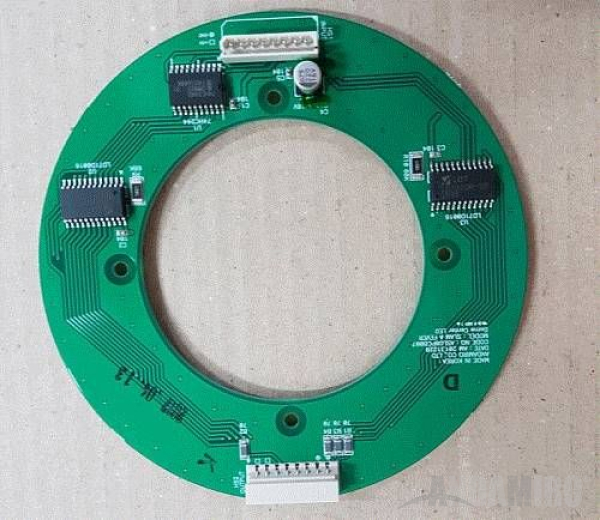

25	DOME CENTER LED PCB ASS'Y PAW PATROL	DOME CENTER LED PCB ASS'Y APAW0PCB003	Part picture

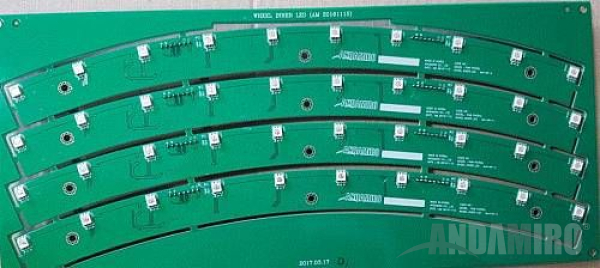

26	WHEEL INNER PCB ASS'Y PAW PATROL	WHEEL INNER PCB ASS'Y APAW0PCB004	Part picture

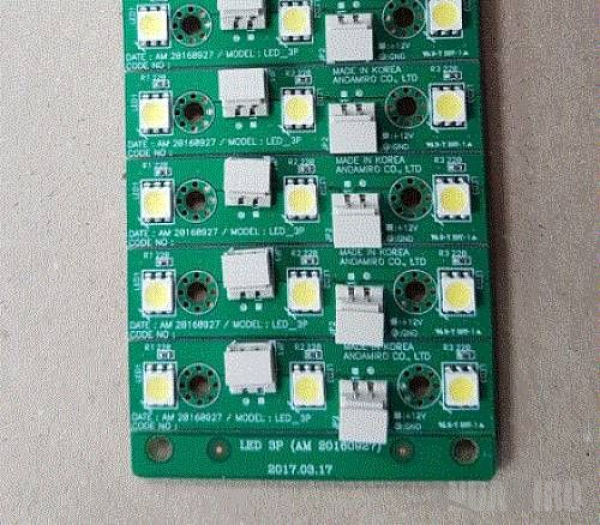

27	3P LED PCB ASS'Y PAW PATROL	3P LED PCB ASS'Y APAW0PCB005	Part picture

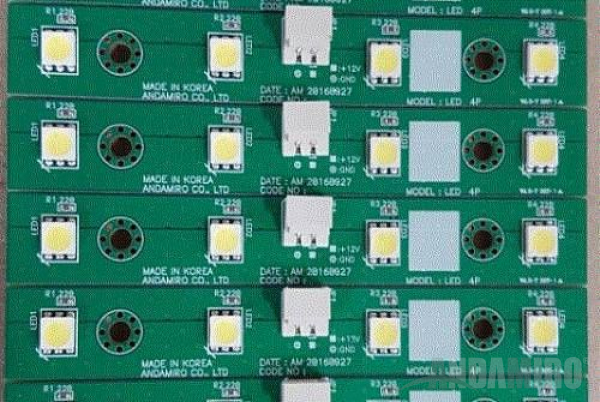

28	4P LED PCB ASS'Y PAW PATROL	4P LED PCB ASS'Y APAW0PCB006	Part picture

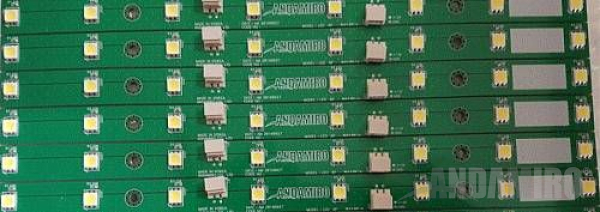

29	8P LED PCB ASS'Y PAW PATROL	8P LED PCB ASS'Y APAW0PCB007	Part picture

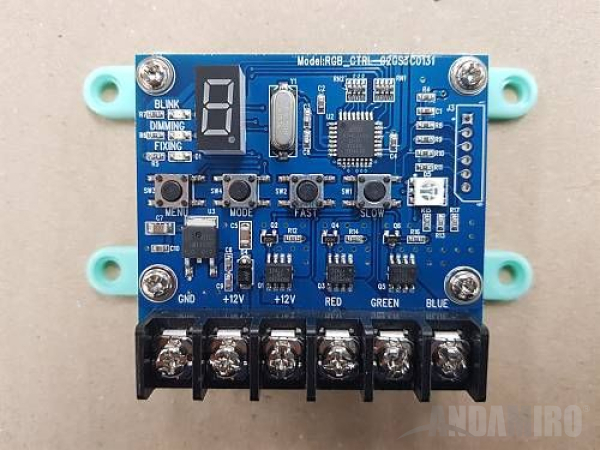

30	RGB PWM PCB RGB_CTRL-G2GSTC0131	RGB PWM PCB MZZZ0000629	Part picture
30.1	[RGB PWM PCB ] BODY SIDE L,R SHEET(2EA) .	[RGB PWM PCB ] BODY SIDE L,R SHEET(2EA) MPAW0SHE005	Part picture
30.2	[RGB PWM PCB ] SCORE PLT SHEET .	[RGB PWM PCB ] SCORE PLT SHEET MPAW0SHE008	Part picture
30.3	[RGB PWM PCB ] TICKETS SHEET .	[RGB PWM PCB ] TICKETS SHEET MPAW0SHE009	Part picture

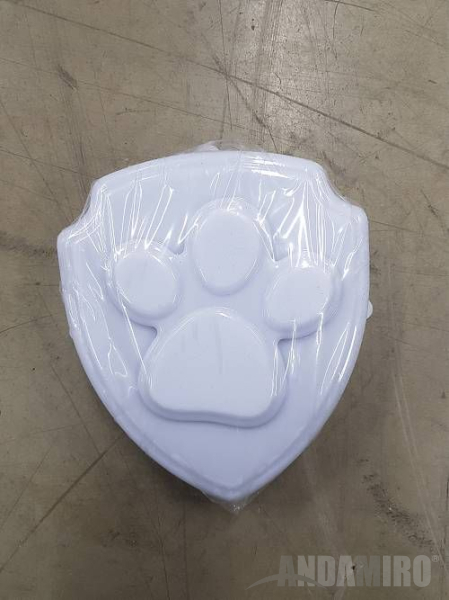

31	BUTTON COVER .	BUTTON COVER MPAW0PLA001	Part picture
31.1	[BUTTON COVER] BUTTON SUPPORT ACRYL .	[BUTTON COVER] BUTTON SUPPORT ACRYL MPAW0ACR005	Part picture
31.2	[BUTTON COVER] SPEAKER COVER ACRYL-L .	[BUTTON COVER] SPEAKER COVER ACRYL-L MPAW0ACR010	Part picture
31.3	[BUTTON COVER] SPEAKER COVER ACRYL-R .	[BUTTON COVER] SPEAKER COVER ACRYL-R MPAW0ACR011	Part picture
31.4	[BUTTON COVER] WHEEL INNER FLEXIBLE LED PCB FIX ACRYL .	[BUTTON COVER] WHEEL INNER FLEXIBLE LED PCB FIX ACRYL MPAW0ACR012	Part picture
31.5	[BUTTON COVER] WHEEL OUTSIDE FRONT ACRYL .	[BUTTON COVER] WHEEL OUTSIDE FRONT ACRYL MPAW0ACR014	Part picture
31.6	[BUTTON COVER] WHEEL OUTSIDE REAR ACRYL .	[BUTTON COVER] WHEEL OUTSIDE REAR ACRYL MPAW0ACR015	Part picture
31.7	[BUTTON COVER] WHEEL SCORE BOARD ACRYL .	[BUTTON COVER] WHEEL SCORE BOARD ACRYL MPAW0ACR016	Part picture

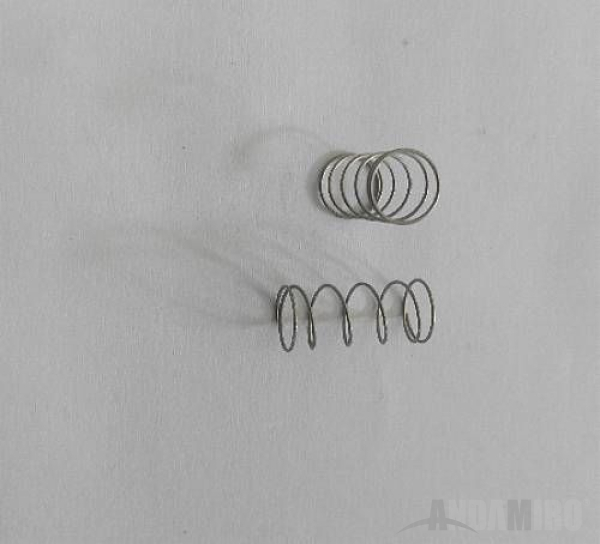

32	BUTTON SPRING .	BUTTON SPRING MPAW0SPR001	Part picture

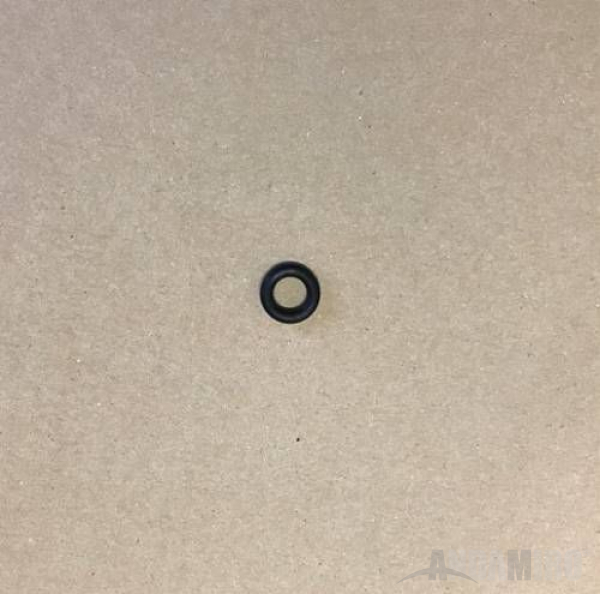

33	O-RING 외경12 내경6	O-RING MZZZ0ORI005	Part picture

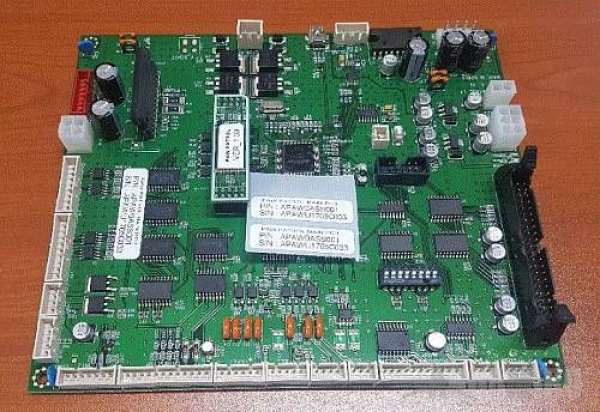

34	MAIN BOARD PCB ASS'Y WITH CPU	MAIN BOARD PCB ASS'Y APAW0ASS001	Part picture

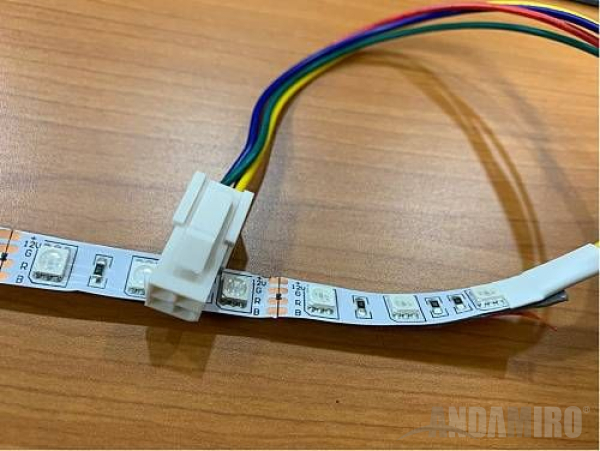

35	FLEX_5050_RGB_2900_NWP_L PAW	FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture
36	FLEX_5050_RGB_2900_NWP_L PAW	FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture

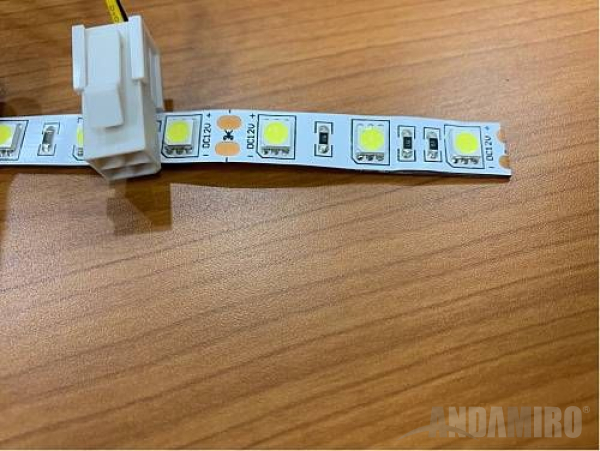

37	FLEX_5050_WHITE_1400_NWP_L_84 PAW	FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture
38	FLEX_5050_WHITE_1400_NWP_L_84 PAW	FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture
38.1	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET-CEC .	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET-CEC MPAW0SHE011	Part picture
38.2	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET_MIDDLE EAST .	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET_MIDDLE EAST MPAW0SHE012	Part picture
38.3	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET_UK .	[FLEX_5050_WHITE_1400_NWP_L_84] SCORE PLT SHEET_UK MPAW0SHE013	Part picture

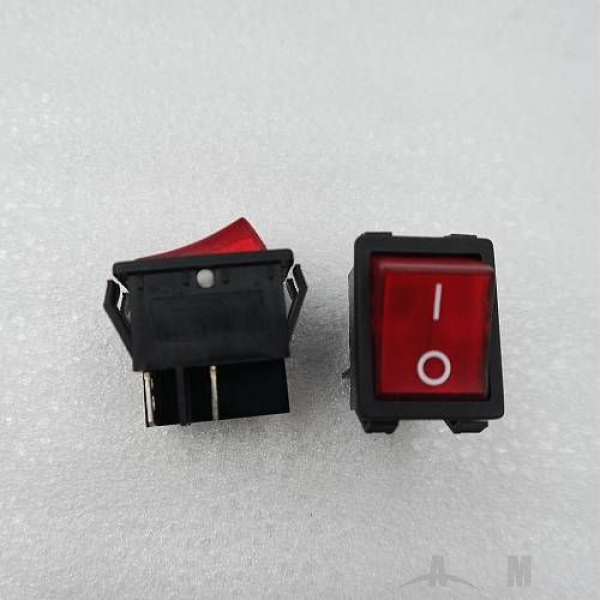

39	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
39.1	[ROCKER SWITCH] OUTSIDE WHEEL INNER COVER ACRYL .	[ROCKER SWITCH] OUTSIDE WHEEL INNER COVER ACRYL MPAW0ACR017	Part picture
40	OUTSIDE WHEEL INNER COVER ACRYL .	OUTSIDE WHEEL INNER COVER ACRYL MPAW0ACR017	Part picture
40.1	[OUTSIDE WHEEL INNER COVER ACRYL] BILLBOARD PAW ACRYL PAW	[OUTSIDE WHEEL INNER COVER ACRYL] BILLBOARD PAW ACRYL APAW0ACP001	Part picture
40.2	[OUTSIDE WHEEL INNER COVER ACRYL] BUTTON COVER ACRYL PAW	[OUTSIDE WHEEL INNER COVER ACRYL] BUTTON COVER ACRYL APAW0ACP002	Part picture
40.3	[OUTSIDE WHEEL INNER COVER ACRYL] BONUS FND COVER ACRYL PAW	[OUTSIDE WHEEL INNER COVER ACRYL] BONUS FND COVER ACRYL APAW0ACP003	Part picture
40.4	[OUTSIDE WHEEL INNER COVER ACRYL] CREDIT FND COVER ACRYL PAW	[OUTSIDE WHEEL INNER COVER ACRYL] CREDIT FND COVER ACRYL APAW0ACP004	Part picture
40.5	[OUTSIDE WHEEL INNER COVER ACRYL] WHEEL INNER PAW ACRYL PAW	[OUTSIDE WHEEL INNER COVER ACRYL] WHEEL INNER PAW ACRYL APAW0ACP005	Part picture
40.6	[OUTSIDE WHEEL INNER COVER ACRYL] PERISCOPE POP FOMAX SHEET PAW	[OUTSIDE WHEEL INNER COVER ACRYL] PERISCOPE POP FOMAX SHEET APAW0ACP006	Part picture
40.7	[OUTSIDE WHEEL INNER COVER ACRYL] TOWER POP FOMAX SHEET PAW	[OUTSIDE WHEEL INNER COVER ACRYL] TOWER POP FOMAX SHEET APAW0ACP007	Part picture
40.8	[OUTSIDE WHEEL INNER COVER ACRYL] SIDE POP FOMAX-L PAW	[OUTSIDE WHEEL INNER COVER ACRYL] SIDE POP FOMAX-L APAW0ACP008	Part picture
40.9	[OUTSIDE WHEEL INNER COVER ACRYL] SIDE POP FOMAX-R PAW	[OUTSIDE WHEEL INNER COVER ACRYL] SIDE POP FOMAX-R APAW0ACP009	Part picture

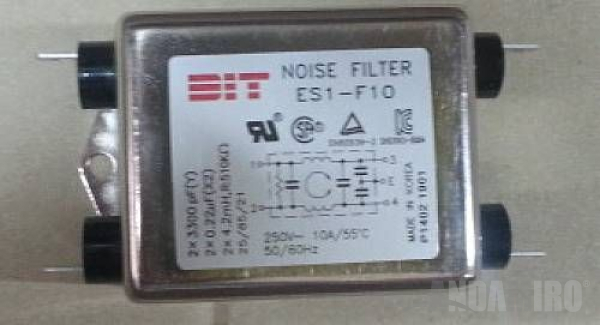

41	NOISE FILTER ES1-F10	NOISE FILTER MELE0NOI006	Part picture

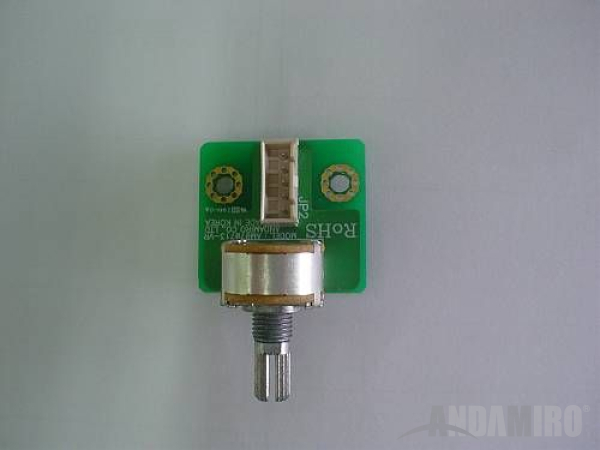

42	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture

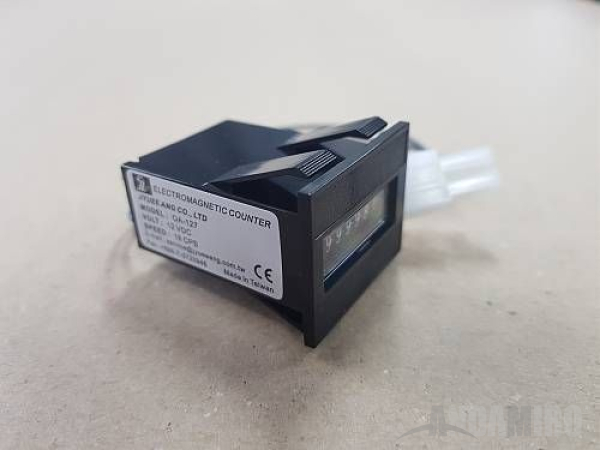

43	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture

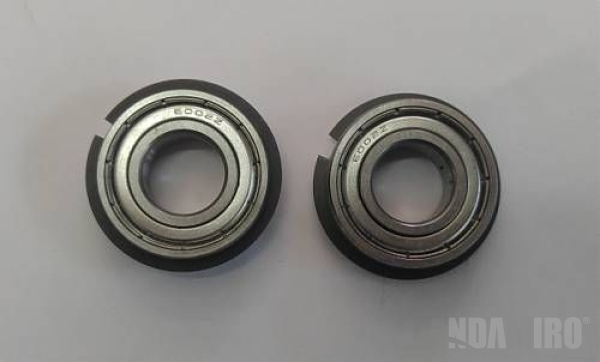

44	BEARING 6002ZZNR	BEARING MZZZ0BEA116	Part picture

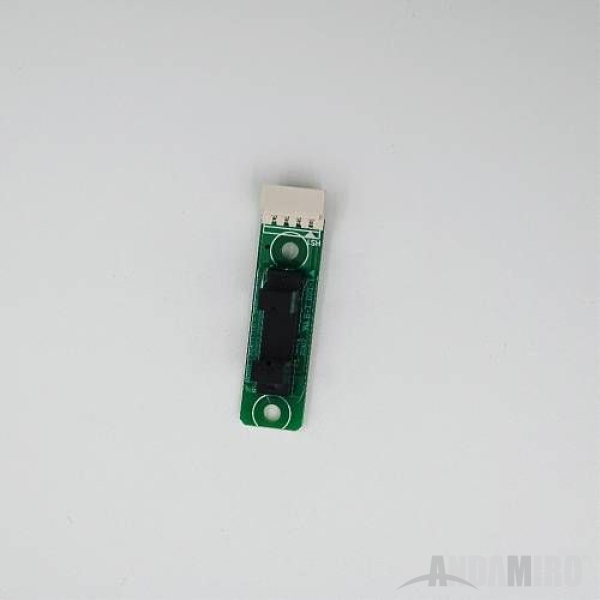

45	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
45.1	[PHOTO INT-1 PCB ASS'Y] BODY WOOD & BUTTON LOGO SHEET SHE006~007	[PHOTO INT-1 PCB ASS'Y] BODY WOOD & BUTTON LOGO SHEET APAW0SHE002	Part picture
46	WEB ACRYL PART PAW WEB	WEB ACRYL PART APAW0PAT001	Part picture
47	WEB SHEET PART PAW WEB	WEB SHEET PART APAW0PAT002	Part picture
