1
WS2812B IO PCB ASS'Y V3
TIGHT ROPE 2P
WS2812B IO PCB ASS'Y V3
ATIR0PCB004
2

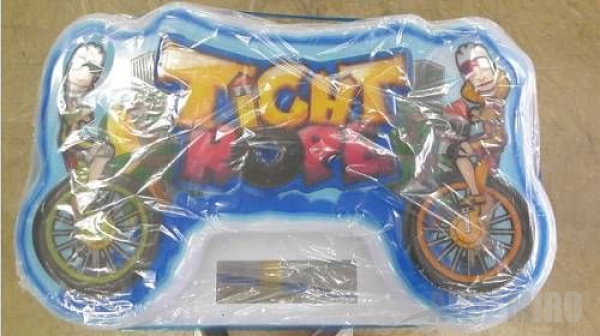

BILLBOARD COVER
PC-5.0T(광확산)
BILLBOARD COVER
MTIR0PLA001
3
CONTROLLER COVER
PC-5.0T(광확산)
CONTROLLER COVER
MTIR0PLA002
4
LED MONITOR 43 INCH
4310_A01,동태630008
LED MONITOR 43 INCH
APCX0LED002
4.1
[LED MONITOR 43 INCH]

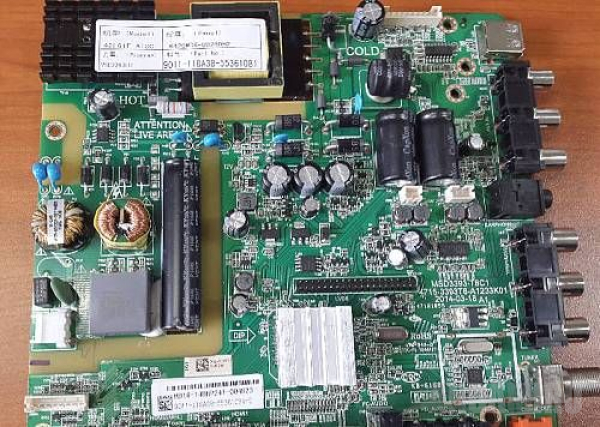

IMAGE BOARD
42 LM4201-AON
[LED MONITOR 43 INCH]
IMAGE BOARD
MZZZ0PCB048
4.2

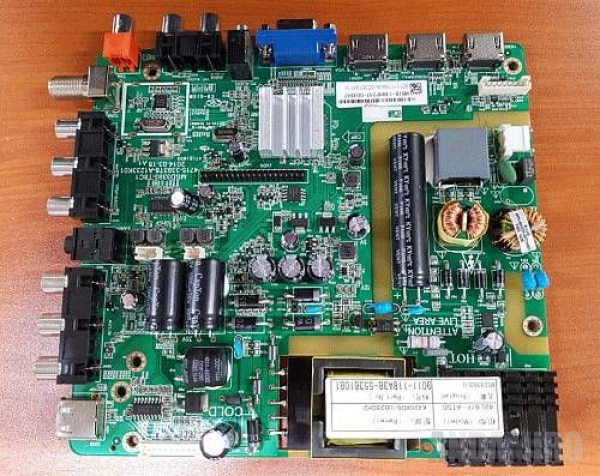

[LED MONITOR 43 INCH]
IMAGE BOARD
43" 4211
[LED MONITOR 43 INCH]
IMAGE BOARD
MZZZ0PCB058
4.3
[LED MONITOR 43 INCH]

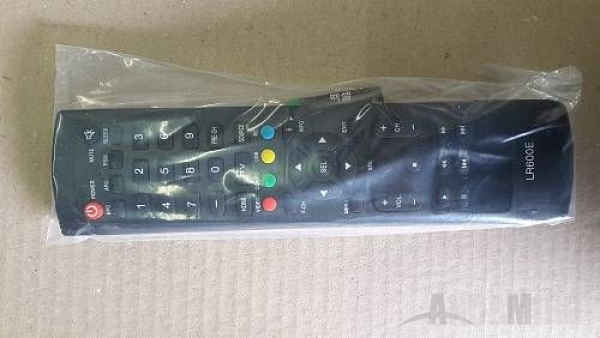

REMOCON
43"
[LED MONITOR 43 INCH]
REMOCON
MPCX0ZZZ001
5
LED STICK BAR BRK
12MM 90도
LED STICK BAR BRK
MELE0000022
6
LED BAR 12V ASS'Y
AZZZ0PCB124
7
BUTTON SWITCH
TICKET AM1PB-26SH R12D
BUTTON SWITCH
MMUM0BUT002
8
COIN SELECTOR
MZZZ0COS052
9
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
COUNTER
MZZZ0COU002
10

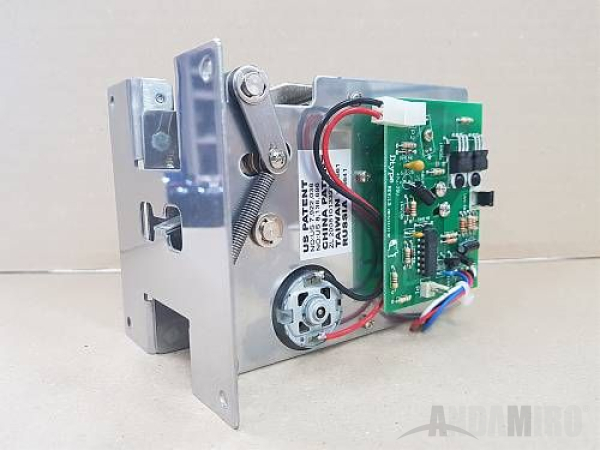

TICKET DISPENSER
CLE CL-002Q_270 HIGH SPEED
TICKET DISPENSER
MZZZ0TID010
11
BUTTON ASS'Y _ NO SWITCH
CL-2020 65 TYPE LED
BUTTON ASS'Y _ NO SWITCH
MZZZ0BUT101
12
BUTTON LED HOUSING
MZZZ0PLA038
13
HOLDER ASS'Y
MZZZ0BUT103
14
KEY ASS'Y 6001
MZZZ0KEY075
15
KEY ONLY 6001
2EA 1SET _WITH RING
KEY ONLY 6001
MZZZ0KEY014
16
KEY ASS'Y 7001
MZZZ0KEY076
17
KEY ONLY 7001
2EA 1SET_WITH RING
KEY ONLY 7001
MZZZ0KEY035
18
PUSH BUTTON SWITCH
DS-412R ROSH
PUSH BUTTON SWITCH
MELE0PUS006
19
VOLUME KNOB
MELE0VOL007
20
MAIN BOX ASS'Y
TIGHT ROPE 1P
MAIN BOX ASS'Y
ATIR0SYS001
20.1
[MAIN BOX ASS'Y]
PART MAIN BOX W_COOLER_RAM
TIGHT ROPE_SSD230424
[MAIN BOX ASS'Y]
PART MAIN BOX W_COOLER_RAM
ATIR0PAR010
20.1.1
[MAIN BOX ASS'Y]

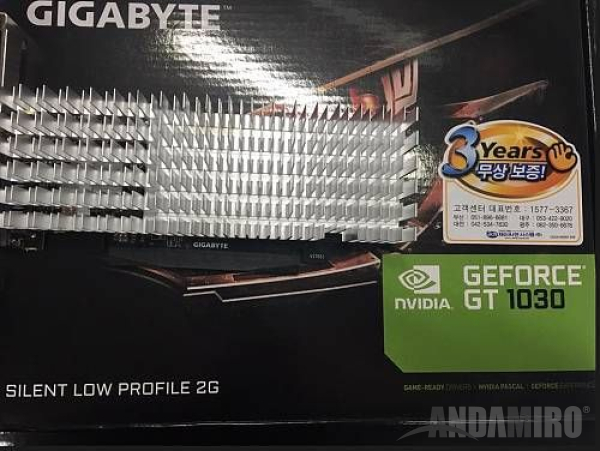

GRAPHIC CARD_GIGABYTE GEFORCE
GT1030 UD2 D5 2GB 블랙펄
[MAIN BOX ASS'Y]
GRAPHIC CARD_GIGABYTE GEFORCE
MZZZ0PCB077
20.1.2
[MAIN BOX ASS'Y]
MAIN BOARD
ASROCK H110M-DVS R2.0
[MAIN BOX ASS'Y]
MAIN BOARD
MZZZ0PCB073
20.2
[MAIN BOX ASS'Y]

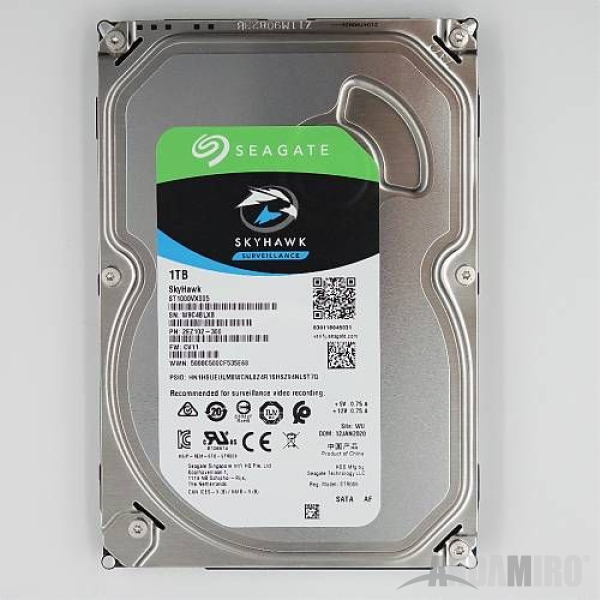

HDD
CODE CHANGE_MZZZ0MEM025
[MAIN BOX ASS'Y]
HDD
MZZZ0000349
20.3
[MAIN BOX ASS'Y]
CPU
인텔 셀러론 G3930
[MAIN BOX ASS'Y]
CPU
MZZZ0PCB072
20.4
[MAIN BOX ASS'Y]
ATX POWER SUPPLY
FSP350-50TAC
[MAIN BOX ASS'Y]
ATX POWER SUPPLY
MELE0SMP149
21
TERMINAL BLOCK
250V 10P UL_CE
TERMINAL BLOCK
MELE0TEB003
22
NOISE FILTER
MELE0NOI009
23
AC INPUT
MELE0SWI015
24
FUSE 10A
0218010.MXP 250V,10A,4PA
FUSE 10A
MELE0FUS018
25
POWER SMPS
MELE0SMP096
26
POWER SMPS
MELE0SMP090
27

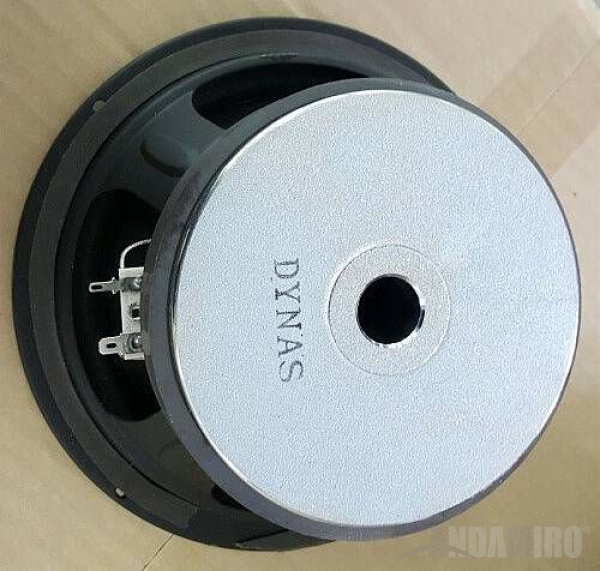

SPEAKER
MZZZ0SPE037
28

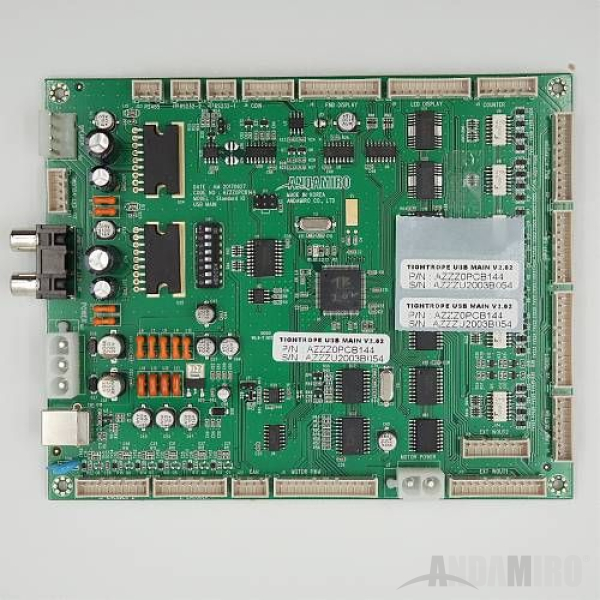

USB MAIN PCB ASS'Y
STANDARD IO
USB MAIN PCB ASS'Y
AZZZ0PCB144
29

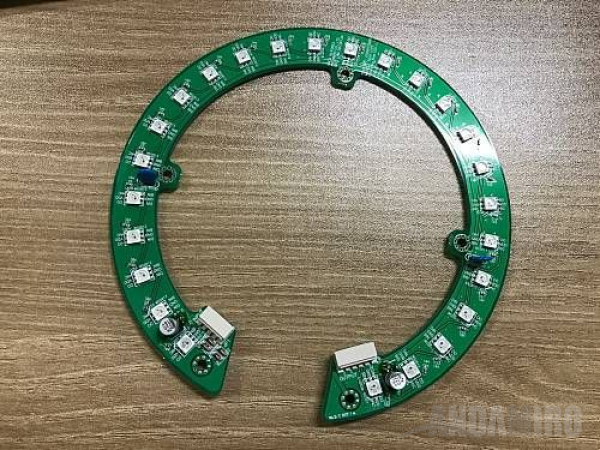

CONT-SIDE LED-L PCB ASS'Y
TIGHTROPE 1P 2P
CONT-SIDE LED-L PCB ASS'Y
ATIR0PCB001
30

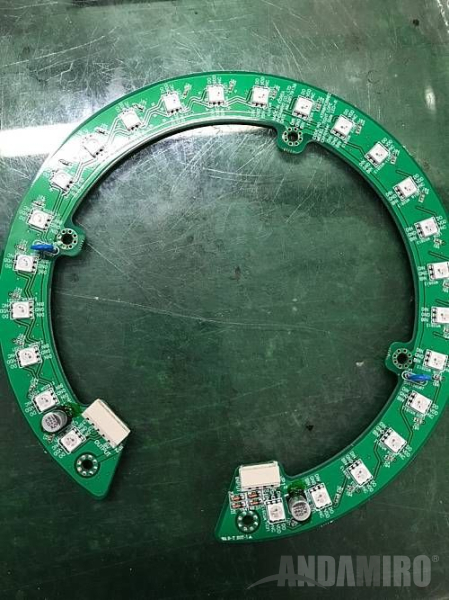

CONT-SIDE LED-R PSB ASS'Y
TIGHTROPE 1P 2P
CONT-SIDE LED-R PSB ASS'Y
ATIR0PCB002
31
WS2813B LED PCB 30EA-L ASS'Y
PUMP LX
WS2813B LED PCB 30EA-L ASS'Y
APLX0PCB006
32
RGB_BUTTON_LED PCB ASS'Y
CODE CHANGE AZZZ0PCB209
RGB_BUTTON_LED PCB ASS'Y
ASHS0PCB002
33

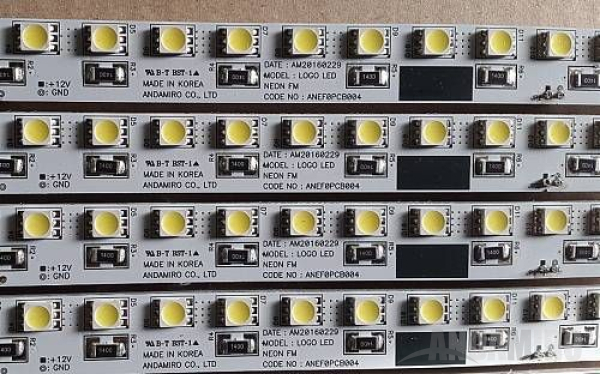

LOGO LED PCB ASS'Y
NEON FM
LOGO LED PCB ASS'Y
ANEF0PCB004
34
VOLUME PCB ASS'Y
1 VOLUME
VOLUME PCB ASS'Y
AHM20PCB016
35
FND PCB ASS'Y
6390-4(STRAIGHT)
FND PCB ASS'Y
AFND0PCB011
36

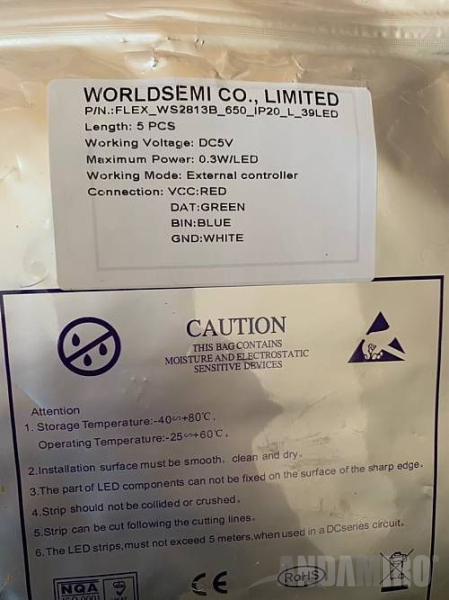

FLEX_WS2813B_650_NWP_L_39
WS2813 TOP300구 39알
FLEX_WS2813B_650_NWP_L_39
MELE0LED025
37
FLEX_WS2813B_650_NWP_L_39
WS2813 TOP300구 39알
FLEX_WS2813B_650_NWP_L_39
MELE0LED025
38

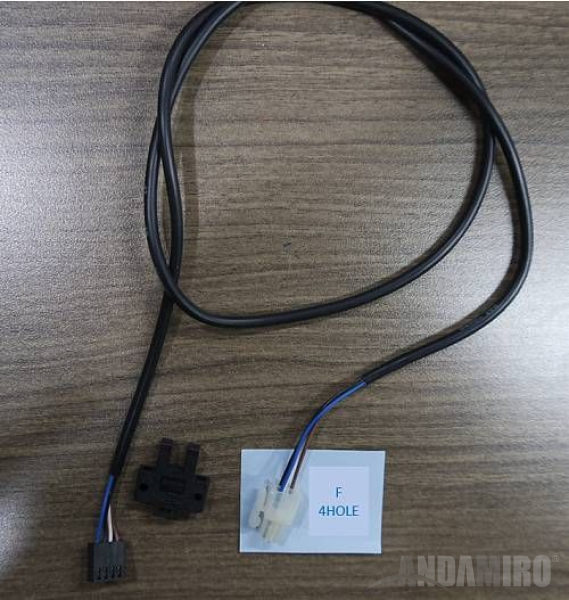

PHOTO SENSOR F
BS5-K2M_CT02 1M
PHOTO SENSOR F
AELE0PHO002
39

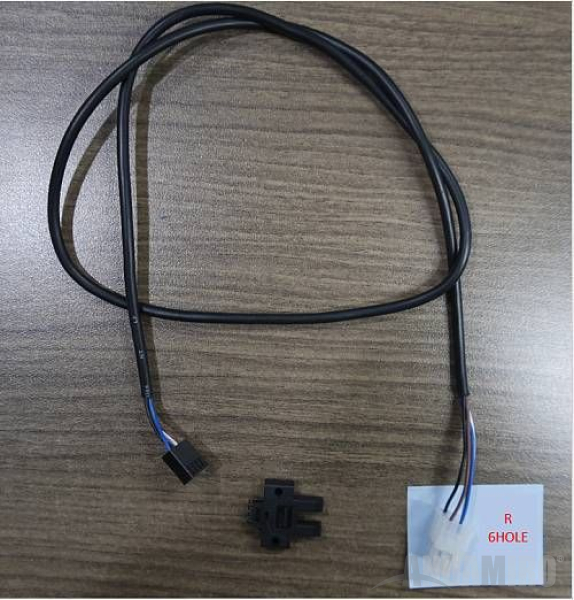

PHOTO SENSOR R
BS5-K2M_CT02 1M
PHOTO SENSOR R
AELE0PHO003
40

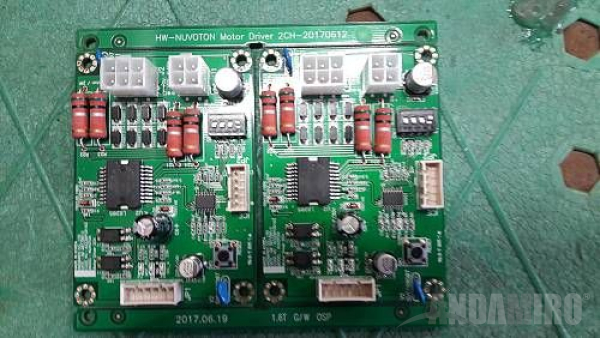

NUVOTON MOTOR DRIVER 2CH PCB ASS'Y
20170612
NUVOTON MOTOR DRIVER 2CH PCB ASS'Y
AT1P0PCB001
41

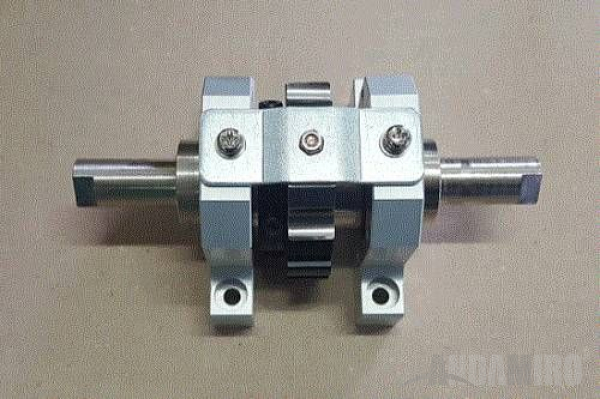

CONTROLLER ASS'Y
ATIR0ASS005
41.1
[CONTROLLER ASS'Y]
CONTROLLER BEARING HOUSING ASS'Y_CHN
중국향 SKD
[CONTROLLER ASS'Y]
CONTROLLER BEARING HOUSING ASS'Y_CHN
ATIR0ASS001
41.2
[CONTROLLER ASS'Y]

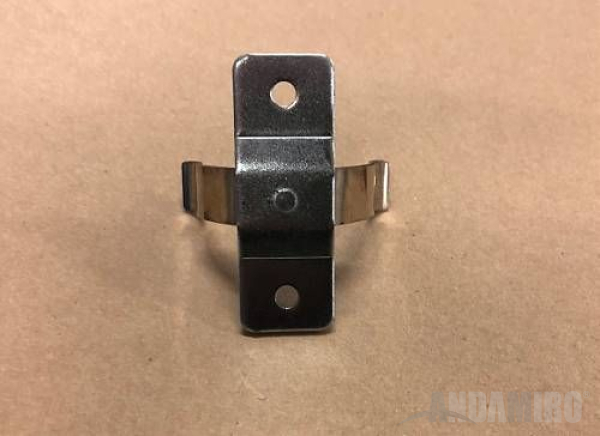

TENSION GUIDE ASS'Y
.
[CONTROLLER ASS'Y]
TENSION GUIDE ASS'Y
ATIR0ASS007
41.2.1
[CONTROLLER ASS'Y]
MEDAL TENSION GUIDE BLOCK
.
[CONTROLLER ASS'Y]
MEDAL TENSION GUIDE BLOCK
MZZZ0ELH008
42

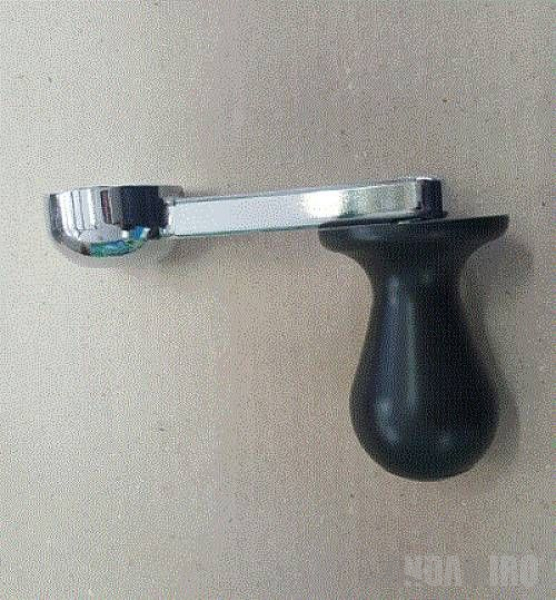

CONTROLLER HANDLE ASS'Y_CHN
중국향 SKD
CONTROLLER HANDLE ASS'Y_CHN
ATIR0ASS002
42.1.1
[CONTROLLER HANDLE ASS'Y_CHN]

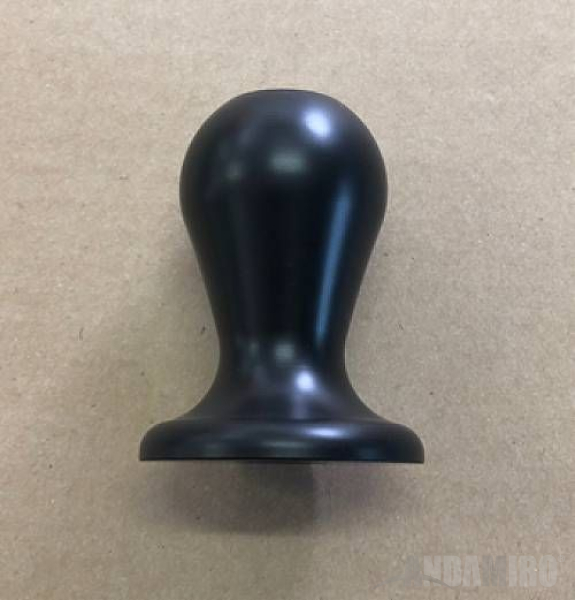

CONTROLLER HANDLE
ACETAL(BLACK)
[CONTROLLER HANDLE ASS'Y_CHN]
CONTROLLER HANDLE
MTIR0PRO004
43
MONITOR CABLE
HDMI_HDMI 2M
MONITOR CABLE
MZZZ0HAN053
44

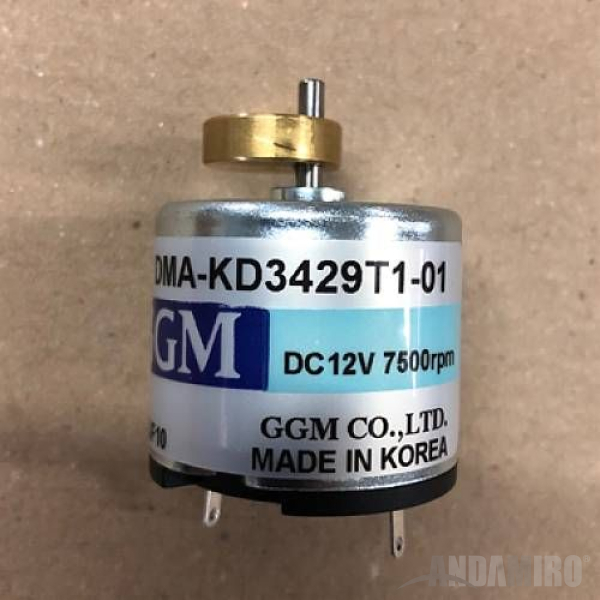

MOTOR ASS'Y_VIBRATION
ATIR0ASS004
45
ROCKER SWITCH
MELE0SWI021
46

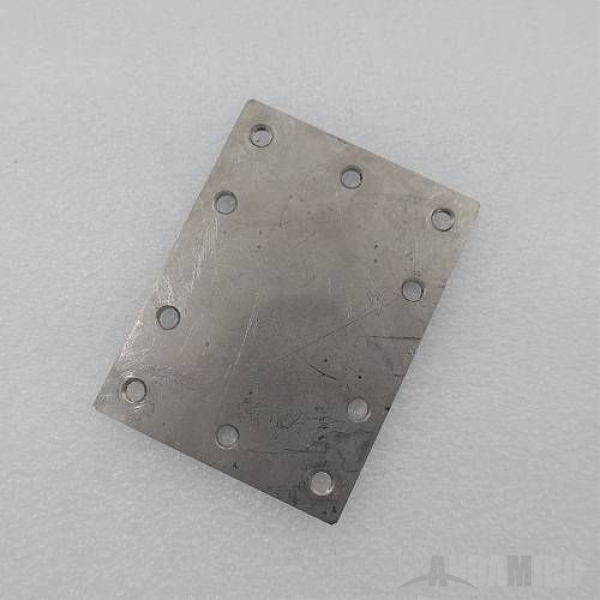

CONTROLLER FRAME BASE PLATE
.
CONTROLLER FRAME BASE PLATE
MTIR0PRO005
47
SMPS BKT
MZZZ0MEP048
48

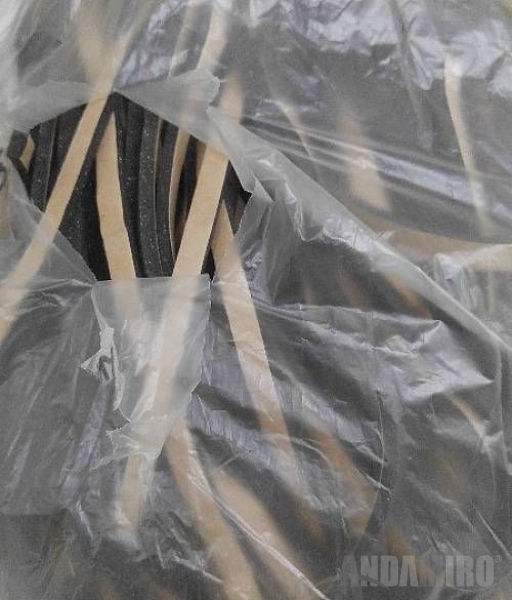

LCD CASE SPONGE
PVC FORM 8*1000 5T(접착면)
LCD CASE SPONGE
MGAC0RUB006
