1
AC INPUT
MELE0SWI015
2

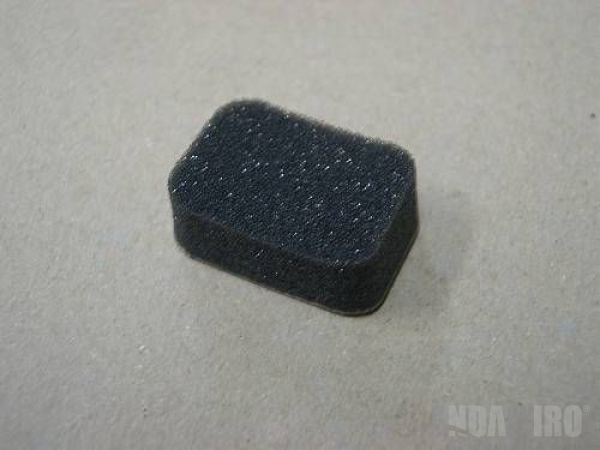

SPONGE_BALL_GUIDE_CLB
10T, BLACK
SPONGE_BALL_GUIDE_CLB
MCLB0SPO001
3
BEARING
MZZZ0BEA064
4

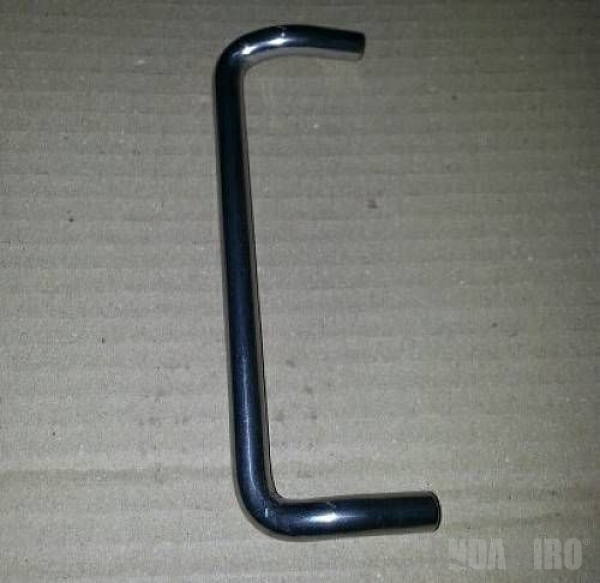

ROUND BAR PULL
RBP-3-4(KA1232)
ROUND BAR PULL
MZZZ0HAD001
5
FUSE 10A
0218010.MXP 250V,10A,4PA
FUSE 10A
MELE0FUS018
6
HAND BOLT
MZZZ0PLA030
7

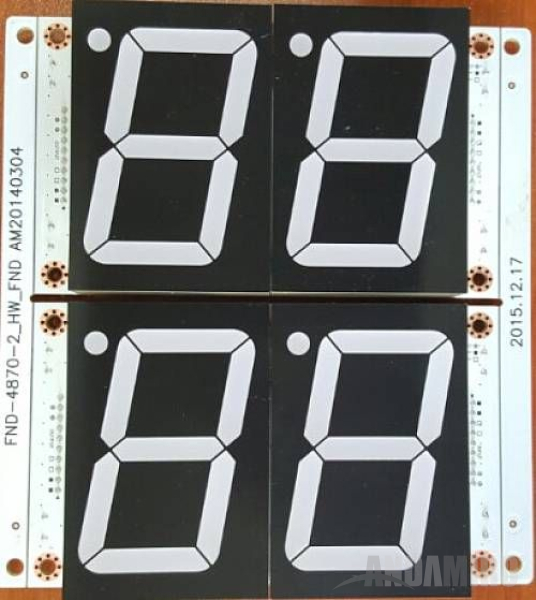

FND PCB ASS'Y
4870-2 (STRAIGHT)
FND PCB ASS'Y
AFND0PCB008
8
BEARING
F6800ZZ, D10 D19 B5
BEARING
MZZZ0BEA092
9

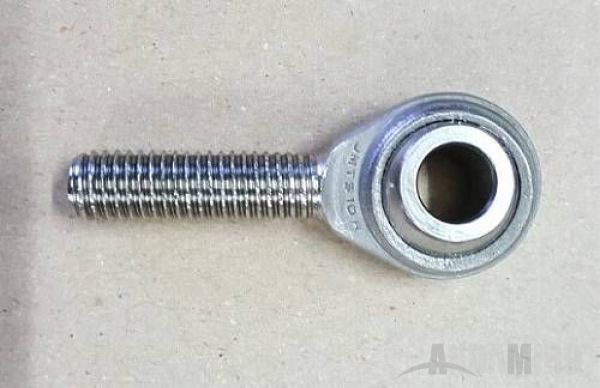

ROD BEARING
JM10_STS304(M1숫놈)
ROD BEARING
MZZZ0BEA108
10

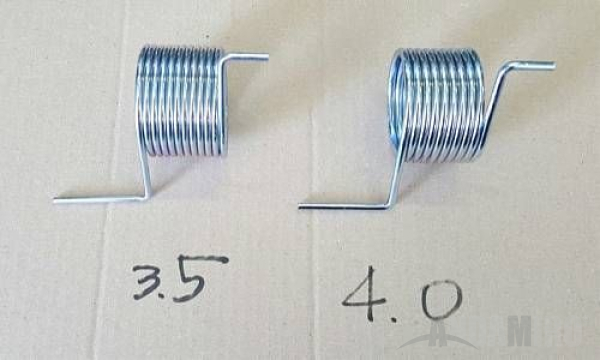

BAT SPRING_4PI
MBAP0SPR001
11
BAT SPRING_3.5PI
PW 3.5PI
BAT SPRING_3.5PI
MBAP0SPR003
12

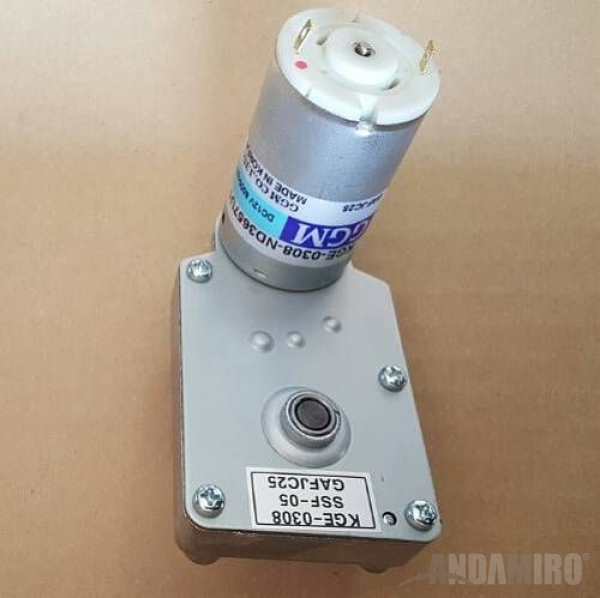

MOTOR
KGE-0308-3657-NB1 DC12V 5000RPM
MOTOR
MZZZ0MOT099
13

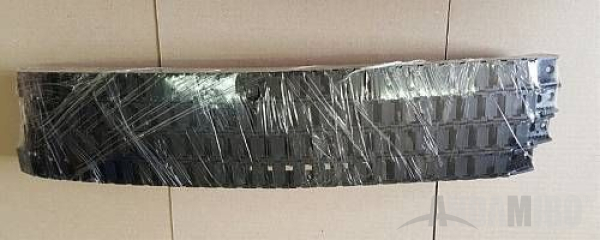

CABLE CHAIN
KJP018-1B-R50_25LINK 한쪽끝은 반대
CABLE CHAIN
MZZZ0CBC010
14

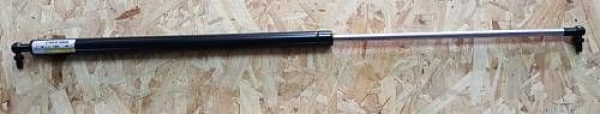

GAS SPRING BALL TYPE
GS22*761 15KG
GAS SPRING BALL TYPE
MZZZ0SHO008
15

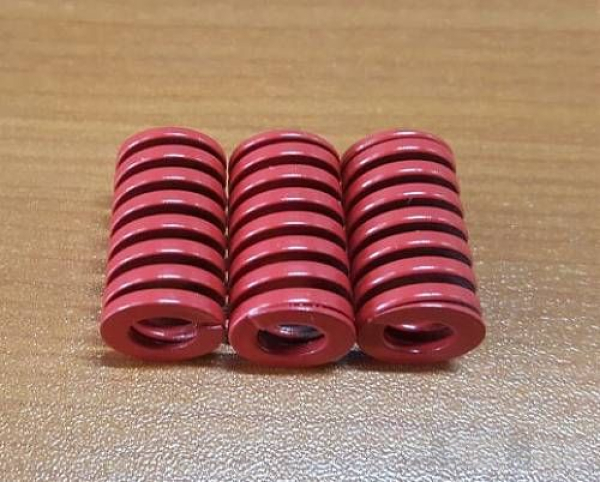

SPRING
SM12060020 D12 D6 L20
SPRING
MZZZ0SPR032
15.1
[SPRING]

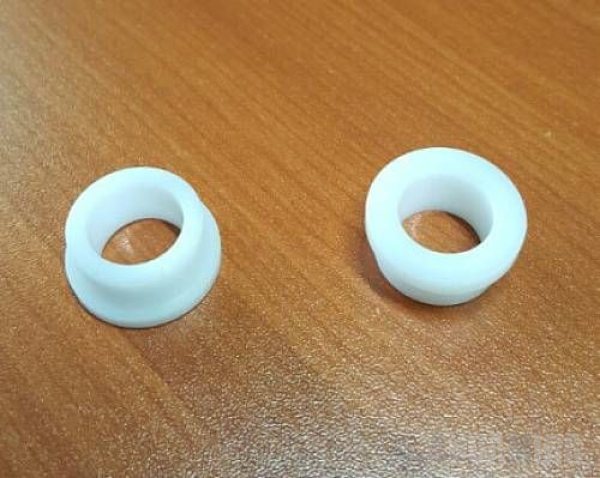

HR SHAFT BUSHING
.
[SPRING]
HR SHAFT BUSHING
MBAP0PRO019
16

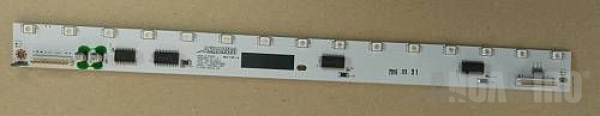

R SIDE LIGHTING LED PCB ASS'Y
BGR
R SIDE LIGHTING LED PCB ASS'Y
ABAP0PCB001
17

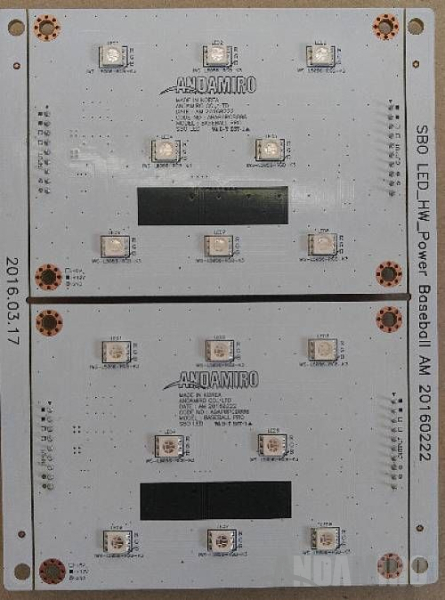

SBO LED PCB ASS'Y
ABAP0PCB005
18
DROP LED PCB ASS'Y
ABAP0PCB013
19

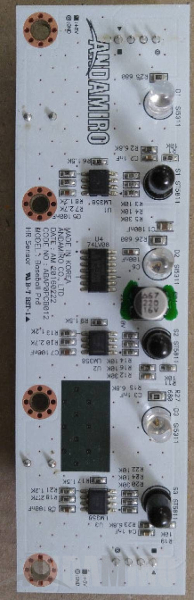

HR SENSOR PCB ASS'Y
IR_TRANS/RECEIVE
HR SENSOR PCB ASS'Y
ABAP0PCB012
20

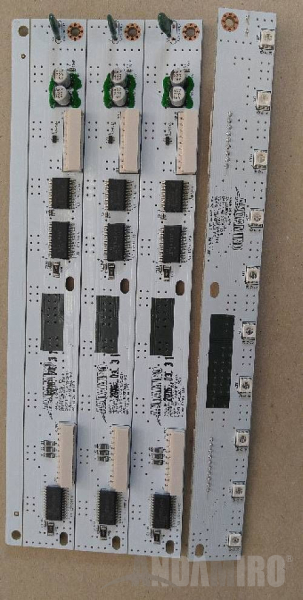

MOUND CENTER LED PCB ASS'Y
BGR
MOUND CENTER LED PCB ASS'Y
ABAP0PCB014
21
FND PCB ASS'Y
90120-4(STRAIGHT)
FND PCB ASS'Y
AFND0PCB024
22

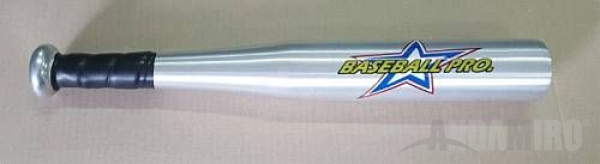

BAT
MZZZ0000577
23

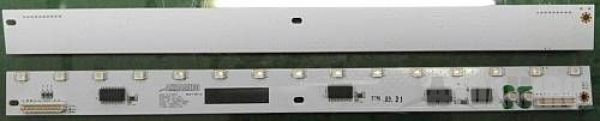

L SIDE LIGHTING LED PCB ASS'Y
BGR
L SIDE LIGHTING LED PCB ASS'Y
ABAP0PCB006
24

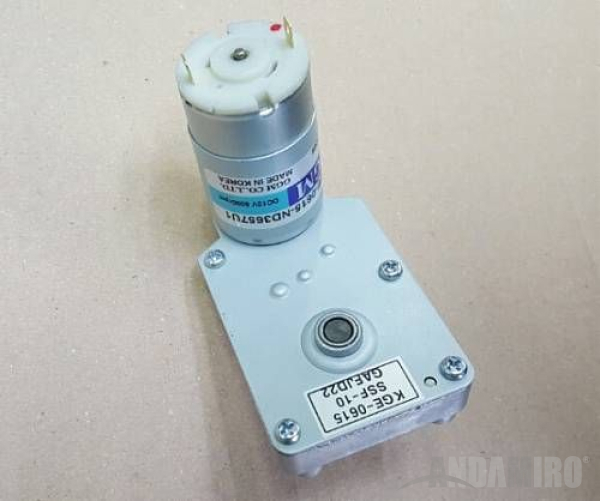

MOTOR
KGE-0615-3657-NB1 DC12V 6000RPM
MOTOR
MZZZ0MOT100
24.1
[MOTOR]

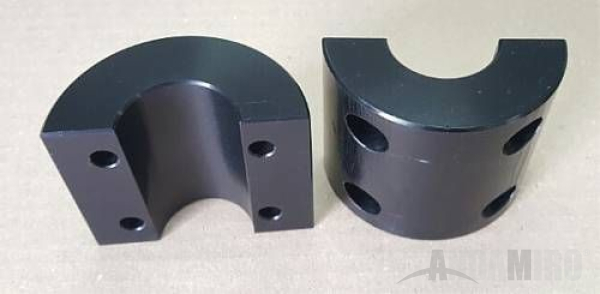

CONTROLLER UPPER HOLDER
.
[MOTOR]
CONTROLLER UPPER HOLDER
MBAP0PRO009
24.2
[MOTOR]

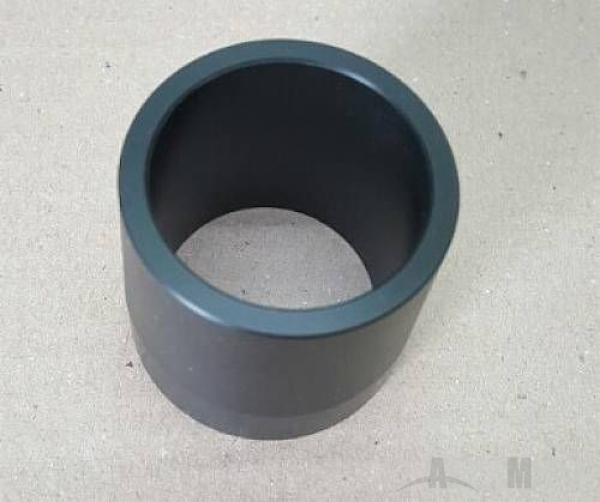

BAT BUSH
MBAP0PRO001

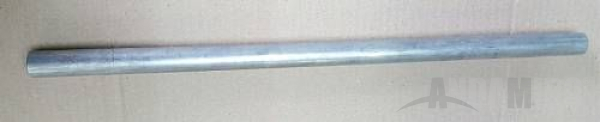

24.3
[MOTOR]
BAT ROD SHAFT
MBAP0PRO004
24.4
[MOTOR]

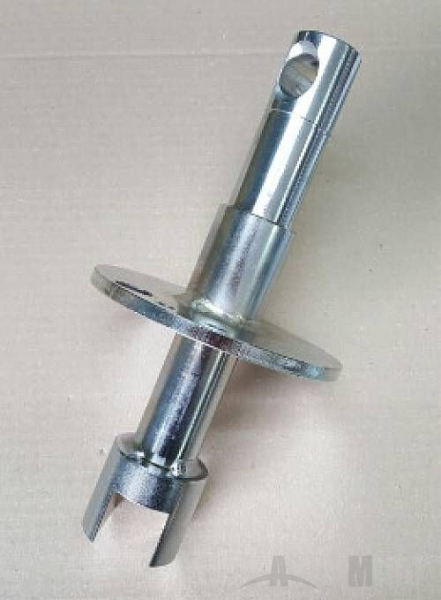

WELD-BAT SHAFT
MBAP0PRO024
24.5
[MOTOR]

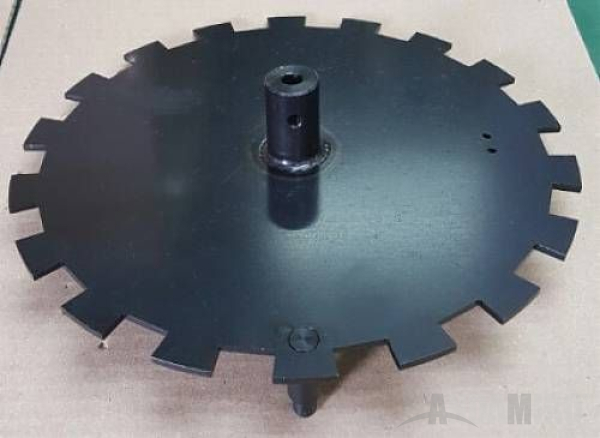

WELD-HR ROTATOR
.
[MOTOR]
WELD-HR ROTATOR
MBAP0PRO014
24.6
[MOTOR]

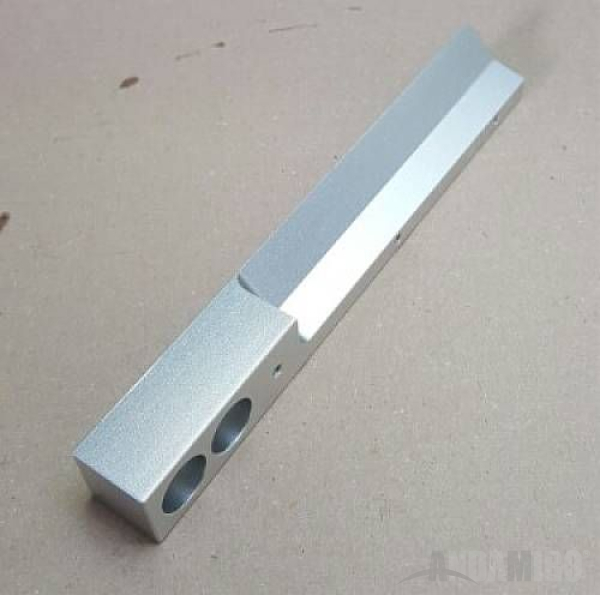

BAT
MBAP0PRO026
24.7
[MOTOR]

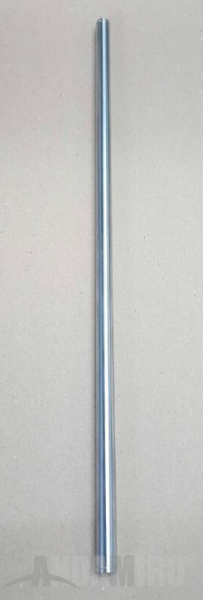

HR MOVING SHAFT
.
[MOTOR]
HR MOVING SHAFT
MBAP0PRO013
24.8
[MOTOR]

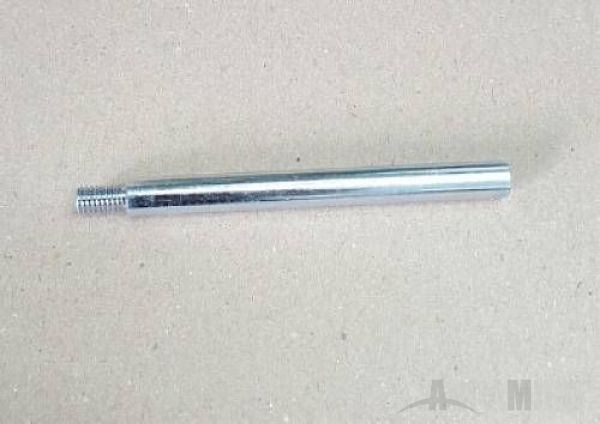

BILLBOARD LOGO FIX SHAFT
.
[MOTOR]
BILLBOARD LOGO FIX SHAFT
MBAP0PRO007
24.9
[MOTOR]

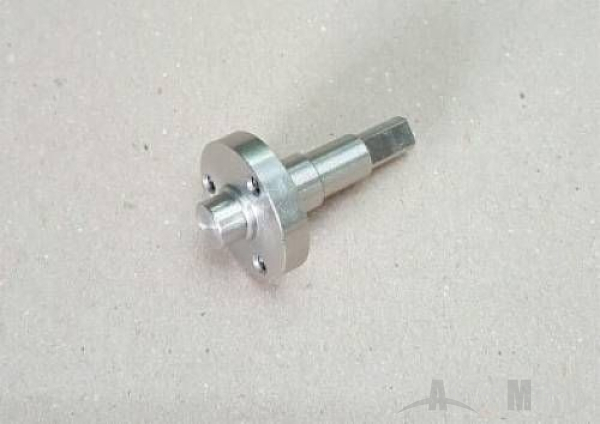

ELEVATOR DISK SHAFT
.
[MOTOR]
ELEVATOR DISK SHAFT
MBAP0PRO017
24.10
[MOTOR]

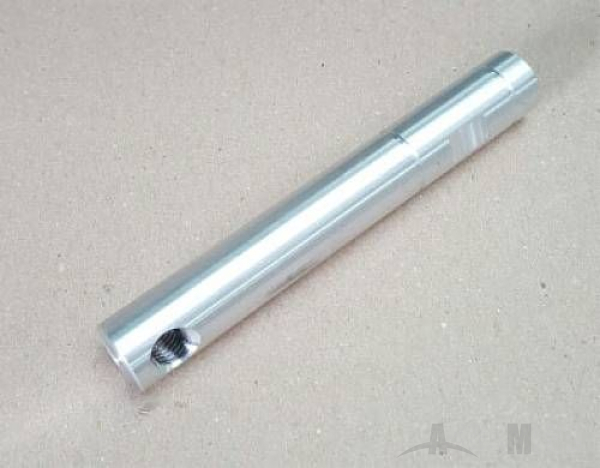

BAT CONNECT SHAFT
.
[MOTOR]
BAT CONNECT SHAFT
MBAP0PRO025
24.11
[MOTOR]

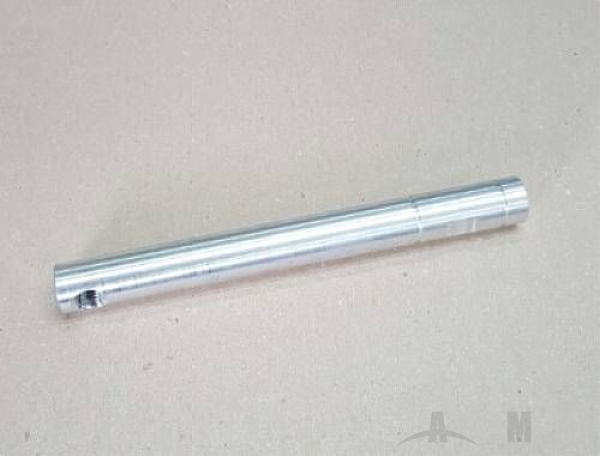

CONTROLLER CONNECT SHAFT
.
[MOTOR]
CONTROLLER CONNECT SHAFT
MBAP0PRO027
24.12
[MOTOR]

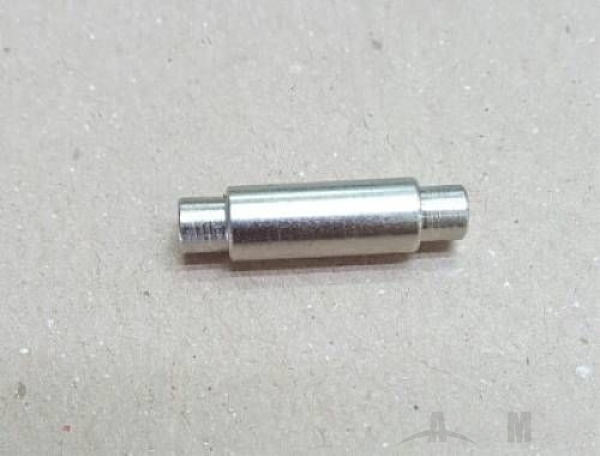

ELEVATOR SPACER SHAFT
.
[MOTOR]
ELEVATOR SPACER SHAFT
MBAP0PRO018

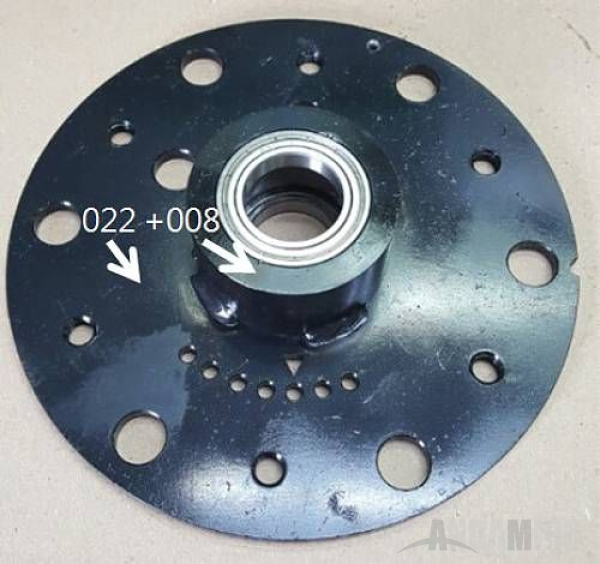

24.13
[MOTOR]
WELD-CONTROLLER BEARING HOUSING
.
[MOTOR]
WELD-CONTROLLER BEARING HOUSING
MBAP0PRO008
24.14
[MOTOR]
WELD-BAT BEARING HOUSING
.
[MOTOR]
WELD-BAT BEARING HOUSING
MBAP0PRO022
25

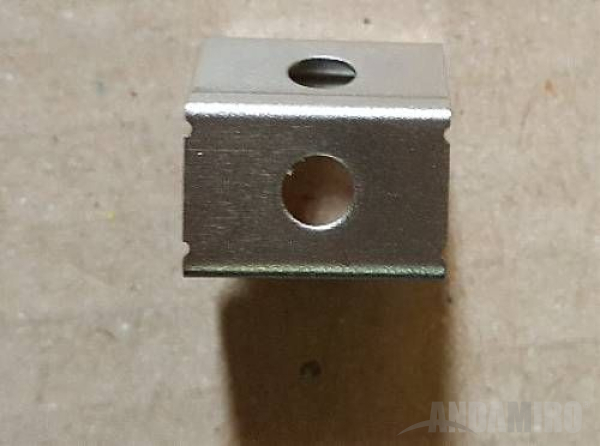

LED STICK BAR BRK
12MM 45도
LED STICK BAR BRK
MELE0000023
26

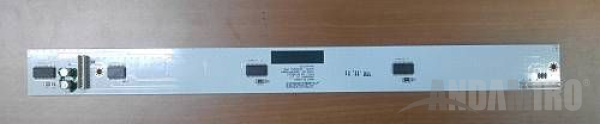

MOUND LED PCB ASS'Y
ABAP0PCB004
27
COIN BOX ASS WITH 6001
SMALL 200*198*107
COIN BOX ASS WITH 6001
AZZZ0ASS002

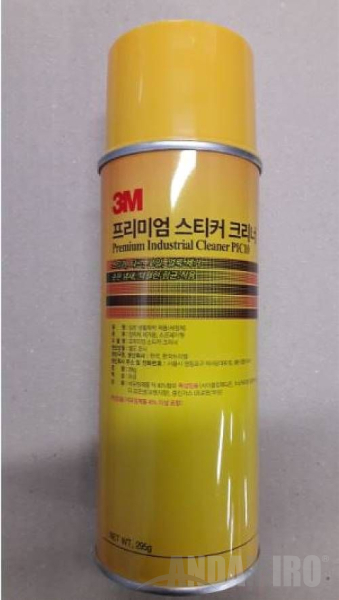

28
3M 스티커제거제
MZZZ0ETC017
28.1
[3M 스티커제거제]

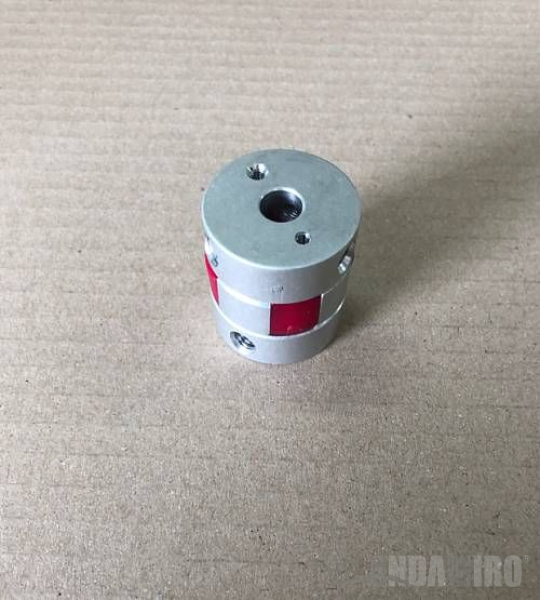

COUPLING
JOC30(D1-8 D2-8)
[3M 스티커제거제]
COUPLING
MBAJ0PRO011
29
BALL SIZE NOTICE STICKER
110*35 볼사이즈 주의
BALL SIZE NOTICE STICKER
MBAP0STI004

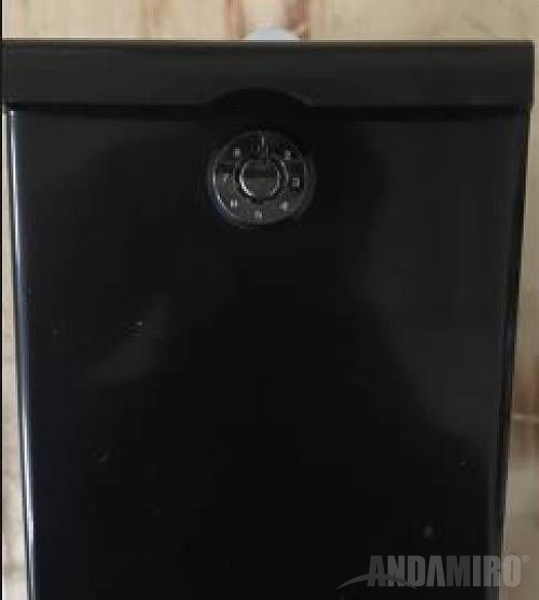

30
COIN BOX ASS WITH C581
SMALL 200*198*107
COIN BOX ASS WITH C581
AZZZ0ASS006
31

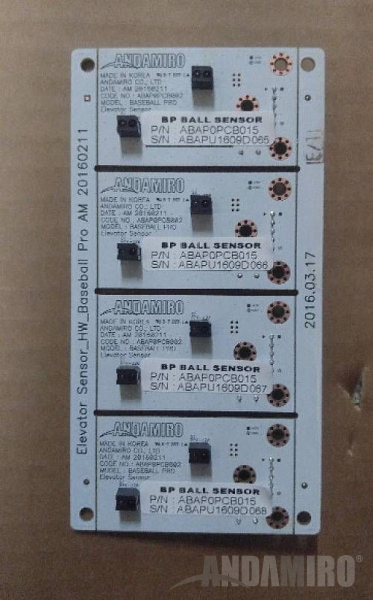

BP BALL SENSOR PCB ASS'Y
2SENSOR
BP BALL SENSOR PCB ASS'Y
ABAP0PCB015
31.1
[BP BALL SENSOR PCB ASS'Y]

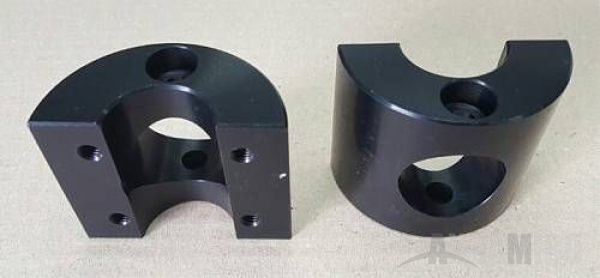

CONTROLLER LOWER HOLDER
.
[BP BALL SENSOR PCB ASS'Y]
CONTROLLER LOWER HOLDER
MBAP0PRO006
31.2
[BP BALL SENSOR PCB ASS'Y]
MICRO SWITCH_FOR BUTTON
SZM-V16-FA-63(200G)
[BP BALL SENSOR PCB ASS'Y]
MICRO SWITCH_FOR BUTTON
MELE0MIC013
32
SPEAKER
MID 4.5"+TW1/2" 8Ω W-C-100 F BK
SPEAKER
MZZZ0SPE021
33
SPOT LED PCB ASS'Y
ABAP0PCB008
34
LED BAR 12V ASS'Y
AZZZ0PCB124
35
LED BAR 12V ASS'Y
AZZZ0PCB128
35.1
[LED BAR 12V ASS'Y]
COIN BOX SMALL
200*198*107 BLACK
[LED BAR 12V ASS'Y]
COIN BOX SMALL
MDRE0PLA007
36
COIN SELECTOR
TW-333_WITHOUT FND
COIN SELECTOR
MZZZ0COS045
37
ATX POWER SUPPLY
CODE CHANGE MELE0SMP149
ATX POWER SUPPLY
MELE0SMP099
38
SETUP LCD PCB ASS'Y
UNISYSTECH
SETUP LCD PCB ASS'Y
AZZZ0PCB113
39
BUTTON SWITCH
TICKET AM1PB-26SH R12D
BUTTON SWITCH
MMUM0BUT002
40
PLUG CUSHION RUBBER
공진 [KD-96R-9] 6MM
PLUG CUSHION RUBBER
MCIR0RUB001
41
LED STICK BAR BRK
12MM 90도
LED STICK BAR BRK
MELE0000022
42

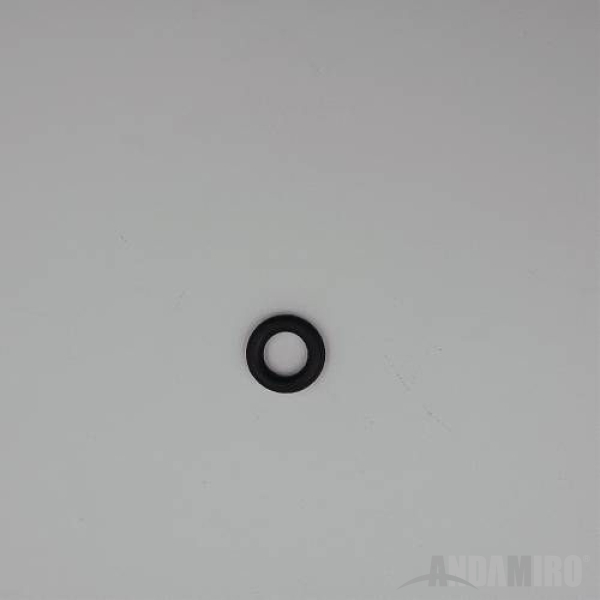

ORING
AS568A-#204 OD16 D9 3.53PI
ORING
MZZZ0ORI003
43

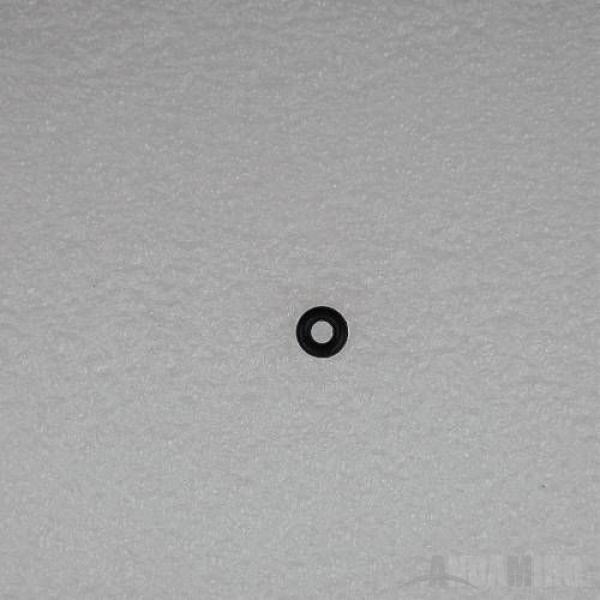

ORING
MZZZ0ORI004
44
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
PHOTO INT-1 PCB ASS'Y
AZZZ0PCB103
45
BUTTON SWITCH
CODE CHANGE AZZZ0BUT011
BUTTON SWITCH
MZZZ0BUT054
46

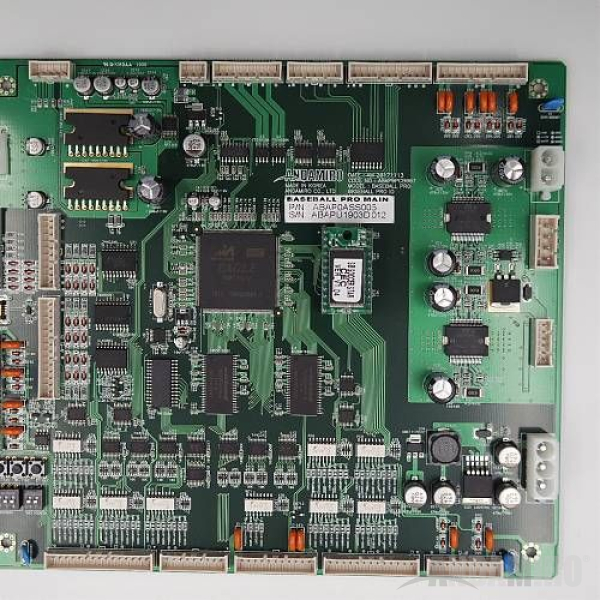

BASEBALL PRO IO PCB ASS'Y
WITH CPU
BASEBALL PRO IO PCB ASS'Y
ABAP0ASS005
47
ROCKER SWITCH
MELE0SWI004
48
PRO ASS'Y
17 PARTS 외2종남광발송
PRO ASS'Y
ABAP0PRO001
49

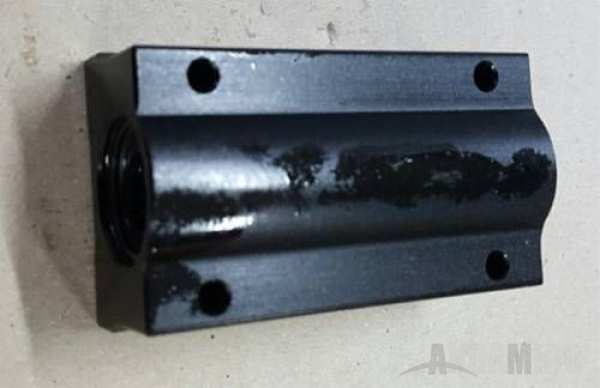

LM BEARING
SL12UU_THC 50*70
LM BEARING
MZZZ0BEA106
50
WELD-CONTROLLER SHAFT ASS'Y
.
WELD-CONTROLLER SHAFT ASS'Y
ABAP0ASS011
50.1
[WELD-CONTROLLER SHAFT ASS'Y]
KEY ASS'Y 6001
6001 ONLY BODY
[WELD-CONTROLLER SHAFT ASS'Y]
KEY ASS'Y 6001
MZZZ0KEY075
51
KEY ONLY 7001
2EA 1SET_WITH RING
KEY ONLY 7001
MZZZ0KEY035
52
KEY ONLY 6001
2EA 1SET _WITH RING
KEY ONLY 6001
MZZZ0KEY014
53
FND PCB ASS'Y
3856-2(STRAIGHT)
FND PCB ASS'Y
AFND0PCB006
54
PUSH BUTTON SWITCH
DS-412R ROSH
PUSH BUTTON SWITCH
MELE0PUS006
55
FND PCB ASS'Y
2941-4 (STRAIGHT)
FND PCB ASS'Y
AFND0PCB004
55.1
[FND PCB ASS'Y]

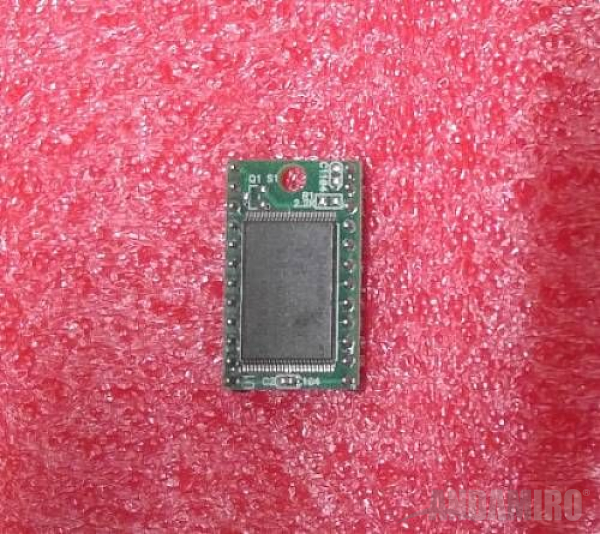

MEMORY PCB ASS'Y
BASEBALL
[FND PCB ASS'Y]
MEMORY PCB ASS'Y
ABAP0PCB011
56
MICRO SWITCH
CNR-05H-03 ZIPPY-FOR COIN
MICRO SWITCH
MELE0MIC002
57
VOLUME PCB ASS'Y
1 VOLUME
VOLUME PCB ASS'Y
AHM20PCB016
58

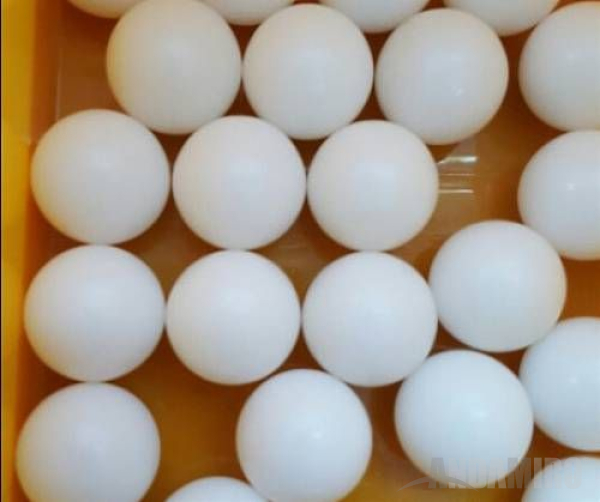

BALL
MZZZ0BLL003
58.1
[BALL]
BUTTON SWITCH
60HR WITHOUT HOLDER
[BALL]
BUTTON SWITCH
MZZZ0BUT127
59
BUTTON SWITCH
AMIPB-60HR-W12D
BUTTON SWITCH
AZZZ0BUT011
59.1
[BUTTON SWITCH]
HOLDER ASS'Y
LED 포함
[BUTTON SWITCH]
HOLDER ASS'Y
MZZZ0BUT128
60
AC POWER CORD UL
125V_10A_SVT 3/18AWG 1.8M
AC POWER CORD UL
MELE0ACP001
61
AC POWER CORD
250V 16A KKP-4819R CE 1.8M
AC POWER CORD
MELE0ACP008
62
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
COUNTER
MZZZ0COU002

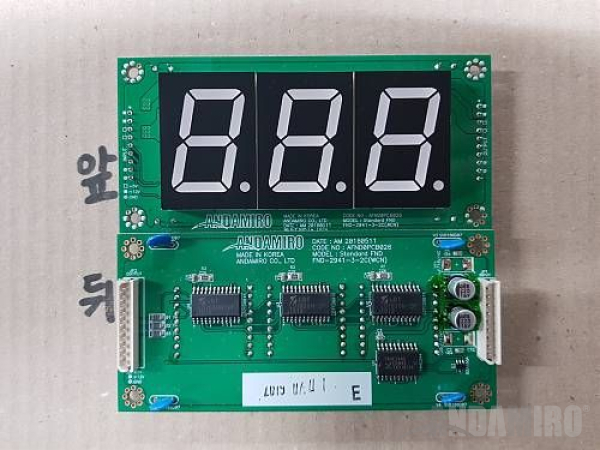

63
FND PCB ASS'Y
2941-3-2C(WCN)(STAIGHT)
FND PCB ASS'Y
AFND0PCB026
64
HOLDER ASS'Y
MZZZ0BUT103
65
VOLUME KNOB
MELE0VOL007
66
PHOTO INT-2 PCB ASS'Y
WINNER,WON,CIR공용
PHOTO INT-2 PCB ASS'Y
AWIW0PCB009
67
NOISE FILTER
MELE0NOI006
68
TERMINAL BLOCK
KTB1-020 6P UL_CE
TERMINAL BLOCK
MELE0TEB001
69

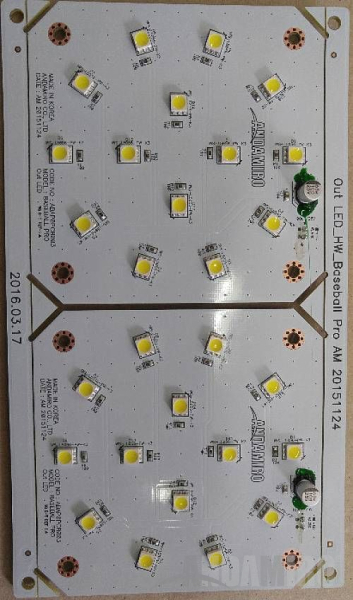

OUT LED PCB ASS'Y
ABAP0PCB003
69.1
[OUT LED PCB ASS'Y]

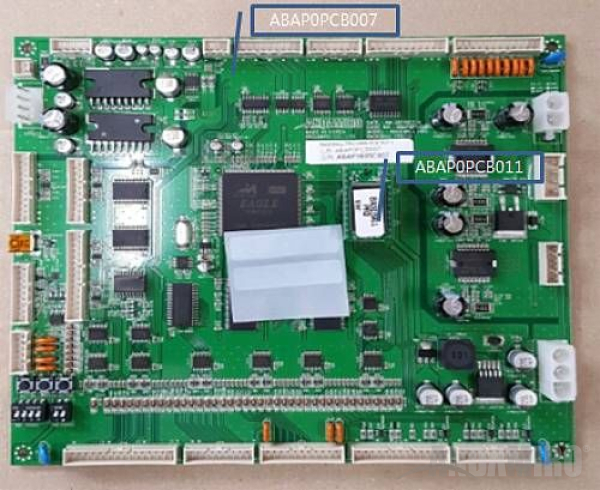

BASEBALL PRO IO PCB ASS'Y
EAGLE CHIP
[OUT LED PCB ASS'Y]
BASEBALL PRO IO PCB ASS'Y
ABAP0PCB007
69.2
[OUT LED PCB ASS'Y]
CENTER RAIL ACRYL
.
[OUT LED PCB ASS'Y]
CENTER RAIL ACRYL
MBAP0ACR012
69.3
[OUT LED PCB ASS'Y]
ELEVATOR RAIL SIDE ACRYL L-R
[OUT LED PCB ASS'Y]
ELEVATOR RAIL SIDE ACRYL L-R
MBAP0ACR027
70
DISPLAY COPY PCB ASS'Y
AGST0PCB008
70.1
[DISPLAY COPY PCB ASS'Y]
CONTROLLER SAFETY COVER ACRYL
.
[DISPLAY COPY PCB ASS'Y]
CONTROLLER SAFETY COVER ACRYL
MBAP0ACR015
71
TICKET DISPENSER
CLE CL-002Q_270 HIGH SPEED
TICKET DISPENSER
MZZZ0TID010
72
FND PCB ASS'Y
2029-2(STRAIGHT)
FND PCB ASS'Y
AFND0PCB001
72.1
[FND PCB ASS'Y]
MICRO SW L R
SZM-V16-5FA-63
[FND PCB ASS'Y]
MICRO SW L R
MWIC0PAR022
73
ATX JOIN 2 OZ PCB ASS'Y
SPONGE BOB PINEAPPLE
ATX JOIN 2 OZ PCB ASS'Y
ASBP0PCB010
74
WEB SHEET PART
ABSP0PAT037
75
WEB ACRYL PART
ABSP0PAT036
75.1
[WEB ACRYL PART]
BACKBOARD ACRYL
[WEB ACRYL PART]
BACKBOARD ACRYL
ABAP0ACP001
75.2
[WEB ACRYL PART]
BILLBOARD BACK ACRYL
[WEB ACRYL PART]
BILLBOARD BACK ACRYL
ABAP0ACP007
75.3
[WEB ACRYL PART]
BILLBOARD FRONT ACRYL
[WEB ACRYL PART]
BILLBOARD FRONT ACRYL
ABAP0ACP008
75.4
[WEB ACRYL PART]
HR BALL CASE DECO ACRYL
[WEB ACRYL PART]
HR BALL CASE DECO ACRYL
ABAP0ACP010
75.5
[WEB ACRYL PART]
SPEAKER PANEL ACRYL
[WEB ACRYL PART]
SPEAKER PANEL ACRYL
ABAP0ACP013
75.6
[WEB ACRYL PART]
BILLBOARD BACKGROUND ACRYL
[WEB ACRYL PART]
BILLBOARD BACKGROUND ACRYL
ABAP0ACP014
75.7
[WEB ACRYL PART]
FRONT FRAME COVER ACRYL -L
[WEB ACRYL PART]
FRONT FRAME COVER ACRYL -L
ABAP0ACP015
75.8
[WEB ACRYL PART]
BAT COVER ACRYL
[WEB ACRYL PART]
BAT COVER ACRYL
ABAP0ACP018
75.9
[WEB ACRYL PART]
FRONT FRAME COVER ACRYL -CEC
ACRYL 5T
[WEB ACRYL PART]
FRONT FRAME COVER ACRYL -CEC
ABAP0ACP021
75.10
[WEB ACRYL PART]
TOP DECO PANEL SHEET-R
.
[WEB ACRYL PART]
TOP DECO PANEL SHEET-R
MBAP0SHE009
75.11
[WEB ACRYL PART]
TOP DECO PANEL SHEET-L
.
[WEB ACRYL PART]
TOP DECO PANEL SHEET-L
MBAP0SHE010
75.12
[WEB ACRYL PART]
LOWER DECO PANEL SHEET-L
.
[WEB ACRYL PART]
LOWER DECO PANEL SHEET-L
MBAP0SHE011
75.13
[WEB ACRYL PART]
LOWER DECO PANEL SHEET-R
.
[WEB ACRYL PART]
LOWER DECO PANEL SHEET-R
MBAP0SHE012
75.14
[WEB ACRYL PART]
FRONT DOOR PANEL SHEET
.
[WEB ACRYL PART]
FRONT DOOR PANEL SHEET
MBAP0SHE013
75.15
[WEB ACRYL PART]
MAIN CASE CONNECT PANEL SHEET-L
.
[WEB ACRYL PART]
MAIN CASE CONNECT PANEL SHEET-L
MBAP0SHE014
75.16
[WEB ACRYL PART]
MAIN CASE CONNECT PANEL SHEET-R
.
[WEB ACRYL PART]
MAIN CASE CONNECT PANEL SHEET-R
MBAP0SHE015
75.17
[WEB ACRYL PART]
BUTTON SHEET
.
[WEB ACRYL PART]
BUTTON SHEET
MBAP0SHE027
76

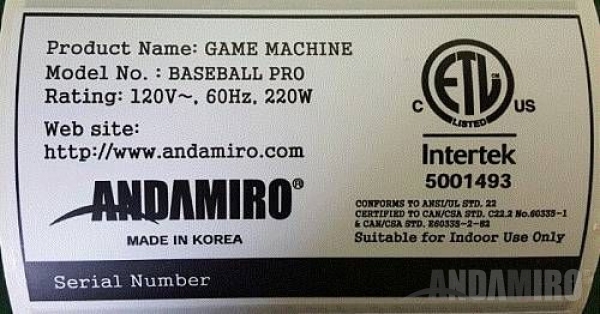

ETL SERIAL SRICKER
MBAP0STI003
76.1
[ETL SERIAL SRICKER]
GROUND 4종 BENCH/OUTFIELD/INFIELD/BAT SHAFT
ACR2 7 10 38 39 42 PRI2 3 4 5 6 20
[ETL SERIAL SRICKER]
GROUND 4종 BENCH/OUTFIELD/INFIELD/BAT SHAFT
ABSP0ACP016
76.2
[ETL SERIAL SRICKER]
CONTROLLER PANEL/SHAFT COVER ACRYL
ACR5 41 PRI 9 19
[ETL SERIAL SRICKER]
CONTROLLER PANEL/SHAFT COVER ACRYL
ABSP0ACP017
76.3
[ETL SERIAL SRICKER]
MOUND ACRYL -L/R
ACR9 43 PRI11 12
[ETL SERIAL SRICKER]
MOUND ACRYL -L/R
ABSP0ACP018
76.4
[ETL SERIAL SRICKER]
MAIN CASE INNER DECO -L/R
ACR36 40 PRI16 17
[ETL SERIAL SRICKER]
MAIN CASE INNER DECO -L/R
ABSP0ACP019
77

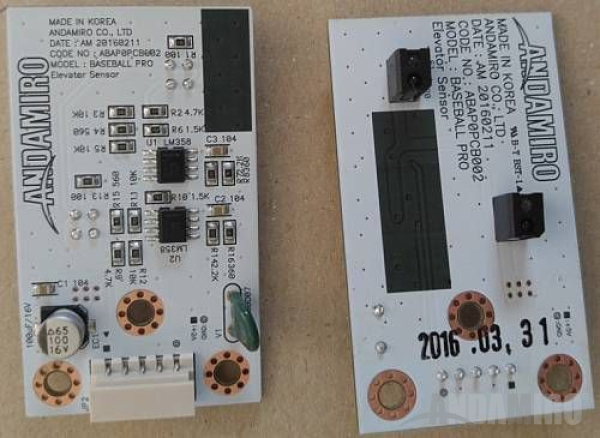

ELEVATOR SENSOR PCB ASS'Y
2SENSOR
ELEVATOR SENSOR PCB ASS'Y
ABAP0PCB002
78

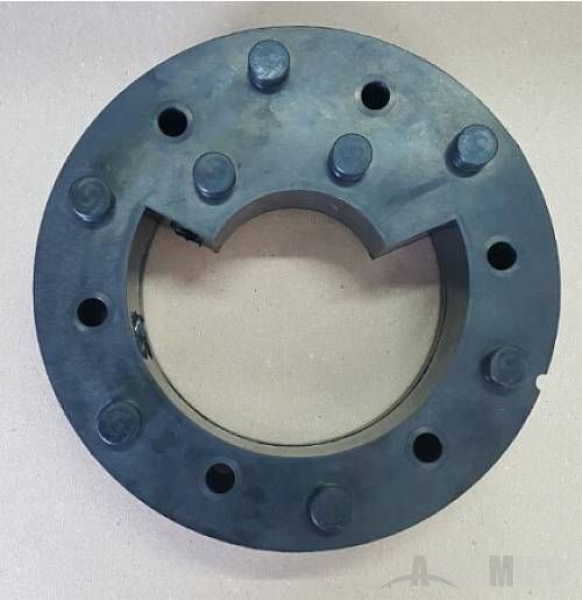

BEARING CUSHION MOLD
MBAP0PLA001
79

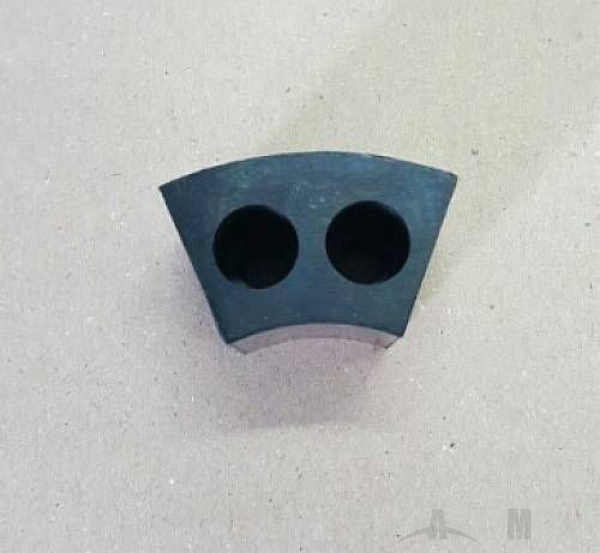

BEARING CUSHION MOLD-STOPPER
.
BEARING CUSHION MOLD-STOPPER
MBAP0PLA003

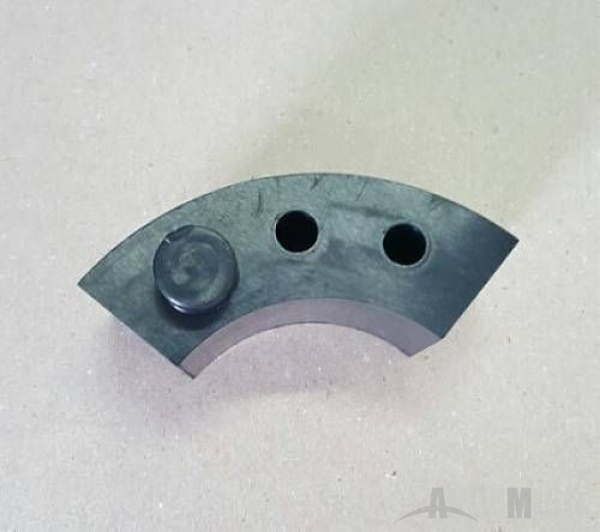

80
BAT CUSHION MOLD
MBAP0PLA002
81
GROUND CONNECTION STICKER
접지
GROUND CONNECTION STICKER
MSUP0STI002
82
WARRANTY STICKER
MZZZ0STI085
83
WARNING STICKER (ETL 유리 파손)
110*35
WARNING STICKER (ETL 유리 파손)
MZZZ0STI088
84
WARNING STICKER_POWER BOX ETL
90*45
WARNING STICKER_POWER BOX ETL
MZZZ0STI089
85
FUSE LABEL(T10A-250V) ETL
75*50
FUSE LABEL(T10A-250V) ETL
MZZZ0STI090
86
NOTICE STICKER
100*35 10초후전원ON
NOTICE STICKER
MZZZ0STI092
87
WARNING SHEET
MZZZ0STI091
87.1
[WARNING SHEET]
ELEVATOR BRAKE ACRYL
.
[WARNING SHEET]
ELEVATOR BRAKE ACRYL
MBAP0ACR008
87.2
[WARNING SHEET]
HR FRONT ACRYL
.
[WARNING SHEET]
HR FRONT ACRYL
MBAP0ACR017
87.3
[WARNING SHEET]
DROP FENCE ACRYL
[WARNING SHEET]
DROP FENCE ACRYL
MBAP0ACR018
87.4
[WARNING SHEET]
ELEVATOR BODY COVER ACRYL-L
.
[WARNING SHEET]
ELEVATOR BODY COVER ACRYL-L
MBAP0ACR019
87.5
[WARNING SHEET]
ELEVATOR BODY COVER ACRYL-R
.
[WARNING SHEET]
ELEVATOR BODY COVER ACRYL-R
MBAP0ACR020
87.6
[WARNING SHEET]
ELEVATOR CASE COVER ACRYL
.
[WARNING SHEET]
ELEVATOR CASE COVER ACRYL
MBAP0ACR021
87.7
[WARNING SHEET]
ELEVATOR RAIL FRONT ACRYL
L R 1 SET
[WARNING SHEET]
ELEVATOR RAIL FRONT ACRYL
MBAP0ACR024
87.8
[WARNING SHEET]
ELEVATOR RAIL REAR ACRYL
.
[WARNING SHEET]
ELEVATOR RAIL REAR ACRYL
MBAP0ACR025
87.9
[WARNING SHEET]
SIDE FRAME LIGHTING ACRYL
대칭
[WARNING SHEET]
SIDE FRAME LIGHTING ACRYL
MBAP0ACR028
87.10
[WARNING SHEET]
SIDE RAIL ACRYL
[WARNING SHEET]
SIDE RAIL ACRYL
MBAP0ACR029
87.11
[WARNING SHEET]
SIDE WINDOW
[WARNING SHEET]
SIDE WINDOW
MBAP0ACR030
87.12
[WARNING SHEET]
SPOT ACRYL
.
[WARNING SHEET]
SPOT ACRYL
MBAP0ACR031
87.13
[WARNING SHEET]
FRONT FRAME COVER ACRYL-R
.
[WARNING SHEET]
FRONT FRAME COVER ACRYL-R
MBAP0ACR034
87.14
[WARNING SHEET]
HR BALL CASE ACRYL
.
[WARNING SHEET]
HR BALL CASE ACRYL
MBAP0ACR035
87.15

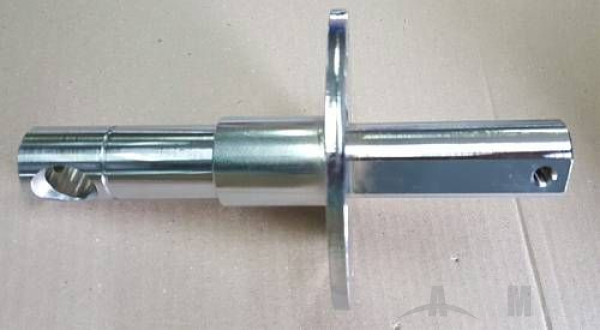

[WARNING SHEET]
WELD-CONTROLLER SHAFT
.
[WARNING SHEET]
WELD-CONTROLLER SHAFT
MBAP0PRO005
87.16
[WARNING SHEET]
FRONT FRAME COVER ACRYL-R COVER
[WARNING SHEET]
FRONT FRAME COVER ACRYL-R COVER
MBAP0ACR033
