1
[]
AC INPUT
MELE0SWI015
2
[]
FUSE 10A
0218010.MXP 250V,10A,4PA
[]
FUSE 10A
MELE0FUS018
1

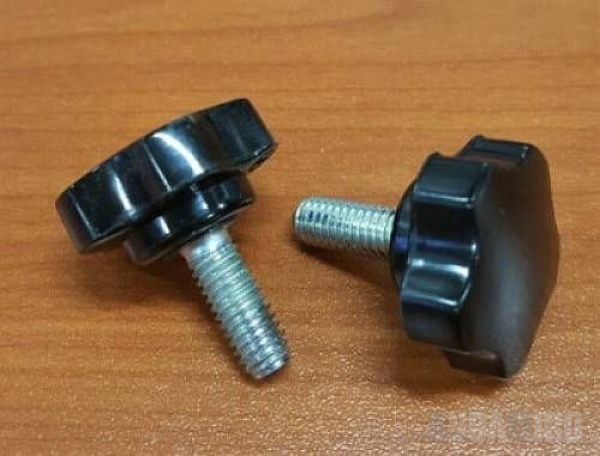

HAND BOLT
FKB6 LM=15, M6X15
HAND BOLT
MZZZ0PLA031
2
POWER SMPS
MELE0SMP090
3
POWER SMPS
MELE0SMP094
4
JOYSTICK RGB
JS-EPCM- BU-45-CW-CT
JOYSTICK RGB
MZZZ0JOY014
5
MAGNETIC BALL
MNFL0ZZZ002
6
MAGNETIC BLOCK
Φ15 X T1.5
MAGNETIC BLOCK
MNFL0ZZZ003
7
KIOSK COIN MAIN PCB ASS'Y
COIN RAIL
KIOSK COIN MAIN PCB ASS'Y
AKIS0PCB006
8
SOLENOID ASS'Y
AKIS0ASS013
9
SOLENOID
MELE0SOL005
10

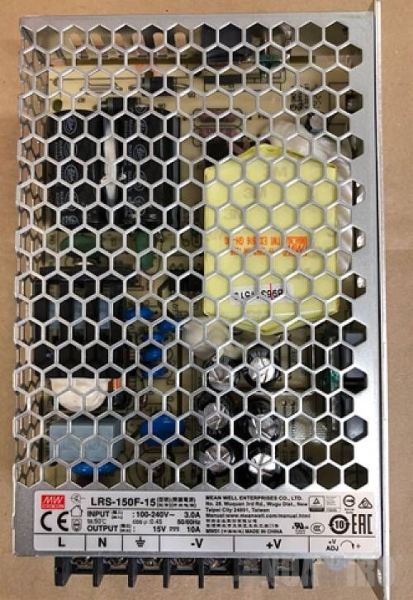

POWER SMPS
MELE0SMP131
1.10
[POWER SMPS]
SOLENOID SHAFT_KIOSK
.
[POWER SMPS]
SOLENOID SHAFT_KIOSK
MKIS0PRO006
2.10
[POWER SMPS]
MICRO SWITCH_FOR BUTTON
SZM-V16-FA-63(200G)
[POWER SMPS]
MICRO SWITCH_FOR BUTTON
MELE0MIC013
11

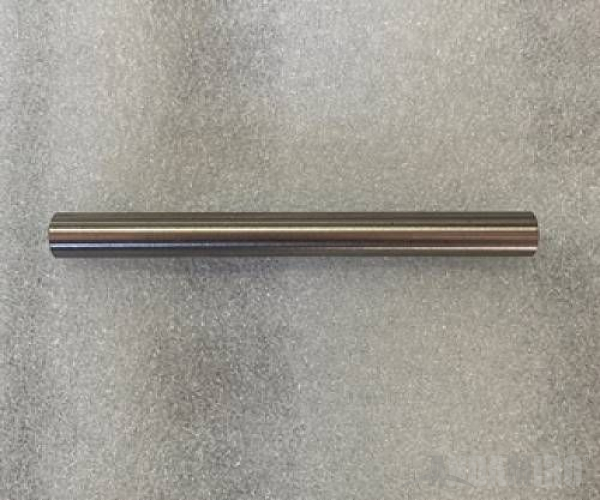

ROTATE WHEEL LED SPACE
MCOC0PRO007
12

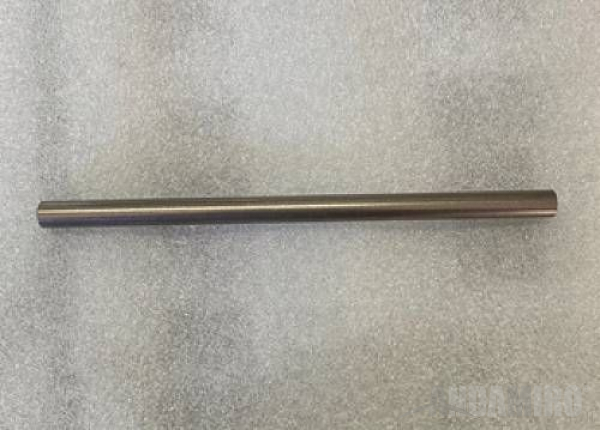

BILLBOARD SPACE
MCOC0PRO010
13

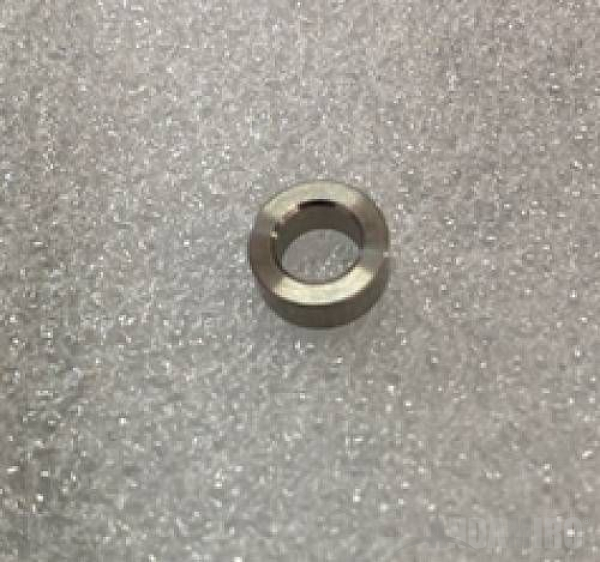

FRONT DOOR STOPPER BUSHING
.
FRONT DOOR STOPPER BUSHING
MCOC0PRO011
14

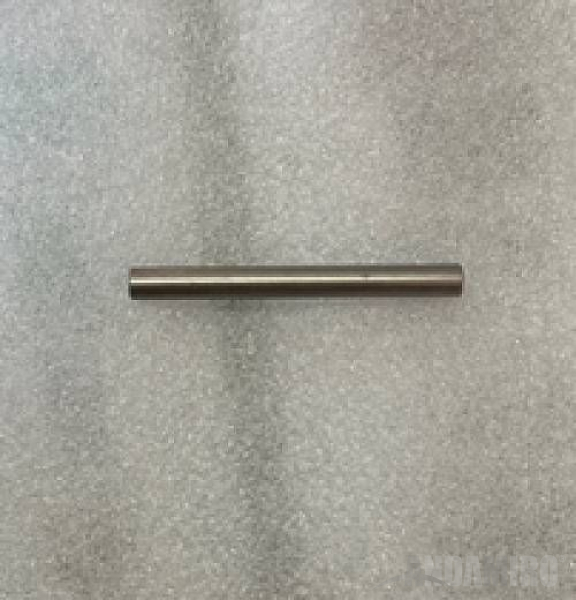

RUGBY CRANE LIGHT SHAFT
.
RUGBY CRANE LIGHT SHAFT
MNFL0PRO014
15

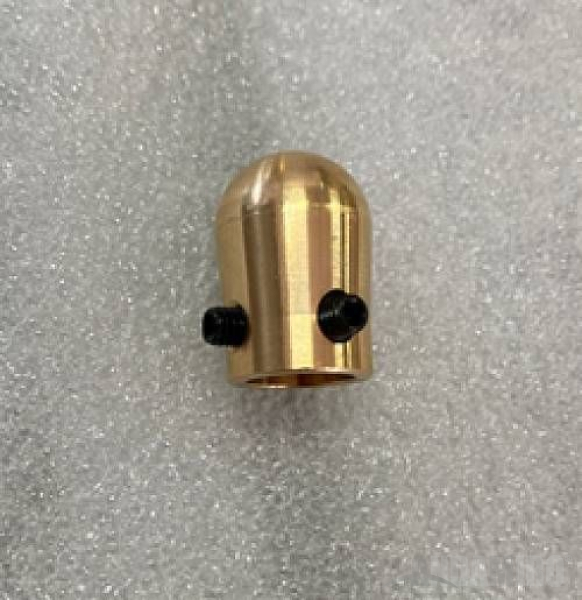

SOLENOID SHAFT END CAP
MNFL0PRO017
16

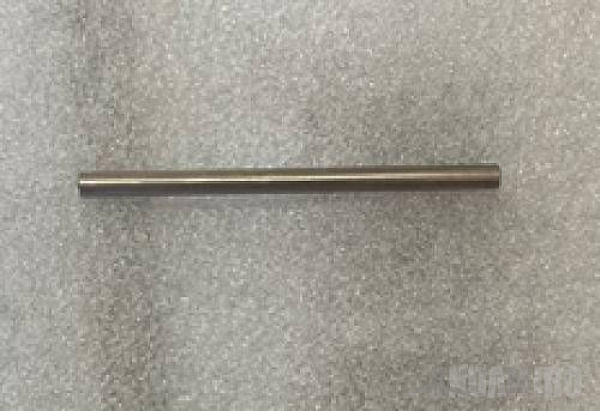

RUGBY CRANE MOLD STOPPER
.
RUGBY CRANE MOLD STOPPER
MNFL0PRO015
17

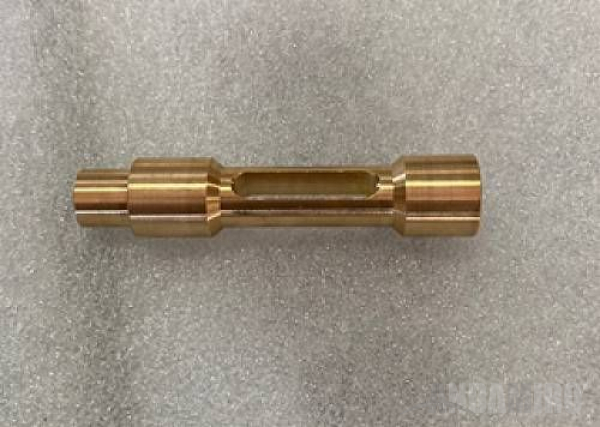

SOLENOID SHAFT GUIDE
MNFL0PRO018
18

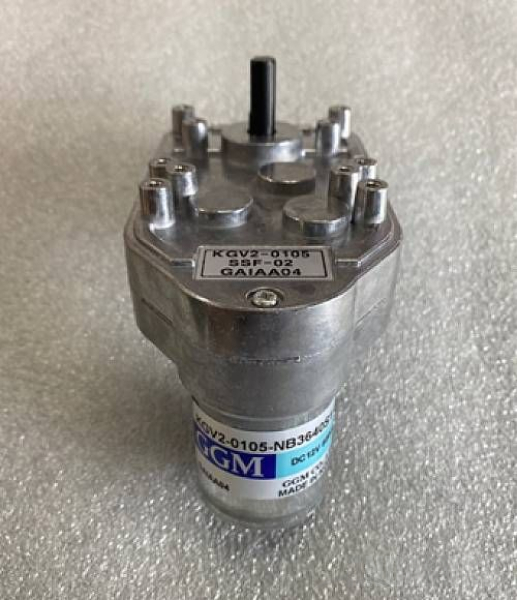

MOTOR
MZZZ0MOT146
19

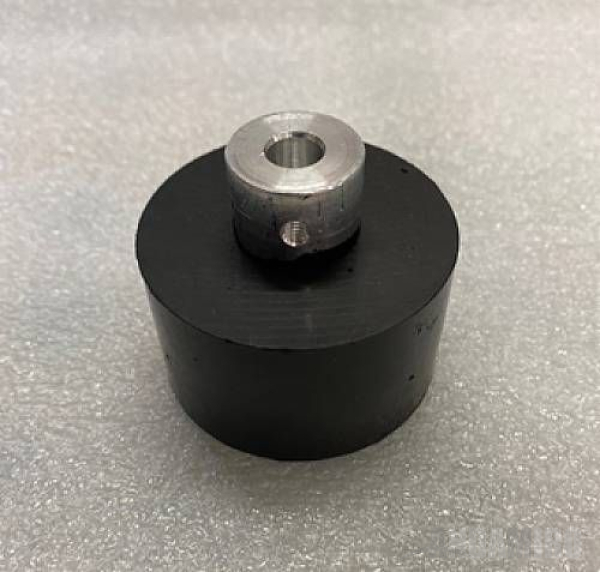

WHEEL MOTOR PULLEY ASS'Y
ACOC0ASS005
20

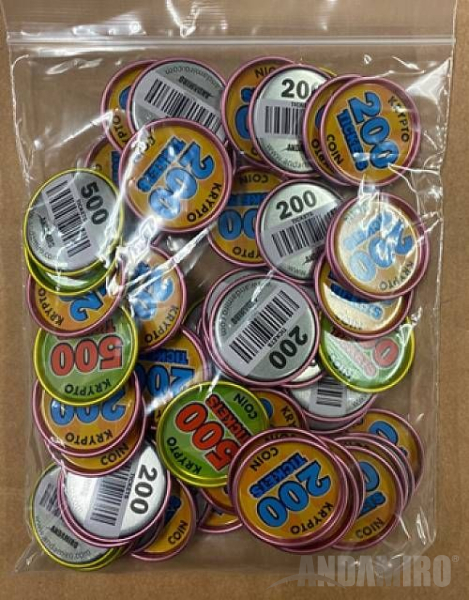

G-COIN
MZZZ0MED001
21
RUGBY Z WIRE
MNFL0PRO040
22
SPEAKER
MID 4.5"+TW1/2" 8Ω W-C-100 F BK
SPEAKER
MZZZ0SPE021
23

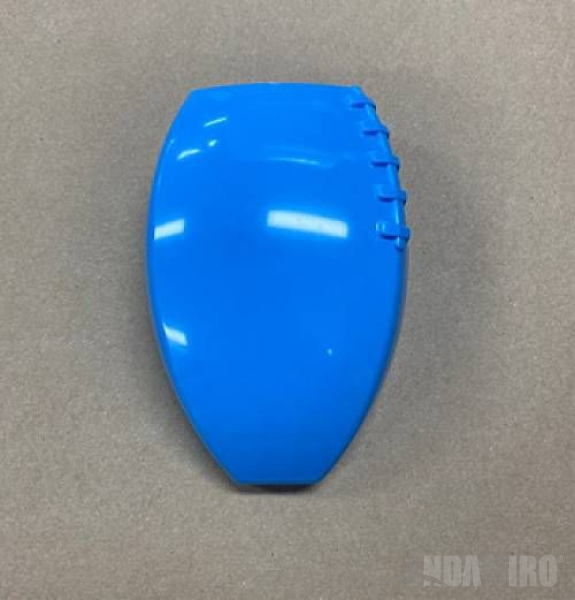

TICKET MAN CRANE MOLD-L
BLUE
TICKET MAN CRANE MOLD-L
MCOC0PLA003
24

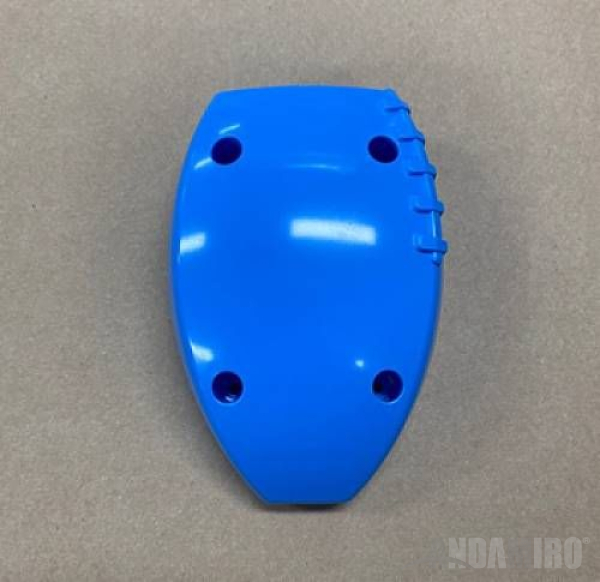

TICKET MAN CRANE MOLD-R
BLUE
TICKET MAN CRANE MOLD-R
MCOC0PLA004
25

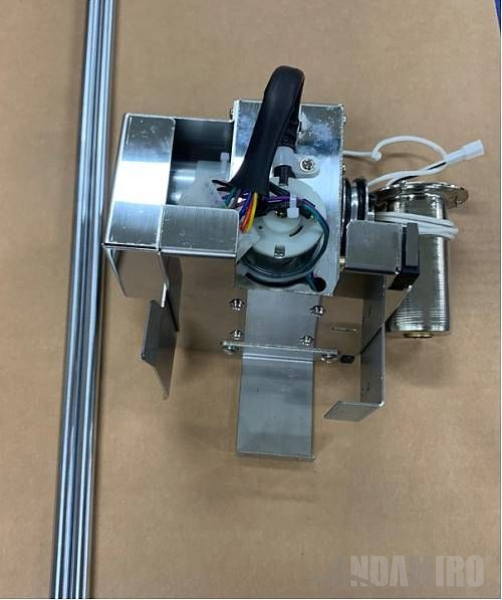

CRANE MECHANISM PART
ACOC0ASS003
26

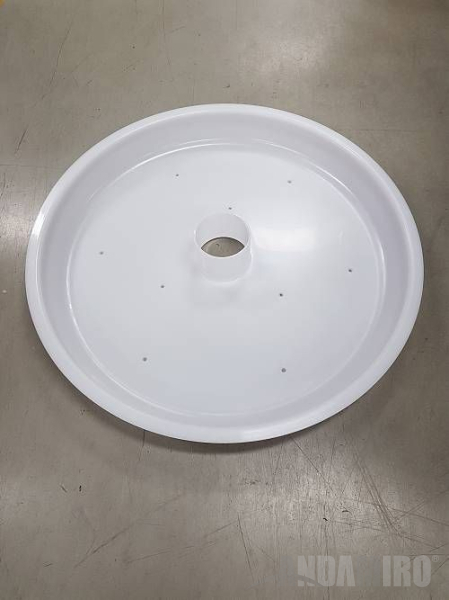

COIN ROTATE WHEEL ASS'Y
.
COIN ROTATE WHEEL ASS'Y
ACOC0PLA001
27
COIN ROTATE GOAL CUP ASS'Y
.
COIN ROTATE GOAL CUP ASS'Y
ACOC0PLA002
28
LED BAR 12V ASS'Y
AZZZ0PCB124
29
LED BAR 12V ASS'Y
AZZZ0PCB165
30
LED BAR 12V ASS'Y
AZZZ0PCB128
31
CRANE DECO LIGHT PCB ASS'Y
NFLPA
CRANE DECO LIGHT PCB ASS'Y
ANFL0PCB003
32
FLEX_5050_RGB_1700_NWP_L_102
T5050 TOP300구 102알
FLEX_5050_RGB_1700_NWP_L_102
MELE0LED072
33

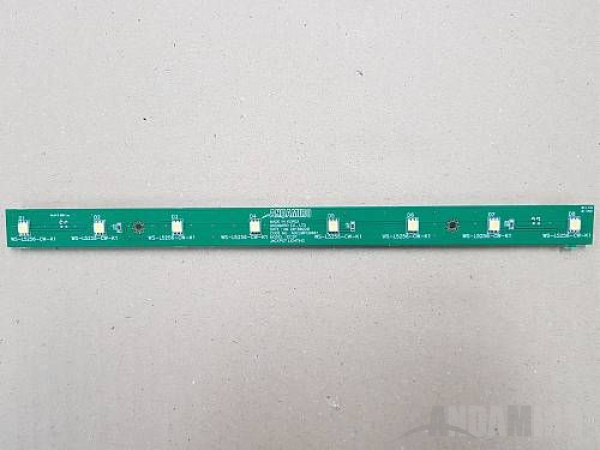

JACKPOT LIGHTING PCB ASS'Y
.
JACKPOT LIGHTING PCB ASS'Y
ADC20PCB001
34

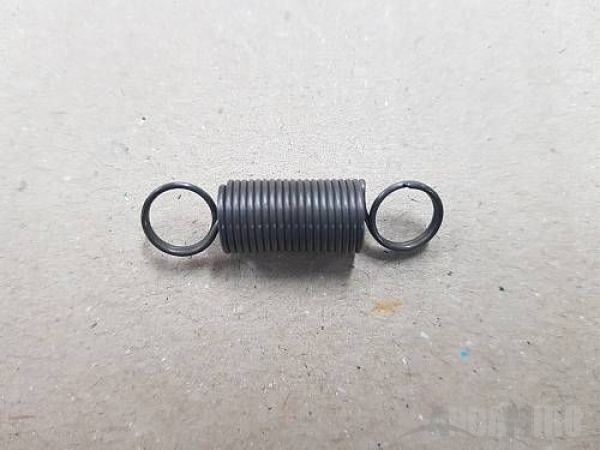

SWITCH SPRING
MGAC0SPR002
35
COIN SELECTOR
MZZZ0COS052
1.35
[COIN SELECTOR]

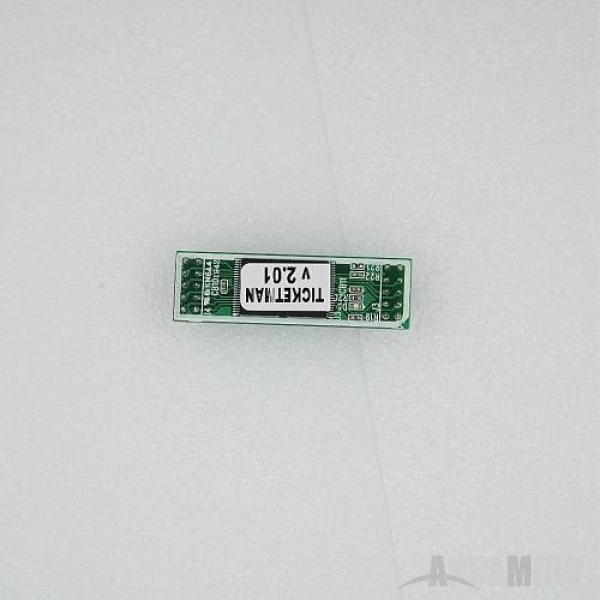

CPU SOUND ROM PCB ASS'Y
TICKETMAN
[COIN SELECTOR]
CPU SOUND ROM PCB ASS'Y
ATKM0PCB003
36

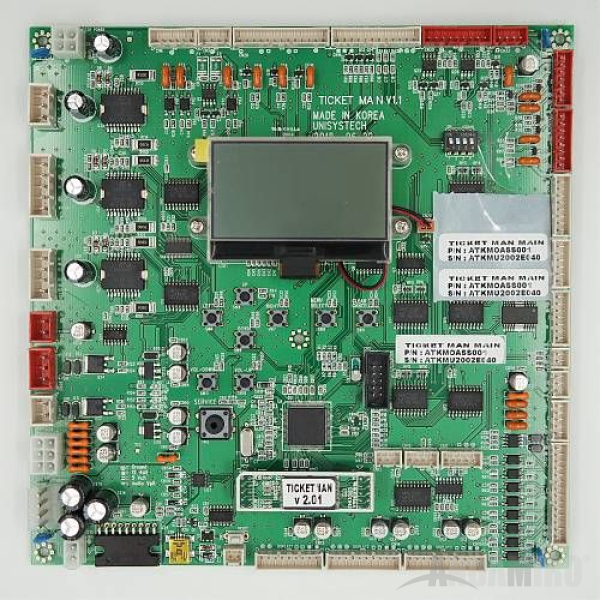

MAIN PCB ASS'Y
ATKM0ASS001
37
BUTTON SWITCH
TICKET AM1PB-26SH R12D
BUTTON SWITCH
MMUM0BUT002
38
PLUG CUSHION RUBBER
공진 [KD-96R-9] 6MM
PLUG CUSHION RUBBER
MCIR0RUB001
39
LED STICK BAR BRK
12MM 90도
LED STICK BAR BRK
MELE0000022
40
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
PHOTO INT-1 PCB ASS'Y
AZZZ0PCB103
41
BUTTON SWITCH
CODE CHANGE AZZZ0BUT011
BUTTON SWITCH
MZZZ0BUT054
42
AC INPUT ASS'Y
DAC-13H,WITH FUSE10A_2EA
AC INPUT ASS'Y
AELE0FUS002
43
NOISE FILTER
MELE0NOI009
44
TERMINAL BLOCK
250V 10P UL_CE
TERMINAL BLOCK
MELE0TEB003
45

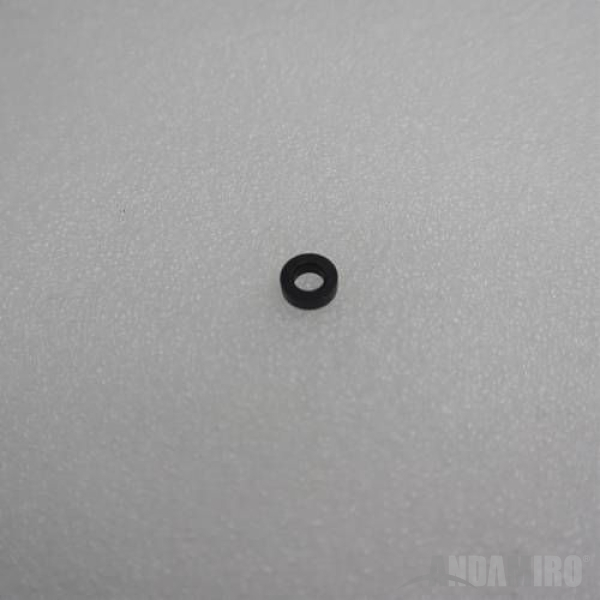

WHEEL MOTOR TENSION GUIDE BLOCK
WHEEL MOTOR TENSION GUIDE BLOCK
MCOC0PRO009
46
CHUTE SENSOR PCB ASS'Y
ASAW0PCB001
47
KEY ASS'Y 6001
6001 ONLY BODY
KEY ASS'Y 6001
MZZZ0KEY075
48
KEY ASS'Y 7001
7001 ONLY BODY
KEY ASS'Y 7001
MZZZ0KEY076
49
KEY ONLY 7001
2EA 1SET_WITH RING
KEY ONLY 7001
MZZZ0KEY035
50
KEY ONLY 6001
2EA 1SET _WITH RING
KEY ONLY 6001
MZZZ0KEY014
51
ROCKER SWITCH
MELE0SWI021
52

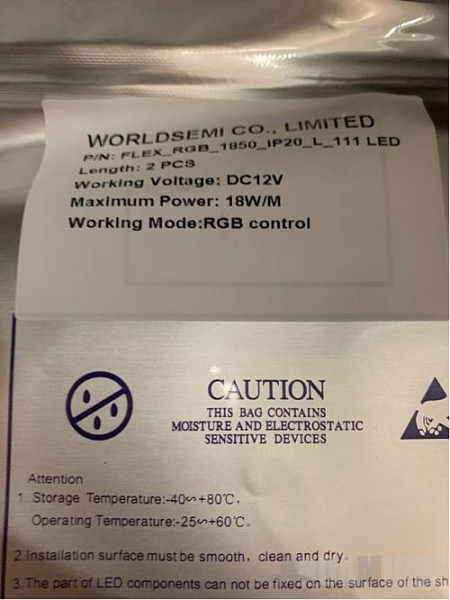

FLEX_5050_RGB_1850_NWP_L_111
T5050 TOP 300구 111알
FLEX_5050_RGB_1850_NWP_L_111
MELE0LED039
53
SOLENOID GUIDE HINGE
MKIS0PLA002
1.53
[SOLENOID GUIDE HINGE]
BUTTON SWITCH
60HR WITHOUT HOLDER
[SOLENOID GUIDE HINGE]
BUTTON SWITCH
MZZZ0BUT127
54
BUTTON SWITCH
AMIPB-60HR-W12D
BUTTON SWITCH
AZZZ0BUT011
1.54
[BUTTON SWITCH]
HOLDER ASS'Y
LED 포함
[BUTTON SWITCH]
HOLDER ASS'Y
MZZZ0BUT128
55
LED PCB ASS'Y
AKIS0PCB002
56
AC POWER CORD UL
125V_10A_SVT 3/18AWG 1.8M
AC POWER CORD UL
MELE0ACP001
57
AC POWER CORD
250V 16A KKP-4819R CE 1.8M
AC POWER CORD
MELE0ACP008
58
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
COUNTER
MZZZ0COU002
59
RGB PWM PCB
RGB_CTRL-G2GSTC0131
RGB PWM PCB
MZZZ0000629
60

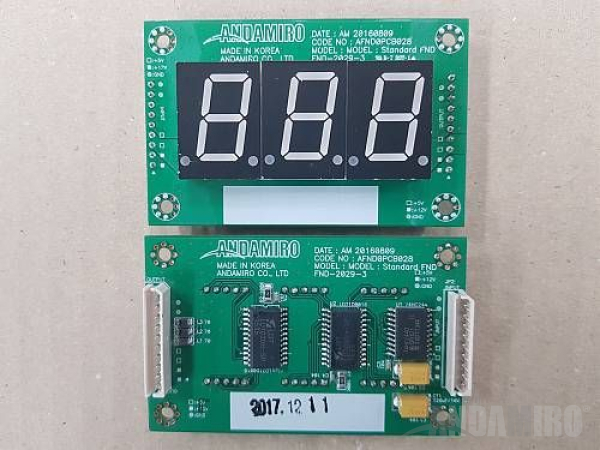

FND PCB ASS'Y
2029-3(STAIGHT)
FND PCB ASS'Y
AFND0PCB028
61
HARNESS
TICKET MAN CRANE Z AXIS
HARNESS
MTKM0HAN076
62

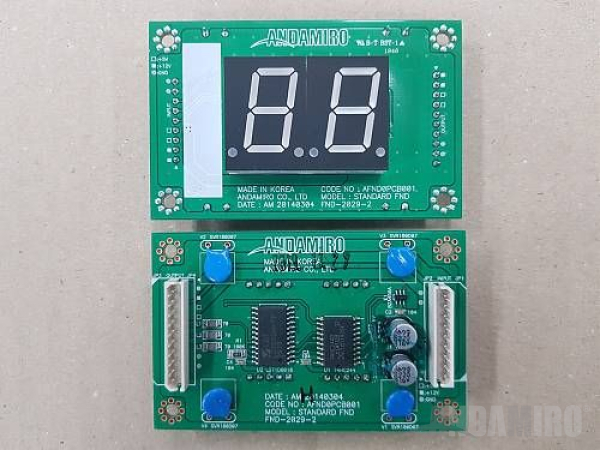

FND PCB ASS'Y
2029-2(STRAIGHT)
FND PCB ASS'Y
AFND0PCB001
1.62
[FND PCB ASS'Y]
MICRO SW L R
SZM-V16-5FA-63
[FND PCB ASS'Y]
MICRO SW L R
MWIC0PAR022
63
TKM COIN INSTRUCTION SHEET
.
TKM COIN INSTRUCTION SHEET
MTKM0SHE016
1.63.1
[TKM COIN INSTRUCTION SHEET]
SOLENOID BODY ASS'Y
.
[TKM COIN INSTRUCTION SHEET]
SOLENOID BODY ASS'Y
ACOC0ASS013
64

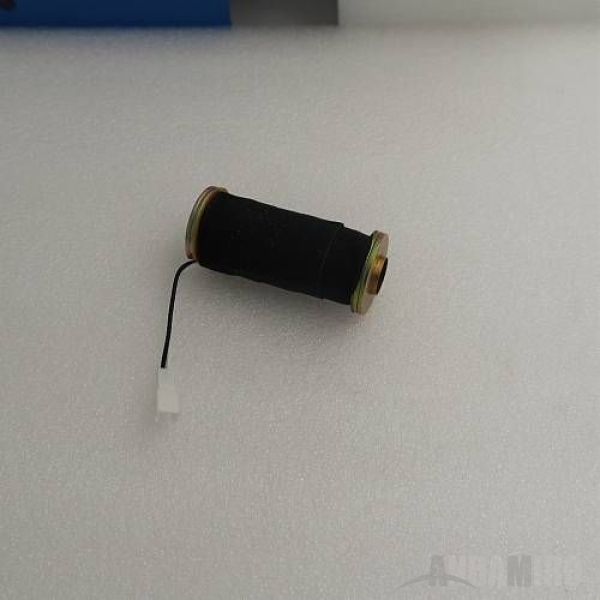

SOLENOID BODY ASS'Y
ACOC0ASS013
1.64.1.1
[SOLENOID BODY ASS'Y]

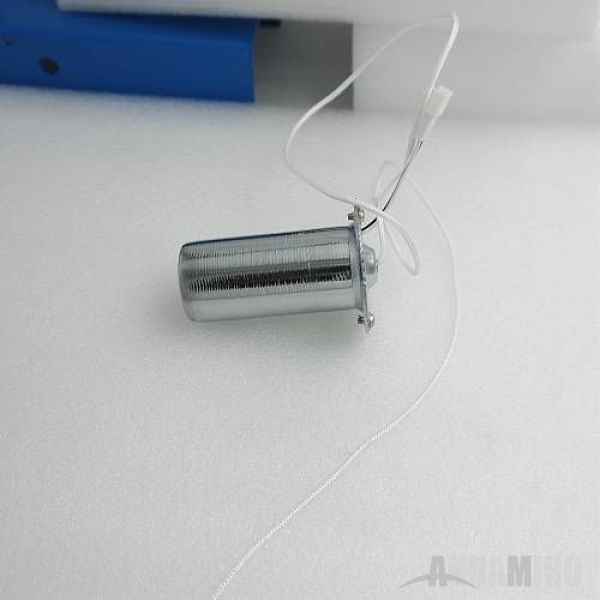

SOLENOID
.
[SOLENOID BODY ASS'Y]
SOLENOID
MNFL0PRO033
1.64.1.2
[SOLENOID BODY ASS'Y]
SOLENOID
.
[SOLENOID BODY ASS'Y]
SOLENOID
MNFL0PRO033
65

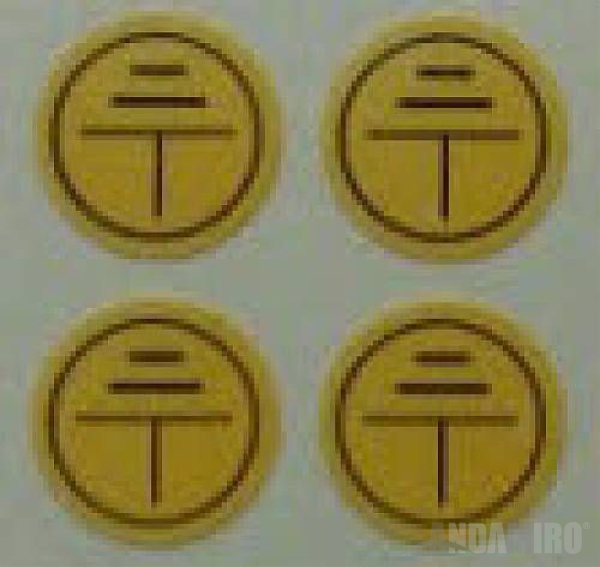

GROUND CONNECTION STICKER
접지
GROUND CONNECTION STICKER
MSUP0STI002
66

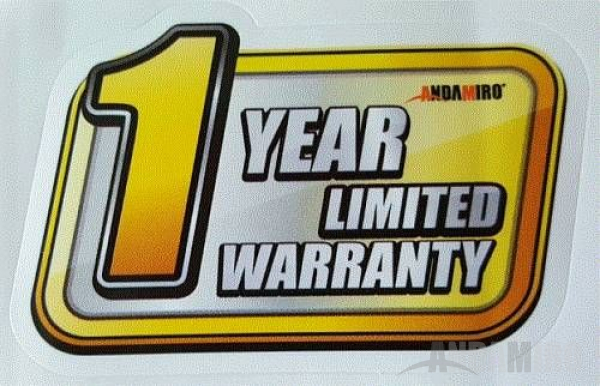

WARRANTY STICKER
MZZZ0STI085
67
WARNING STICKER_POWER BOX ETL
90*45
WARNING STICKER_POWER BOX ETL
MZZZ0STI089
68

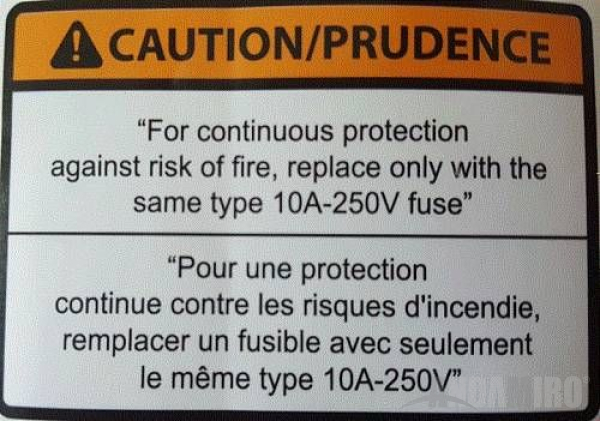

FUSE LABEL(T10A-250V) ETL
75*50
FUSE LABEL(T10A-250V) ETL
MZZZ0STI090
69
WARNING SHEET
MZZZ0STI091
1.69.1.2
[WARNING SHEET]
SOLENOID SHAFT BUSH
.
[WARNING SHEET]
SOLENOID SHAFT BUSH
MKIS0PRO005
70
MEDAL CIRCULATION CHECK-B(ANGLE) PCB ASS'Y
ANGLE TYPE
MEDAL CIRCULATION CHECK-B(ANGLE) PCB ASS'Y
AZZZ0PCB168
71
COIN BEARING HOUSING ASS'Y
PRO3 4 MEP40
COIN BEARING HOUSING ASS'Y
ACOC0ASS007
1.71.1.2
[COIN BEARING HOUSING ASS'Y]
CRANE PART
MNFL0PRO031번제외
[COIN BEARING HOUSING ASS'Y]
CRANE PART
ACOC0PAR001
2.71.1.2
[COIN BEARING HOUSING ASS'Y]

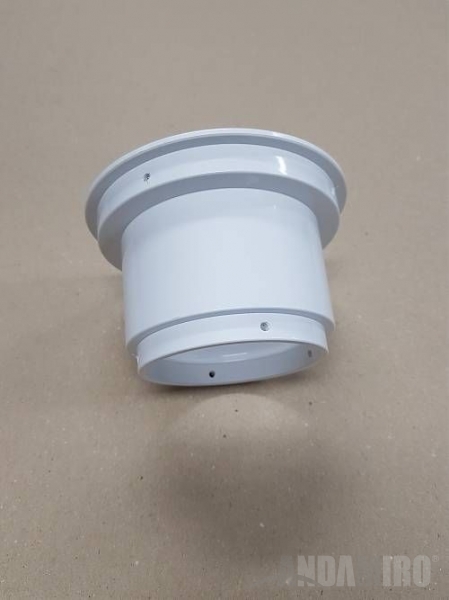

COIN ROTATE GOAL CUP 후가공
MCOC0PLA005 후가공
[COIN BEARING HOUSING ASS'Y]
COIN ROTATE GOAL CUP 후가공
MCOC0PLA007
3.71.1.2
[COIN BEARING HOUSING ASS'Y]
COIN ROTATE WHEEL 후가공
MCOC0PLA001 후가공
[COIN BEARING HOUSING ASS'Y]
COIN ROTATE WHEEL 후가공
MCOC0PLA006
