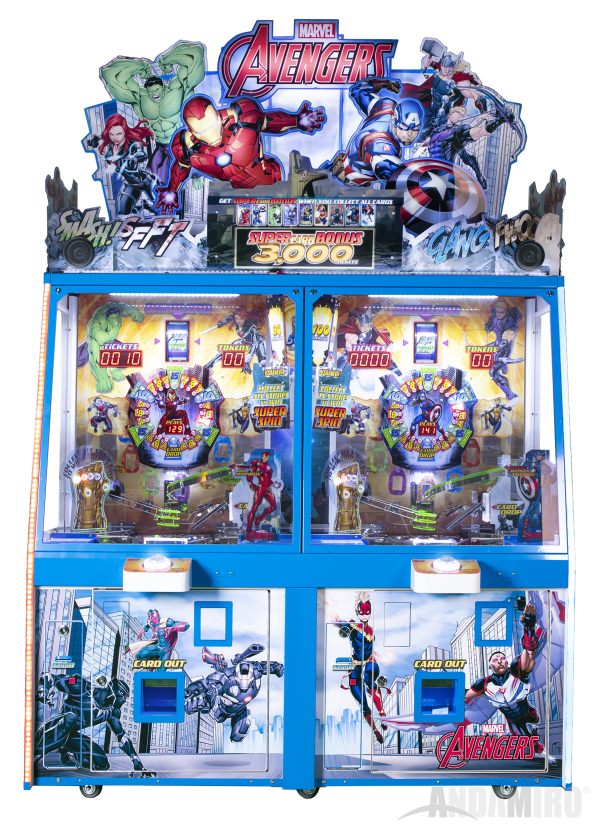

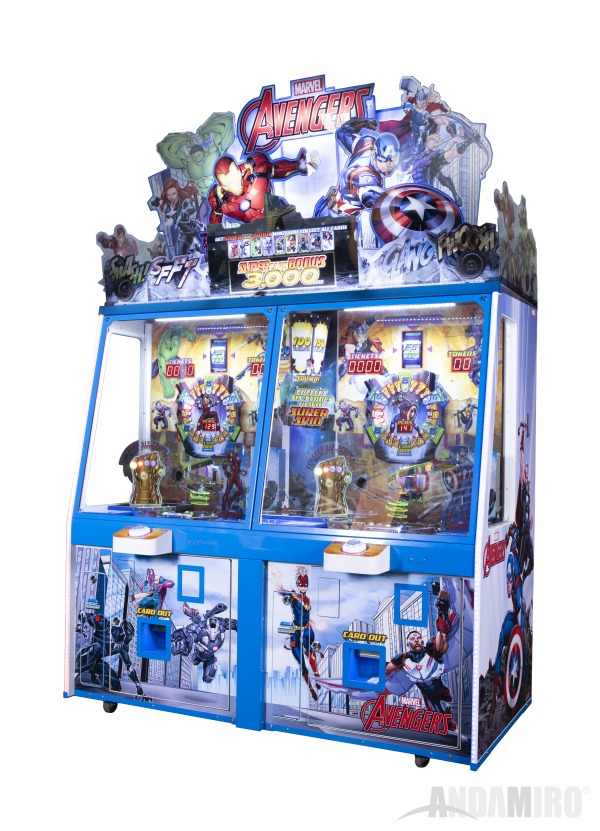

AVENGERS (Two-Player) Available in Card and Non Card Versions!

  • 트위터로 보내기
  • 페이스북으로 보내기
  • 구글플러스로 보내기
Short url COPY http://www.andamiro.com/games/Avengers
Tags Ticket
Dimensions 1,793mm x 1,027mm x 2,712mm
71" x 40" x 107"
Packing Dimensions 1,150mm x 1,900mm x 2,230mm
45" x 75" x 88"
Product Weight 390 kg / 860 lbs
Packing Weight 440 kg / 970 lbs
Power 500W
INQUIRY
PARTS INQUIRY

SUPPORT

  • Leaflets (1)

  • Manuals (1)

  • Document (1)

  • Trouble shooting
    Video List (12)

FEATURES









Andamiro’s First Disney-Licensed Product – And First Economically Priced Pusher In A Single Cabinet!



Andamiro’s Marvel Avengers coin pusher is now available in a one-player model in two versions:

one that operates with a collectible card series featuring nine Avengers, and another that plays without cards.

The one-player models, unveiled in October 2020, follow the original two-player games launched in July 2020.

Both card and non-card versions are ticket-redemption games. Avengers is a feature-rich,

rapid-fire coin pusher inspired by the Infinity Stones storyline in the “Avengers” movies by Marvel Studios.

Players fire tokens at a moving target wheel to win tickets and other rewards, and to populate the pusher playfield.

The game’s main objective is to “push” the Infinity Stones, which also reside on the playfield, off the ledge.

A Bonus Spin game is enabled when one stone is dropped;

the Super Bonus game turns when all six Infinity Stones are collected. Two player stations.



©2020 MARVEL Studios.

GALLERY

Sorry, this is not available at the moment.

PARTS


동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 299Parts

No. Part name Part picture Code Info Part picture Part Add
1

[] AC INPUT

DAC-13H

[] AC INPUT

MELE0SWI015

Part picture
1

TILT

.

TILT

MWIC0PAR100

Part picture
1.1.1

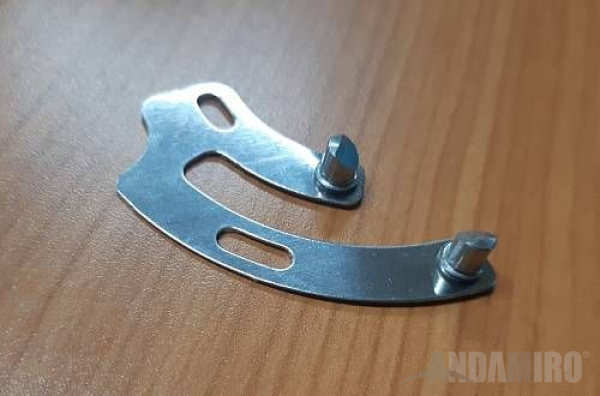

[TILT] COIN GUIDE PLATE

.

[TILT] COIN GUIDE PLATE

MZZZ0ELH007

Part picture
1.1.2

[TILT] COIN GUIDE PLATE

.

[TILT] COIN GUIDE PLATE

MZZZ0ELH007

Part picture

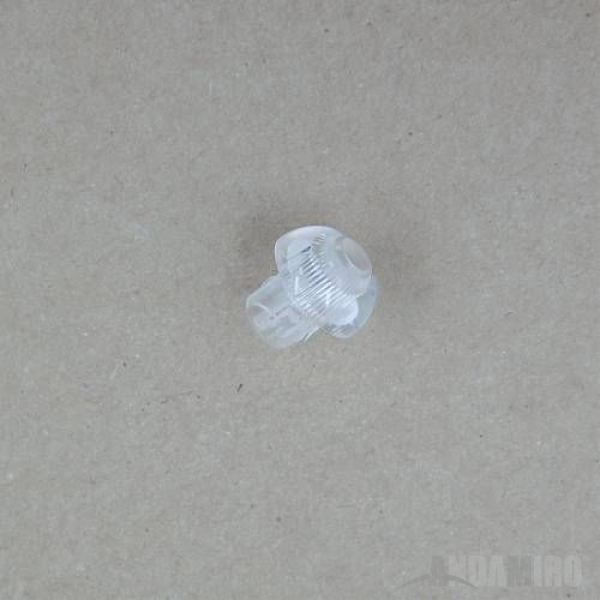

2

LED CAP

10MM 투명

LED CAP

MWOL0PLA002

Part picture
3

LED CAP

Φ20_투명

LED CAP

MZZZ0PLA037

Part picture
4

BEARING

626ZZ

BEARING

MZZZ0BEA087

Part picture
1.4.2

[BEARING] BEARING

F686ZZ

[BEARING] BEARING

MZZZ0BEA094

Part picture
2.4.2

[BEARING] DU BUSH

0608DU

[BEARING] DU BUSH

MZZZ0BEA096

Part picture

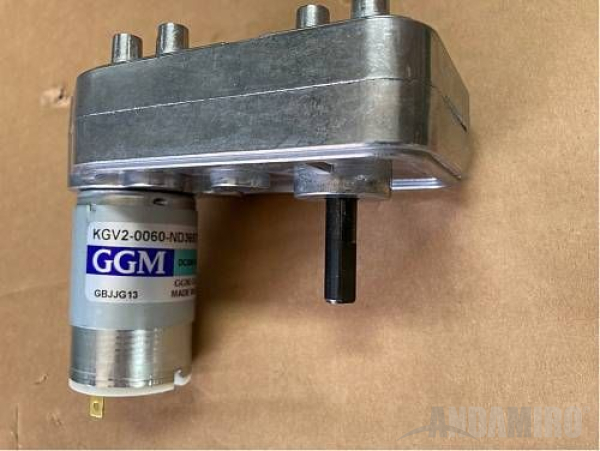

3.4.2

[BEARING] MOTOR

KGV2-0060-ND3657U2 , R-TYPE

[BEARING] MOTOR

MZZZ0MOT168

Part picture
4.4.2

[BEARING] TIMMING BELT

147MXL,W4.8 RUBBER

[BEARING] TIMMING BELT

MZZZ0BEL019

Part picture
5.4.2

[BEARING] FUSE 10A

0218010.MXP 250V,10A,4PA

[BEARING] FUSE 10A

MELE0FUS018

Part picture
5

BUTTON LED HOUSING

BUTTON LED HOUSING

MZZZ0PLA038

Part picture

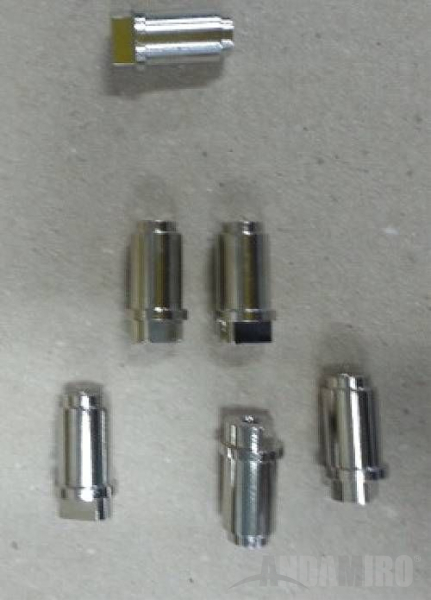

6

TARGET PIN

.

TARGET PIN

MSBP0PRO016

Part picture

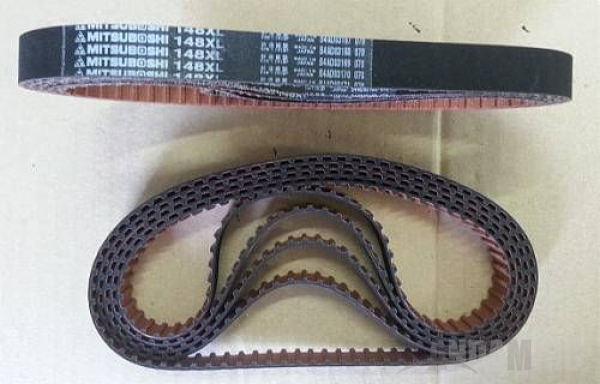

7

TIMMING BELT

148XL,W12.7MM RUBBER

TIMMING BELT

MSAW0ZZZ004

Part picture
1.7.2

[TIMMING BELT] BEARING

F689ZZ

[TIMMING BELT] BEARING

MZZZ0BEA068

Part picture
8

BEARING

F689ZZ

BEARING

MZZZ0BEA068

Part picture
1.8.2

[BEARING] MOTOR

KGC-040-3429C

[BEARING] MOTOR

MZZZ0MOT089

Part picture
9

MICRO SWITCH

GSMV16_31A1

MICRO SWITCH

MELE0MIC022

Part picture
1.9.2.1

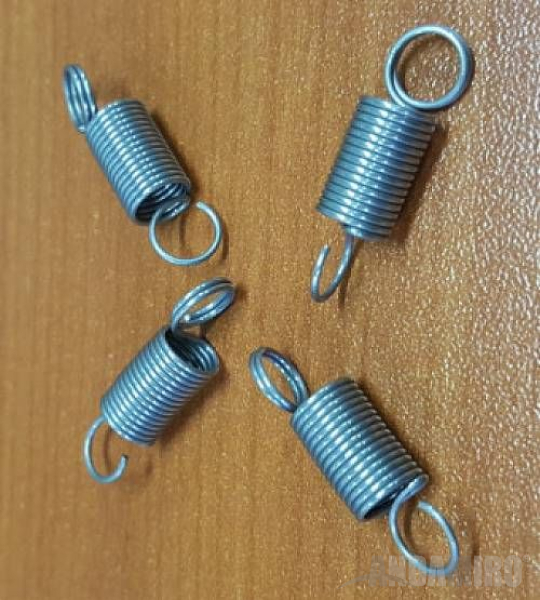

[MICRO SWITCH] ELEVATOR SPRING

0.6MM FRONT

[MICRO SWITCH] ELEVATOR SPRING

MSBP0SPR001

Part picture
1.9.2.2

[MICRO SWITCH] ELEVATOR SPRING

0.6MM FRONT

[MICRO SWITCH] ELEVATOR SPRING

MSBP0SPR001

Part picture
2.9.2

[MICRO SWITCH] CARD OUTLET GUIDE BLOCK

ABS

[MICRO SWITCH] CARD OUTLET GUIDE BLOCK

MZZZ0PLA042

Part picture
2.9.1

[MICRO SWITCH] BEARING

685ZZ

[MICRO SWITCH] BEARING

MZZZ0BEA107

Part picture
2.9.2

[MICRO SWITCH] BEARING

685ZZ

[MICRO SWITCH] BEARING

MZZZ0BEA107

Part picture
2.9.1

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

.

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

MZZZ0ELH031

Part picture
2.9.2

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

.

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

MZZZ0ELH031

Part picture

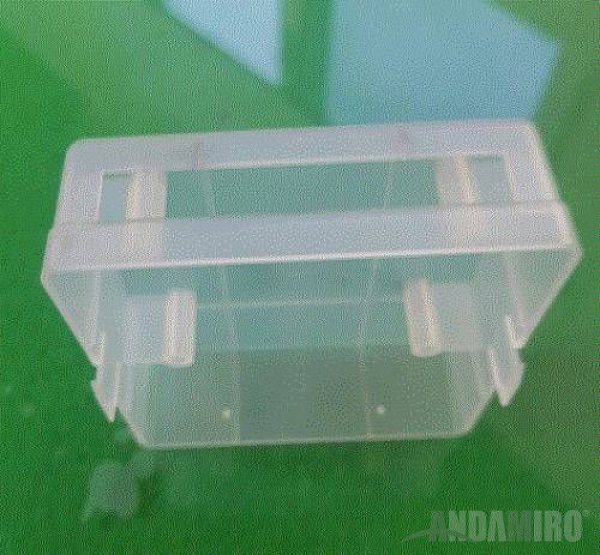

2.9.3

[MICRO SWITCH] HOPPER PCB COVER

.

[MICRO SWITCH] HOPPER PCB COVER

MZZZ0ELH029

Part picture
2.9.4

[MICRO SWITCH] HOPPER PCB COVER

.

[MICRO SWITCH] HOPPER PCB COVER

MZZZ0ELH029

Part picture
2.9.5

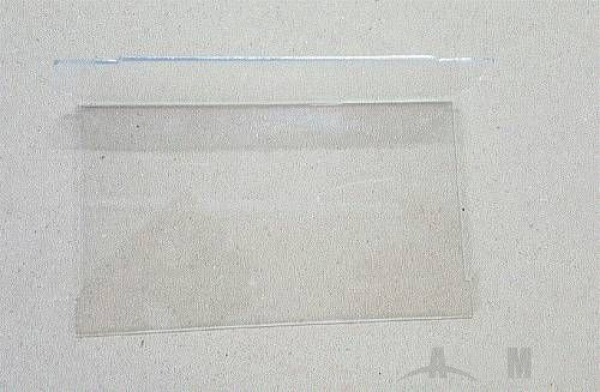

[MICRO SWITCH] MOTOR COVER

.

[MICRO SWITCH] MOTOR COVER

MZZZ0ELH033

Part picture
2.9.6

[MICRO SWITCH] MOTOR COVER

.

[MICRO SWITCH] MOTOR COVER

MZZZ0ELH033

Part picture
2.9.7

[MICRO SWITCH] HOPPER DISK FILM

.

[MICRO SWITCH] HOPPER DISK FILM

MZZZ0ELH032

Part picture
2.9.8

[MICRO SWITCH] HOPPER DISK FILM

.

[MICRO SWITCH] HOPPER DISK FILM

MZZZ0ELH032

Part picture

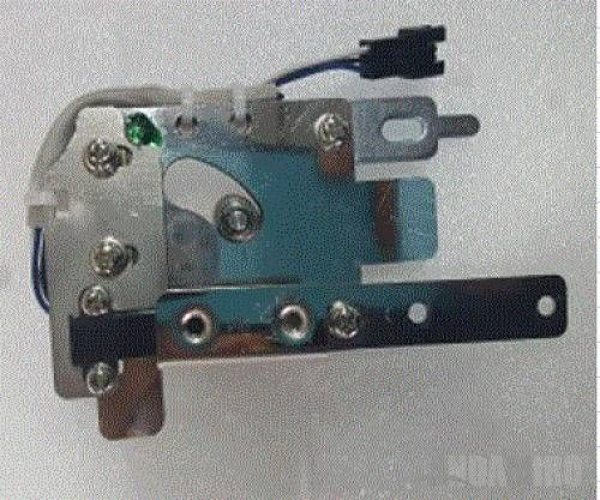

3.9

[MICRO SWITCH] ELEVATOR HOPPER TOP

ANDA

[MICRO SWITCH] ELEVATOR HOPPER TOP

AZZZ0ELH002

Part picture
4.9

[MICRO SWITCH] ELEVATOR HOPPER TOP

ANDA

[MICRO SWITCH] ELEVATOR HOPPER TOP

AZZZ0ELH002

Part picture
4.9.1

[MICRO SWITCH] COIN BOWL BAFFLE BAR

8MM X L130 _PVC환봉

[MICRO SWITCH] COIN BOWL BAFFLE BAR

MZZZ0ELH038

Part picture
4.9.2

[MICRO SWITCH] COIN BOWL BAFFLE BAR

8MM X L130 _PVC환봉

[MICRO SWITCH] COIN BOWL BAFFLE BAR

MZZZ0ELH038

Part picture

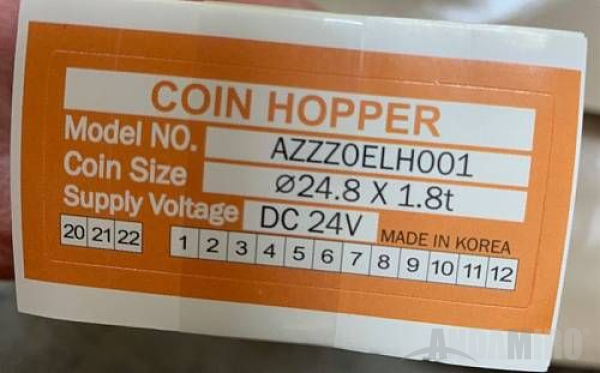

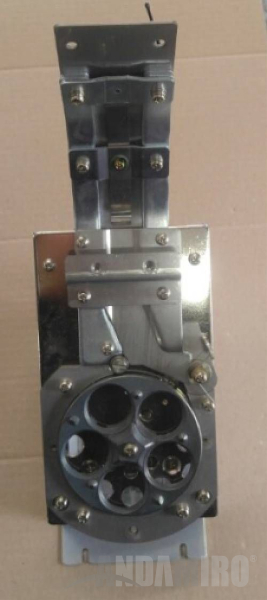

5.9.2

[MICRO SWITCH] ELEVATOR HOPPER BODY ASS'Y

A TYPE_COMMON BODY

[MICRO SWITCH] ELEVATOR HOPPER BODY ASS'Y

AZZZ0ELH001

Part picture
6.9.2

[MICRO SWITCH] ELEVATOR HOPPER BODY ASS'Y

A TYPE_COMMON BODY

[MICRO SWITCH] ELEVATOR HOPPER BODY ASS'Y

AZZZ0ELH001

Part picture

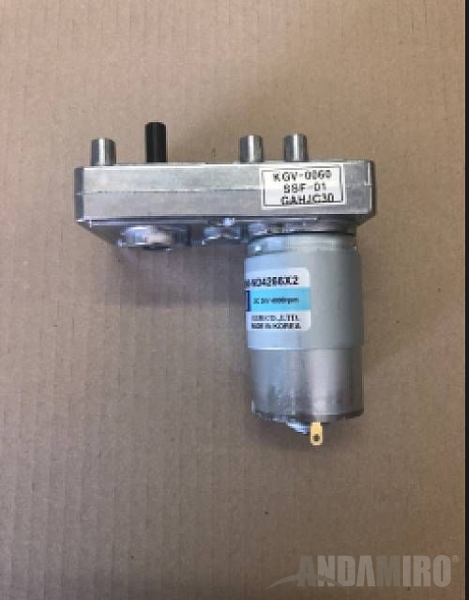

6.9.2.1

[MICRO SWITCH] MOTOR ELEVATOR HOPPER

KGV-0060-ND4266X2

[MICRO SWITCH] MOTOR ELEVATOR HOPPER

MZZZ0ELH040

Part picture
6.9.2.2

[MICRO SWITCH] MOTOR ELEVATOR HOPPER

KGV-0060-ND4266X2

[MICRO SWITCH] MOTOR ELEVATOR HOPPER

MZZZ0ELH040

Part picture

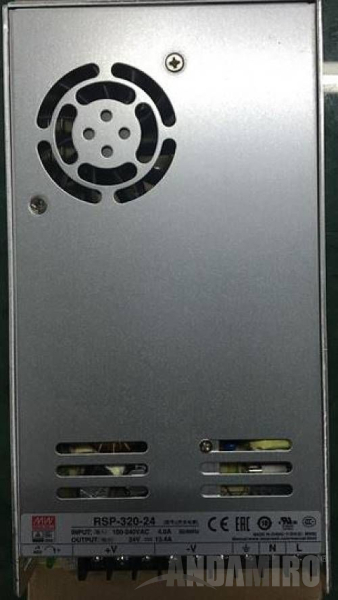

10

POWER SMPS

RSP-320-24

POWER SMPS

MELE0SMP101

Part picture

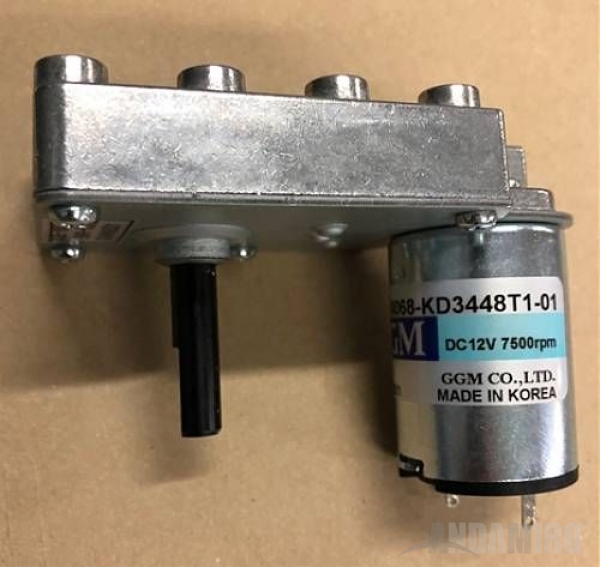

11

MOTOR

KGE-0068-3448T1_R-TYPE

MOTOR

MZZZ0MOT132

Part picture
6.11.1.2

[MOTOR] BEARING GUIDE PIN

CHIP HOPPER

[MOTOR] BEARING GUIDE PIN

MZZZ0HOP033

Part picture
6.11.2.2

[MOTOR] BEARING GUIDE PIN

CHIP HOPPER

[MOTOR] BEARING GUIDE PIN

MZZZ0HOP033

Part picture
12

BUTTON ASS'Y

CL-2020 65 WITH LED

BUTTON ASS'Y

AZZZ0BUT009

Part picture
1.12.2.2

[BUTTON ASS'Y] MICRO SWITCH_FOR BUTTON

SZM-V16-FA-63(200G)

[BUTTON ASS'Y] MICRO SWITCH_FOR BUTTON

MELE0MIC013

Part picture
13

SPEAKER

MID 4.5"+TW1/2" 8Ω W-C-100 F BK

SPEAKER

MZZZ0SPE021

Part picture

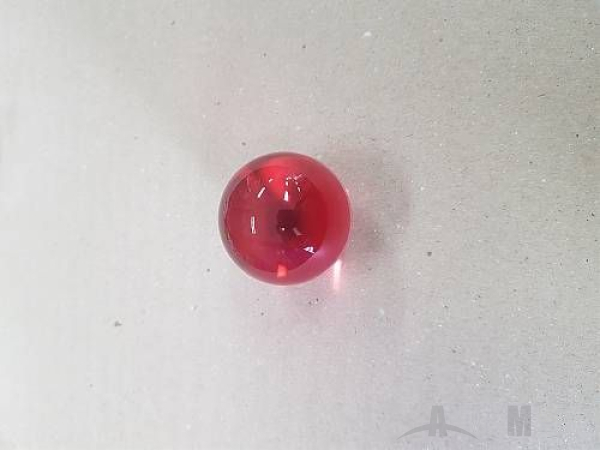

14

BALL

40mm, RED

BALL

MZZZ0BLL015

Part picture

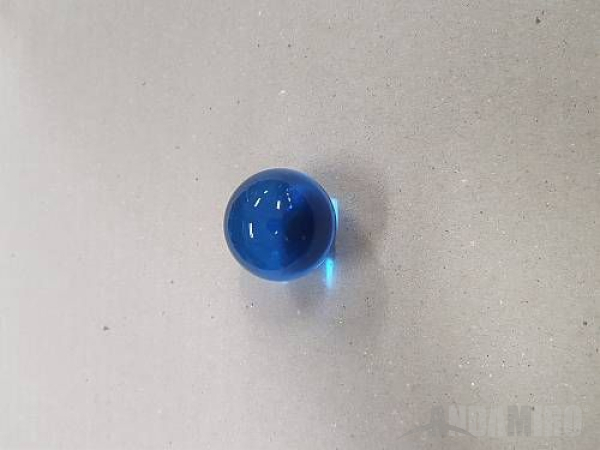

15

BALL

40mm, BLUE

BALL

MZZZ0BLL016

Part picture

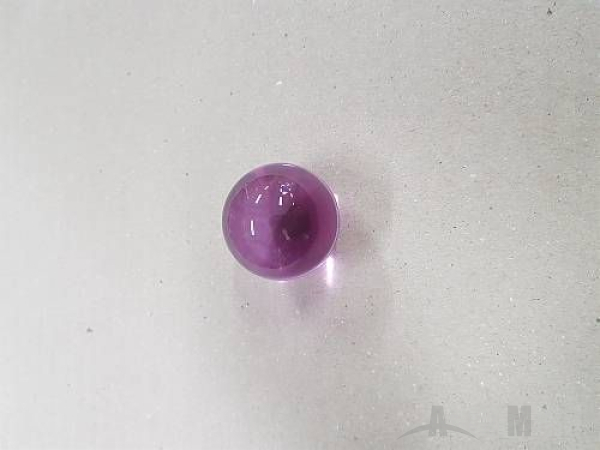

16

BALL

40mm, PURPLE

BALL

MZZZ0BLL017

Part picture

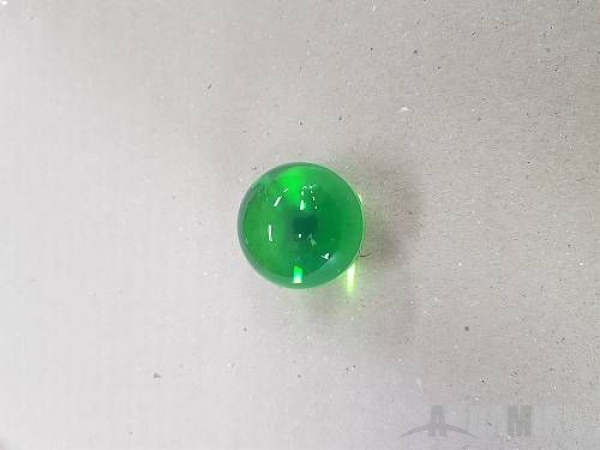

17

BALL

40mm, GREEN

BALL

MZZZ0BLL018

Part picture

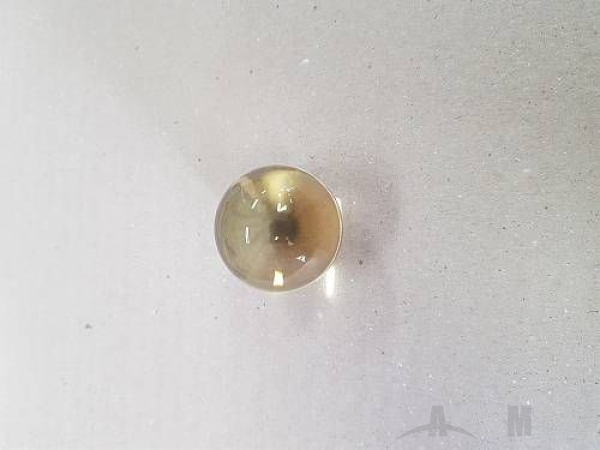

18

BALL

40mm, YELLOW

BALL

MZZZ0BLL019

Part picture

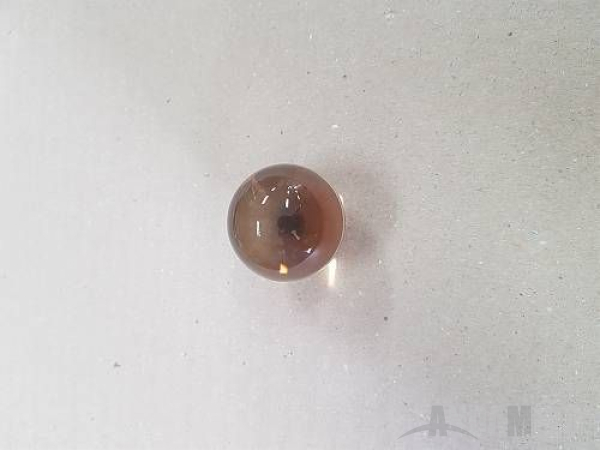

19

BALL

40mm, ORANGE

BALL

MZZZ0BLL020

Part picture
20

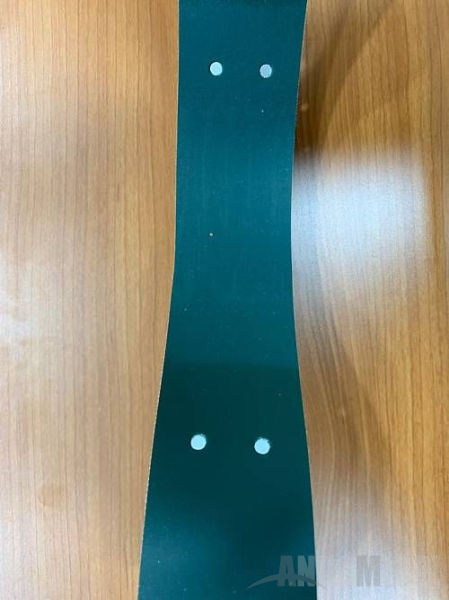

BIG BALL EV BELT

PVC1.4TX50WX954.2L

BIG BALL EV BELT

MZZZ0BEL047

Part picture

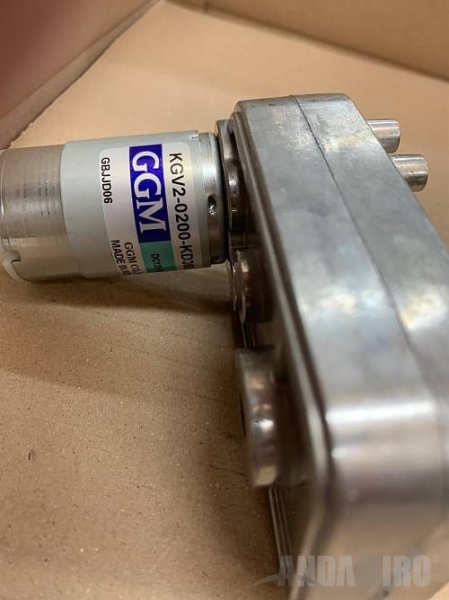

21

MOTOR

KGV2-0200-3657U1 (25 RPM)

MOTOR

MZZZ0MOT161

Part picture

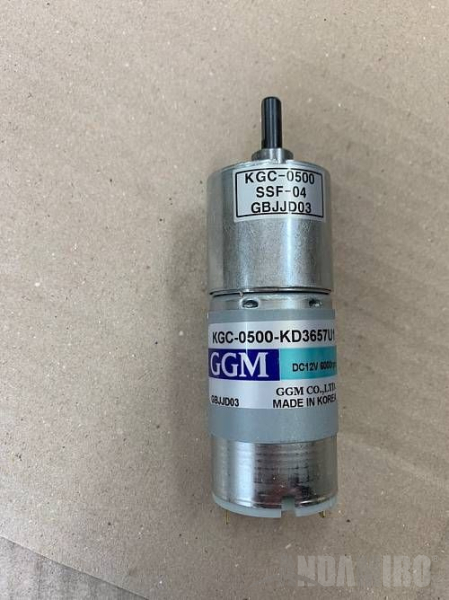

22

MOTOR NEW CODE MZZZ0MOT173

KGC-0500-3657U1

MOTOR NEW CODE MZZZ0MOT173

MZZZ0MOT149

Part picture

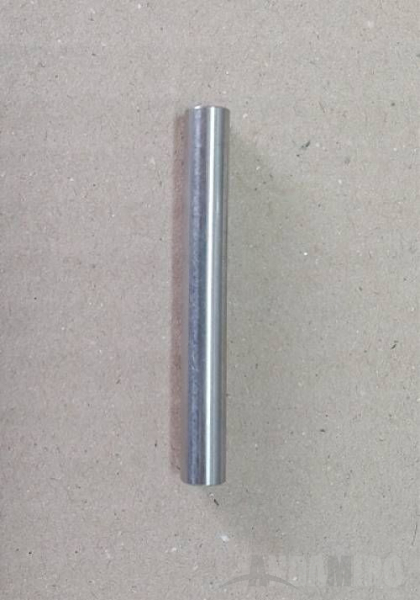

23

BILLBOARD SUPT BAR-B

.

BILLBOARD SUPT BAR-B

MAV20PRO009

Part picture

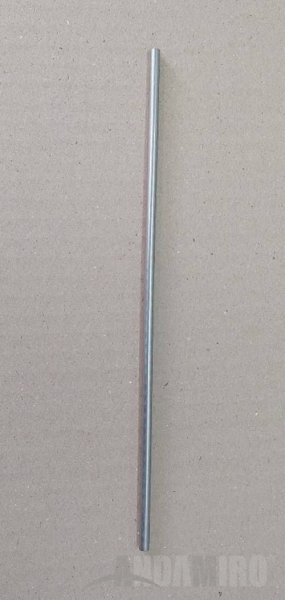

24

BIG WHEEL SIDE COLUMN SHAFT

.

BIG WHEEL SIDE COLUMN SHAFT

MAV20PRO058

Part picture
25

MEDAL ROLLER SPACER

.

MEDAL ROLLER SPACER

MAV20PRO006

Part picture
26

BIG BALL SCREW GUIDE BAR

.

BIG BALL SCREW GUIDE BAR

MAV20PRO047

Part picture

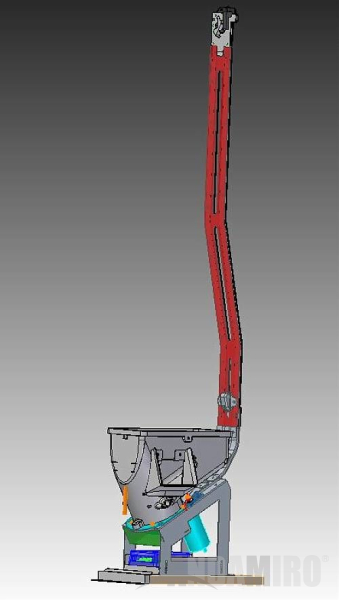

27

A_MEDAL EV HOPPER FRONT

AV2

A_MEDAL EV HOPPER FRONT

AAV20ASS017

Part picture
28

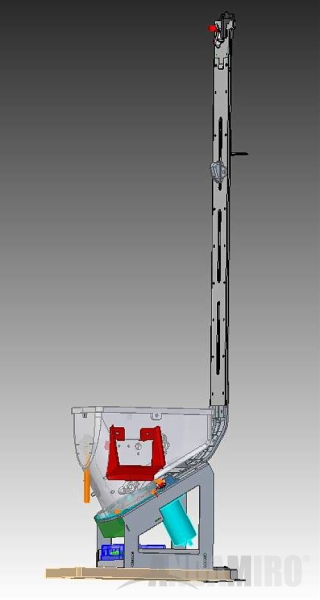

A_MEDAL EV HOPPER REAR

AV2

A_MEDAL EV HOPPER REAR

AAV20ASS018

Part picture

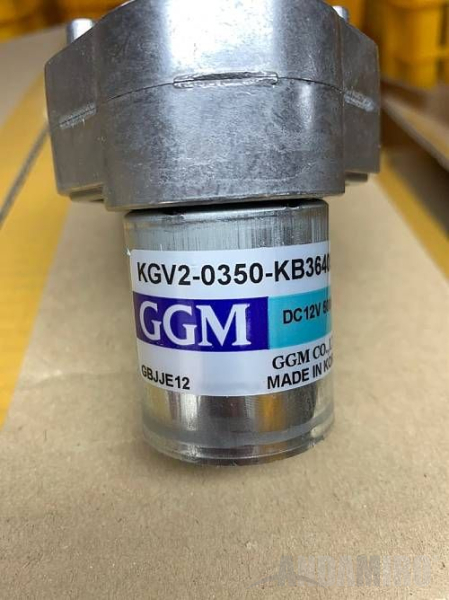

29

MOTOR_BLDC

KGV2-0350-NB3640S1

MOTOR_BLDC

MZZZ0MOT152

Part picture

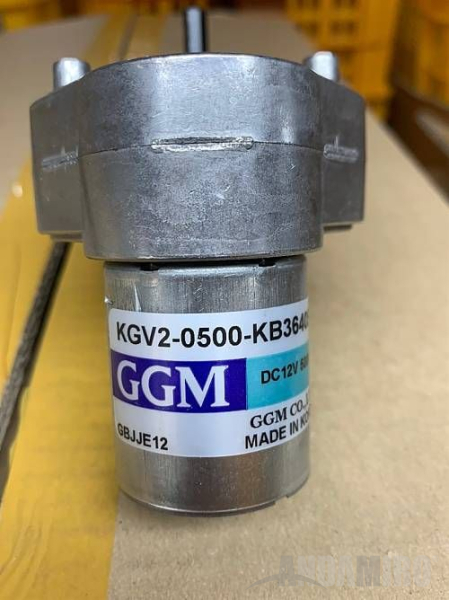

30

MOTOR_BLDC

KGV2-0500-NB3640S1

MOTOR_BLDC

MZZZ0MOT160

Part picture
31

SPOT LED PCB ASS'Y

WHITE

SPOT LED PCB ASS'Y

ABAP0PCB008

Part picture
32

TIMMING BELT

56MXL , W 6.4

TIMMING BELT

MZZZ0BEL040

Part picture
33

COIN BOX SMALL

200*198*107 BLACK

COIN BOX SMALL

MDRE0PLA007

Part picture

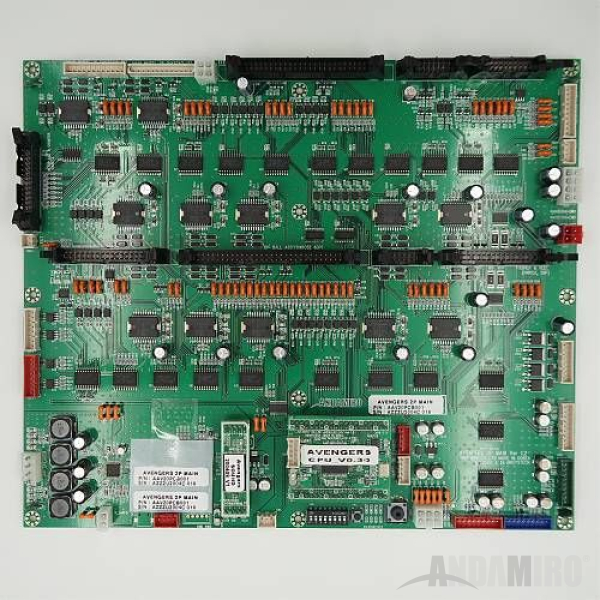

34

AV2 MAIN PCB ASS'Y W CPU SOUND

AVENGERS 2P

AV2 MAIN PCB ASS'Y W CPU SOUND

AAV20PCB001

Part picture
35

SETUP LCD PCB ASS'Y

UNISYSTECH

SETUP LCD PCB ASS'Y

AZZZ0PCB113

Part picture
36

RGB_BUTTON_LED PCB ASS'Y V2

1T

RGB_BUTTON_LED PCB ASS'Y V2

AZZZ0PCB209

Part picture
37

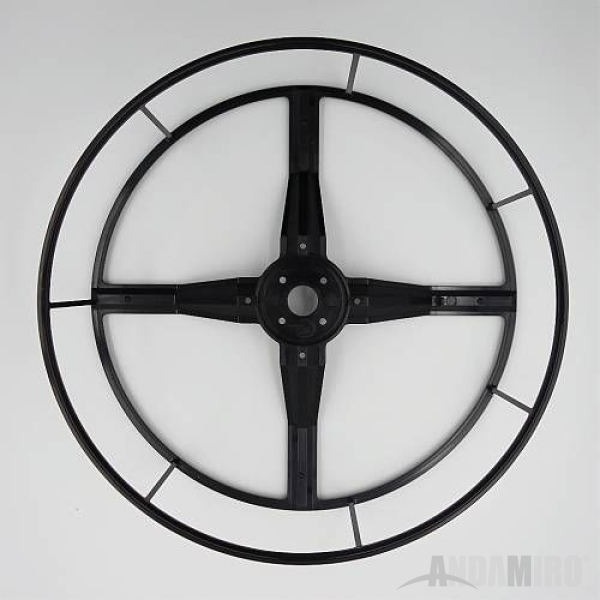

SLOT WHEEL MOLD

.

SLOT WHEEL MOLD

MAV20PLA002

Part picture
38

BUTTON SWITCH

TICKET AM1PB-26SH R12D

BUTTON SWITCH

MMUM0BUT002

Part picture
1.38.2.2

[BUTTON SWITCH] CARD DISPENSER FRONT MASK MOLD

.

[BUTTON SWITCH] CARD DISPENSER FRONT MASK MOLD

MDCC0PLA009

Part picture

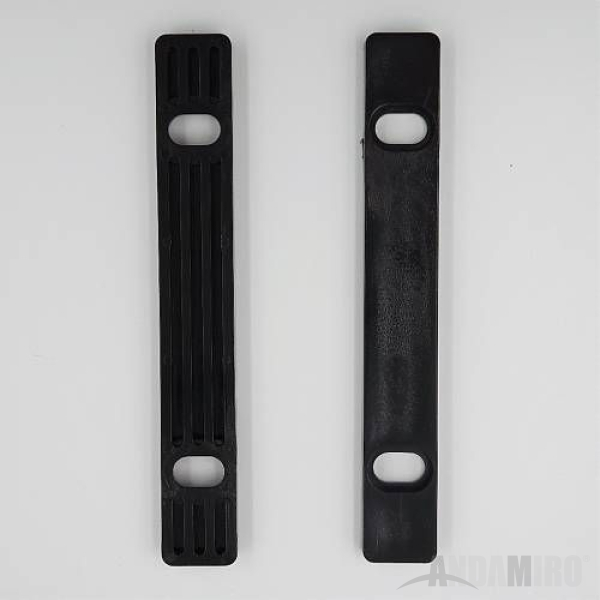

39

SIDE PAYOUT GUIDE MOLD

.

SIDE PAYOUT GUIDE MOLD

MDCC0PLA010

Part picture
1.39.2.2

[SIDE PAYOUT GUIDE MOLD] TIMMING PULLEY

MXL-29

[SIDE PAYOUT GUIDE MOLD] TIMMING PULLEY

MZZZ0PLA040

Part picture
40

LED STICK BAR BRK

12MM 90도

LED STICK BAR BRK

MELE0000022

Part picture
41

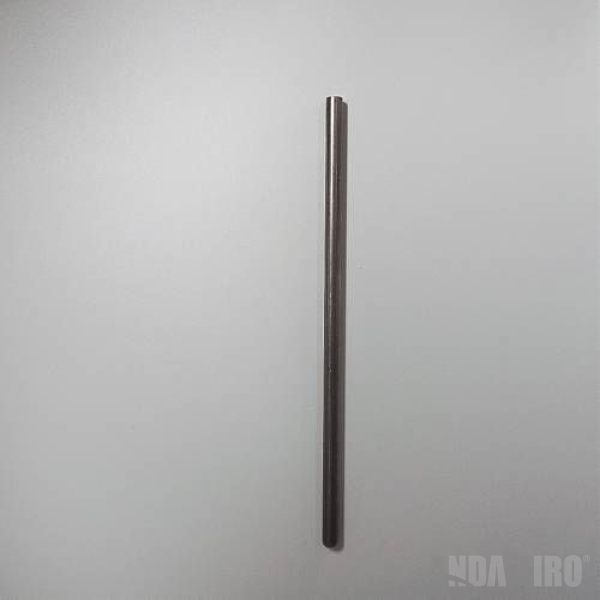

PUSHER PANEL BALL GUIDE SHAFT

.

PUSHER PANEL BALL GUIDE SHAFT

MAV20PRO053

Part picture
1.41.2.2

[PUSHER PANEL BALL GUIDE SHAFT] BEARING

F606ZZ

[PUSHER PANEL BALL GUIDE SHAFT] BEARING

MZZZ0BEA073

Part picture

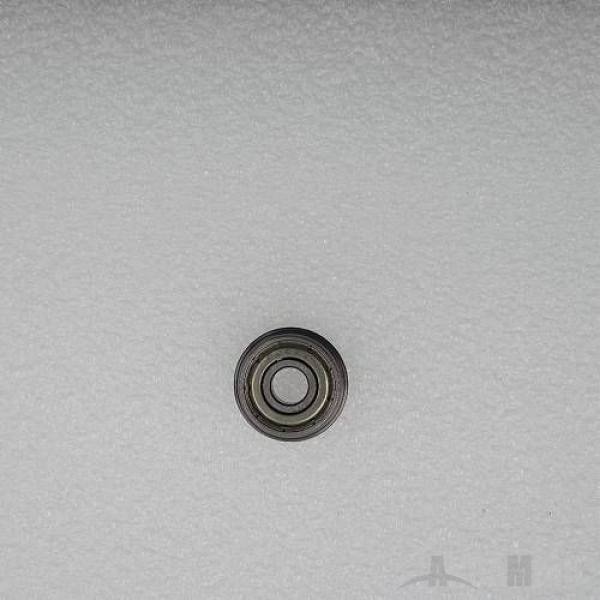

42

BEARING

F606ZZ

BEARING

MZZZ0BEA073

Part picture
1.42.2.2

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
2.42.2.2

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
43

PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture

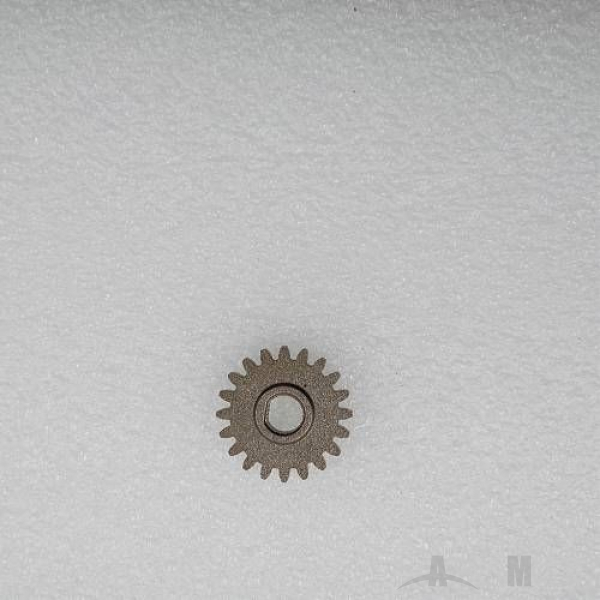

1.43.2.2

[PHOTO INT-1 PCB ASS'Y] GEAR

20M MODULE

[PHOTO INT-1 PCB ASS'Y] GEAR

MZZZ0ELH042

Part picture
44

AC INPUT ASS'Y

DAC-13H,WITH FUSE10A_2EA

AC INPUT ASS'Y

AELE0FUS002

Part picture
45

MOVING MOTOR ROTATE SHAFT-A

.

MOVING MOTOR ROTATE SHAFT-A

MAV20PRO024

Part picture
46

NOISE FILTER

RNS-2010

NOISE FILTER

MELE0NOI009

Part picture
47

TERMINAL BLOCK

250V 10P UL_CE

TERMINAL BLOCK

MELE0TEB003

Part picture

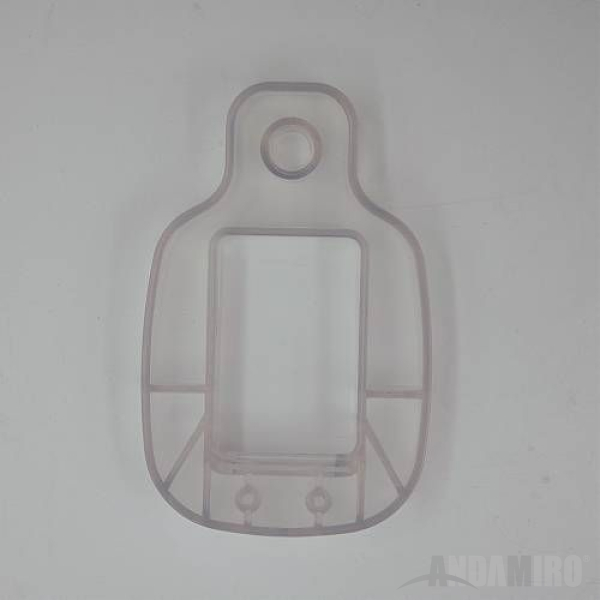

48

TARGET MOLD

투명 ABS , 신규금형

TARGET MOLD

MAV20PLA001

Part picture
49

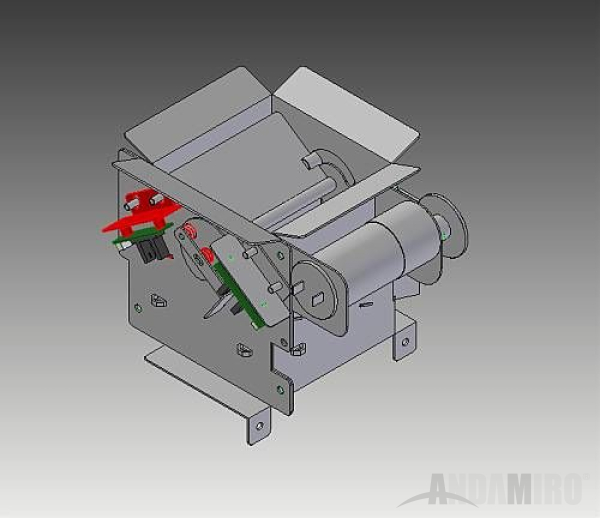

A_TOKEN BRIDGE

AV2_A TYPE_V3 20210618

A_TOKEN BRIDGE

AAV20ASS050

Part picture
1.49.1.2

[A_TOKEN BRIDGE] BEARING BALL

SUS-Φ12

[A_TOKEN BRIDGE] BEARING BALL

MZZZ0ELH039

Part picture
1.49.2.2

[A_TOKEN BRIDGE] BEARING BALL

SUS-Φ12

[A_TOKEN BRIDGE] BEARING BALL

MZZZ0ELH039

Part picture

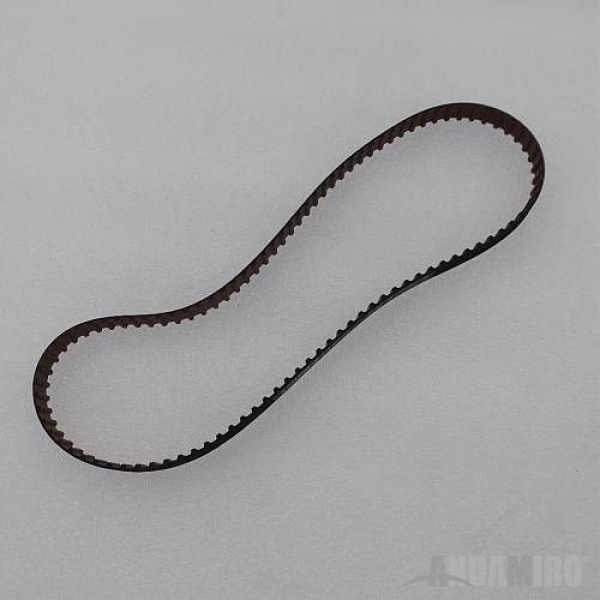

2.49.2

[A_TOKEN BRIDGE] MEDAL ROLLER TIMMING BELT

194XL ,W 9.5 RUBBER

[A_TOKEN BRIDGE] MEDAL ROLLER TIMMING BELT

MZZZ0BEL054

Part picture

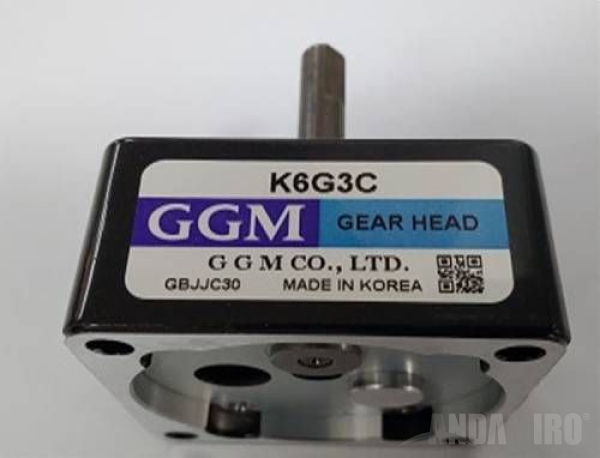

50

GEAR HEAD

K6G3C

GEAR HEAD

MWIC0PAR028

Part picture

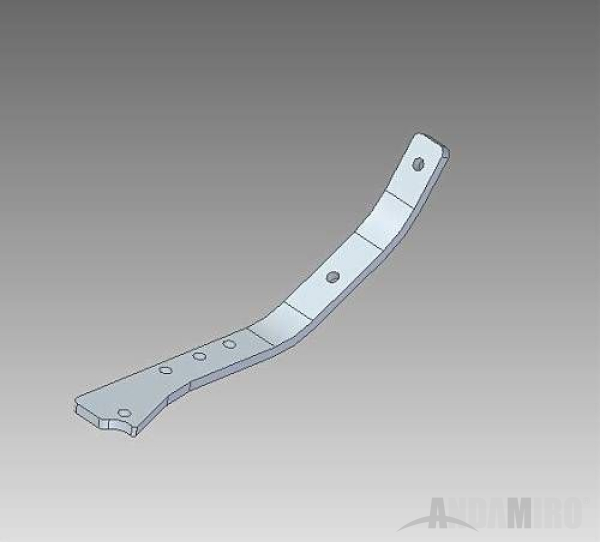

2.50.1

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

MZZZ0ELH010

Part picture
2.50.2

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

MZZZ0ELH010

Part picture
2.50.3

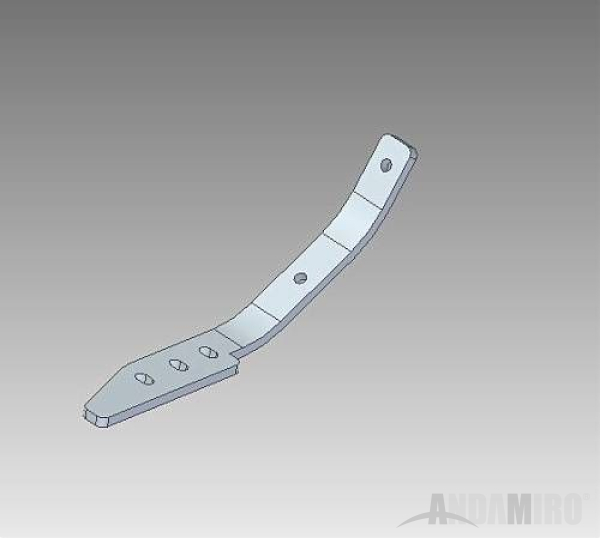

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

MZZZ0ELH011

Part picture
2.50.4

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

MZZZ0ELH011

Part picture
3.50.4

[GEAR HEAD] END CAP_H01

.

[GEAR HEAD] END CAP_H01

MELE0LEP004

Part picture
51

CHUTE SENSOR PCB ASS'Y

.

CHUTE SENSOR PCB ASS'Y

ASAW0PCB001

Part picture
1.51.4

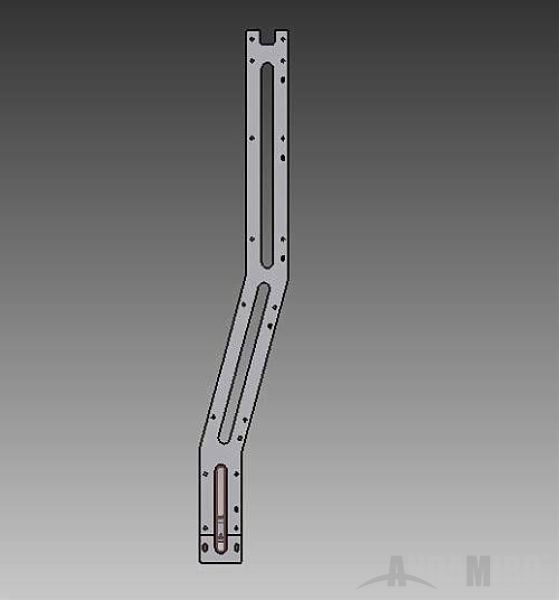

[CHUTE SENSOR PCB ASS'Y] EV-HOPPER_FRONT_RAIL ASS'Y

.

[CHUTE SENSOR PCB ASS'Y] EV-HOPPER_FRONT_RAIL ASS'Y

AAV20ASS042

Part picture
52

LED BAR 12V ASS'Y_V2

460MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB240

Part picture
53

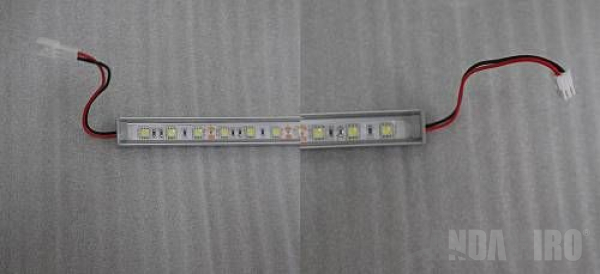

LED BAR 12V ASS'Y_V2

710MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB241

Part picture
54

LED BAR 12V ASS'Y_V2

900MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB242

Part picture
55

KEY ASS'Y 7001

7001 ONLY BODY

KEY ASS'Y 7001

MZZZ0KEY076

Part picture
56

KEY ONLY 7001

2EA 1SET_WITH RING

KEY ONLY 7001

MZZZ0KEY035

Part picture
57

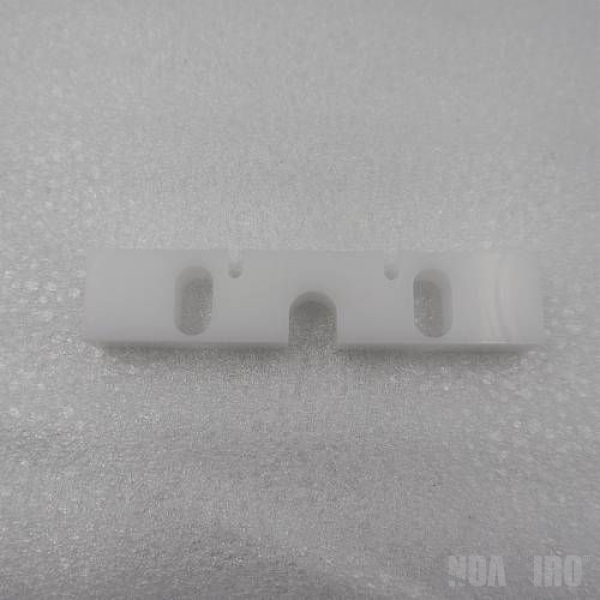

PUSHER BODY COIN BAFFLE

ACETAL

PUSHER BODY COIN BAFFLE

MSBP0PRO001

Part picture

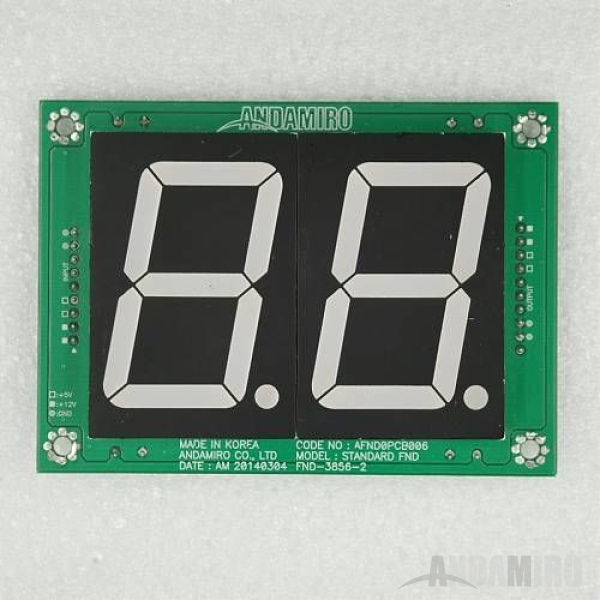

58

FND PCB ASS'Y

3856-2(STRAIGHT)

FND PCB ASS'Y

AFND0PCB006

Part picture
59

FND PCB ASS'Y

3856-4(STRAIGHT)

FND PCB ASS'Y

AFND0PCB007

Part picture
60

ROCKER SWITCH

R595KDF

ROCKER SWITCH

MELE0SWI021

Part picture
61

PUSH BUTTON SWITCH

DS-412R ROSH

PUSH BUTTON SWITCH

MELE0PUS006

Part picture
1.61.4.1

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

.

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

MZZZ0ELH005

Part picture
1.61.4.2

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

.

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

MZZZ0ELH005

Part picture
1.61.4.3

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

.

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

MZZZ0ELH009

Part picture
1.61.4.4

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

.

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

MZZZ0ELH009

Part picture
62

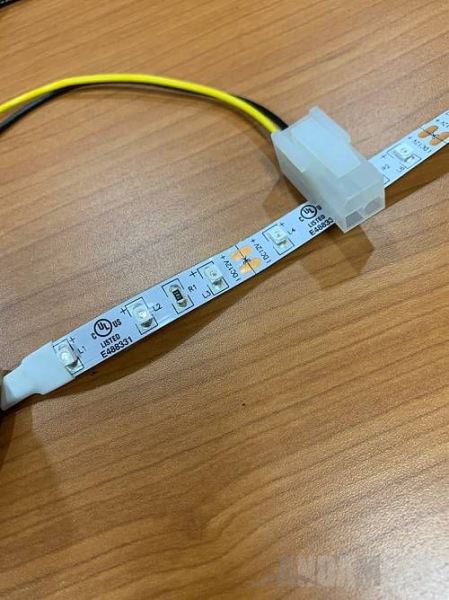

FLEX_3528_BLUE_1700_NWP_L_102

T3528 TOP300구 102알

FLEX_3528_BLUE_1700_NWP_L_102

MELE0LED043

Part picture
63

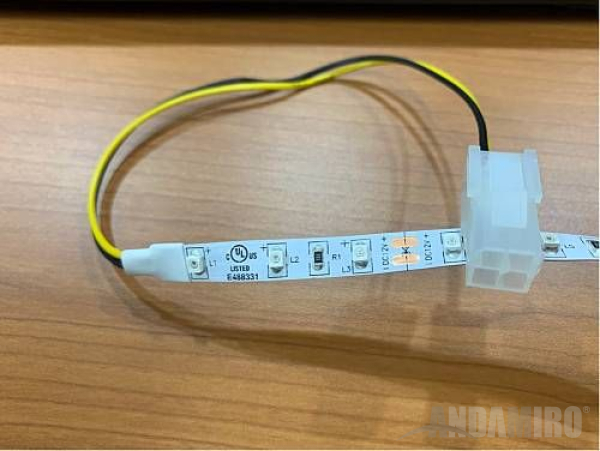

FLEX_3528_RED_1700_NWP_L_102

T3528 TOP300구 102알

FLEX_3528_RED_1700_NWP_L_102

MELE0LED046

Part picture
1.63.4.4

[FLEX_3528_RED_1700_NWP_L_102] COUPLING CR050 ASS'Y

8*8_M5_TAB120_M3_18.4

[FLEX_3528_RED_1700_NWP_L_102] COUPLING CR050 ASS'Y

AZZZ0COP003

Part picture
64

COUPLING CR050 ASS'Y

8*8_M5_TAB120_M3_18.4

COUPLING CR050 ASS'Y

AZZZ0COP003

Part picture
1.64.4.4

[COUPLING CR050 ASS'Y] PHOTO INT-1 PCB ASS'Y

STRIGHT_CIRCLE RAMA

[COUPLING CR050 ASS'Y] PHOTO INT-1 PCB ASS'Y

ACIR0PCB011

Part picture
65

PHOTO INT-1 PCB ASS'Y

STRIGHT_CIRCLE RAMA

PHOTO INT-1 PCB ASS'Y

ACIR0PCB011

Part picture

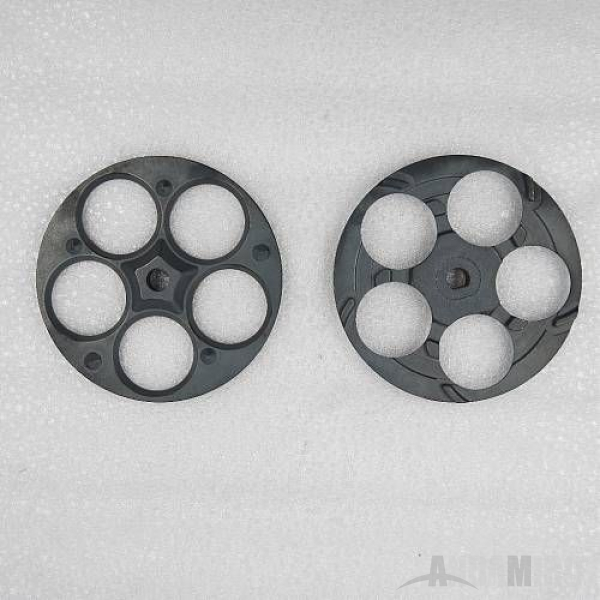

1.65.4.1

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

.

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

AZZZ0ASS008

Part picture
1.65.4.2

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

.

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

AZZZ0ASS008

Part picture
66

POWER SMPS

LRS 150F_24

POWER SMPS

MELE0SMP085

Part picture
1.66.4.2

[POWER SMPS] TIMMING PULLEY

MXL-47

[POWER SMPS] TIMMING PULLEY

MZZZ0PLA039

Part picture

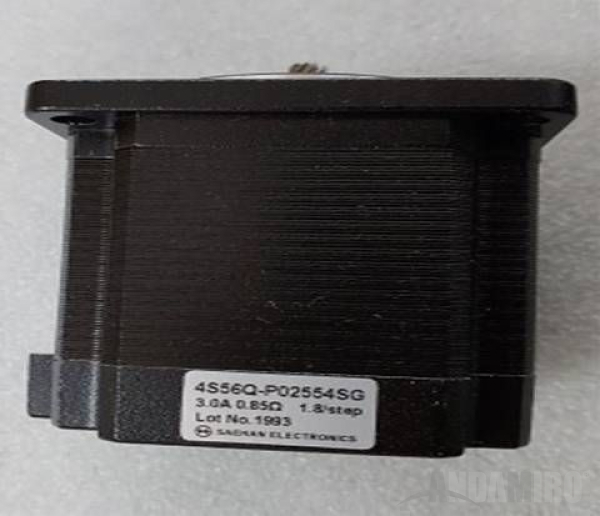

67

STEPPING MOTOR NO WIRE

4S56Q-P02554SG

STEPPING MOTOR NO WIRE

MZZZ0MOT166

Part picture

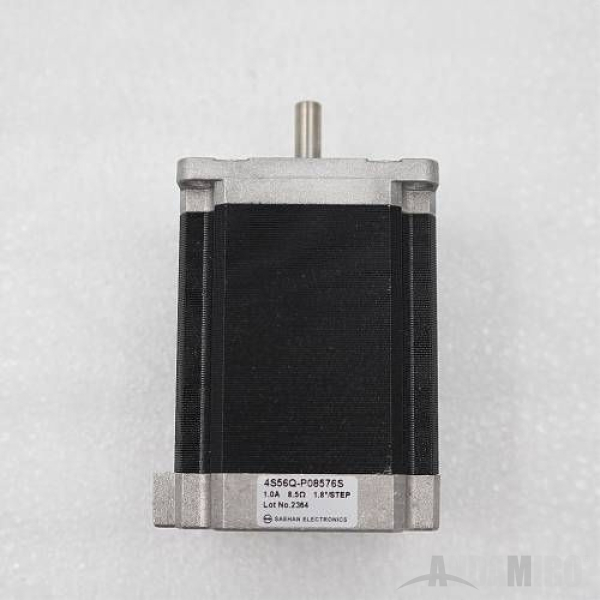

68

STEPPING MOTOR NO WIRE

4S56Q-08576S

STEPPING MOTOR NO WIRE

MZZZ0MOT167

Part picture
1.68.1.2

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

.

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

AZZZ0ASS092

Part picture
1.68.2.2

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

.

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

AZZZ0ASS092

Part picture

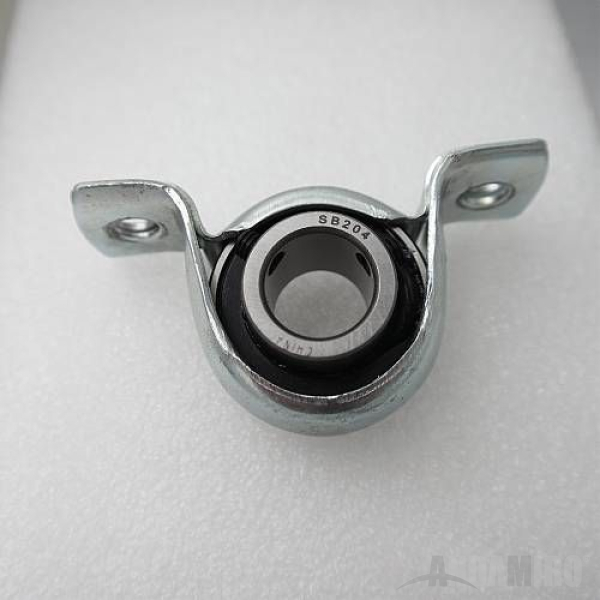

69

UNIT BEARING

SBPP204 조립후입고

UNIT BEARING

MZZZ0BEA089

Part picture
70

MICRO SWITCH

CNR-05H-03 ZIPPY-FOR COIN

MICRO SWITCH

MELE0MIC002

Part picture
1.70.2.1

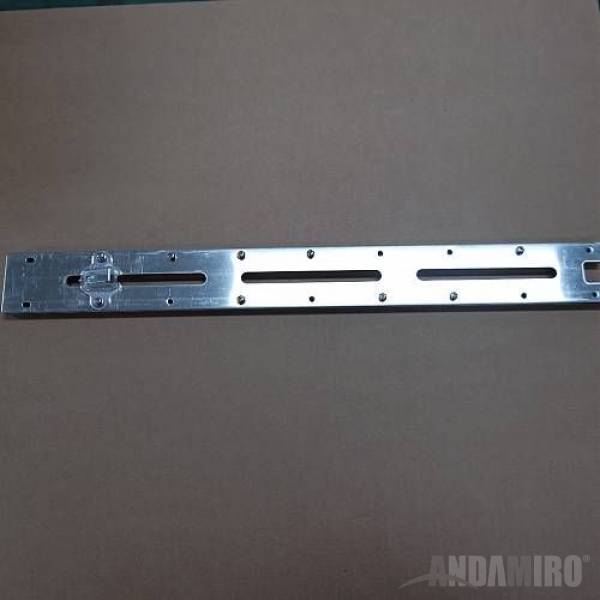

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

A TYPE

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

AZZZ0ELH005

Part picture
1.70.2.2

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

A TYPE

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

AZZZ0ELH005

Part picture
2.70.2

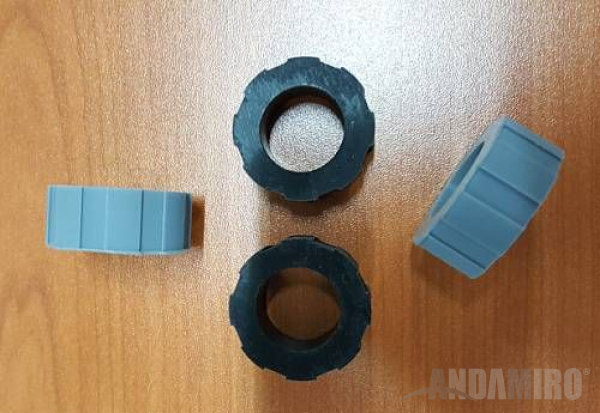

[MICRO SWITCH] FRONT ROLLER RUBBER HOUSING-B

실리콘

[MICRO SWITCH] FRONT ROLLER RUBBER HOUSING-B

MZZZ0RUB020

Part picture
71

VOLUME PCB ASS'Y

1 VOLUME

VOLUME PCB ASS'Y

AHM20PCB016

Part picture
72

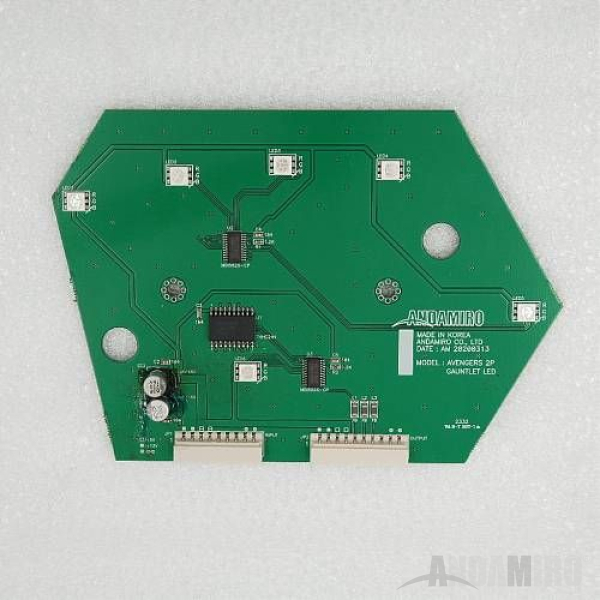

GAUNTLET LED PCB ASS'Y

AVENGERS 2P

GAUNTLET LED PCB ASS'Y

AAV20PCB002

Part picture
73

STEPPING MOTOR DRIVER PCB ASS'Y

TB6560AHQ_40V_3.5A

STEPPING MOTOR DRIVER PCB ASS'Y

ASBS0PCB001

Part picture
1.73.2

[STEPPING MOTOR DRIVER PCB ASS'Y] E_RAIL-REAR

ELEVATOR HOPPER

[STEPPING MOTOR DRIVER PCB ASS'Y] E_RAIL-REAR

AZZZ0ELH003

Part picture
2.73.2

[STEPPING MOTOR DRIVER PCB ASS'Y] BUTTON ASS'Y _ NO SWITCH

CL-2020 65 TYPE LED

[STEPPING MOTOR DRIVER PCB ASS'Y] BUTTON ASS'Y _ NO SWITCH

MZZZ0BUT101

Part picture

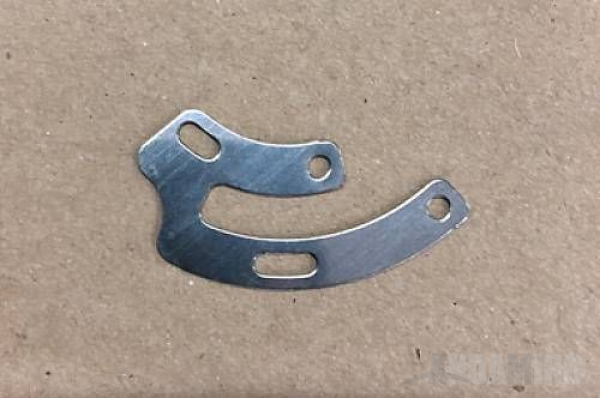

2.73.1

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH007-01

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH049

Part picture
2.73.2

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH007-01

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH049

Part picture
74

CARD HEAVY PUSH BKT

.

CARD HEAVY PUSH BKT

MSBP0MEP023

Part picture
2.74.2.1

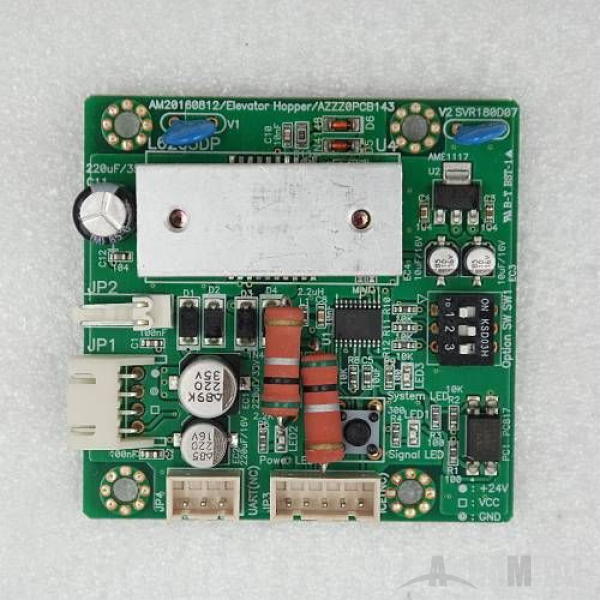

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

COMMON_NUVOTON

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

AZZZ0PCB143

Part picture
2.74.2.2

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

COMMON_NUVOTON

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

AZZZ0PCB143

Part picture
75

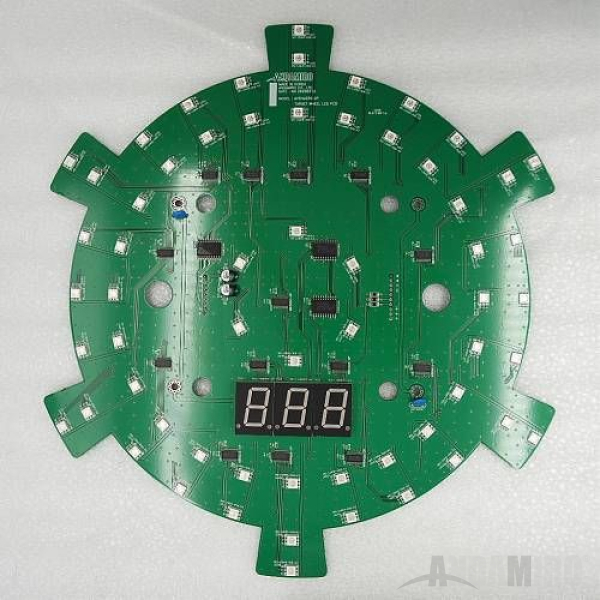

TARGET WHEEL LED PCB ASS'Y

AVENGERS 2P

TARGET WHEEL LED PCB ASS'Y

AAV20PCB004

Part picture
76

A_CARD DISPENSER_COMMON L

CODE CHANGE AZZZ0ASS115

A_CARD DISPENSER_COMMON L

AZZZ0ASS081

Part picture
1.76.2.2

[A_CARD DISPENSER_COMMON L] PRO 일반가공 PART 7종

84 85 UP 220215

[A_CARD DISPENSER_COMMON L] PRO 일반가공 PART 7종

AAV20PAT072

Part picture

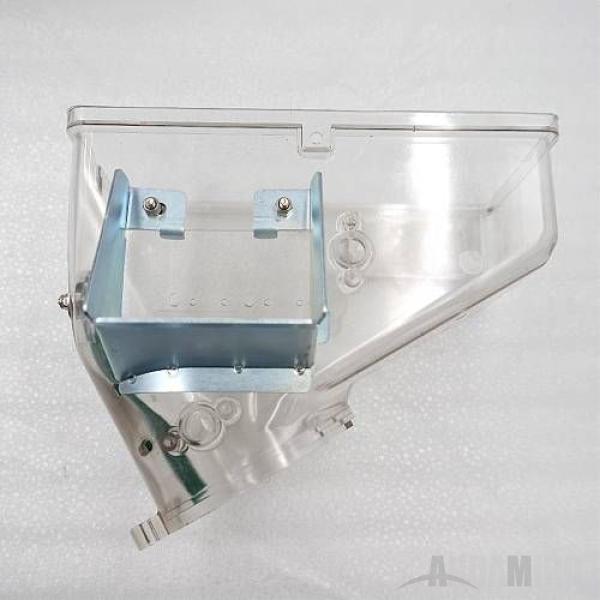

1.76.2.1

[A_CARD DISPENSER_COMMON L] COIN BOWL BOX

.

[A_CARD DISPENSER_COMMON L] COIN BOWL BOX

MZZZ0ELH030

Part picture
1.76.2.2

[A_CARD DISPENSER_COMMON L] COIN BOWL BOX

.

[A_CARD DISPENSER_COMMON L] COIN BOWL BOX

MZZZ0ELH030

Part picture
2.76.2

[A_CARD DISPENSER_COMMON L] BEARING

F605ZZ

[A_CARD DISPENSER_COMMON L] BEARING

MZZZ0BEA141

Part picture
77

LED PCB ASS'Y

MULTI MAGIC 070618

LED PCB ASS'Y

AMUM0PCB005

Part picture
78

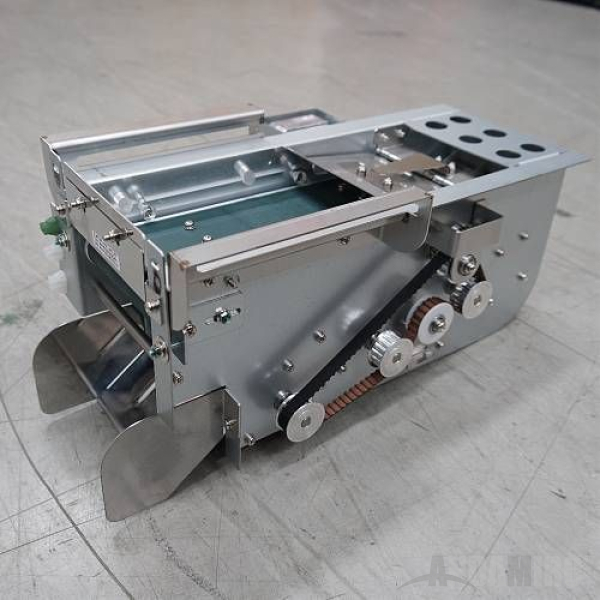

A_MEDAL ROLLER V3

CARD AV2 220215

A_MEDAL ROLLER V3

AAV20ASS055

Part picture
79

MOVING PUSHER LM FIX ASS'Y

.

MOVING PUSHER LM FIX ASS'Y

AAV20PAT081

Part picture
1.79.2

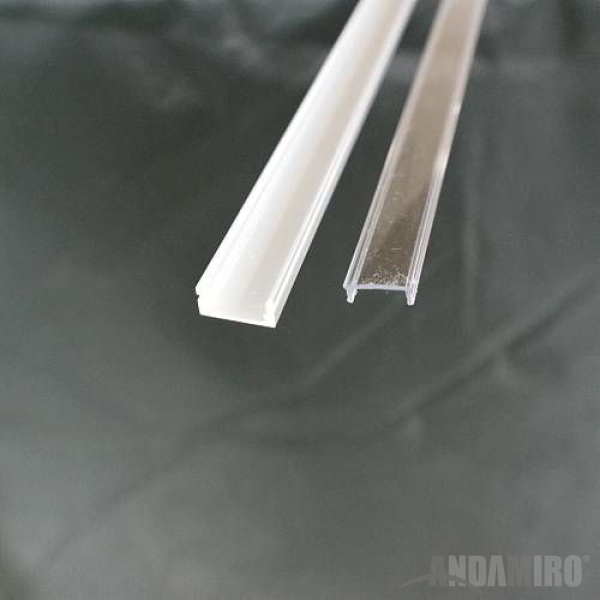

[MOVING PUSHER LM FIX ASS'Y] ALUMINUM PROFILE PC COVER

L710 715~715.5MM

[MOVING PUSHER LM FIX ASS'Y] ALUMINUM PROFILE PC COVER

MELE0LEP002

Part picture
2.79.2

[MOVING PUSHER LM FIX ASS'Y] ALUMINUM PROFILE PC COVER

L465 465~465.5MM

[MOVING PUSHER LM FIX ASS'Y] ALUMINUM PROFILE PC COVER

MELE0LEP001

Part picture
2.79.1

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

.

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

MZZZ0ELH012

Part picture
2.79.2

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

.

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

MZZZ0ELH012

Part picture
2.79.3

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

.

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

MZZZ0ELH013

Part picture
2.79.4

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

.

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

MZZZ0ELH013

Part picture
2.79.5

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

.

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

MZZZ0ELH003

Part picture
2.79.6

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

.

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

MZZZ0ELH003

Part picture

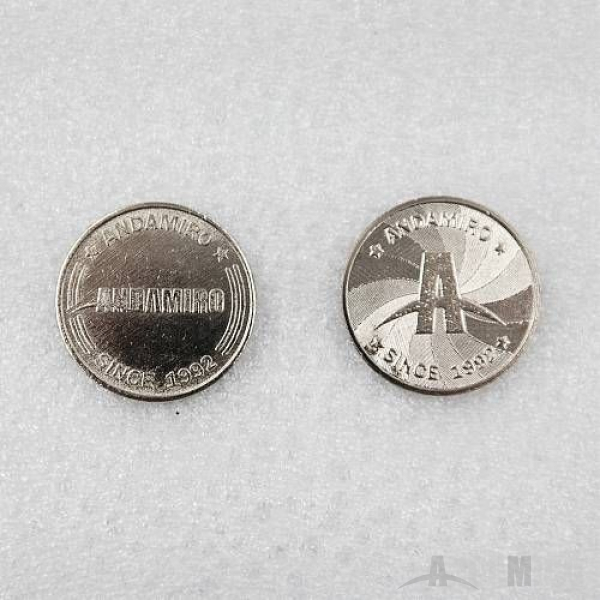

80

COIN MEDAL_NI

24.8 BRASS SILVER

COIN MEDAL_NI

AZZZ0MED001

Part picture
1.80.6

[COIN MEDAL_NI] TIMMING BELT

52MXL,W4.8 RUBBER

[COIN MEDAL_NI] TIMMING BELT

MZZZ0BEL018

Part picture
2.80.6

[COIN MEDAL_NI] CARD DISPENSER I/O PCB ASS'Y

V3

[COIN MEDAL_NI] CARD DISPENSER I/O PCB ASS'Y

AZZZ0PCB258

Part picture
3.80.6

[COIN MEDAL_NI] BEARING

F688ZZ

[COIN MEDAL_NI] BEARING

MZZZ0BEA076

Part picture
81

COUNTER

OA127CL W/2P CONNECTOR_20CM WIRE

COUNTER

MZZZ0COU002

Part picture

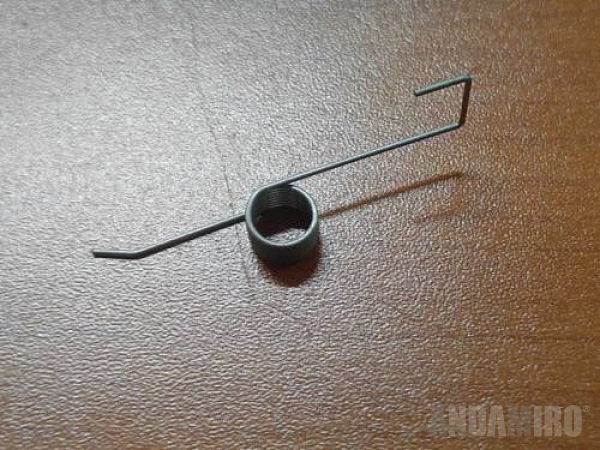

3.81.6.1

[COUNTER] COIN BLOCK SPRING

SUS-0.7MM

[COUNTER] COIN BLOCK SPRING

MZZZ0ELH045

Part picture
3.81.6.2

[COUNTER] COIN BLOCK SPRING

SUS-0.7MM

[COUNTER] COIN BLOCK SPRING

MZZZ0ELH045

Part picture
4.81.6

[COUNTER] HOLDER ASS'Y

LED포함

[COUNTER] HOLDER ASS'Y

MZZZ0BUT103

Part picture
82

VOLUME KNOB

CAP BLUE

VOLUME KNOB

MELE0VOL007

Part picture
83

POWER SMPS

RSP-320-12

POWER SMPS

MELE0SMP109

Part picture
84

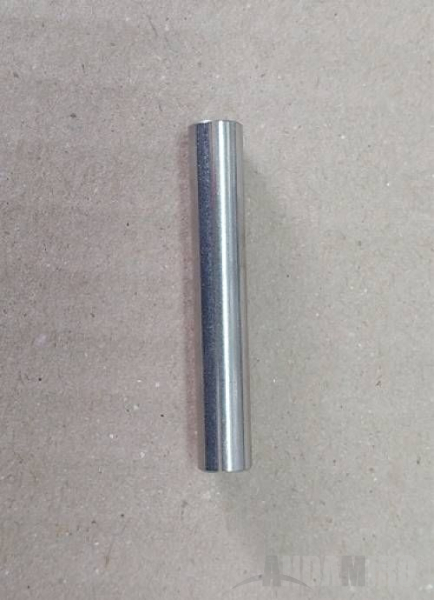

BILLBOARD SUPT BAR-A

.

BILLBOARD SUPT BAR-A

MAV20PRO008

Part picture
85

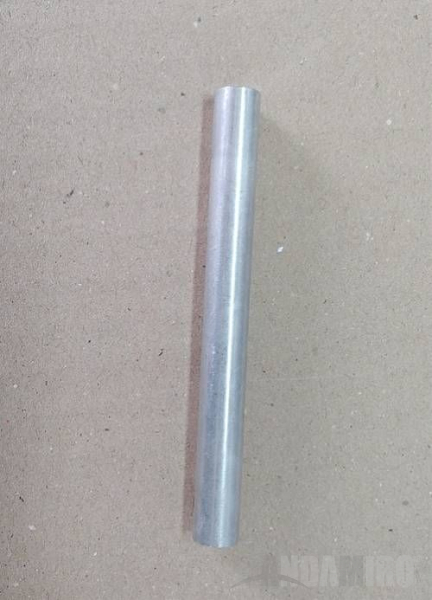

BIG BALL EV BKT SPACE

.

BIG BALL EV BKT SPACE

MAV20PRO013

Part picture
86

COIN BOWL BOX ASS'Y

AV2 REAR

COIN BOWL BOX ASS'Y

AZZZ0ASS112

Part picture
87

COIN BOWL BOX ASS'Y

AV2 FRONT

COIN BOWL BOX ASS'Y

AZZZ0ASS114

Part picture
88

WEB ACRYL PART

AV2 WEB

WEB ACRYL PART

AAV20PAT083

Part picture
89

WEB SHEET PART

AV2 WEB

WEB SHEET PART

AAV20PAT084

Part picture
1.89.6

[WEB SHEET PART] BILLBOARD DECO MAIN SIDE-R

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD DECO MAIN SIDE-R

AAV20ACP012

Part picture
2.89.6

[WEB SHEET PART] BILLBOARD DECO MAIN SIDE-L

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD DECO MAIN SIDE-L

AAV20ACP013

Part picture
3.89.6

[WEB SHEET PART] BILLBOARD DECO MAIN

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD DECO MAIN

AAV20ACP014

Part picture
4.89.6

[WEB SHEET PART] BILLBOARD DECO MAIN COVER-B

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD DECO MAIN COVER-B

AAV20ACP016

Part picture
5.89.6

[WEB SHEET PART] BILLBOARD DECO MAIN COVER-A

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD DECO MAIN COVER-A

AAV20ACP017

Part picture
6.89.6

[WEB SHEET PART] BILLBOARD CABINET SIDE DECO ACRYL-L

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD CABINET SIDE DECO ACRYL-L

AAV20ACP018

Part picture
7.89.6

[WEB SHEET PART] BILLBOARD CABINET SIDE DECO ACRYL-R

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD CABINET SIDE DECO ACRYL-R

AAV20ACP019

Part picture
8.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-D 1P

AV2 ACR_PRI

[WEB SHEET PART] TARGET WHEEL DECO COVER-D 1P

AAV20ACP020

Part picture
9.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-D 2P

AV2 ACR_PRI

[WEB SHEET PART] TARGET WHEEL DECO COVER-D 2P

AAV20ACP021

Part picture
10.89.6

[WEB SHEET PART] TARGET COVER ACRYL

AV2 ACR_PRI

[WEB SHEET PART] TARGET COVER ACRYL

AAV20ACP022

Part picture
11.89.6

[WEB SHEET PART] BONUS WIN OUTLET LED ACRYL(STONE)

AV2 ACR_PRI

[WEB SHEET PART] BONUS WIN OUTLET LED ACRYL(STONE)

AAV20ACP023

Part picture
12.89.6

[WEB SHEET PART] BONUS WIN OUTLET LED ACRYL(TOKEN)

AV2 ACR_PRI

[WEB SHEET PART] BONUS WIN OUTLET LED ACRYL(TOKEN)

AAV20ACP024

Part picture
13.89.6

[WEB SHEET PART] BIG WHEEL WIN LED ACRYL

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL WIN LED ACRYL

AAV20ACP025

Part picture
14.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER B

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER B

AAV20ACP026

Part picture
15.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER D

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER D

AAV20ACP027

Part picture
16.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER E

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER E

AAV20ACP028

Part picture
17.89.6

[WEB SHEET PART] SCORE BOARD PANEL CENTER

AV2 ACR_PRI

[WEB SHEET PART] SCORE BOARD PANEL CENTER

AAV20ACP029

Part picture
18.89.6

[WEB SHEET PART] GAUNTLET FRONT COVER ACRYL

AV2 ACR_PRI

[WEB SHEET PART] GAUNTLET FRONT COVER ACRYL

AAV20ACP030

Part picture
19.89.6

[WEB SHEET PART] GAUNTLET REAR COVER ACRYL

AV2 ACR_PRI

[WEB SHEET PART] GAUNTLET REAR COVER ACRYL

AAV20ACP031

Part picture
20.89.6

[WEB SHEET PART] BIG WHEEL SIDE DECO COVER 1P

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL SIDE DECO COVER 1P

AAV20ACP032

Part picture
21.89.6

[WEB SHEET PART] BIG WHEEL SIDE DECO COVER 2P

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL SIDE DECO COVER 2P

AAV20ACP033

Part picture
22.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER H

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER H

AAV20ACP034

Part picture
23.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER I

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER I

AAV20ACP035

Part picture
24.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 1P

AV2 ACR_PRI

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 1P

AAV20ACP036

Part picture
25.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 2P

AV2 ACR_PRI

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 2P

AAV20ACP037

Part picture
26.89.6

[WEB SHEET PART] BILLBOARD MAIN FRONT COVER

AV2 ACR_PRI

[WEB SHEET PART] BILLBOARD MAIN FRONT COVER

AAV20ACP038

Part picture
27.89.6

[WEB SHEET PART] CARD DOSPENSER DECO COVER

AV2

[WEB SHEET PART] CARD DOSPENSER DECO COVER

AAV20ACP039

Part picture
28.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER G

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER G

AAV20ACP040

Part picture
29.89.6

[WEB SHEET PART] CARD DISPENSER IO PCB COVER

AV2 ACR_PRI

[WEB SHEET PART] CARD DISPENSER IO PCB COVER

AAV20ACP041

Part picture
30.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER J

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER J

AAV20ACP042

Part picture
31.89.6

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER K

AV2 ACR_PRI

[WEB SHEET PART] BIG WHEEL OUTER DECO COVER K

AAV20ACP043

Part picture
32.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 1P(NJ향)

ACR 3T(배접)

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 1P(NJ향)

AAV20ACP054

Part picture
33.89.6

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 2P(NJ향)

ACR 3T(배접)

[WEB SHEET PART] TARGET WHEEL DECO COVER-A 2P(NJ향)

AAV20ACP055

Part picture
34.89.6

[WEB SHEET PART] BILLBOARD MAIN FRONT COVER

1500

[WEB SHEET PART] BILLBOARD MAIN FRONT COVER

AAV20ACP075

Part picture
35.89.6

[WEB SHEET PART] MOVING PUSHER LM BAR

.

[WEB SHEET PART] MOVING PUSHER LM BAR

MAV20PRO043

Part picture
90

A_CARD DISPENSER_COMMON D-1

A_CARD DISPENSER_COMMON D-1

AZZZ0ASS115

Part picture
91

POWER SMPS

LRS 150F-5

POWER SMPS

MELE0SMP096

Part picture
1.91.6

[POWER SMPS] GAME VALUE SHEET UK-B

.

[POWER SMPS] GAME VALUE SHEET UK-B

MAV20SHE027

Part picture
92

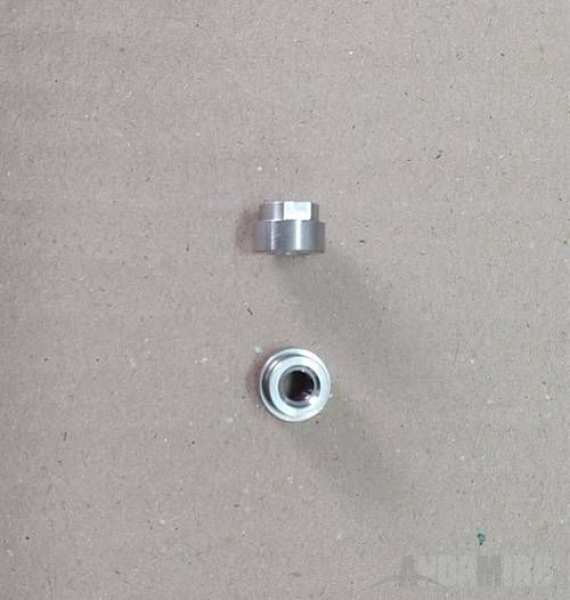

MOVING MOTOR ROTATE SHAFT-B

.

MOVING MOTOR ROTATE SHAFT-B

MAV20PRO025

Part picture
1.92.6

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET L

.

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET L

MAV20SHE001

Part picture
2.92.6

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET R

.

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET R

MAV20SHE002

Part picture
3.92.6

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 1P

MAV20SHE004

Part picture
4.92.6

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-R

AAV20ACP002

Part picture
5.92.6

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-B

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-B

AAV20ACP003

Part picture
6.92.6

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-C

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-C

AAV20ACP004

Part picture
7.92.6

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-L

AAV20ACP005

Part picture
8.92.6

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-R

AAV20ACP006

Part picture
9.92.6

[MOVING MOTOR ROTATE SHAFT-B] BUTTON ACRYL

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BUTTON ACRYL

AAV20ACP007

Part picture
10.92.6

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-L

AAV20ACP008

Part picture
11.92.6

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-R

AAV20ACP009

Part picture
12.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AAV20ACP010

Part picture
13.92.6

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-L

AAV20ACP001

Part picture
14.92.6

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 1P

MAV20SHE003

Part picture
15.92.6

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 1P

MAV20SHE005

Part picture
16.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AAV20ACP011

Part picture
17.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 1P

MAV20SHE006

Part picture
18.92.6

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 2P

MAV20SHE007

Part picture
19.92.6

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 2P

MAV20SHE008

Part picture
20.92.6

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 2P

MAV20SHE009

Part picture
21.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 2P

MAV20SHE010

Part picture
22.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN)

MAV20SHE011

Part picture
23.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN-A)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN-A)

MAV20SHE012

Part picture
24.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD)

MAV20SHE013

Part picture
25.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD-A)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD-A)

MAV20SHE014

Part picture
26.92.6

[MOVING MOTOR ROTATE SHAFT-B] BUTTON SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] BUTTON SHEET

MAV20SHE015

Part picture
27.92.6

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET

MAV20SHE016

Part picture
28.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME INSTRUCTION SHEET(CARD)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME INSTRUCTION SHEET(CARD)

MAV20SHE019

Part picture
29.92.6

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 1P

MAV20SHE023

Part picture
30.92.6

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 2P

MAV20SHE024

Part picture
31.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-A

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-A

MAV20SHE026

Part picture
32.92.6

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-C

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-C

MAV20SHE028

Part picture
33.92.6

[MOVING MOTOR ROTATE SHAFT-B] INSTALL CARD READER SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] INSTALL CARD READER SHEET

MAV20SHE030

Part picture
34.92.6

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET(NJ버젼)

.

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET(NJ버젼)

MAV20SHE045

Part picture
35.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD DECO MAIN COVER-A

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD DECO MAIN COVER-A

AAV20ACP015

Part picture
36.92.6

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 1P(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 1P(NON CARD)

AAV20ACP044

Part picture
37.92.6

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 2P(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 2P(NON CARD)

AAV20ACP045

Part picture
38.92.6

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD MAIN FRONT COVER(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD MAIN FRONT COVER(NON CARD)

AAV20ACP046

Part picture
39.92.6

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER A

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER A

AAV20ACP047

Part picture
40.92.6

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER C

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER C

AAV20ACP048

Part picture
41.92.6

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER F

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER F

AAV20ACP049

Part picture
41.92.6.1

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
41.92.7

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
41.92.7.1

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
41.92.8

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
42.92.8

[MOVING MOTOR ROTATE SHAFT-B] CARD DISPENSER RUBBER HOUSING-B

실리콘

[MOVING MOTOR ROTATE SHAFT-B] CARD DISPENSER RUBBER HOUSING-B

MZZZ0RUB018

Part picture
43.92.8

[MOVING MOTOR ROTATE SHAFT-B] WHEEL COIN INLET RAIL ACRYL

.

[MOVING MOTOR ROTATE SHAFT-B] WHEEL COIN INLET RAIL ACRYL

MAV20ACR007

Part picture
44.92.8

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL BASE ACRYL

.

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL BASE ACRYL

MAV20ACR008

Part picture
45.92.8

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

.

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

MAV20ACR010

Part picture
46.92.8

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-A

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-A

MAV20ACR041

Part picture
47.92.8

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-B

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-B

MAV20ACR042

Part picture
48.92.8

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-C

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-C

MAV20ACR043

Part picture
49.92.8

[MOVING MOTOR ROTATE SHAFT-B] COIN INLET GUIDE RAIL OUTER COVER

.

[MOVING MOTOR ROTATE SHAFT-B] COIN INLET GUIDE RAIL OUTER COVER

MAV20ACR051

Part picture
50.92.8

[MOVING MOTOR ROTATE SHAFT-B] SETUP PANEL BKT PET COVER

.

[MOVING MOTOR ROTATE SHAFT-B] SETUP PANEL BKT PET COVER

MSBP0ACR040

Part picture
51.92.8

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

MAV20ACR057

Part picture
52.92.8

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

MAV20ACR057

Part picture
53.92.8

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

MAV20ACR058

Part picture
54.92.8

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

MAV20ACR058

Part picture
55.92.8

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO FRONT COVER

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO FRONT COVER

AAV20ACP050

Part picture
56.92.8

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO MAIN COVER

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO MAIN COVER

AAV20ACP051

Part picture
57.92.8

[MOVING MOTOR ROTATE SHAFT-B] LED PCB COVER

.

[MOVING MOTOR ROTATE SHAFT-B] LED PCB COVER

MAV20ACR070

Part picture
93

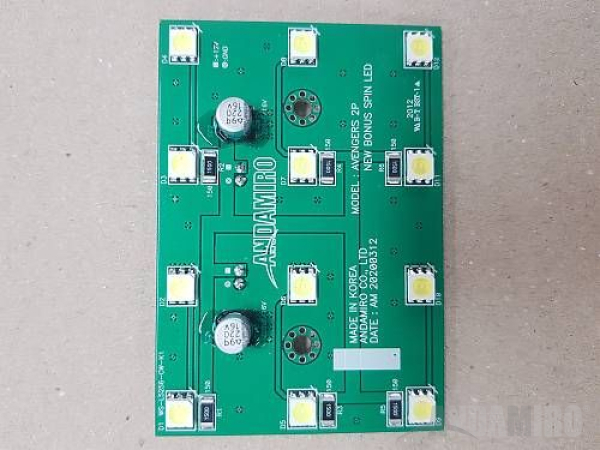

NEW BONUS SPIN LED PCB ASS'Y

AVENGERS 2P

NEW BONUS SPIN LED PCB ASS'Y

AAV20PCB003

Part picture
94

SMPS BKT

MEANWELL

SMPS BKT

MZZZ0MEP048

Part picture
1.94.8

[SMPS BKT] TABLE TILT BOLCK-A

.

[SMPS BKT] TABLE TILT BOLCK-A

MAV20ACR054

Part picture
2.94.8

[SMPS BKT] TABLE TILT BLOCK-B

.

[SMPS BKT] TABLE TILT BLOCK-B

MAV20ACR055

Part picture
2.94.8.1

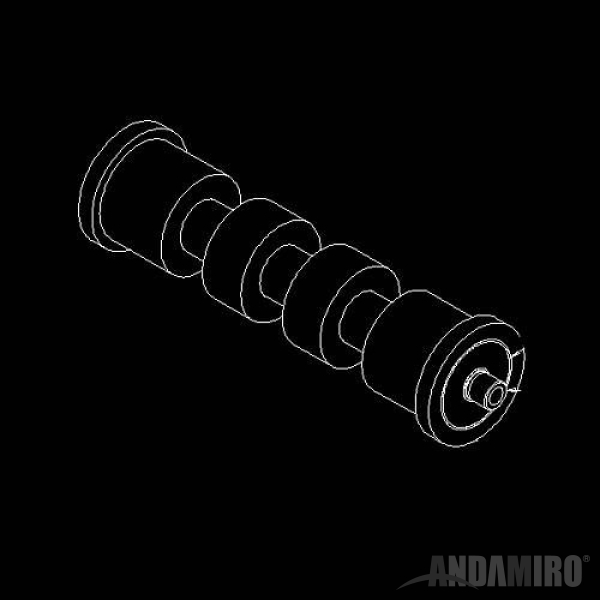

[SMPS BKT] MEDAL ROLLER-A ASS'Y

MAV20PRO001,61

[SMPS BKT] MEDAL ROLLER-A ASS'Y

AAV20PRO004

Part picture
3.94.8

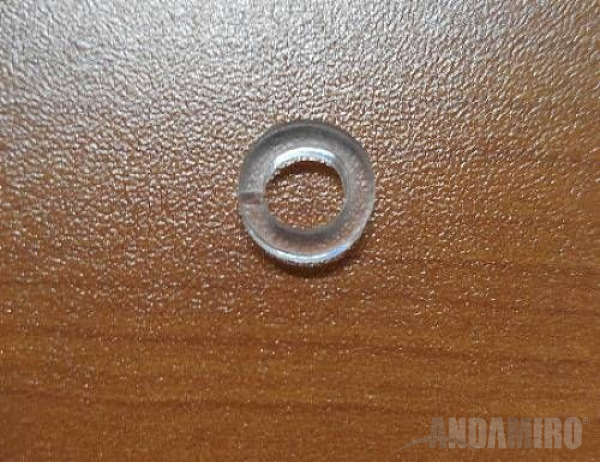

[SMPS BKT] FRONT ROLLER SHAFT DUSH

.

[SMPS BKT] FRONT ROLLER SHAFT DUSH

MSBP0ACR056

Part picture
95

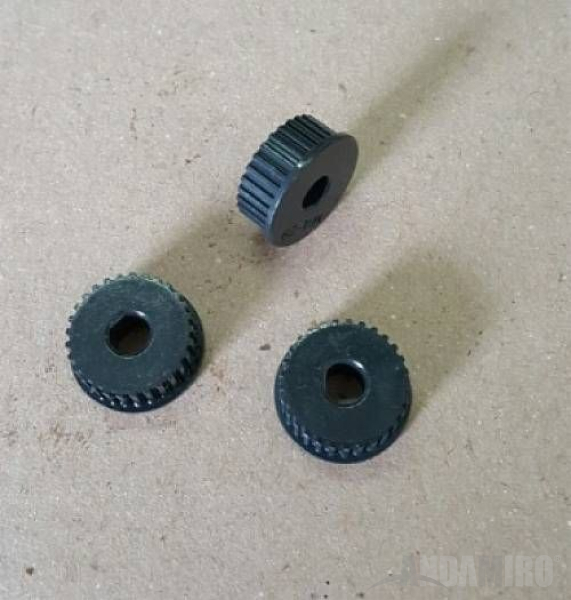

TIMMING PULLEY

MXL-29,분말야금

TIMMING PULLEY

MZZZ0MOL002

Part picture
1.95.8

[TIMMING PULLEY] TIMMING BELT TENSION ROLLER

.

[TIMMING PULLEY] TIMMING BELT TENSION ROLLER

MSBP0PRO017

Part picture
2.95.8

[TIMMING PULLEY] CARD DISPENSER RUBBER HOUSING-A

[TIMMING PULLEY] CARD DISPENSER RUBBER HOUSING-A

MZZZ0RUB017

Part picture
3.95.8

[TIMMING PULLEY] BIG BALL INLET GUIDE RAIL

.

[TIMMING PULLEY] BIG BALL INLET GUIDE RAIL

MAV20MEP112

Part picture
3.95.8.1

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

.

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

AZZZ0PCB173

Part picture
3.95.8.2

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

.

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

AZZZ0PCB173

Part picture
4.95.8

[TIMMING PULLEY] BALL ROLLER RINK SHAFT

.

[TIMMING PULLEY] BALL ROLLER RINK SHAFT

MAV20PRO039

Part picture
96

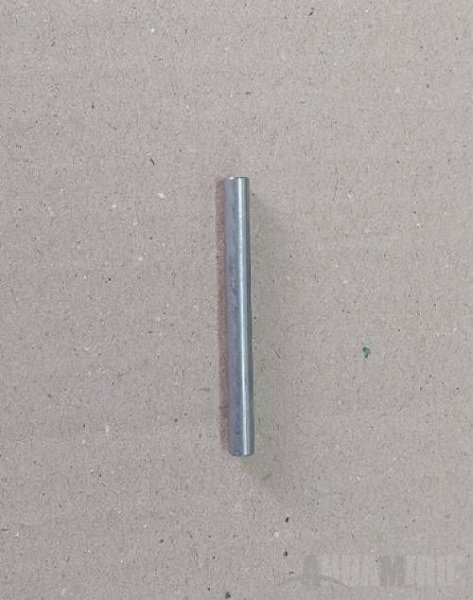

BIG BALL SCREW OUTLET BAR-B

.

BIG BALL SCREW OUTLET BAR-B

MAV20PRO051

Part picture
97

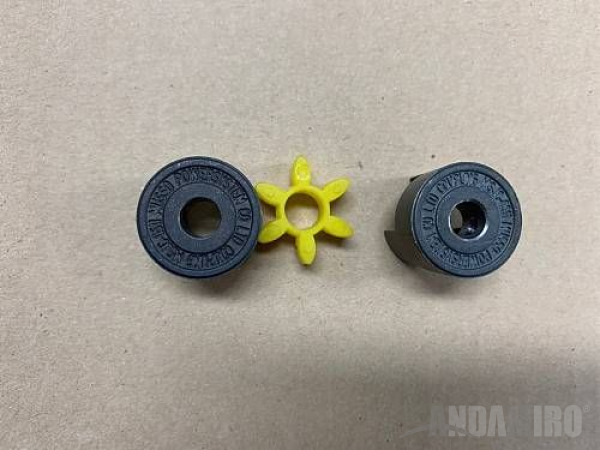

CODE CHANGE AZZZ0COP003

8*8_M5_TAB120

CODE CHANGE AZZZ0COP003

AZZZ0COP002

Part picture
1.97.8

[CODE CHANGE AZZZ0COP003] MOTOR

KGC-0240-3448S2_24V ISF TYPE

[CODE CHANGE AZZZ0COP003] MOTOR

MZZZ0MOT173

Part picture
1.97.8.1

[CODE CHANGE AZZZ0COP003] COIN HOPPER LABEL REV2

.

[CODE CHANGE AZZZ0COP003] COIN HOPPER LABEL REV2

MZZZ0STI100

Part picture
1.97.8.2

[CODE CHANGE AZZZ0COP003] COIN HOPPER LABEL REV2

.

[CODE CHANGE AZZZ0COP003] COIN HOPPER LABEL REV2

MZZZ0STI100

Part picture
1.97.8.3

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

.

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

MZZZ0STI147

Part picture
1.97.8.4

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

.

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

MZZZ0STI147

Part picture
2.97.8

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

.

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

MZZZ0STI147

Part picture
3.97.8

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

.

[CODE CHANGE AZZZ0COP003] COIN NOTICE STICKER

MZZZ0STI147

Part picture
98

MEP PART A 130종

AV2

MEP PART A 130종

AAV20PAT009

Part picture
PARTS INQUIRY
Game List

Sign up to our newsletter to stay in touch with our work and everything that's going on at our company.
receive the latest updates, news, and special offers. We can't wait to get started!

[Headquarters]#704-1, Gongjang-dong, Ilsan Techno Town, 138, Ilsan-ro, Ilsandong-gu,
Goyang-si, Gyeonggi-do, Republic of Korea

[ANDAMIRO USA]2222 Century Cir, Irving TX 75062 U.S.A

Copyright ⓒ 1993~2025 By Andamiro Co., LTD. All rights reserved.

ContactHeadquarters (International)
Sales: sales@andamiro.com
Tech and Parts: sales@andamiro.com
TEL: 82-31-909-2046

North AmericaSales: min@andamirousa.com
Tech support: service@andamirousa.com
Parts : parts@andamirousa.com
Tel: 1-310-767-5800
Fax: 972-445-9111

Copyright ⓒ 1993~2025 By Andamiro Co., LTD. All rights reserved.
