Andamiro Co., Ltd.

TICKET REDEMPTION

NEW

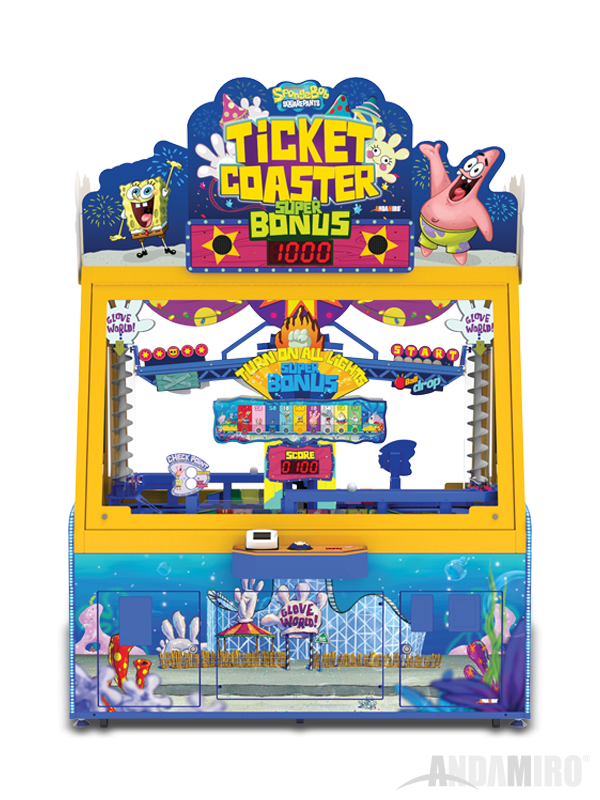

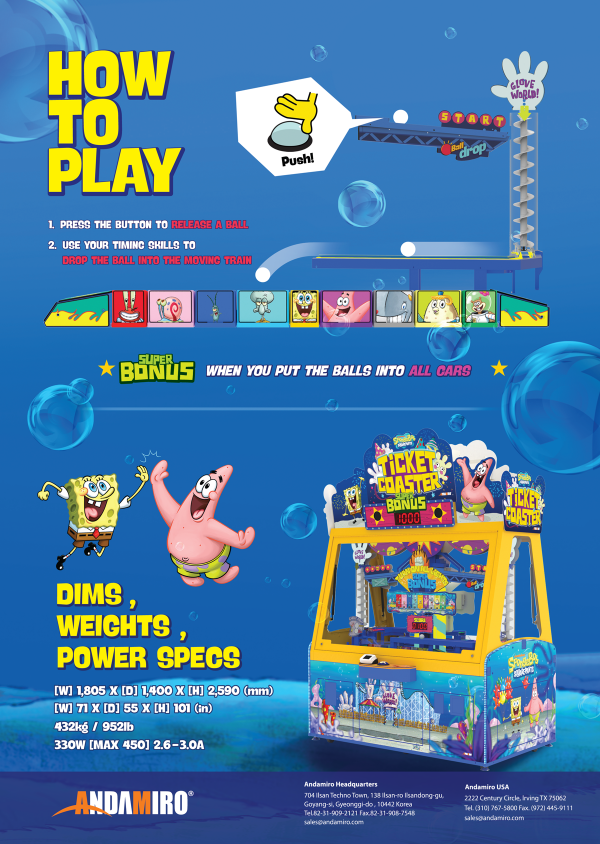

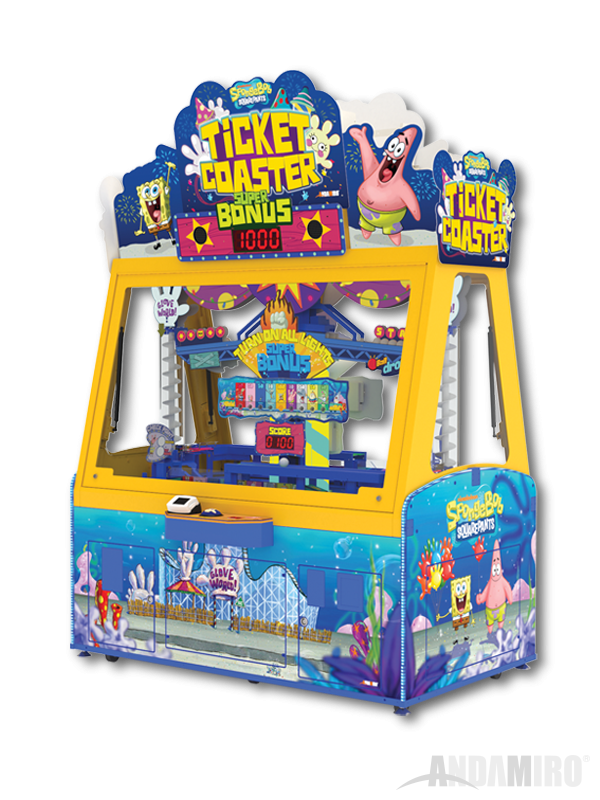

SPONGEBOB TICKET COASTER SPONGEBOB GLOVE WORLD!

Short url COPY http://www.andamiro.com/games/spongebobticketcoaster

Tags Ticket

Dimensions 1,803mm x 1,397mm x 2,583mm
71" x 55" x 102"

Packing Dimensions 1,900mm x 1,190mm x 2,250mm
75" x 47" x 89"

Product Weight 432 kg / 952 lbs

Packing Weight 460 kg / 1,014 lbs

Power 450W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (2)
Manuals (1)
Document (2)
Trouble shooting
Video List (0)

FEATURES

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 82Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	WS2812B IO PCB ASS'Y V3 SBT(TRAIN)_GOT(GUARDIANS)	WS2812B IO PCB ASS'Y V3 ASBT0PCB010	Part picture

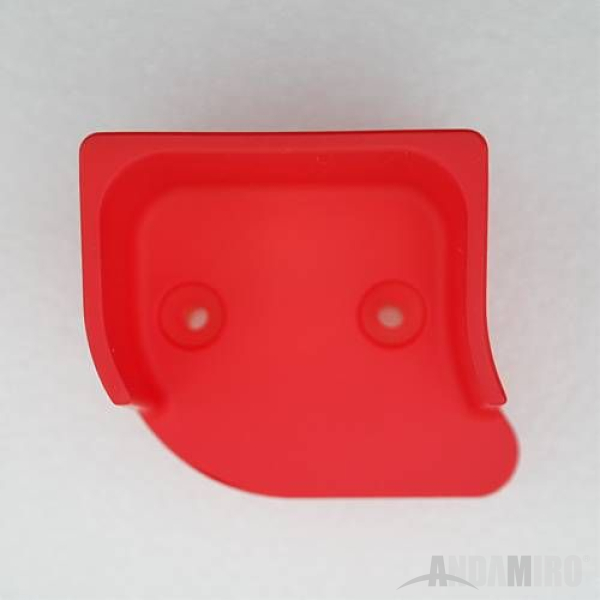

2	TRAN-A ASS'Y(RED) ABS-LIKE WHITE, RED	TRAN-A ASS'Y(RED) ASBT0ASS002	Part picture

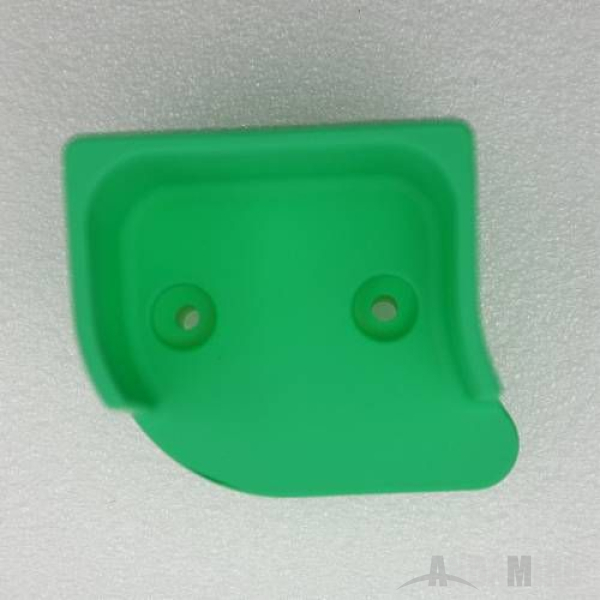

3	TRAN-A ASS'Y(GREEN) ABS-LIKE WHITE, GREEN	TRAN-A ASS'Y(GREEN) ASBT0ASS003	Part picture
4	TRAN-B ASS'Y(PINK) ABS-LIKE WHITE, PINK	TRAN-B ASS'Y(PINK) ASBT0ASS004	Part picture

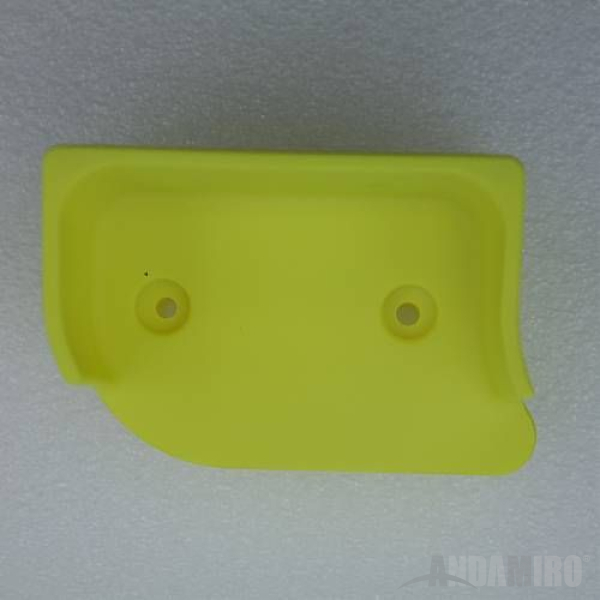

5	TRAN-B ASS'Y(LUMINESCENCE) ABS-LIKE WHITE, LUMINESCENCE	TRAN-B ASS'Y(LUMINESCENCE) ASBT0ASS005	Part picture

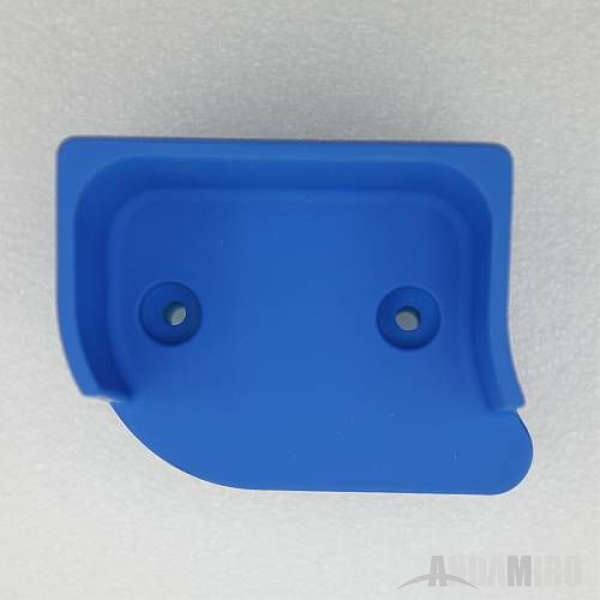

6	TRAN-C ASS'Y(BLUE) ABS-LIKE WHITE, BLUE	TRAN-C ASS'Y(BLUE) ASBT0ASS006	Part picture

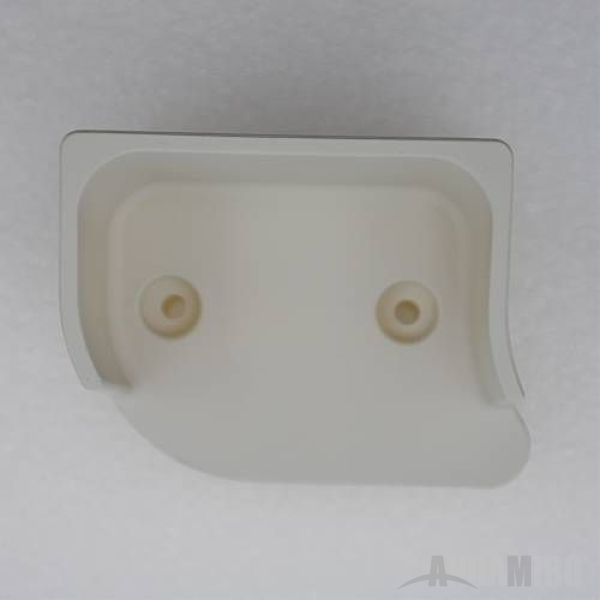

7	TRAN-C ASS'Y(GRAY) ABS-LIKE WHITE, GRAY	TRAN-C ASS'Y(GRAY) ASBT0ASS007	Part picture

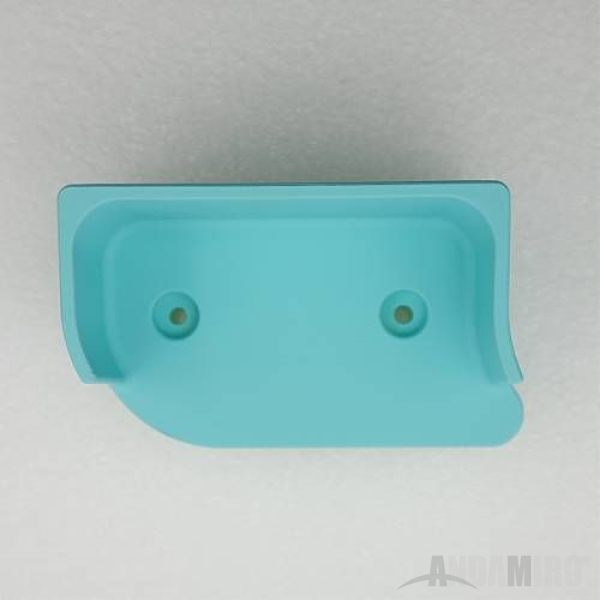

8	TRAN-D ASS'Y(CYAN) ABS-LIKE WHITE, CYAN	TRAN-D ASS'Y(CYAN) ASBT0ASS008	Part picture

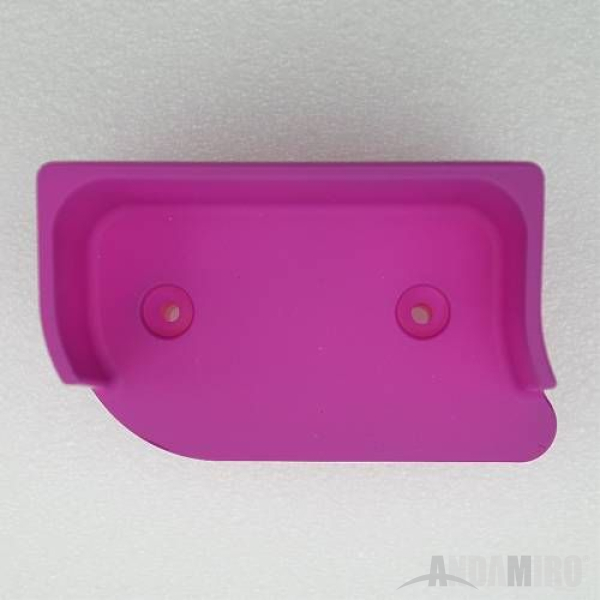

9	TRAN-D ASS'Y(PURPLE) ABS-LIKE WHITE, PURPLE	TRAN-D ASS'Y(PURPLE) ASBT0ASS009	Part picture

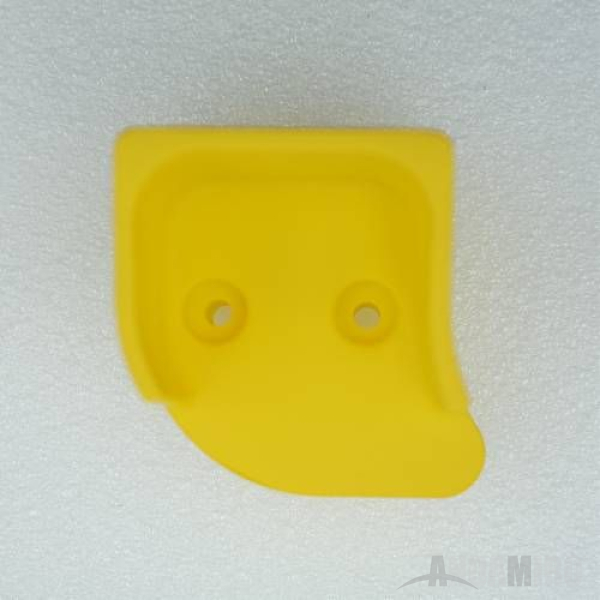

10	TRAN-E ASS'Y(YELLOW) ABS-LIKE WHITE, YELLOW	TRAN-E ASS'Y(YELLOW) ASBT0ASS010	Part picture
11	FRAGILE STICKER 제품용	FRAGILE STICKER MZZZ0STI141	Part picture

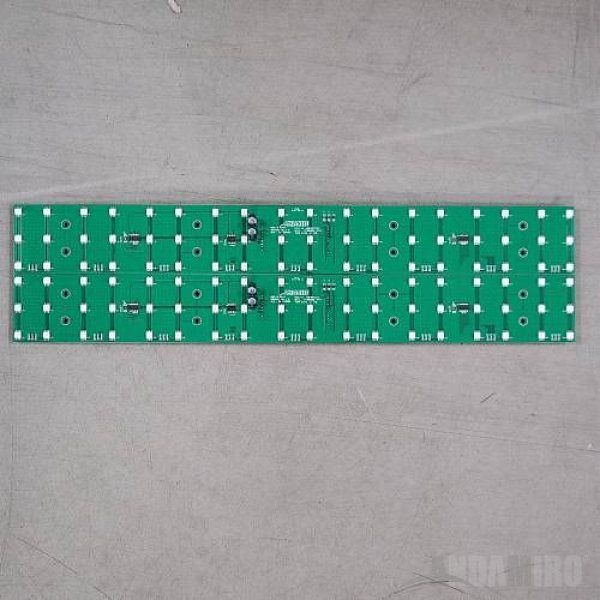

12	TRAIN SCORE LED PCB ASS'Y SPONGEBOB TRAIN	TRAIN SCORE LED PCB ASS'Y ASBT0PCB002	Part picture

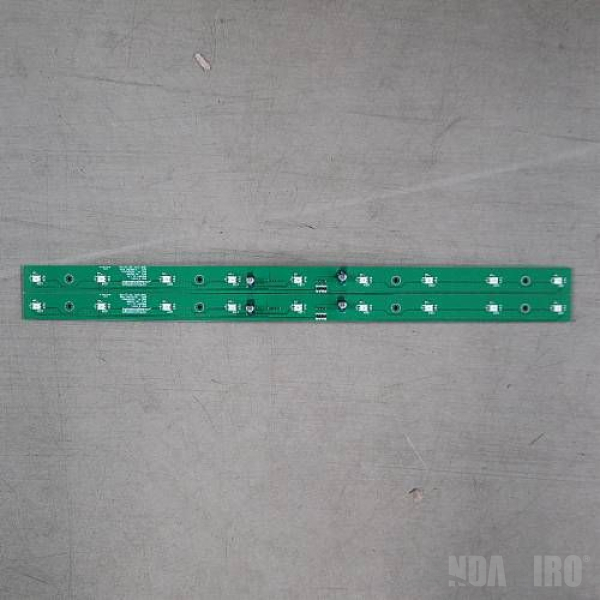

13	TRAIN SCORE CAP LED PCB ASS'Y SPONGEBOB TRAIN	TRAIN SCORE CAP LED PCB ASS'Y ASBT0PCB003	Part picture
14	ELEVATOR DISK SENSOR PCB ASS'Y GHP_REZ	ELEVATOR DISK SENSOR PCB ASS'Y AGHP0PCB020	Part picture
14.1	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB 20170207	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB PPCB0DOU501	Part picture
15	FND PCB ASS'Y 2941-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB003	Part picture

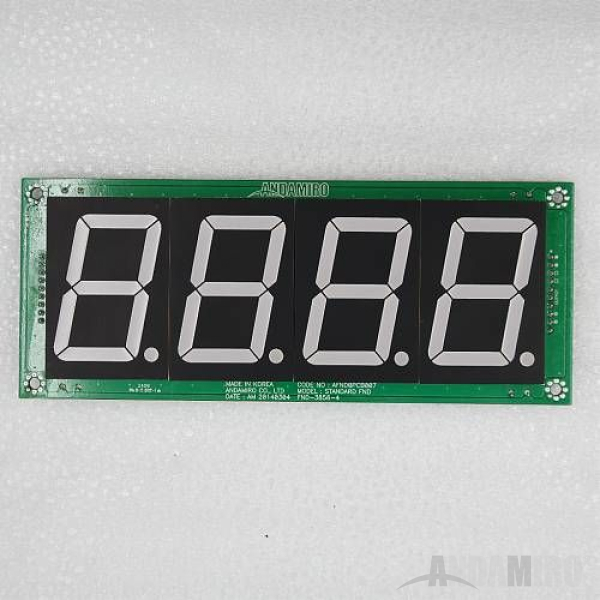

16	FND PCB ASS'Y 3856-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB007	Part picture
17	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture
18	JWIE LED PCB ASS'Y 170*21 WHITE 14EA	JWIE LED PCB ASS'Y AJIE0PCB006	Part picture
19	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
20	PHOTO INT-1 PCB ASS'Y STRIGHT_CIRCLE RAMA	PHOTO INT-1 PCB ASS'Y ACIR0PCB011	Part picture
21	RGB PWM PCB RGB_CTRL-G2GSTC0131	RGB PWM PCB MZZZ0000629	Part picture
22	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture

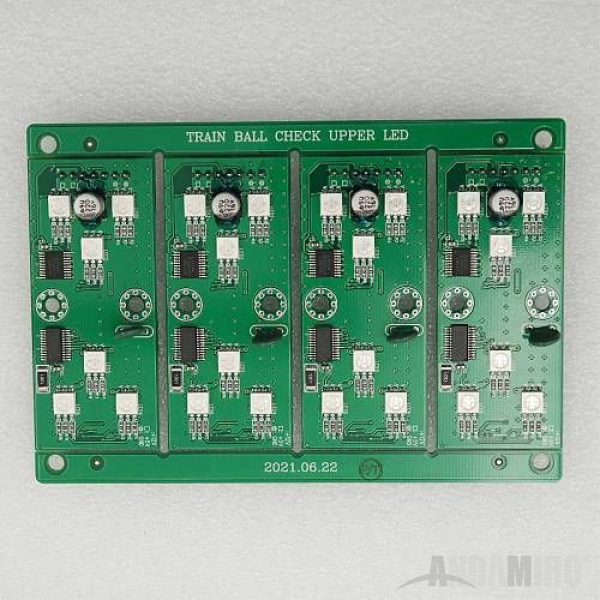

23	TRAIN BALL CHECK UPPER LED PCB ASS'Y THE TICKET TRAIN	TRAIN BALL CHECK UPPER LED PCB ASS'Y ATTT0PCB009	Part picture
24	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
25	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
26	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture
27	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture

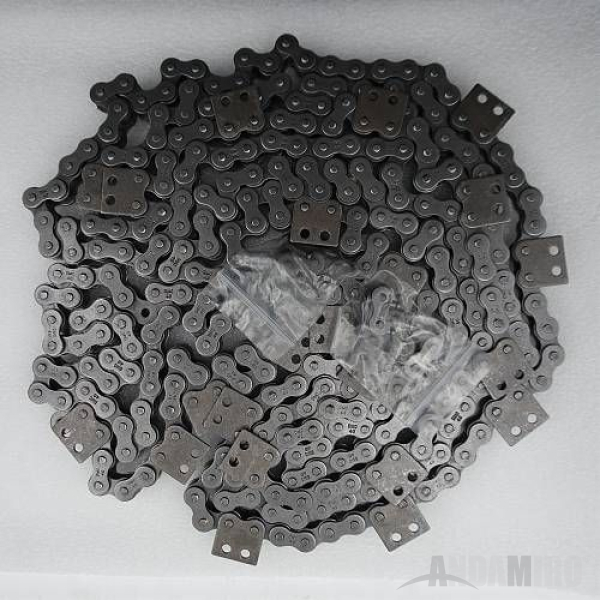

28	CHAIN RS40_328LINK(11ATTACHMENT)_동보체인	CHAIN MSBT0CHA001	Part picture
29	CONVEYOR TENSION SPRING SUS304-Ø1.2	CONVEYOR TENSION SPRING MDM30SPR001	Part picture

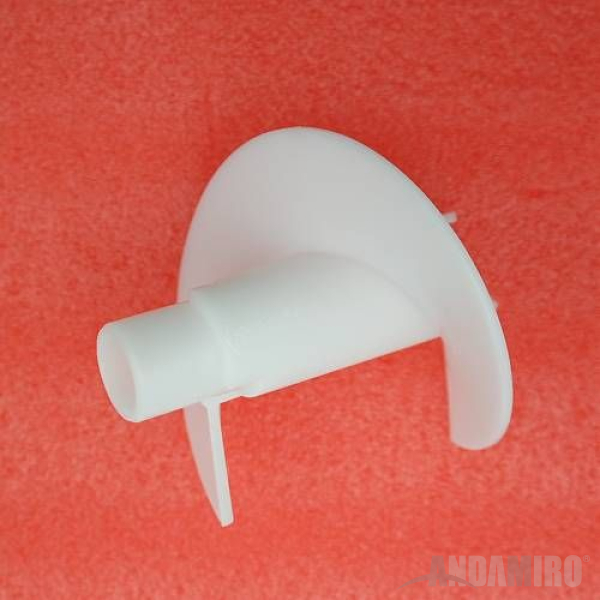

30	SCREW ACETAL WH 불투명	SCREW MSBT0PLA001	Part picture

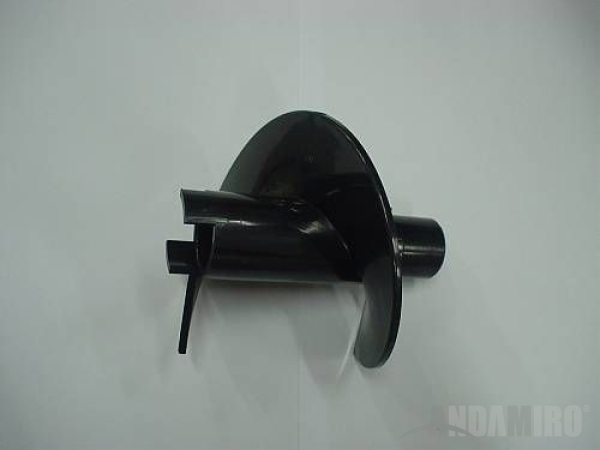

31	SCREW PC ABS BLACK	SCREW MDOS0PLA001	Part picture

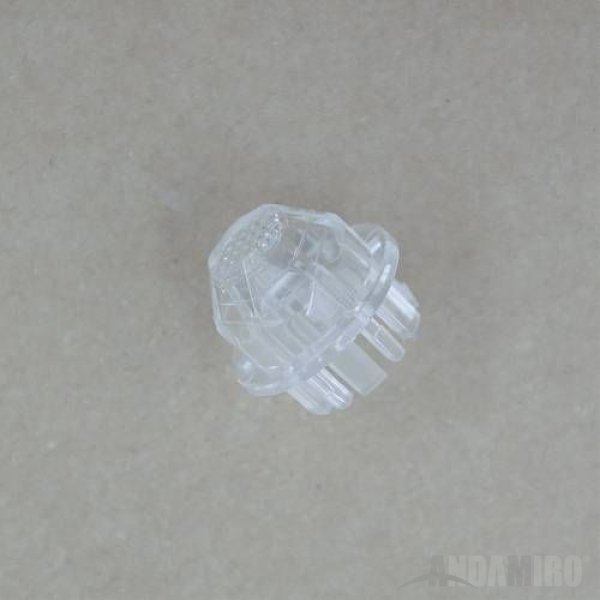

32	LED CAP Φ20_투명	LED CAP MZZZ0PLA037	Part picture

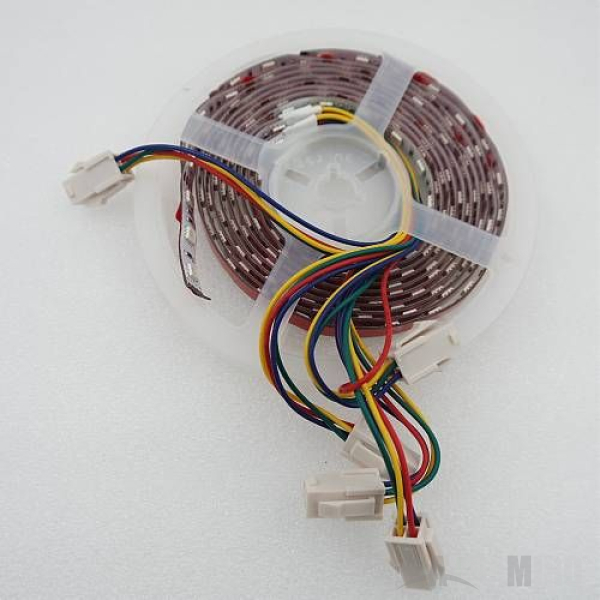

33	FLEX_5050_RGB_600_NWP_L_36 T5050 300구 36알	FLEX_5050_RGB_600_NWP_L_36 MELE0LED101	Part picture

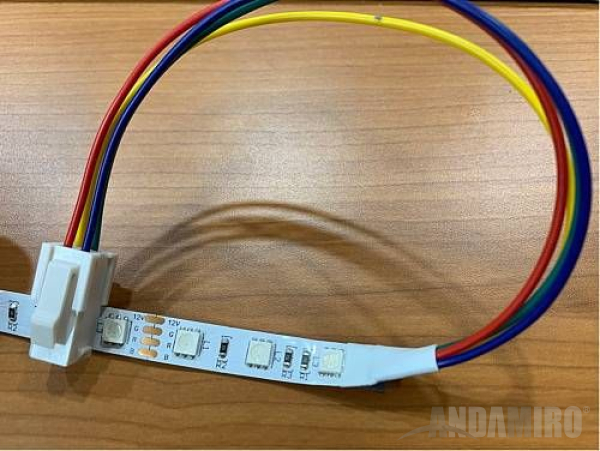

34	FLEX_5050_RGB_1300_NWP_L_78 T5050 TOP300구 78알	FLEX_5050_RGB_1300_NWP_L_78 MELE0LED065	Part picture
35	FLEX_5050_WHITE_450_NWP_LR_27 T5050 TOP300구 27알	FLEX_5050_WHITE_450_NWP_LR_27 MELE0LED095	Part picture
36	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture
36.1	[AC INPUT ASS'Y] AC INPUT DAC-13H	[AC INPUT ASS'Y] AC INPUT MELE0SWI015	Part picture
36.2	[AC INPUT ASS'Y] FUSE 10A 0218010.MXP 250V,10A,4PA	[AC INPUT ASS'Y] FUSE 10A MELE0FUS018	Part picture
37	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture
38	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture

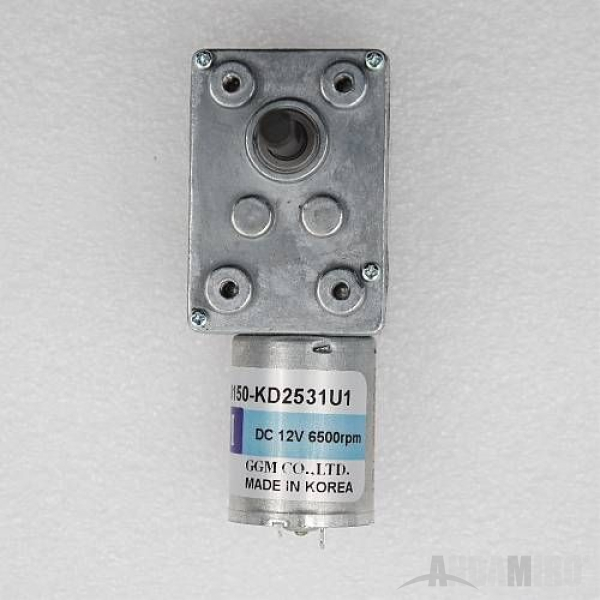

39	MOTOR KWA-0150-KD2531U1	MOTOR MZZZ0MOT170	Part picture

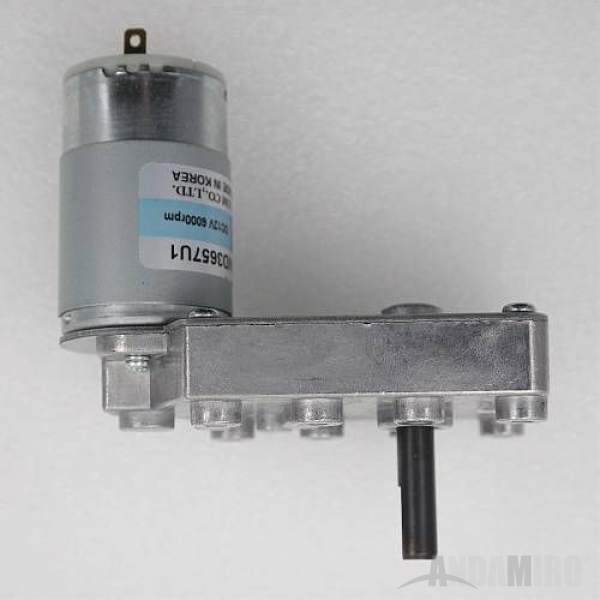

40	MOTOR KGE-062-KD3657U1	MOTOR MZZM0MOT008	Part picture

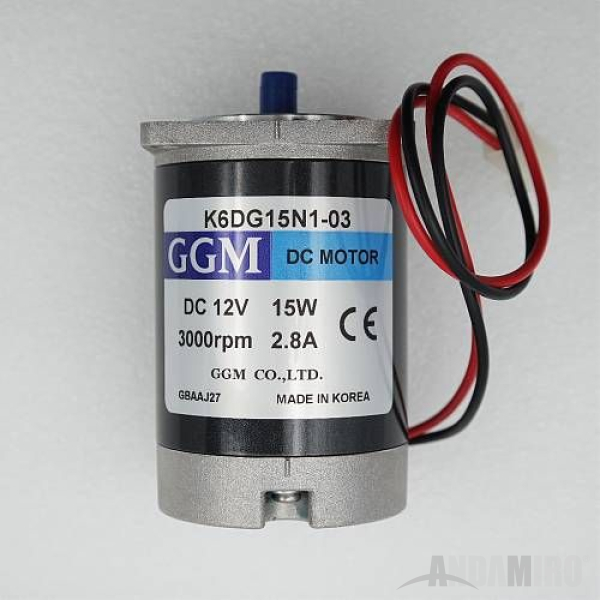

41	MOTOR K6DG15N1	MOTOR MZZM0MOT016	Part picture

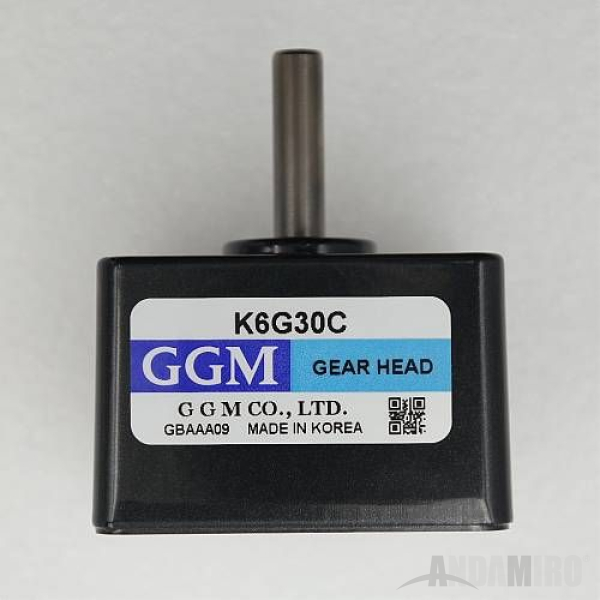

42	GEAR HEAD K6G30C	GEAR HEAD MZZM0MOT019	Part picture
43	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
44	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture
45	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture
46	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
47	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
48	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture

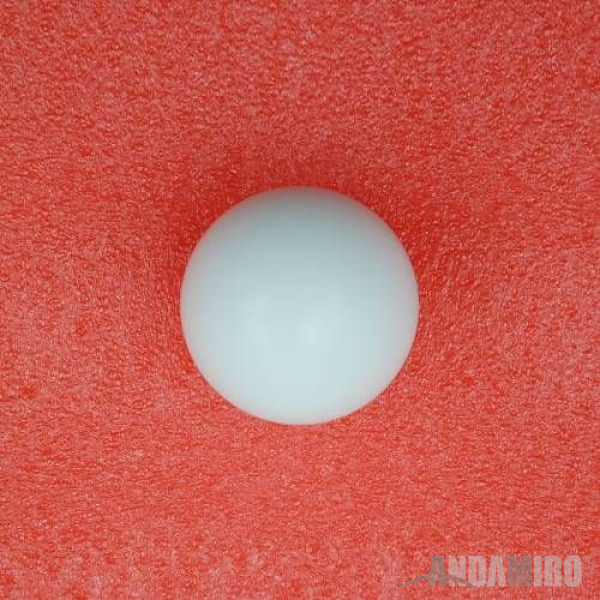

49	BALL 38MM_ WHITE_불투명	BALL MZZZ0BLL021	Part picture
50	BEARING DR19-B	BEARING MZZZ0BEA117	Part picture

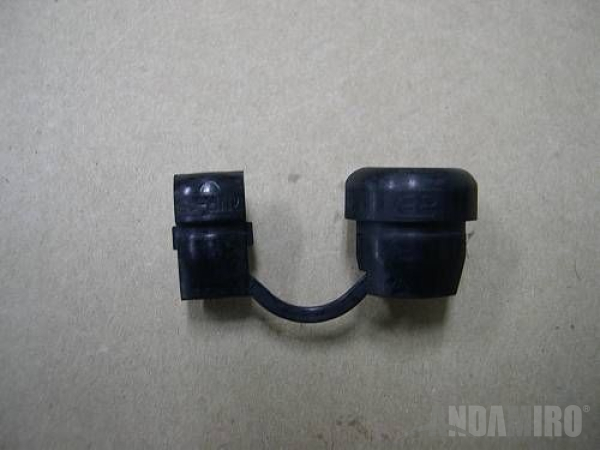

51	CABLE STOPPER 7NR-16	CABLE STOPPER MELE0CAB010	Part picture

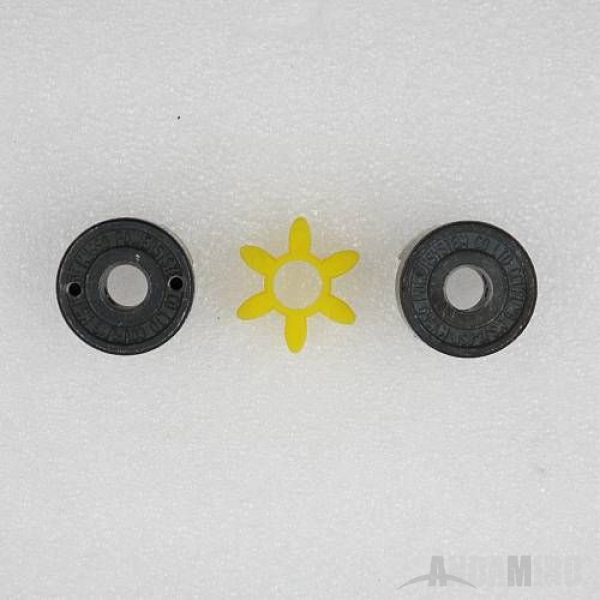

52	COUPLING CR050 ASS'Y 8*8_M5_TAB120_M3_18.4	COUPLING CR050 ASS'Y AZZZ0COP003	Part picture

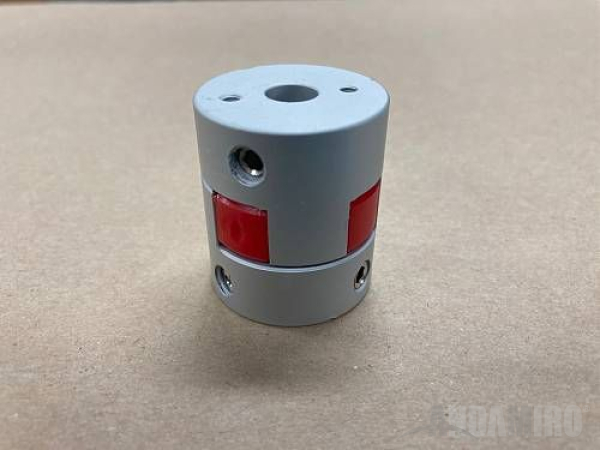

53	COUPLING JOC30 8*8_M6_M3_18.4_TAB120	COUPLING JOC30 MZZZ0COP002	Part picture
54	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
55	GAS SPRING GSB-22X761-30KG	GAS SPRING MZZZ0SHO014	Part picture
56	KEY ASS'Y 7001 7001 키뭉치만	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
57	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
58	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
59	SMPS BKT MEANWELL	SMPS BKT MZZZ0MEP048	Part picture
60	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

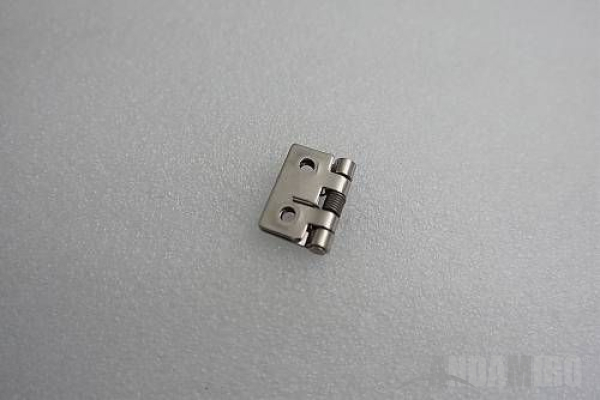

61	SPRING HINGE HSS-1.2TX30X25(상)_B143	SPRING HINGE MZZZ0HIN011	Part picture
62	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture

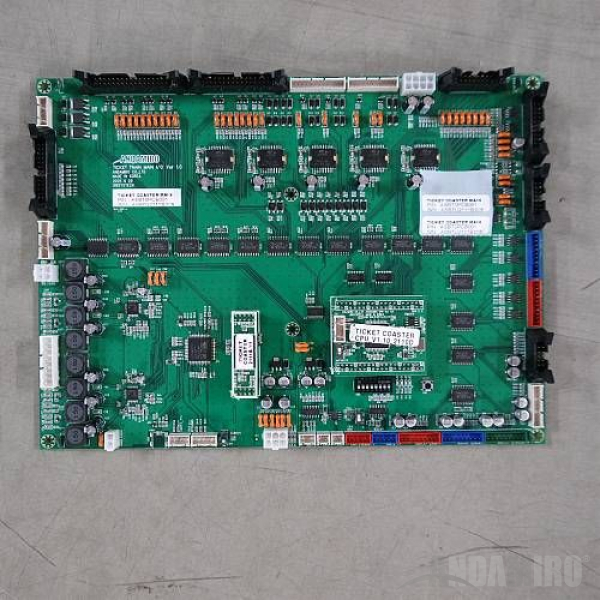

63	MAIN I/O PCB ASS'Y WITH CPU	MAIN I/O PCB ASS'Y ASBT0ASS001	Part picture
63.1	[MAIN I/O PCB ASS'Y] MAIN I/O PCB ASS'Y SPONGEBOB TRAIN	[MAIN I/O PCB ASS'Y] MAIN I/O PCB ASS'Y ASBT0PCB001	Part picture
63.2	[MAIN I/O PCB ASS'Y] CPU PCB ASS'Y SPONGEBOB TRAIN	[MAIN I/O PCB ASS'Y] CPU PCB ASS'Y ASBT0PCB005	Part picture
63.3	[MAIN I/O PCB ASS'Y] SOUND ROM ASS'Y SPONGEBOB TRAIN	[MAIN I/O PCB ASS'Y] SOUND ROM ASS'Y ASBT0PCB006	Part picture

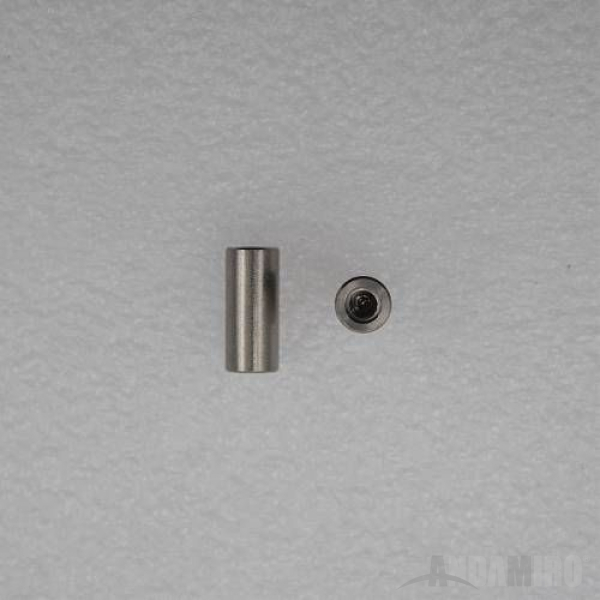

64	BALL SCREW LOWER RAIL SPACE PIN-A SUS 303	BALL SCREW LOWER RAIL SPACE PIN-A MSBT0PRO005	Part picture

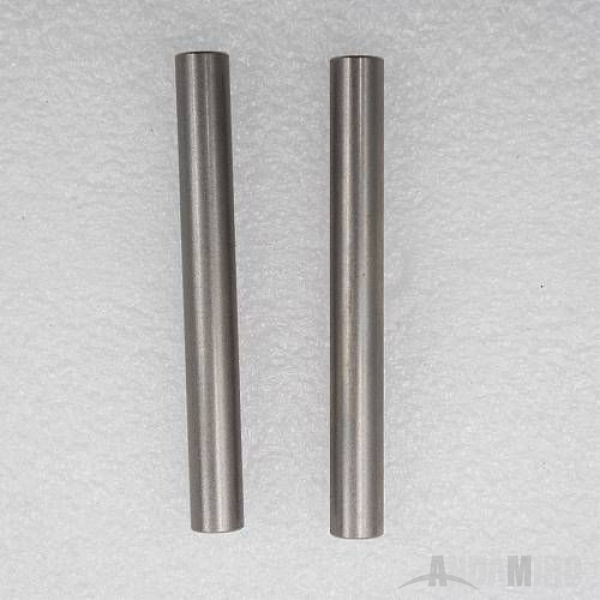

65	TENSION SHAFT SUS 303	TENSION SHAFT MSBT0PRO011	Part picture

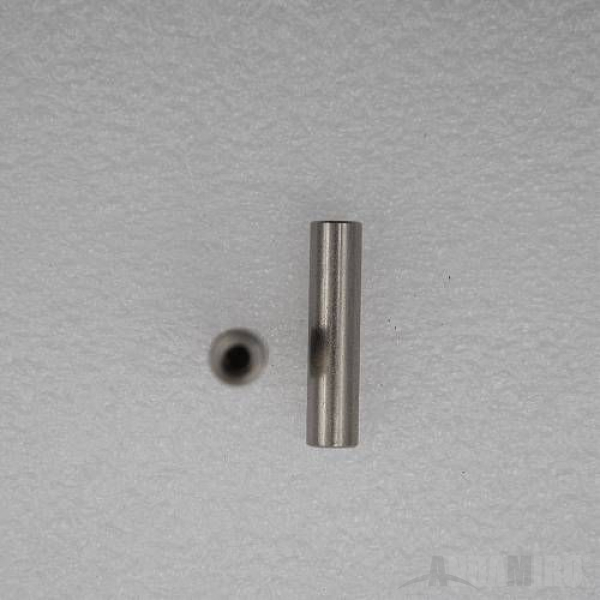

66	UPPER RAIL SPACE PIN SUS 303	UPPER RAIL SPACE PIN MSBT0PRO014	Part picture

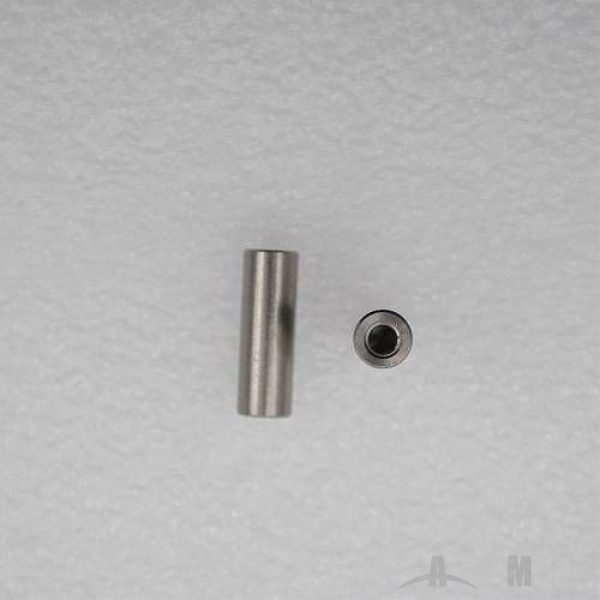

67	BALL SCREW LOWER RAIL SPACE PIN-B SUS 303	BALL SCREW LOWER RAIL SPACE PIN-B MSBT0PRO016	Part picture
68	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
69	PRO 일반가공 PART 12종 1~4,6~10,12,13,15	PRO 일반가공 PART 12종 ASBT0PAT007	Part picture
69.1	[PRO 일반가공 PART 12종] WELD-IDLE SPROCKET SHAFT ASS'Y S45C & SS41	[PRO 일반가공 PART 12종] WELD-IDLE SPROCKET SHAFT ASS'Y MSBT0PRO006	Part picture
69.2	[PRO 일반가공 PART 12종] TENSION BEARING HOUSING PART AL(BEARING 6901ZZ-2EA 삽입)	[PRO 일반가공 PART 12종] TENSION BEARING HOUSING PART MSBT0PRO009	Part picture
69.3	[PRO 일반가공 PART 12종] TENSION SHAFT BUSHING ACETAL, WHITE	[PRO 일반가공 PART 12종] TENSION SHAFT BUSHING MSBT0PRO010	Part picture
69.4	[PRO 일반가공 PART 12종] WELD-TENSION SPROCKET SHAFT ASS'Y S45C & SS41	[PRO 일반가공 PART 12종] WELD-TENSION SPROCKET SHAFT ASS'Y MSBT0PRO012	Part picture
69.5	[PRO 일반가공 PART 12종] A_MOTOR SPROCKET TICKET COASTER UP	[PRO 일반가공 PART 12종] A_MOTOR SPROCKET ASBT0ASS016	Part picture
69.6	[PRO 일반가공 PART 12종] A_IDLE SPROCKET TICKET COASTER	[PRO 일반가공 PART 12종] A_IDLE SPROCKET ASBT0ASS017	Part picture
69.6.1	[PRO 일반가공 PART 12종] WELD-IDLE SPROCKET SHAFT ASS'Y S45C & SS41	[PRO 일반가공 PART 12종] WELD-IDLE SPROCKET SHAFT ASS'Y MSBT0PRO006	Part picture
