Andamiro Co., Ltd.

TICKET REDEMPTION

NEW

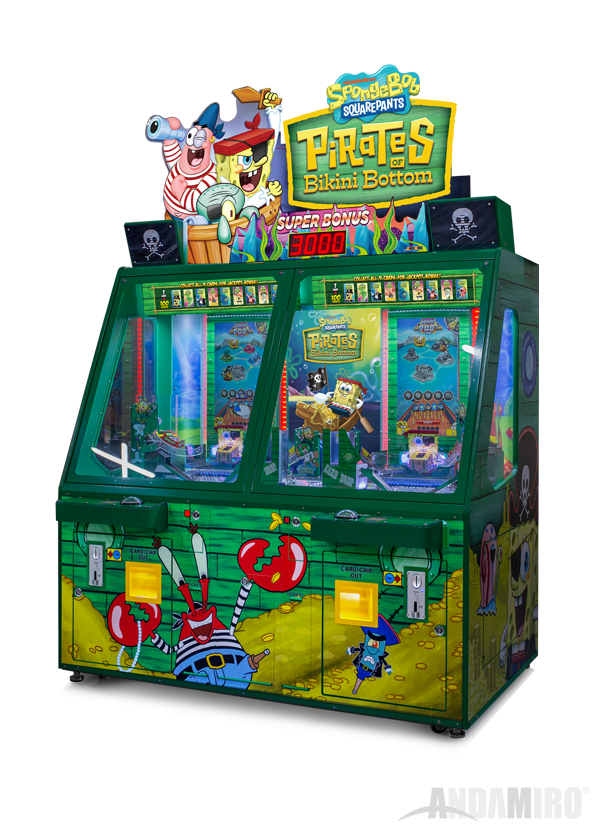

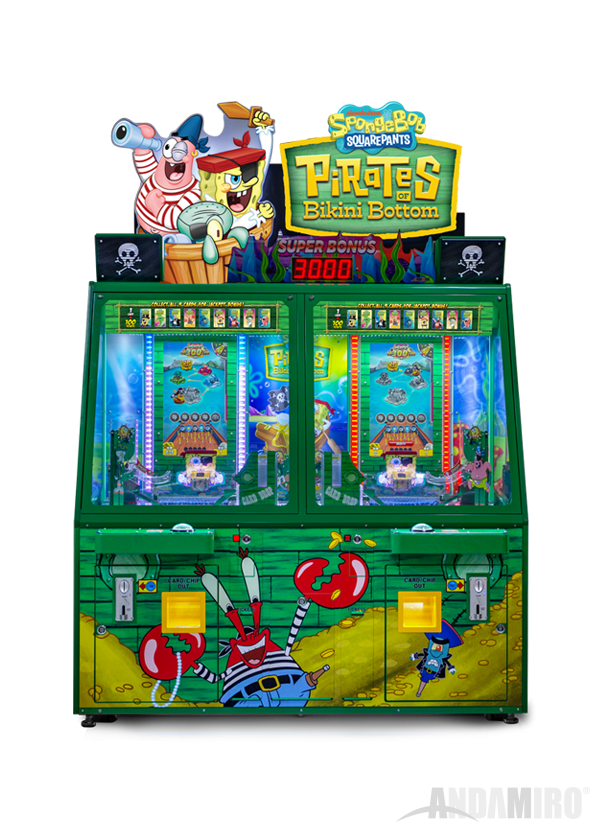

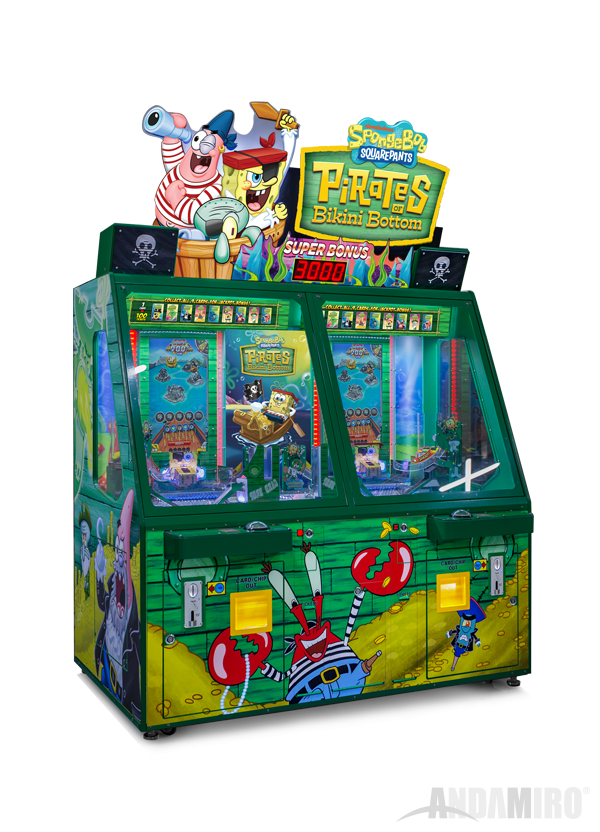

SpongeBob Pirates of Bikini Bottom Let's go for treasure of pirates with Spongebob!

Short url COPY http://www.andamiro.com/games/pirates

Tags Ticket

Dimensions 1,772mm x 1,201mm x 2,561mm
70" x 47" x 101"

Packing Dimensions 1,150mm x 1,870mm x 2,190mm
45" x 74" x 86"

Product Weight 455 kg / 1,003 lbs

Packing Weight 492 kg / 1,085 lbs

Power 700W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (3)
Document (1)
Trouble shooting
Video List (9)

FEATURES

Let's go for treasure of pirates with Spongebob!

Card + Chip + Video + Ball Pusher!

Brand new concept!!

· Easy for everyone!

· New concept of Ball Pusher game!

· Various of missions and mini games!

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 122Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

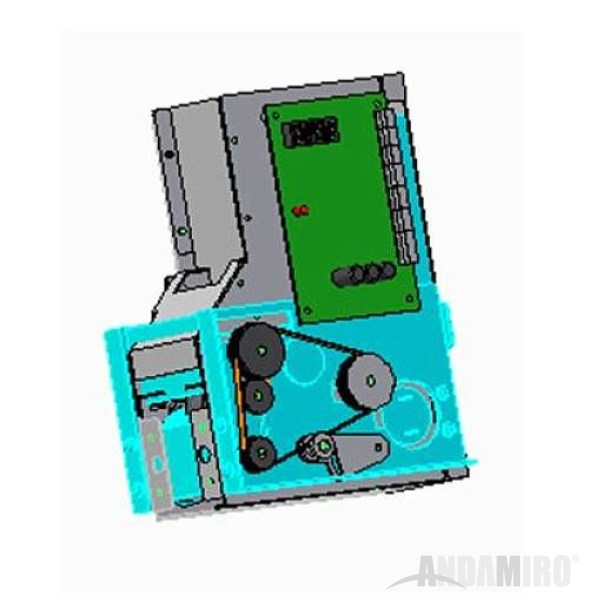

1	A_CARD DISPENSER_COMMON C AV2 AV1 SPP1P_PCB L	A_CARD DISPENSER_COMMON C AZZZ0ASS081	Part picture
1.1	[A_CARD DISPENSER_COMMON C] BEARING F686ZZ	[A_CARD DISPENSER_COMMON C] BEARING MZZZ0BEA094	Part picture
1.2	[A_CARD DISPENSER_COMMON C] CARD PRO PART 4종 MSBP0PRO006,7,8,9	[A_CARD DISPENSER_COMMON C] CARD PRO PART 4종 ASBP0PAR007	Part picture
1.2.1	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-A .	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-A MSBP0PRO006	Part picture
1.2.2	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-B .	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-B MSBP0PRO007	Part picture
1.2.3	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-C .	[A_CARD DISPENSER_COMMON C] CARD ROLLER SHAFT-C MSBP0PRO008	Part picture
1.2.4	[A_CARD DISPENSER_COMMON C] BEARING GUIDE SHAFT .	[A_CARD DISPENSER_COMMON C] BEARING GUIDE SHAFT MSBP0PRO009	Part picture
1.3	[A_CARD DISPENSER_COMMON C] TIMMING PULLEY MXL-47	[A_CARD DISPENSER_COMMON C] TIMMING PULLEY MZZZ0PLA039	Part picture

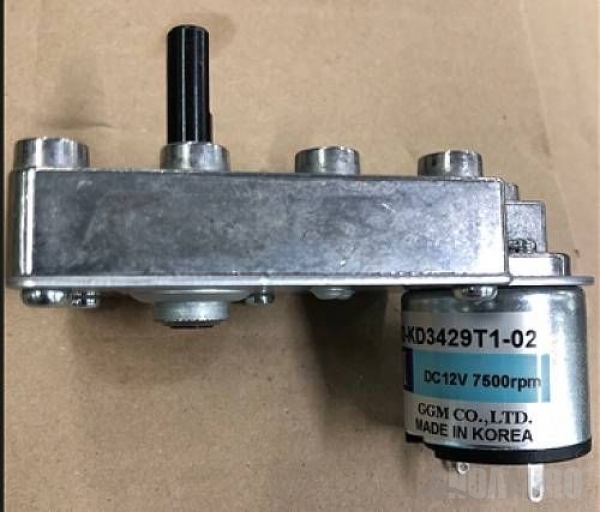

1.4	[A_CARD DISPENSER_COMMON C] MOTOR KGC-040-3429C	[A_CARD DISPENSER_COMMON C] MOTOR MZZZ0MOT089	Part picture
1.5	[A_CARD DISPENSER_COMMON C] DU BUSH 0608DU	[A_CARD DISPENSER_COMMON C] DU BUSH MZZZ0BEA096	Part picture
1.6	[A_CARD DISPENSER_COMMON C] CARD OUTLET GUIDE BLOCK ABS	[A_CARD DISPENSER_COMMON C] CARD OUTLET GUIDE BLOCK MZZZ0PLA042	Part picture
1.7	[A_CARD DISPENSER_COMMON C] TIMMING BELT TENSION ROLLER .	[A_CARD DISPENSER_COMMON C] TIMMING BELT TENSION ROLLER MSBP0PRO017	Part picture
1.8	[A_CARD DISPENSER_COMMON C] TIMMING BELT 52MXL,W4.8 RUBBER	[A_CARD DISPENSER_COMMON C] TIMMING BELT MZZZ0BEL018	Part picture
1.9	[A_CARD DISPENSER_COMMON C] TIMMING BELT 147MXL,W4.8 RUBBER	[A_CARD DISPENSER_COMMON C] TIMMING BELT MZZZ0BEL019	Part picture
1.10	[A_CARD DISPENSER_COMMON C] CARD DISPENSER RUBBER HOUSING-A	[A_CARD DISPENSER_COMMON C] CARD DISPENSER RUBBER HOUSING-A MZZZ0RUB017	Part picture
1.11	[A_CARD DISPENSER_COMMON C] CARD DISPENSER RUBBER HOUSING-B 실리콘	[A_CARD DISPENSER_COMMON C] CARD DISPENSER RUBBER HOUSING-B MZZZ0RUB018	Part picture
1.12	[A_CARD DISPENSER_COMMON C] PHOTO INT-1 PCB ASS'Y ANGLE TYPE	[A_CARD DISPENSER_COMMON C] PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
1.13	[A_CARD DISPENSER_COMMON C] CARD DISPENSOR I/O PCB ASS'Y CARD DISPENSOR	[A_CARD DISPENSER_COMMON C] CARD DISPENSOR I/O PCB ASS'Y ASBP0PCB008	Part picture
1.14	[A_CARD DISPENSER_COMMON C] TIMMING PULLEY MXL-29	[A_CARD DISPENSER_COMMON C] TIMMING PULLEY MZZZ0PLA040	Part picture
2	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
3	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture
4	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture
5	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture
6	POWER SMPS RSP-320-5V	POWER SMPS MELE0SMP126	Part picture
7	MONITOR CABLE HDMI_HDMI 2M	MONITOR CABLE MZZZ0HAN053	Part picture
8	MONITOR CABLE NM-HD03GZ HDMI_DVI 3M	MONITOR CABLE NM-HD03GZ MZZZ0HAN064	Part picture
9	AC POWER CORD 250V 16A KKP-4819R CE	AC POWER CORD MELE0ACP008	Part picture

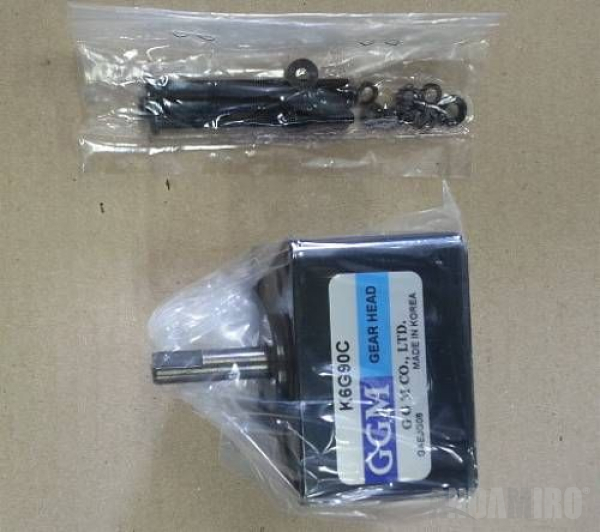

10	GEAR HEAD K6G90C_AC MOTOR	GEAR HEAD MSAW0ZZZ008	Part picture

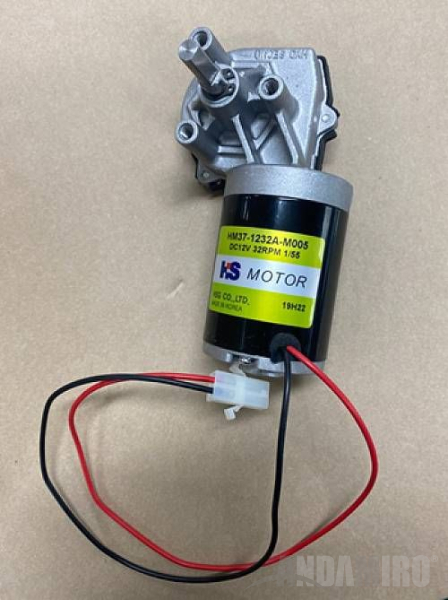

11	MOTOR HM37-1232A-M005 (12V, 32RPM)	MOTOR MZZZ0MOT164	Part picture
12	MOTOR KGV-0120-ND3657 U1	MOTOR MZZZ0MOT141	Part picture

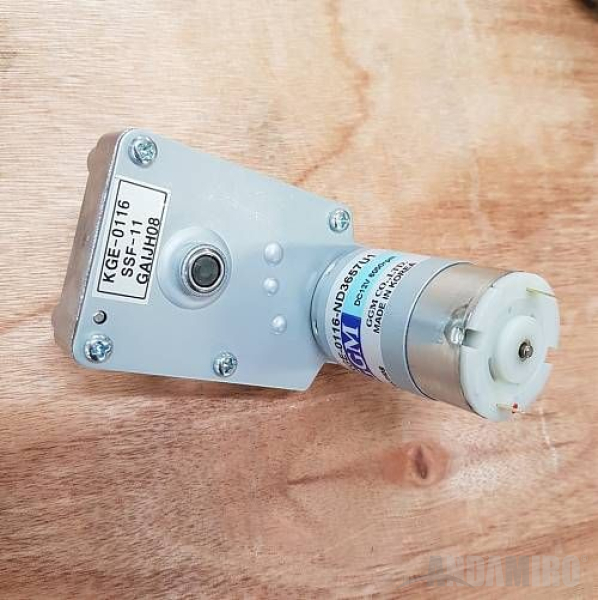

13	MOTOR KGE-0116-ND3657 U1	MOTOR MZZZ0MOT155	Part picture

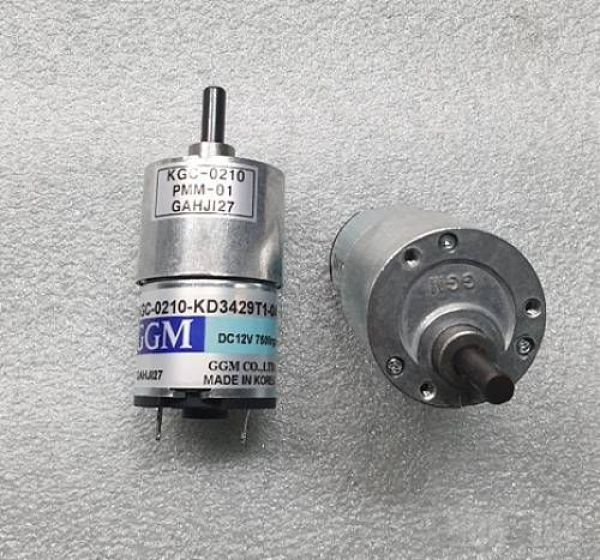

14	MOTOR KGC-3429-075-1/210_31RPM	MOTOR MZZZ0MOT088	Part picture

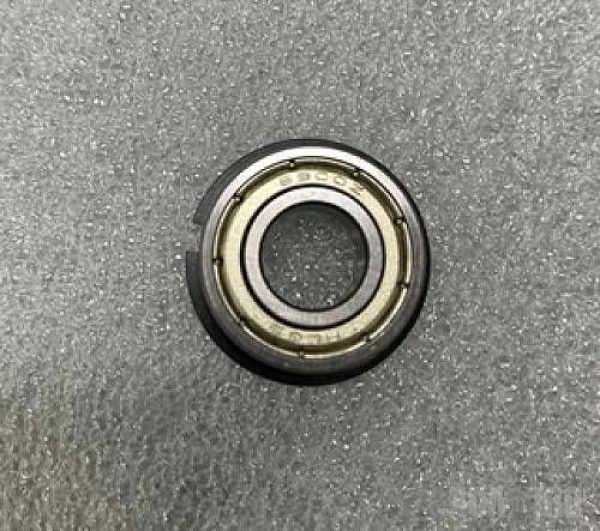

15	BEARING 6900ZZNR	BEARING MZZZ0BEA129	Part picture

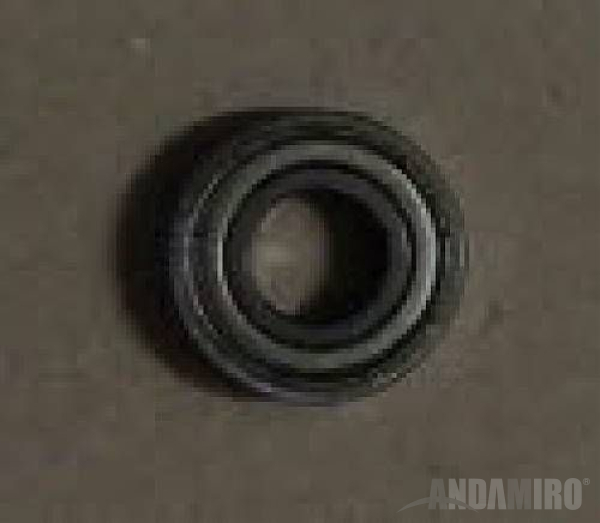

16	BEARING 6900ZZ	BEARING MZZZ0BEA007	Part picture
17	BEARING F688ZZ	BEARING MZZZ0BEA076	Part picture
18	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture

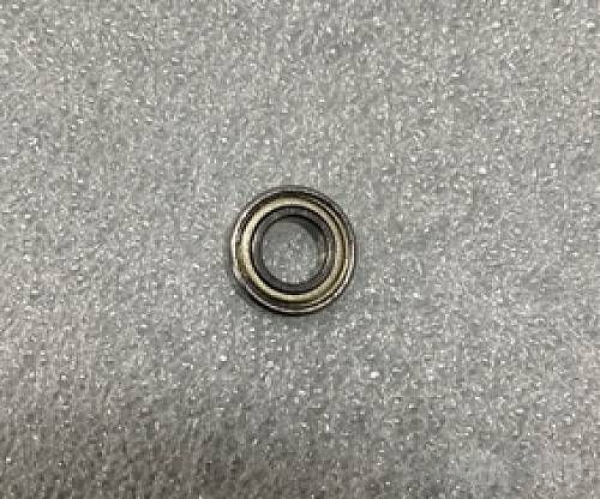

19	BEARING MR126ZZ,	BEARING MZZZ0BEA005	Part picture
20	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture
21	LM BEARING SL10UU	LM BEARING MZZZ0BEA125	Part picture
22	BEARING DR19-B	BEARING MZZZ0BEA117	Part picture
23	PUSHER GUIDE RAIL 200MM_양쪽 인출방식	PUSHER GUIDE RAIL MSBP0ZZZ011	Part picture

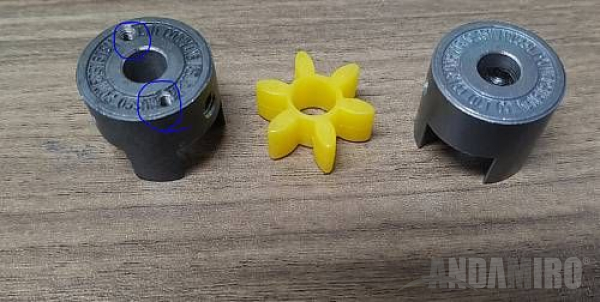

24	COUPLING CR050 ASS'Y 8*8_M5_TAB120_M3_18MM	COUPLING CR050 ASS'Y AZZZ0COP001	Part picture
24.1	[COUPLING CR050 ASS'Y] COUPLING CR050 8*8_M5_M3_TAB120_18MM	[COUPLING CR050 ASS'Y] COUPLING CR050 MZZZ0COP009	Part picture

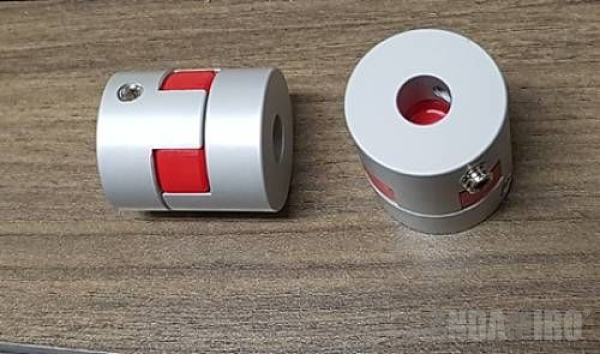

25	COUPLING JOC30 10*10_M6_TAB120	COUPLING JOC30 MZZZ0COP001	Part picture
26	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture
27	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
28	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
29	SPEAKER MID 4.5"+TW1/2" 8Ω	SPEAKER MZZZ0SPE021	Part picture
30	RFID CHIP READER TW-968	RFID CHIP READER MSPG0PAR001	Part picture
31	COIN SELECTOR TW-389	COIN SELECTOR MZZZ0COS052	Part picture
32	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture

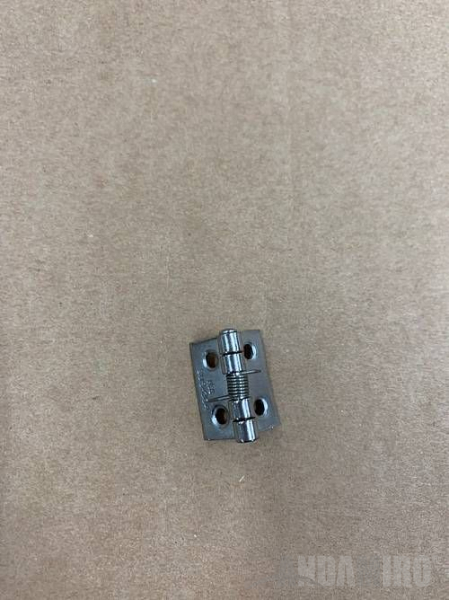

33	SPRING HINGE HSS-1.2TX30X25(하)_B143	SPRING HINGE MZZZ0HIN009	Part picture

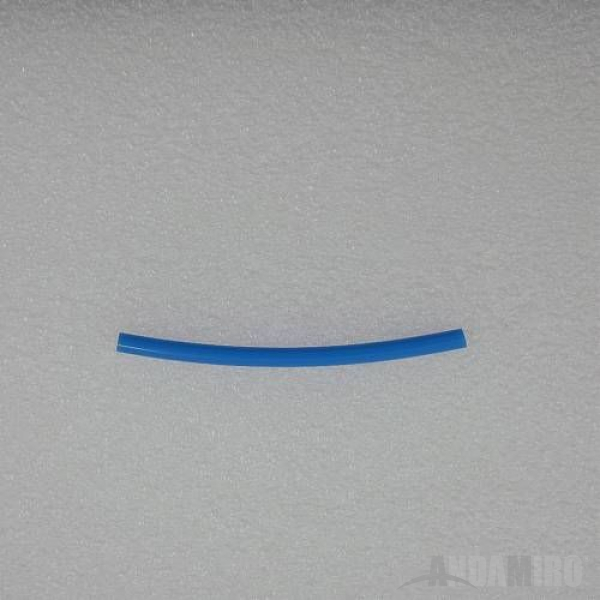

34	BALL STIR AIR HOSE Ø4X70MM_COATING WIRE	BALL STIR AIR HOSE MSPG0ZZZ001	Part picture
35	KEY ASS'Y 6001 6001 키뭉치만	KEY ASS'Y 6001 MZZZ0KEY075	Part picture
36	KEY ASS'Y 7001 7001 키뭉치만	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
37	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
38	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
39	CARD ASS'Y_SPG 1BOX 150EA	CARD ASS'Y_SPG ASPG0PAR001	Part picture

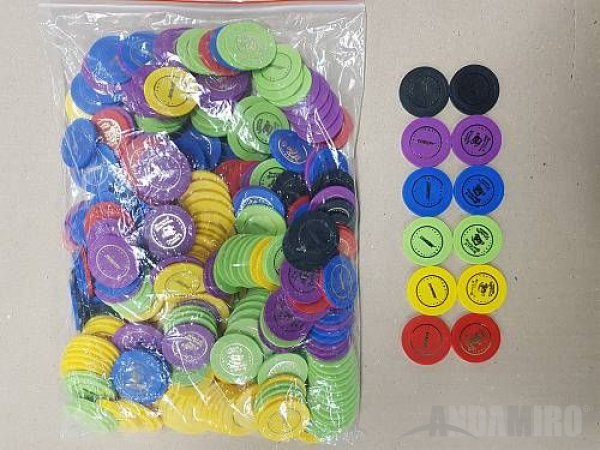

40	RFID CHIP ASS'Y 6COLOR_1BOX 300EA	RFID CHIP ASS'Y ASPG0PAR002	Part picture
41	MAIN BOX ASS'Y WWE_MK7	MAIN BOX ASS'Y AWWE0SYS001	Part picture
41.1	[MAIN BOX ASS'Y] MAIN BOX .	[MAIN BOX ASS'Y] MAIN BOX AWWE0SYS002	Part picture
41.1.1	[MAIN BOX ASS'Y] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MAIN BOX ASS'Y] RAM_V1 MZZZ0000698	Part picture
41.1.2	[MAIN BOX ASS'Y] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MAIN BOX ASS'Y] RAM_V1 MZZZ0000698	Part picture
41.1.3	[MAIN BOX ASS'Y] DC FAN 80MM 2BALL DFH8025B12	[MAIN BOX ASS'Y] DC FAN 80MM 2BALL MZZZ0FAN015	Part picture
41.1.4	[MAIN BOX ASS'Y] SERIAL 1PORT .	[MAIN BOX ASS'Y] SERIAL 1PORT MZZZ0000786	Part picture
41.2	[MAIN BOX ASS'Y] SSD CTI240GB_BX500_MICRON	[MAIN BOX ASS'Y] SSD MZZZ0MEM035	Part picture

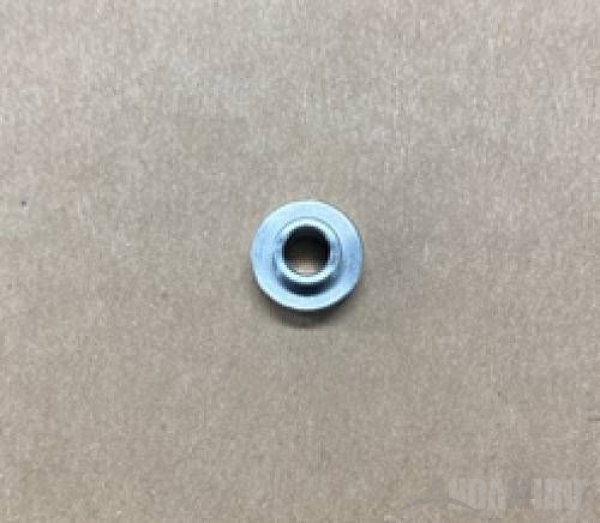

42	BCE BRIDGE CAM BUSHING	BCE BRIDGE CAM BUSHING MSPG0PRO001	Part picture

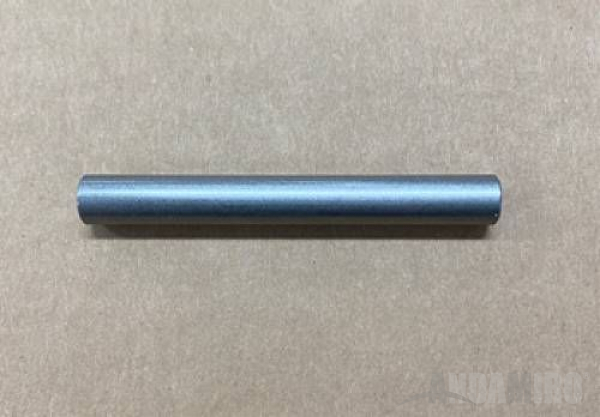

43	BCE BRIDGE SUPPORT SHAFT	BCE BRIDGE SUPPORT SHAFT MSPG0PRO004	Part picture

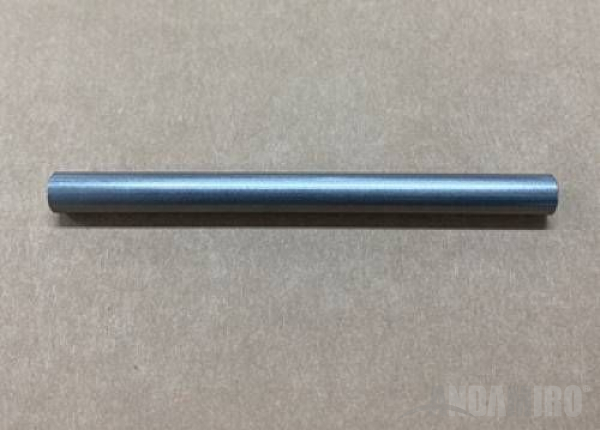

44	BCE CONVEYOR SUPPORT SHAFT	BCE CONVEYOR SUPPORT SHAFT MSPG0PRO008	Part picture

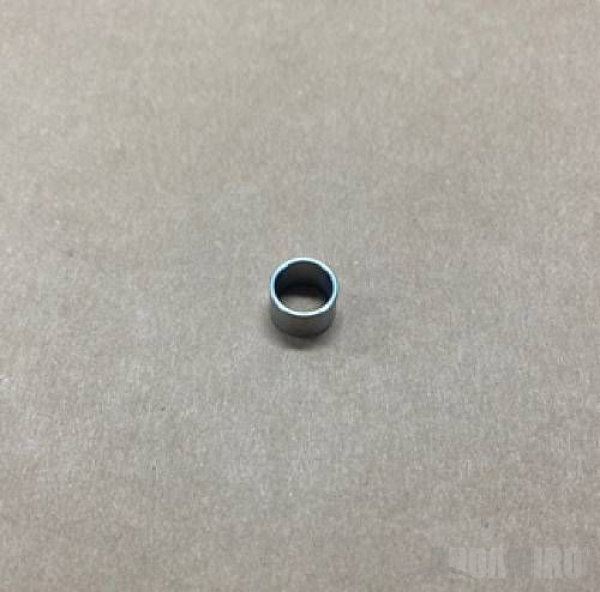

45	BSE BRAKE BUSHING	BSE BRAKE BUSHING MSPG0PRO024	Part picture

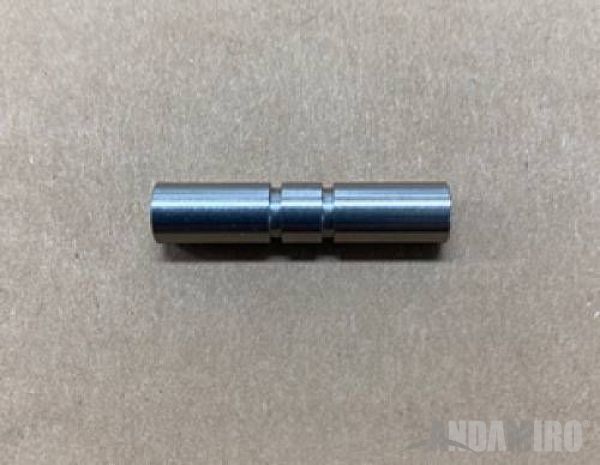

46	BSE BRAKE REAR SHAFT	BSE BRAKE REAR SHAFT MSPG0PRO009	Part picture

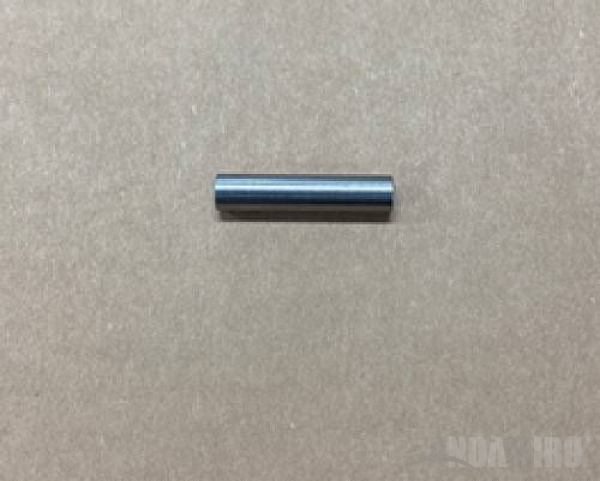

47	BSE BRAKE SHAFT	BSE BRAKE SHAFT MSPG0PRO010	Part picture

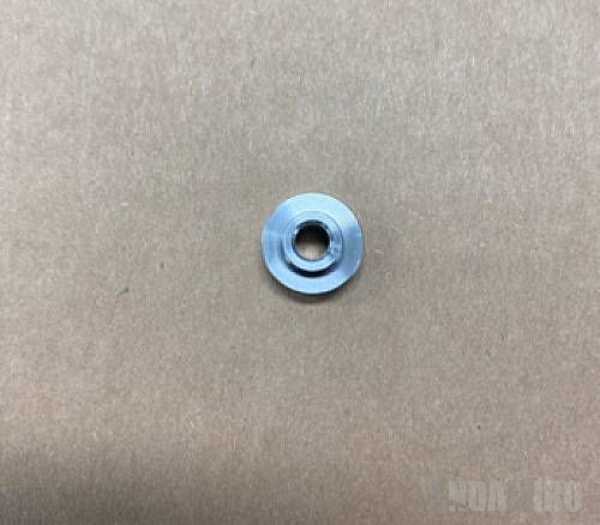

48	BSE CENTER BUSHING	BSE CENTER BUSHING MSPG0PRO011	Part picture

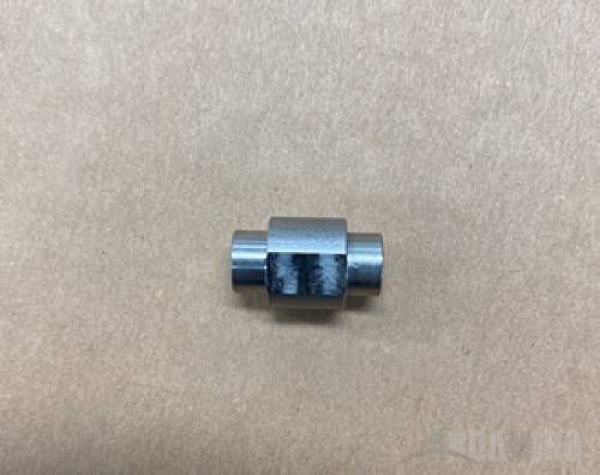

49	BSE CHUTE SPACER SHAFT	BSE CHUTE SPACER SHAFT MSPG0PRO012	Part picture

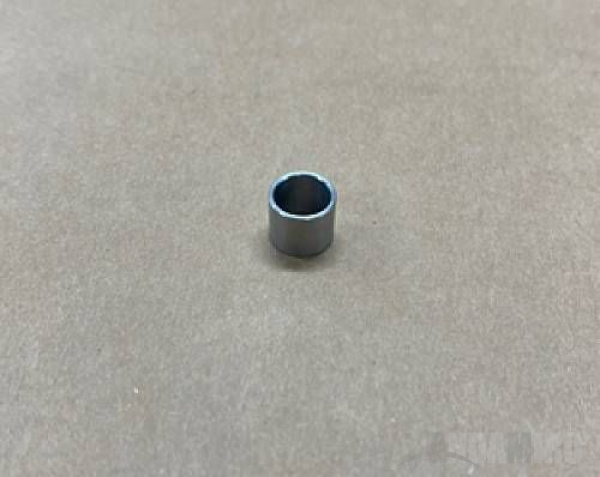

50	BSE SPACE BUSHING	BSE SPACE BUSHING MSPG0PRO014	Part picture
51	BILLBOARD LEFT ACRYL FIX SHAFT	BILLBOARD LEFT ACRYL FIX SHAFT MSPG0PRO015	Part picture
52	BILLBOARD RIGHT ACRYL FIX SHAFT	BILLBOARD RIGHT ACRYL FIX SHAFT MSPG0PRO016	Part picture

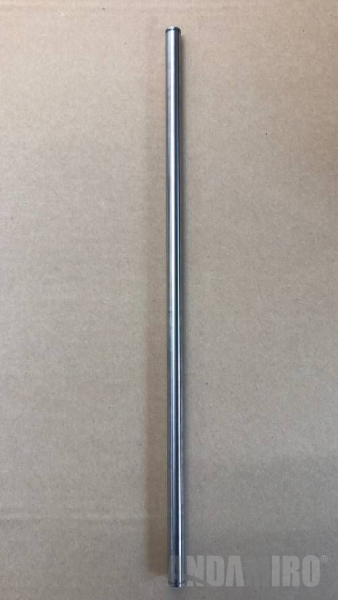

53	BONUS TARGET LM SHAFT .	BONUS TARGET LM SHAFT MWWE0PRO007	Part picture

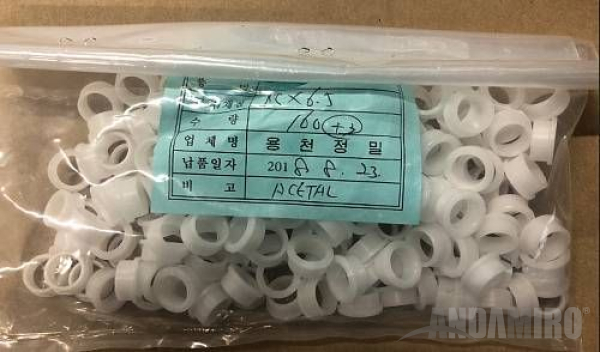

54	BONUS TARGET SHAFT BUSHING .	BONUS TARGET SHAFT BUSHING MWWE0PRO008	Part picture
55	CABINET MONITOR SIDE ACRYL FIX SHAFT	CABINET MONITOR SIDE ACRYL FIX SHAFT MSPG0PRO019	Part picture

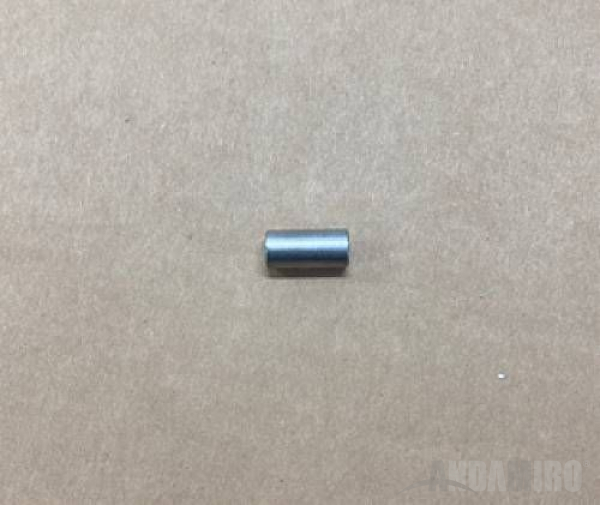

56	PUSHER BALL SPACE BUSHING	PUSHER BALL SPACE BUSHING MSPG0PRO020	Part picture
57	PIN SHAFT MOLD MOLD	PIN SHAFT MOLD MGHP0PLA004	Part picture
58	ELEVATOR WASHER MOLD MOLD	ELEVATOR WASHER MOLD MGHP0PLA005	Part picture
59	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture

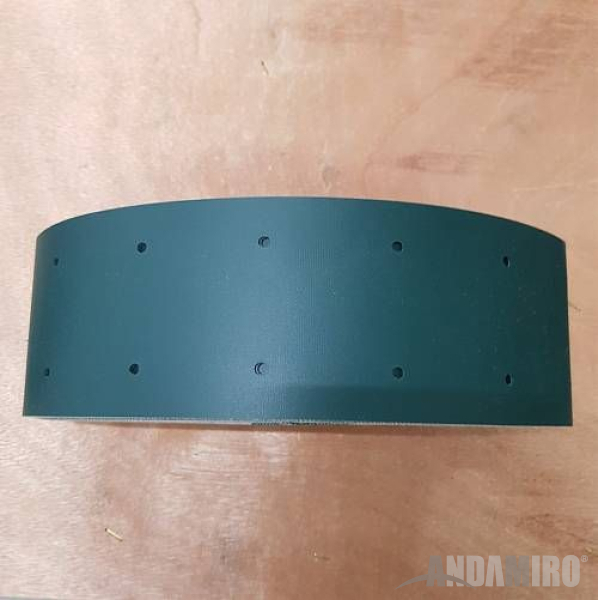

60	BCE CONVEYOR BELT URETHANE 1.4T_GREEN(87*636)	BCE CONVEYOR BELT MSPP0BEL001	Part picture

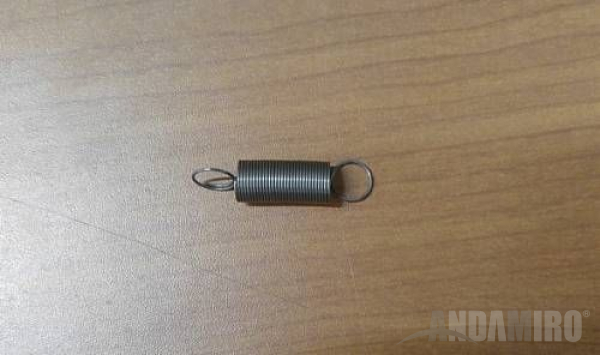

61	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture

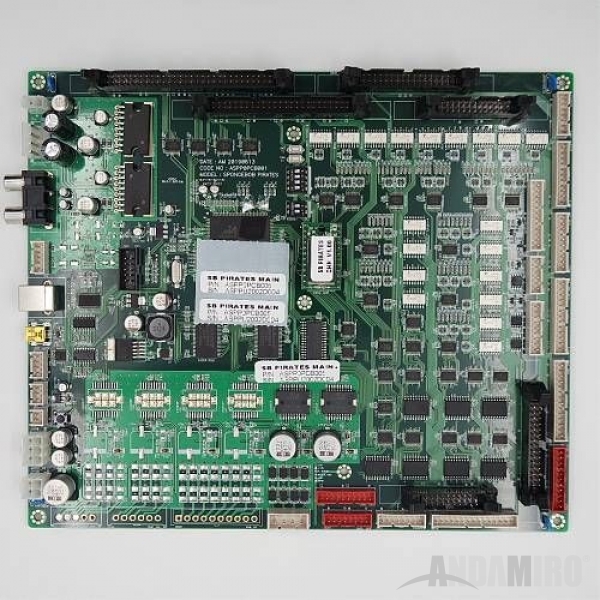

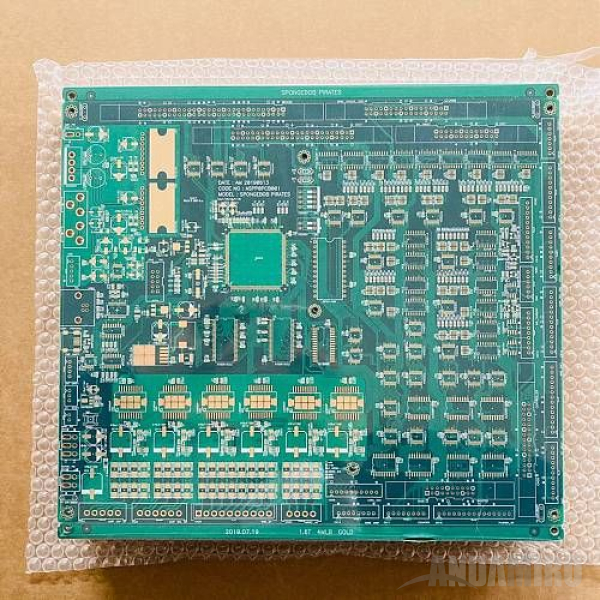

62	MAIN IO PCB ASS'Y SPONGEBOB PIRATES	MAIN IO PCB ASS'Y ASPP0PCB001	Part picture
62.1	[MAIN IO PCB ASS'Y] MAIN IO PCB 20190613	[MAIN IO PCB ASS'Y] MAIN IO PCB PPCB0MUL055	Part picture

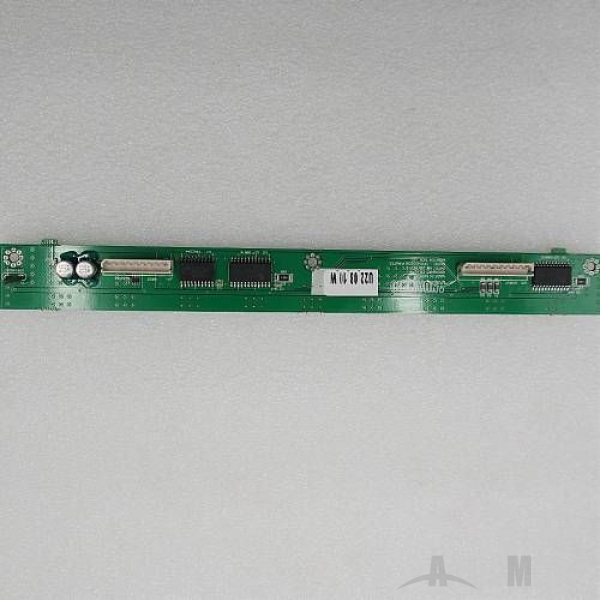

63	MONITOR SIDE LED PCB ASS'Y .	MONITOR SIDE LED PCB ASS'Y ASPP0PCB007	Part picture
64	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture
65	ELEVATOR DISK SENSOR PCB ASS'Y GHP_REZ	ELEVATOR DISK SENSOR PCB ASS'Y AGHP0PCB020	Part picture
65.1	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB 20170207	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB PPCB0DOU501	Part picture
66	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
67	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
68	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
69	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
70	PHOTO INT-2 PCB ASS'Y WINNER,WON,CIR공용	PHOTO INT-2 PCB ASS'Y AWIW0PCB009	Part picture
71	BONUS TARGET SENSOR PCB ASS'Y .	BONUS TARGET SENSOR PCB ASS'Y AWWE0PCB005	Part picture
71.1	[BONUS TARGET SENSOR PCB ASS'Y] BONUS TARGET SENSOR PCB 20180824	[BONUS TARGET SENSOR PCB ASS'Y] BONUS TARGET SENSOR PCB PPCB0DOU542	Part picture

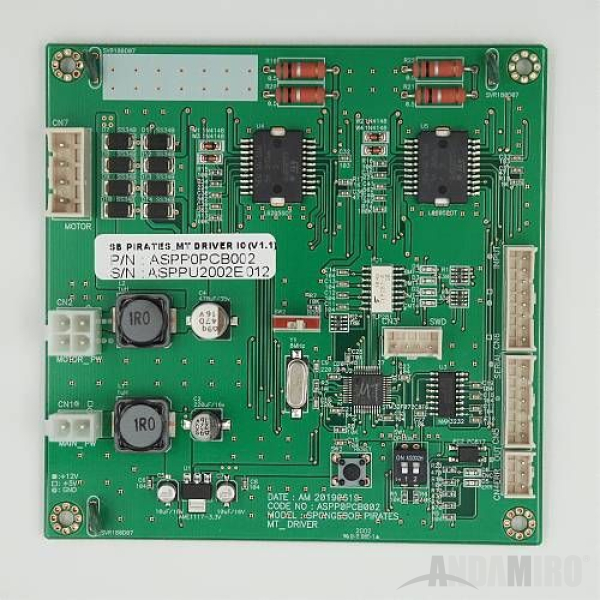

72	MOTOR DRIVER IO SPONGBOB PIRATES	MOTOR DRIVER IO ASPP0PCB002	Part picture

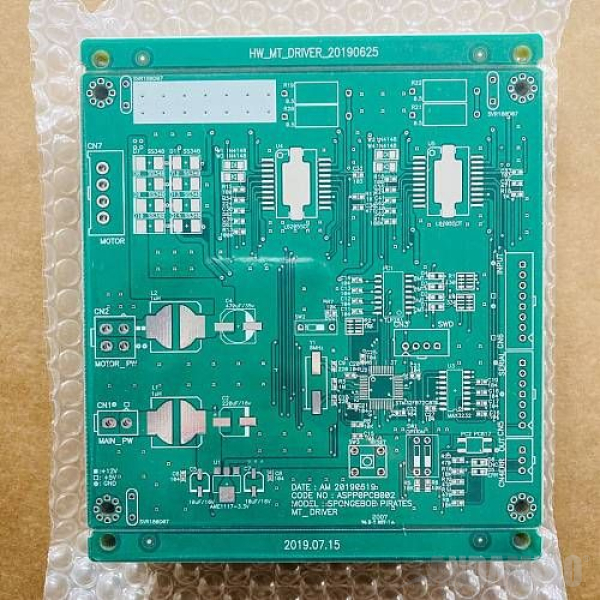

72.1	[MOTOR DRIVER IO] MOTOR DRIVER IO 190625	[MOTOR DRIVER IO] MOTOR DRIVER IO PPCB0DOU576	Part picture

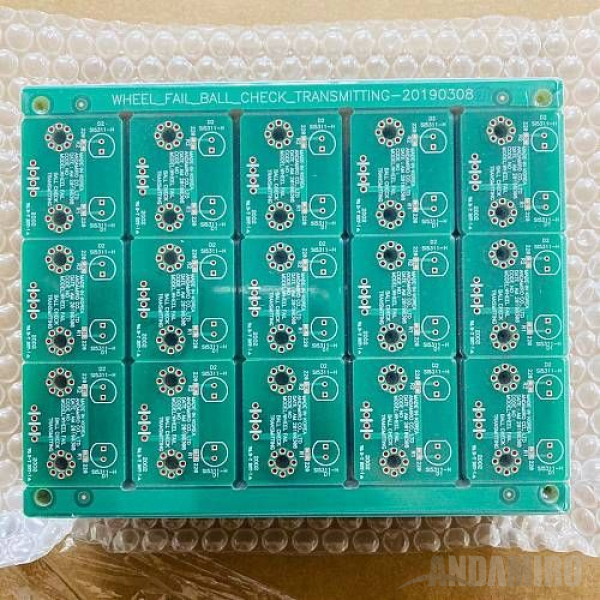

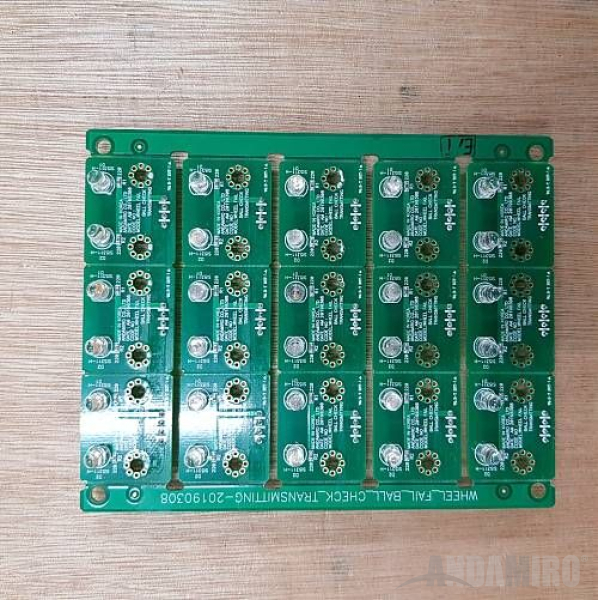

73	WHEEL FAIL BALL CHECK PCB TRANSMITTING SPONGBOB PIRATES	WHEEL FAIL BALL CHECK PCB TRANSMITTING ASPP0PCB003	Part picture
73.1	[WHEEL FAIL BALL CHECK PCB TRANSMITTING] WHEEL FAIL BALL CHECK PCB TRANSMITTING 190308	[WHEEL FAIL BALL CHECK PCB TRANSMITTING] WHEEL FAIL BALL CHECK PCB TRANSMITTING PPCB0DOU577	Part picture

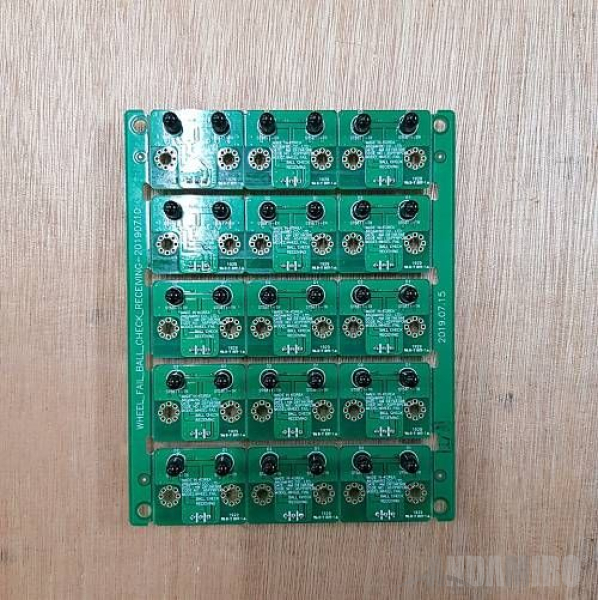

74	WHEEL FAIL BALL CHECK PCB RECEIVING SPONGBOB PIRATES	WHEEL FAIL BALL CHECK PCB RECEIVING ASPP0PCB004	Part picture

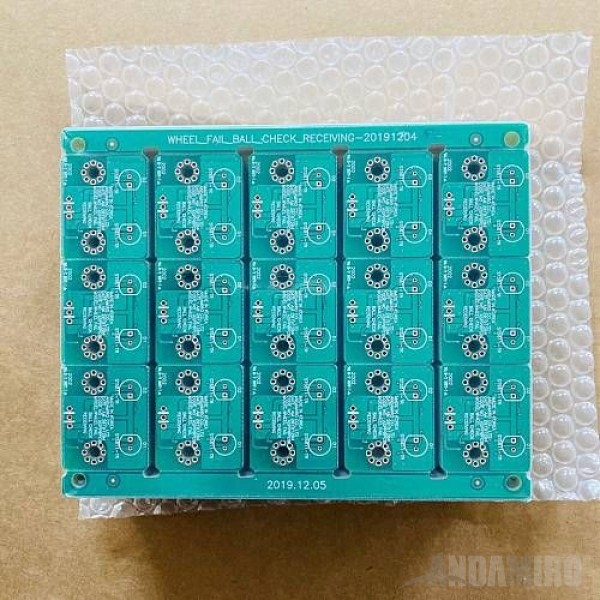

74.1	[WHEEL FAIL BALL CHECK PCB RECEIVING] WHEEL FAIL BALL CHECK PCB RECEIVING 20191204_EMI	[WHEEL FAIL BALL CHECK PCB RECEIVING] WHEEL FAIL BALL CHECK PCB RECEIVING PPCB0DOU586	Part picture

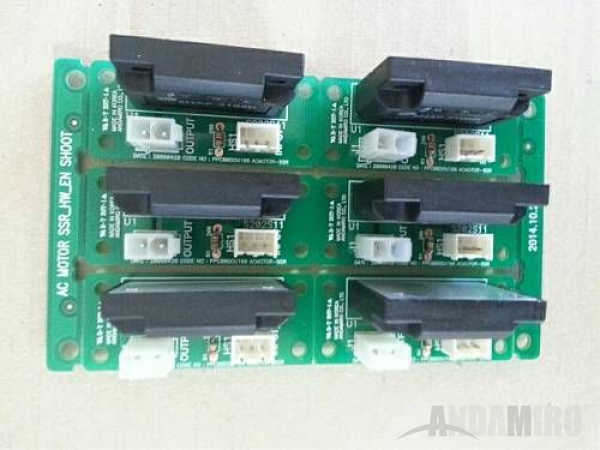

75	AC MOTOR SSR PCB ASS'Y AC MOTOR SSR	AC MOTOR SSR PCB ASS'Y AENS0PCB001	Part picture
76	L6205 HOPPER PCB ASS'Y 공용	L6205 HOPPER PCB ASS'Y AZZZ0PCB141	Part picture

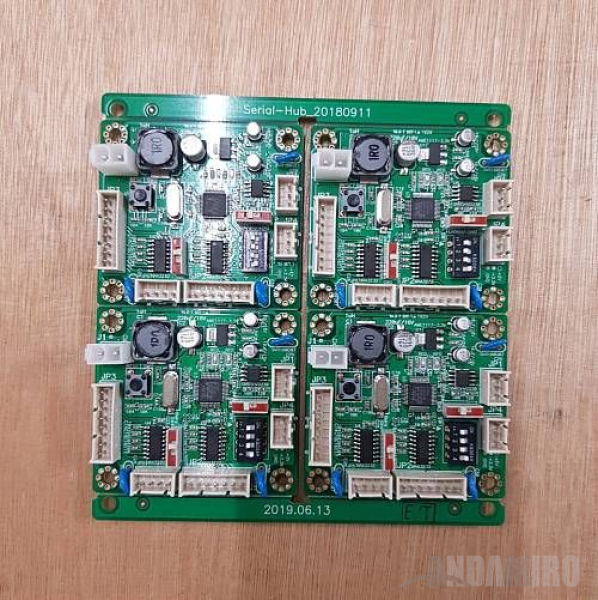

77	SERIAL HUB PCB ASS'Y 공용	SERIAL HUB PCB ASS'Y AZZZ0PCB194	Part picture

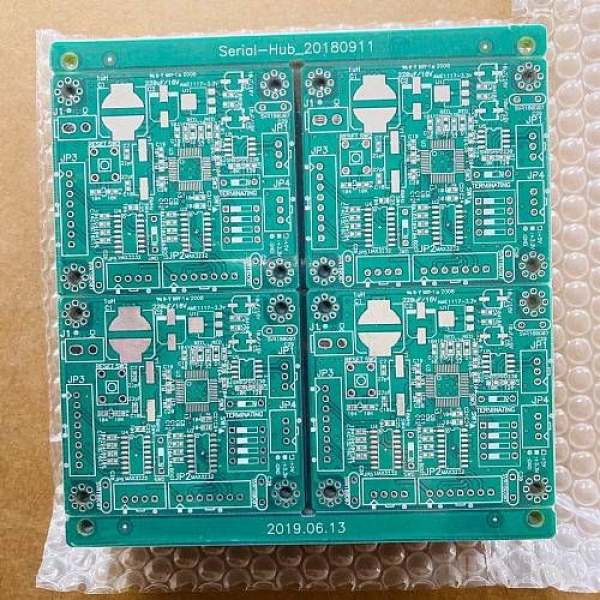

77.1	[SERIAL HUB PCB ASS'Y] SERIAL HUB PCB 20180911	[SERIAL HUB PCB ASS'Y] SERIAL HUB PCB PPCB0DOU575	Part picture
78	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture
79	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture

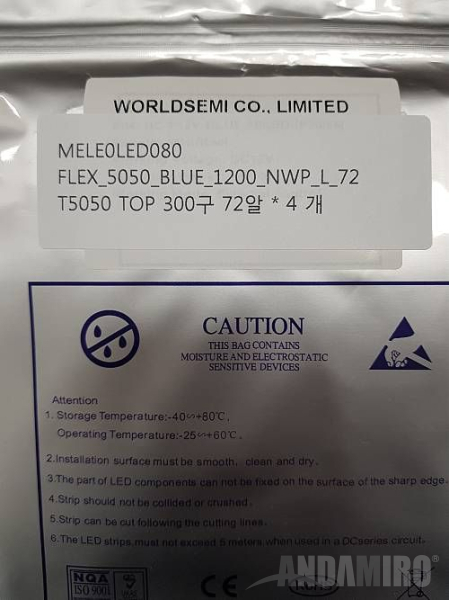

80	FLEX_5050_BLUE_1200_NWP_L_72 T5050 TOP 300구 72알	FLEX_5050_BLUE_1200_NWP_L_72 MELE0LED080	Part picture
81	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
82	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
83	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
84	CARD HEAVY PUSH BKT .	CARD HEAVY PUSH BKT MSBP0MEP023	Part picture

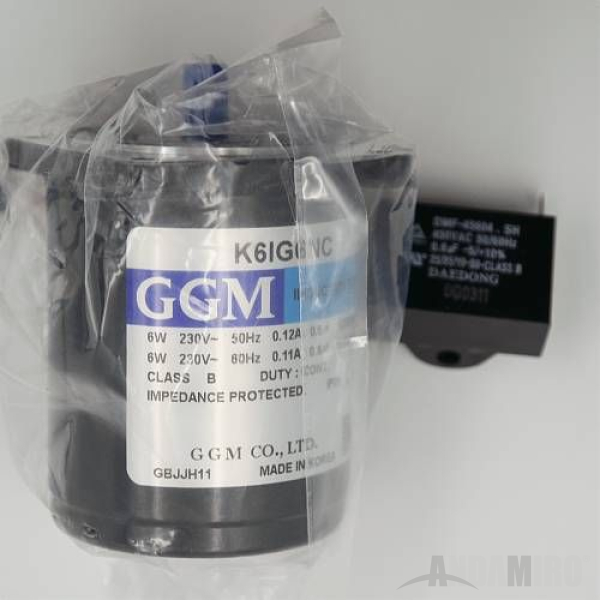

85	AC MOTOR 220V K6IG6NC CE	AC MOTOR 220V MZZZ0MOT111	Part picture

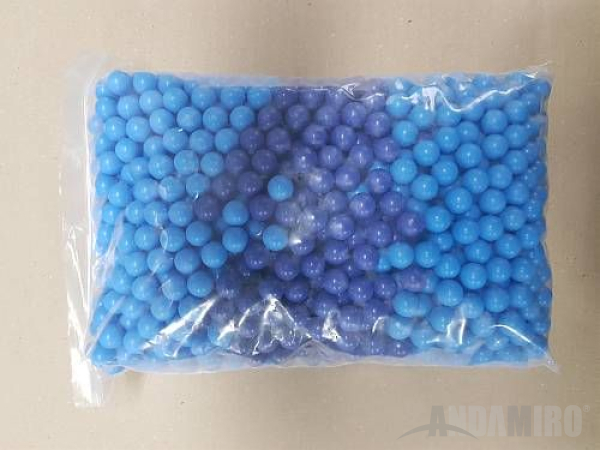

86	COLOR BALL ASS'Y_SBPB 1BOX 1300EA	COLOR BALL ASS'Y_SBPB ASPG0PAT001	Part picture
86.1.1	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-A .	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-A MSBP0PRO006	Part picture
86.1.2	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-B .	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-B MSBP0PRO007	Part picture
86.1.3	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-C .	[COLOR BALL ASS'Y_SBPB] CARD ROLLER SHAFT-C MSBP0PRO008	Part picture
86.1.4	[COLOR BALL ASS'Y_SBPB] BEARING GUIDE SHAFT .	[COLOR BALL ASS'Y_SBPB] BEARING GUIDE SHAFT MSBP0PRO009	Part picture
