TICKET REDEMPTION

NEW

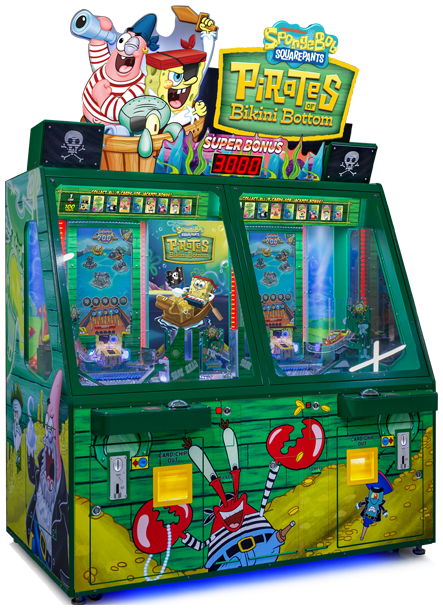

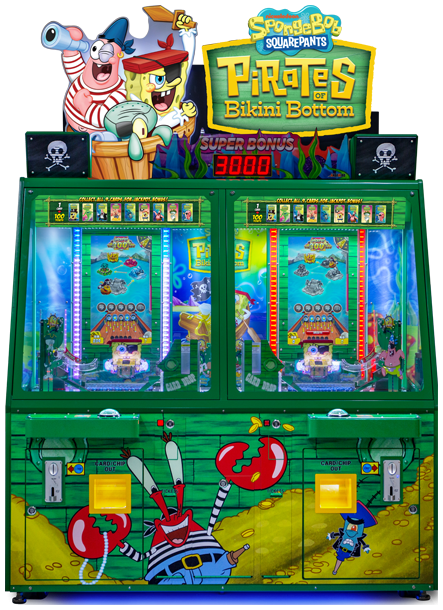

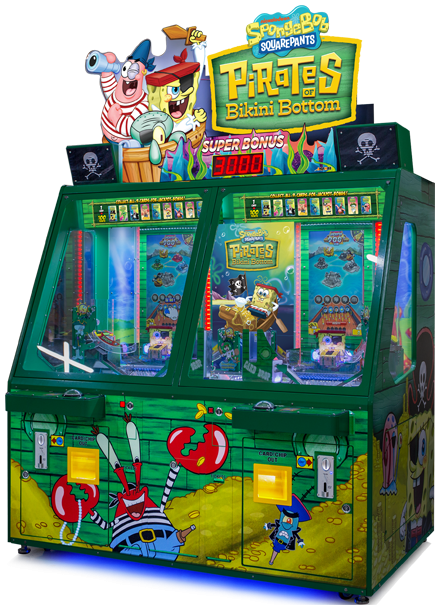

SpongeBob Pirates of Bikini Bottom Let's go for treasure of pirates with Spongebob!

Short url COPY http://www.andamiro.com/games/pirates

Tags Ticket

Dimensions 1,772mm x 1,201mm x 2,561mm
70" x 47" x 101"

Packing Dimensions 1,150mm x 1,870mm x 2,190mm
45" x 74" x 86"

Product Weight 455 kg / 1,003 lbs

Packing Weight 492 kg / 1,085 lbs

Power 700W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

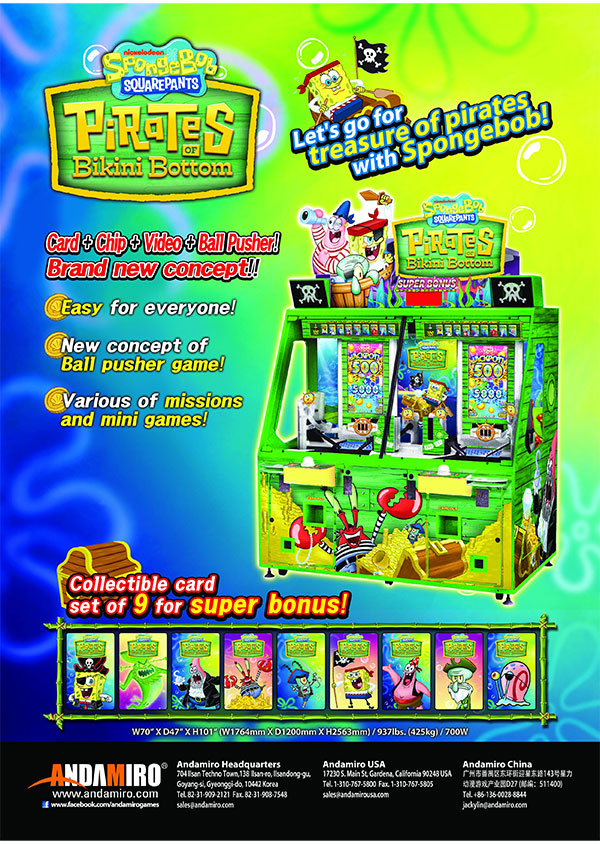

Leaflets (1)
Manuals (3)
Document (1)
Trouble shooting
Video List (9)

FEATURES

Let's go for treasure of pirates with Spongebob!

Card + Chip + Video + Ball Pusher!

Brand new concept!!

· Easy for everyone!

· New concept of Ball Pusher game!

· Various of missions and mini games!

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 81Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
2	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture
3	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture
4	POWER SMPS RSP-320-5V	POWER SMPS MELE0SMP126	Part picture
5	MONITOR CABLE HDMI_HDMI 2M	MONITOR CABLE MZZZ0HAN053	Part picture
6	MONITOR CABLE NM-HD03GZ HDMI_DVI 3M	MONITOR CABLE NM-HD03GZ MZZZ0HAN064	Part picture
7	AC POWER CORD 250V 16A KKP-4819R CE	AC POWER CORD MELE0ACP008	Part picture
8	AC MOTOR 220V K6IG6NC	AC MOTOR 220V MZZZ0MOT094	Part picture
9	GEAR HEAD K6G90C_AC MOTOR	GEAR HEAD MSAW0ZZZ008	Part picture
10	MOTOR HM37-1232A-M005 (12V, 32RPM)	MOTOR MZZZ0MOT164	Part picture
11	MOTOR KGV-0120-ND3657 U1	MOTOR MZZZ0MOT141	Part picture
12	MOTOR KGE-0116-ND3657 U1	MOTOR MZZZ0MOT155	Part picture
13	MOTOR KGC-3429-075-1/210_31RPM	MOTOR MZZZ0MOT088	Part picture
14	BEARING 6900ZZNR	BEARING MZZZ0BEA129	Part picture
15	BEARING 6900ZZ	BEARING MZZZ0BEA007	Part picture
16	BEARING F688ZZ	BEARING MZZZ0BEA076	Part picture
17	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture
18	BEARING MR126ZZ,	BEARING MZZZ0BEA005	Part picture
19	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture
20	LM BEARING SL10UU	LM BEARING MZZZ0BEA125	Part picture
21	BEARING DR19-B	BEARING MZZZ0BEA117	Part picture
22	COUPLING CR050 ASS'Y 8*8_M5_TAB120_M3_18MM	COUPLING CR050 ASS'Y AZZZ0COP001	Part picture
22.1	[COUPLING CR050 ASS'Y] COUPLING CR050 8*8_M5_M3_TAB120_18MM	[COUPLING CR050 ASS'Y] COUPLING CR050 MZZZ0COP009	Part picture
23	COUPLING JOC30 10*10_M6_TAB120	COUPLING JOC30 MZZZ0COP001	Part picture
24	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture
25	SPEAKER MID 4.5"+TW1/2" 8Ω	SPEAKER MZZZ0SPE021	Part picture
26	RFID CHIP READER TW-968	RFID CHIP READER MSPG0PAR001	Part picture
27	COIN SELECTOR TW-389	COIN SELECTOR MZZZ0COS052	Part picture
28	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
29	SPRING HINGE HSS-1.2TX30X25(하)_B143	SPRING HINGE MZZZ0HIN009	Part picture
30	BALL STIR AIR HOSE Ø4X70MM_COATING WIRE	BALL STIR AIR HOSE MSPG0ZZZ001	Part picture
31	CARD ASS'Y_SPG 1BOX 150EA	CARD ASS'Y_SPG ASPG0PAR001	Part picture
32	RFID CHIP ASS'Y 6COLOR_1BOX 300EA	RFID CHIP ASS'Y ASPG0PAR002	Part picture
33	WHITE BALL ASS'Y_SBPB 1BOX 1300EA	WHITE BALL ASS'Y_SBPB ASPG0PAR003	Part picture
34	MAIN BOX ASS'Y WWE_MK7	MAIN BOX ASS'Y AWWE0SYS001	Part picture
34.1	[MAIN BOX ASS'Y] SSD CT120BX500SSD1_MICRON	[MAIN BOX ASS'Y] SSD MZZZ0MEM025	Part picture
34.2	[MAIN BOX ASS'Y] ATX POWER SUPPLY FSP300_60GHT_85	[MAIN BOX ASS'Y] ATX POWER SUPPLY MELE0SMP099	Part picture
35	BCE BRIDGE CAM BUSHING	BCE BRIDGE CAM BUSHING MSPG0PRO001	Part picture
36	BCE BRIDGE SUPPORT SHAFT	BCE BRIDGE SUPPORT SHAFT MSPG0PRO004	Part picture
37	BCE CONVEYOR SUPPORT SHAFT	BCE CONVEYOR SUPPORT SHAFT MSPG0PRO008	Part picture
38	BSE BRAKE BUSHING	BSE BRAKE BUSHING MSPG0PRO024	Part picture
39	BSE BRAKE REAR SHAFT	BSE BRAKE REAR SHAFT MSPG0PRO009	Part picture
40	BSE BRAKE SHAFT	BSE BRAKE SHAFT MSPG0PRO010	Part picture
41	BSE CENTER BUSHING	BSE CENTER BUSHING MSPG0PRO011	Part picture
42	BSE CHUTE SPACER SHAFT	BSE CHUTE SPACER SHAFT MSPG0PRO012	Part picture
43	BSE SPACE BUSHING	BSE SPACE BUSHING MSPG0PRO014	Part picture
44	BILLBOARD LEFT ACRYL FIX SHAFT	BILLBOARD LEFT ACRYL FIX SHAFT MSPG0PRO015	Part picture
45	BILLBOARD RIGHT ACRYL FIX SHAFT	BILLBOARD RIGHT ACRYL FIX SHAFT MSPG0PRO016	Part picture
46	BONUS TARGET LM SHAFT .	BONUS TARGET LM SHAFT MWWE0PRO007	Part picture
47	BONUS TARGET SHAFT BUSHING .	BONUS TARGET SHAFT BUSHING MWWE0PRO008	Part picture
48	CABINET MONITOR SIDE ACRYL FIX SHAFT	CABINET MONITOR SIDE ACRYL FIX SHAFT MSPG0PRO019	Part picture
49	PUSHER BALL SPACE BUSHING	PUSHER BALL SPACE BUSHING MSPG0PRO020	Part picture
50	PIN SHAFT MOLD MOLD	PIN SHAFT MOLD MGHP0PLA004	Part picture
51	ELEVATOR WASHER MOLD MOLD	ELEVATOR WASHER MOLD MGHP0PLA005	Part picture
52	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
53	BCE CONVEYOR BELT URETHANE 1.4T_GREEN	BCE CONVEYOR BELT MSPP0BEL001	Part picture
54	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture
55	MAIN IO PCB ASS'Y SPONGEBOB PIRATES	MAIN IO PCB ASS'Y ASPP0PCB001	Part picture
55.1	[MAIN IO PCB ASS'Y] MAIN IO PCB 20190613	[MAIN IO PCB ASS'Y] MAIN IO PCB PPCB0MUL055	Part picture
56	MONITOR SIDE LED PCB ASS'Y .	MONITOR SIDE LED PCB ASS'Y ASPP0PCB007	Part picture
57	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture
58	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
59	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
60	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
61	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
62	MOTOR DRIVER IO SPONGBOB PIRATES	MOTOR DRIVER IO ASPP0PCB002	Part picture
62.1	[MOTOR DRIVER IO] MOTOR DRIVER IO 190625	[MOTOR DRIVER IO] MOTOR DRIVER IO PPCB0DOU576	Part picture
63	WHEEL FAIL BALL CHECK PCB TRANSMITTING SPONGBOB PIRATES	WHEEL FAIL BALL CHECK PCB TRANSMITTING ASPP0PCB003	Part picture
63.1	[WHEEL FAIL BALL CHECK PCB TRANSMITTING] WHEEL FAIL BALL CHECK PCB TRANSMITTING 190528	[WHEEL FAIL BALL CHECK PCB TRANSMITTING] WHEEL FAIL BALL CHECK PCB TRANSMITTING PPCB0DOU577	Part picture
64	WHEEL FAIL BALL CHECK PCB RECEIVING SPONGBOB PIRATES	WHEEL FAIL BALL CHECK PCB RECEIVING ASPP0PCB004	Part picture
64.1	[WHEEL FAIL BALL CHECK PCB RECEIVING] WHEEL FAIL BALL CHECK PCB RECEIVING 20191204_EMI	[WHEEL FAIL BALL CHECK PCB RECEIVING] WHEEL FAIL BALL CHECK PCB RECEIVING PPCB0DOU586	Part picture
65	AC MOTOR SSR PCB ASS'Y AC MOTOR SSR	AC MOTOR SSR PCB ASS'Y AENS0PCB001	Part picture
66	L6205 HOPPER PCB ASS'Y 공용	L6205 HOPPER PCB ASS'Y AZZZ0PCB141	Part picture
67	SERIAL HUB PCB ASS'Y 공용	SERIAL HUB PCB ASS'Y AZZZ0PCB194	Part picture
67.1	[SERIAL HUB PCB ASS'Y] SERIAL HUB PCB 20180911	[SERIAL HUB PCB ASS'Y] SERIAL HUB PCB PPCB0DOU575	Part picture
68	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture
69	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
70	FLEX_5050_BLUE_1200_NWP_L_72 T5050 TOP 300구 72알	FLEX_5050_BLUE_1200_NWP_L_72 MELE0LED080	Part picture
71	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
72	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
73	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
